Explosion proof centrifugal fans CS EX-ATEX ≤9100 m³/h

Price / CS:
Qty.:

European delivery - 30 days, other countries +7 days.

Ask a question about this item

Ask a question about this item

Explosion proof centrifugal fans CS EX-ATEX ≤9100 m³/h

  • CS EX-ATEX - explosion proof certified centrifugal fans to extract air and fumes through medium/long sized ducts in compliance with ATEX Directive 84/9/EEC effective from July 1st 2003 in EU
  • suitable for applications in commercial and industrial environments where the risk of explosion is high and where the surrounding atmosphere contains gas, vapoursor highly inflammable steam
  • the whole product and not just the electrical parts, has been certified by CESI Institute with CESI n°3 ATEX 250 certificate
  • fan group II, cat. 2 for gases, construction safety C, max surface temp. T3 (200 °C)
  • classified for zones 1 and 2
  • this approval homologation has required specific safety tests and proper examinations on products to verify how the adopted solutions have satisfied the essential Directive requirements
  • steel plated frame protected by an epoxy-based anticorrosive paint and aluminium centrifugal impeller statically and dynamically balanced
  • ball bearing class F insulation motor IP55 protected
  • max temperature of extracted air 40 °C
  • models CS 350, 360, 370 and 380 mounted on rigid base support to make installation easier
  • reference standards: EN 13463-1, EN 13463-5, EN 14986
  • made in Italy - O.ERRE
  • 1 year warranty

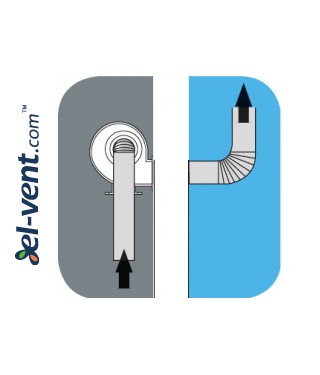

  • it is recomended to install fan with sealing clamps:







Standard product supplied with impeller housing position CCW 270, different positions available on request

Code
A
B
Ø C
D
E
F

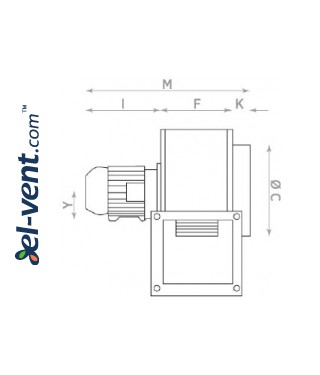

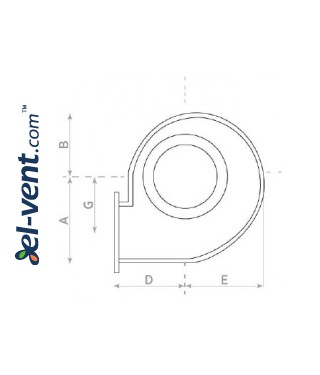

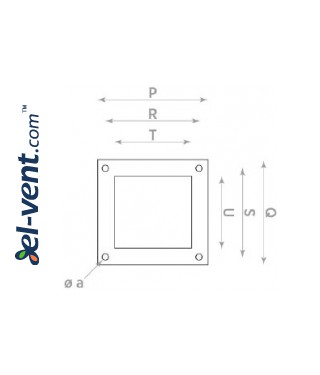

G H Y K I L M N O P Q R S T U z Ø a Ø b
CS310 139 108 180 127 122 94 91 - 63 42 242 - 378 - - 135 135 114 114 88 90 4 8.2 -
CS320 172 128 200 146 150 112 117 - 63 45 242 - 399 - - 152 152 126 126 105 105 4 8.2 -
CS330 209 163 250 147 188 141 139 - 71 40 242 - 423 - - 191 191 165 165 134 134 4 8.2 -
CS340 250 194 250 178 222 164 162 - 80 45 259 - 468 - - 225 235 195 205 161 170 4 8.2 -
CS350 290 225 315 210 260 194 192 245 80 50 259 232 503 120 149 255 255 225 225 191 194 4 8.2 11
CS360 290 225 315 210 260 194 192 245 90 50 300 232 544 120 155 255 255 225 225 191 194 4 8.2 11
CS370 334 244 355 230 250 221 210 350 100 50 354 325 625 170 173 284 305 254 275 313 244 4 10.2 11
CS380 429 315 400 300 370 249 280 350 112 62 358 325 669 170 194 310 360 280 330 241 295 8 9 11
Code
Marking IP class
Phase
N° poles
Voltage, V at 50Hz
Capacity, m³/h
Pressure, Pa
Power, W Current, A Noise level, dB(A)2m Speed, min-1 Weight, kg
230 V 400 V
CS310/4M II 2G c T3 55 I 4 230 500 157 200 1 - 64 1400 10
CS320/4M II 2G c T3 55 I 4 230 720 206 250 1.5 - 67 1400 10
CS310/4T II 2G c T6 55 III 4 230/400 500 157 200 1 0.59 64 1400 11
CS320/4T II 2G c T6 55 III 4 230/400 720 206 250 1.75 1 67 1400 11
CS330/4T II 2G c T6 55 III 4 230/400 1500 373 400 1.9 1.1 70 1400 12
CS340/4T II 2G c T5 55 III 4 230/400 1900 461 1000 3.5 2 73 1400 22
CS350/4T II 2G c T5 55 III 4 230/400 2900 490 1400 4 2.31 76 1400 26
CS360/4T II 2G c T5 55 III 4 230/400 4100 589 1900 5.7 3.3 80 1400 31
CS370/4T II 2G c T5 55 III 4 230/400 5600 716 2500 8.7 5 84 1400 44
CS380/4T II 2G c T5 55 III 4 230/400 9100 1030 4500 15.6 9 88 1400 68



Pressure loss diagrams
