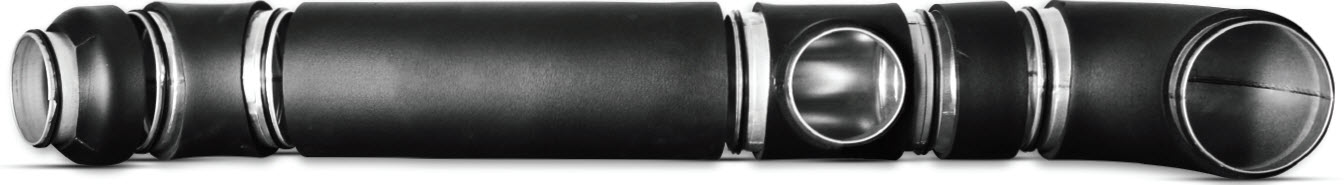

Insulated galvanised ducts for ventilation and air conditioning

Insulated galvanised ducts are made for runs carrying warm or cold air where condensation must not collect. Here you will find ISKO ducts Ø100–200 mm with 9, 13, 19 or 25 mm anti-condensation rubber insulation, as well as insulated bends, tees, transitions, couplings and sealing tapes.

The range includes ISKO insulated ducts, IAG bends, ITTG tees, IRG and IRGI reducers and IMOI and IMOG external couplings. Factory-insulated parts shorten installation, as the ducts do not need to be insulated on site and the insulation layer stays continuous.

We deliver worldwide. Read on at the bottom of the page.

How to choose insulated galvanised ducts

Choose an insulated duct when the air temperature differs from its surroundings: cold air in an air-conditioning run collects condensation on bare metal, and warm air loses heat. Select the insulation thickness by the temperature difference and the diameter by the airflow and the equipment spigot.

Insulated ducts ISKO

Insulated steel ducts ISKO are made of galvanised sheet steel and covered with 9, 13, 19 or 25 mm anti-condensation rubber insulation. They come in 1 or 2 m lengths and Ø100, 125, 150, 160 and 200 mm diameters, with a length tolerance of ±1%. Thermal conductivity under EN 12667: ≤ 0.034 W/mK at −30 °C, ≤ 0.036 W/mK at 0 °C and ≤ 0.040 W/mK at +40 °C.

Insulated fittings

The run is built from insulated 90° bends IAG, insulated T-pieces ITTG (Ø100/80–200/200 mm), insulated transitions IRG and IRGI, where one connection is narrower (inner) and the other wider (outer). The parts are made of galvanised steel, insulated with the same rubber insulation and fitted with rubber gaskets. Ducts are joined by external insulated couplings IMOI and IMOG.

ParameterValue
Duct diametersØ100, 125, 150, 160, 200 mm
Length1 or 2 m
Insulation thickness9, 13, 19 or 25 mm
Thermal conductivity at +40 °C≤ 0.040 W/mK
Materialgalvanised steel + rubber

Sealing and other systems

Seal joints with aluminium tapes AS256, AS251, AS252 or AS291, and in damp places with fabric tapes AS218 or AS215. For uninsulated runs there are galvanised steel ducts, and for bending flexible ducts. If you need a light insulated run for heat recovery, see expanded polypropylene ducts.

Insulated ducts with worldwide delivery

el-vent.com offers insulated galvanised ducts and fittings for ventilation systems. We deliver worldwide. If you are unsure about the insulation thickness or diameter, write to us under Contacts and we will help you choose.

Frequently asked questions
What diameters, lengths and insulation thicknesses do ISKO insulated ducts come in?

ISKO come in Ø100, 125, 150, 160 and 200 mm, 1 or 2 m long, with 9, 13, 19 or 25 mm anti-condensation rubber insulation. The length tolerance is ±1%.

When do I need an insulated duct instead of a plain galvanised one?

When the air in the duct differs strongly in temperature from its surroundings, for example cold air from an air conditioner. Insulation prevents condensation and reduces heat loss. For ordinary runs uninsulated galvanised ducts are enough.

What thermal conductivity does the duct insulation have?

Under EN 12667 the thermal conductivity is ≤ 0.034 W/mK at −30 °C, ≤ 0.036 W/mK at 0 °C and ≤ 0.040 W/mK at +40 °C.

Which fittings are available for insulated runs?

90° bends IAG, T-pieces ITTG, transitions IRG and IRGI, and external couplings IMOI and IMOG. All are insulated with 9–25 mm rubber insulation and have rubber gaskets.

How do I seal the joints of insulated ducts?

Wrap the joints with aluminium tape such as AS256 (−40…+120 °C). In damp surroundings the fabric tape AS218 suits well.
