Quiet duct fan DVPP Silent
| Price / DVPP Silent: |
Select
|
| Speed switch: |
Select
|
Qty.:
EU shipping 14 days, non EU 21 days
Ask a question about this item
Ask a question about this item

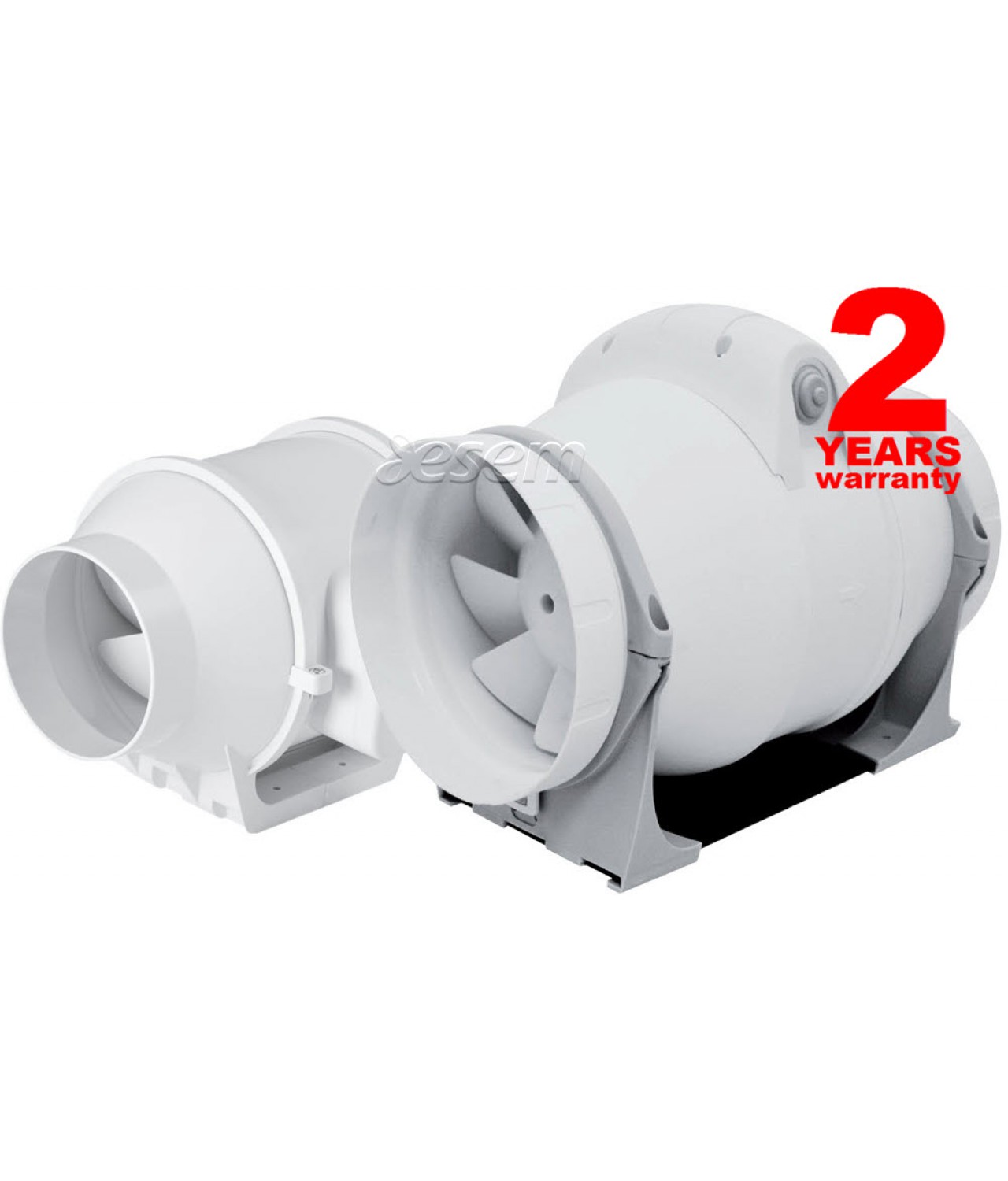

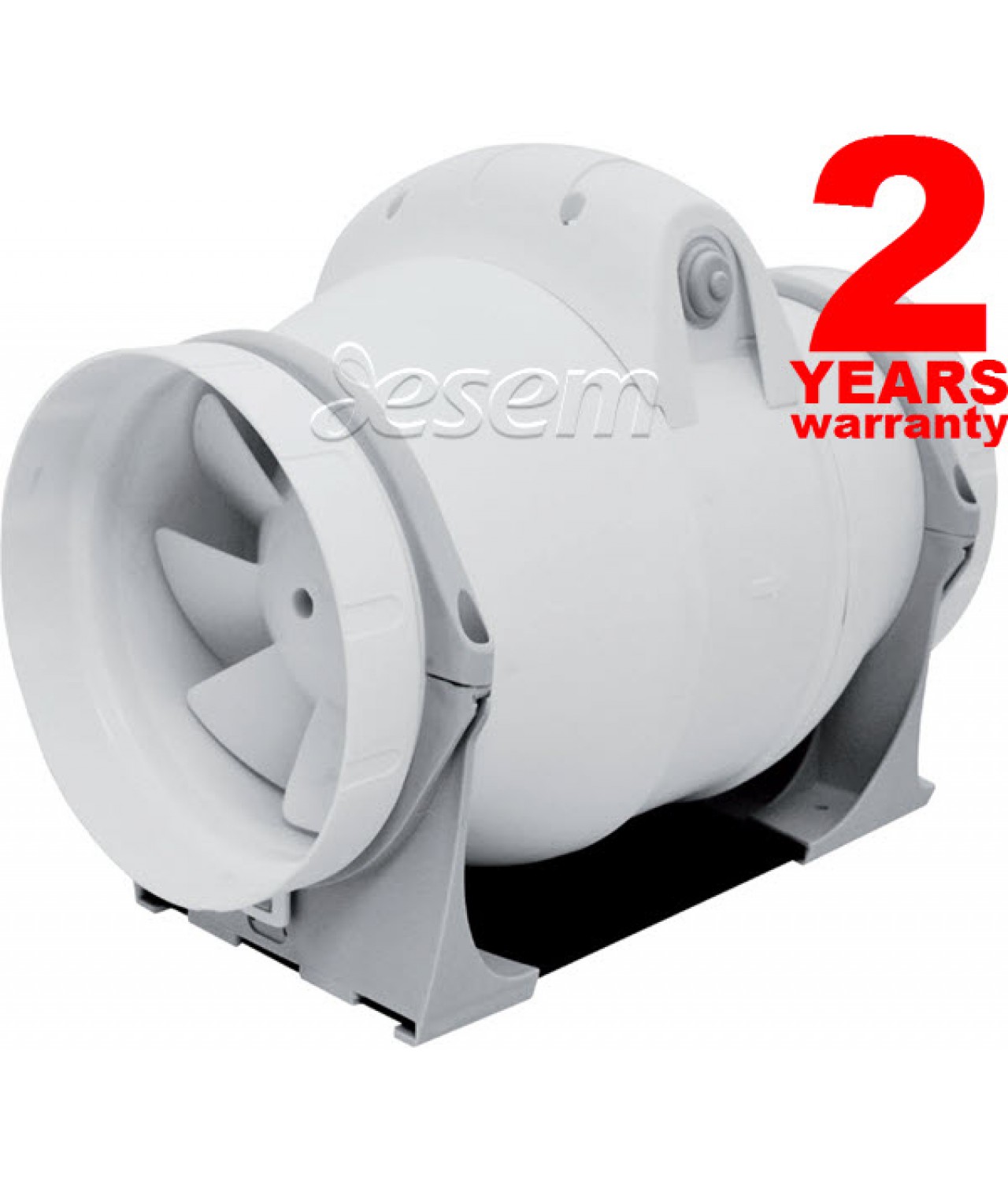

Quiet duct fan DVPP Silent
- DVPP Silent - quiet fan with ball bearings
- one speed models - Ø150-160-200-250 mm, two speed models - Ø100-125-315 mm
- housing made from mechanically durable plastic
- with mounting bracket
- with connection cable
- made in China Ø100-125 mm
- made in Turkey Ø315-250-200-160-150 mm
- 2 years warranty
- Attention! If you want to install the fan on the cooker hood, you must install special filters before the fan to fully clean the contaminated air. These fans are designed to transport clean air. If the fan is installed without filters, the fan is not covered by the warranty.
- it is recommended to control the speed through the three-speed controller (if the fan has two speeds, use the first two connection terminals in speed controller):
- it is recomended to install fan with sealing clamps:
Brand: ESEM
DVPP100
DVPP125
| Code |
A
|
B
|
C
|
D
|
E
|
| DVPP150 (KAP) | 146 | 290.5 | 242 | 60 | 80 |
|
DVPP160 (KAP)
|
156
|
271
|
242
|
60
|
80
|
| DVPP160X (KAF) | 156 | 271 | 242 | 60 | 80 |
| DVPP200 (KAF) | 191 | 300 | 263 | 94 | 100 |
| DVPP250 (KAF) | 246 | 393 | 325 | 110 | 140 |
| Code |
A
|
B
|
C
|
D
|
E
|
G
|
H | N |
| DVPP315 (BMFX) | 446 | 357 | 216 | 312 | 187 | 181 | 216 | 7x4 |
|
Code
|
Voltage, V | Capacity, m³/h |
Current, A
|
Power, W
|
Pressure, Pa |
Noice level, dB
|
Working temp., °C
|
Protection class IP
|
|
DVPP100
|
220-240 | 143/170 |
0.12/0.14
|
20/29
|
107/152 |
31
|
-20 - +60
|
44
|
| DVPP125 | 220-240 | 190/226 | 0.12/0.14 | 20/29 | 102/145 | 31 | -20 - +60 | 44 |
| DVPP150 | 230 | 444 | - | 75 | - | 33 | -20 - +50 | 44 |
| DVPP160 | 230 | 490 | - | 75 | - | 33 | -20 - +50 | 44 |
| DVPP160X | 230 | 560 | 0.6 | 75 | 265 | 33 | -20 - +50 | 44 |
| DVPP200 | 230 | 1012 | 0.64 | 111 | 300 | 36 | -20 - +50 | 44 |
| DVPP250 | 230 | 1350 | 1.07 | 280 | 350 | 38 | -20 - +50 | 44 |
| DVPP315 | 230 | 1750/2206 | 1.4/1.9 | 275/390 | 600/890 | 38/42 | -20 - +40 | 44 |
Connection to the power supply DVPP100-125-315
Connection to the power supply DVPP150-160-200-250
Pressure loss diagrams:
DVPP100
DVPP125
DVPP150
DVPP160
DVPP160X
DVPP200
DVPP250

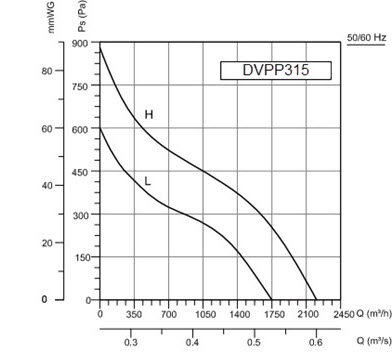

DVPP315
