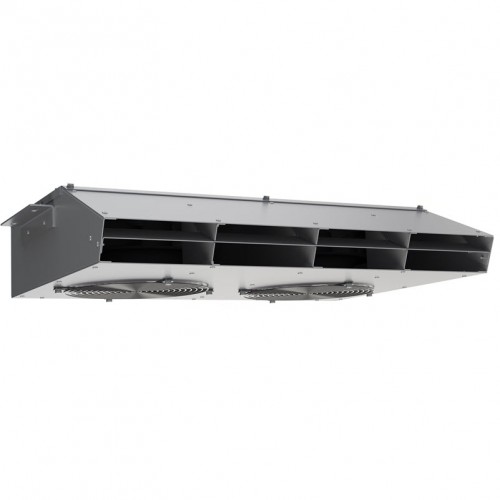

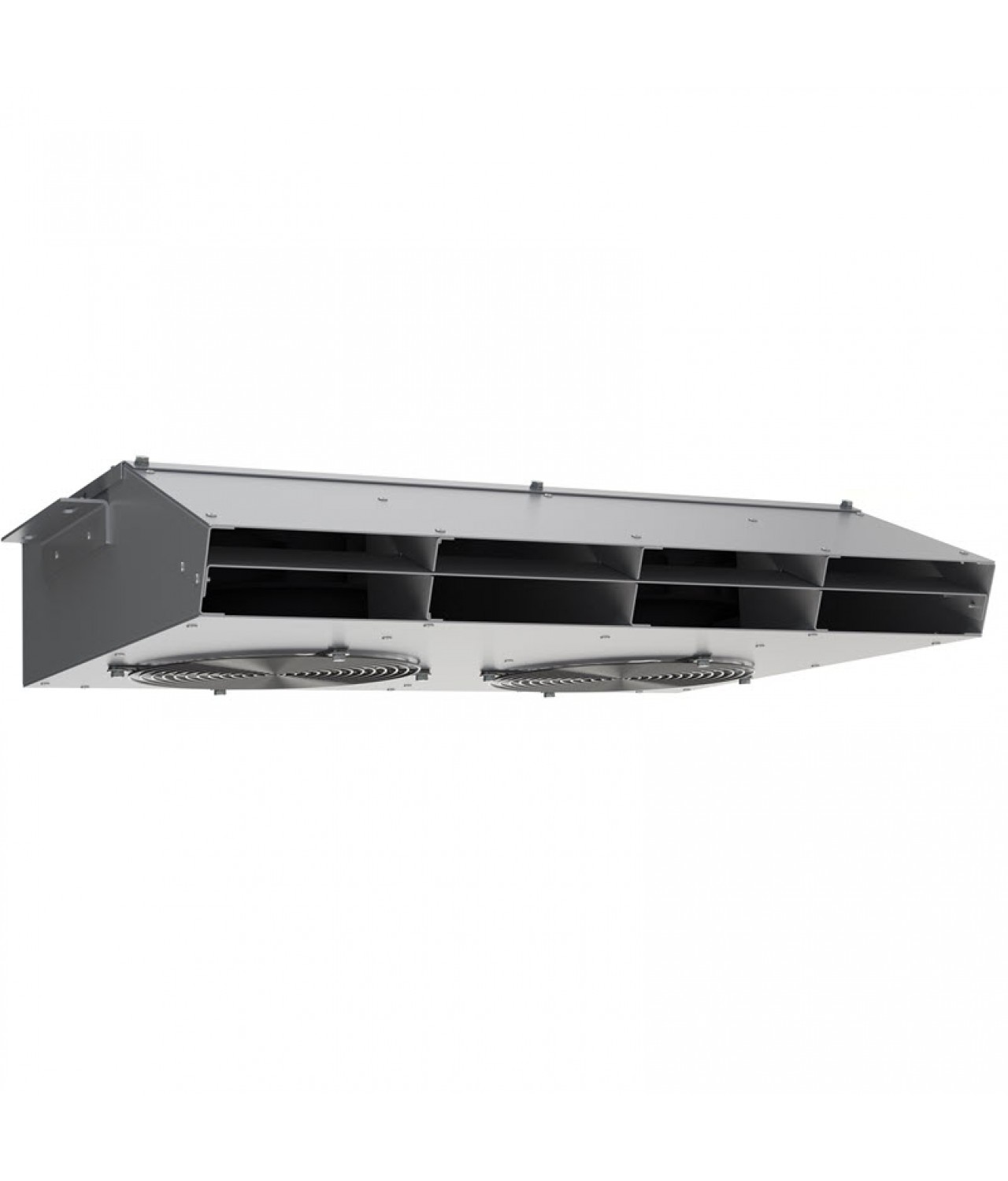

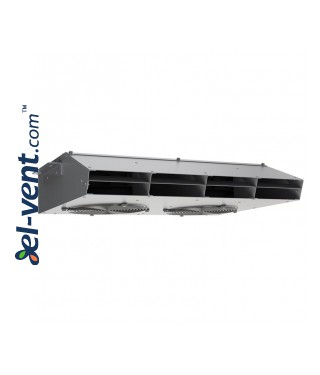

CC-JCS - compact centrifugal induction fans designed for complete removal of polluted air, CO, cold smoke from parking lots and car service stations

• CC-JCS - compact centrifugal induction fans designed for the complete removal of polluted air, CO, cold fumes from car parks and auto repair shops
• thanks to their extremely compact dimensions they can be easily installed in garages with significant height limitations
• this series is suitable for continuous running in a temperature range from -20 °C to +50 °C
• the special impulse and induction fans technology represents the most innovative and cost-effective alternative to traditional duct mechanical extraction systems: the drastic reduction of installation costs (complete removal of ducted and grilled systems) and the considerable running cost savings ensured by the system distinctive features (ventilation / extraction can be partial and only if necessary) are only two of the multiple benefits of car park ventilation systems based on JET fans
• thurst up to 14 N

CONSTRUCTION

• housing in electrochemically galvanized steel sheet
• provided with 2 high-efficient backward centrifugal impellers in plastic material (PA)
• protection guard on inlet side in drawn steel rod
• fixing brackets in galvanized steel sheet for ceiling/wall installation supplied preassembled
• terminal box IP55
• available in 2 models: EC or AC motors

MOTOR

• AC 230V / 50–60 Hz synchronous motors suitable for continuous service. CE marking
• IP44 protected, compliant with international standards EN 60035-1
• EC 200–240V / 50–60 Hz synchronous motors suitable for continuous service. CE marking
• IP54 protected, compliant with international standards EN 60035-1

Dimensions

Technical data
