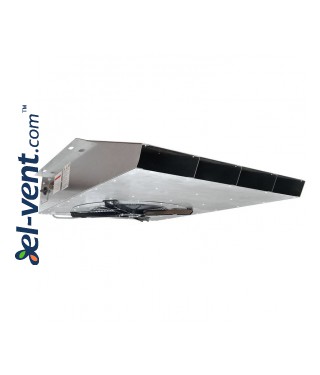

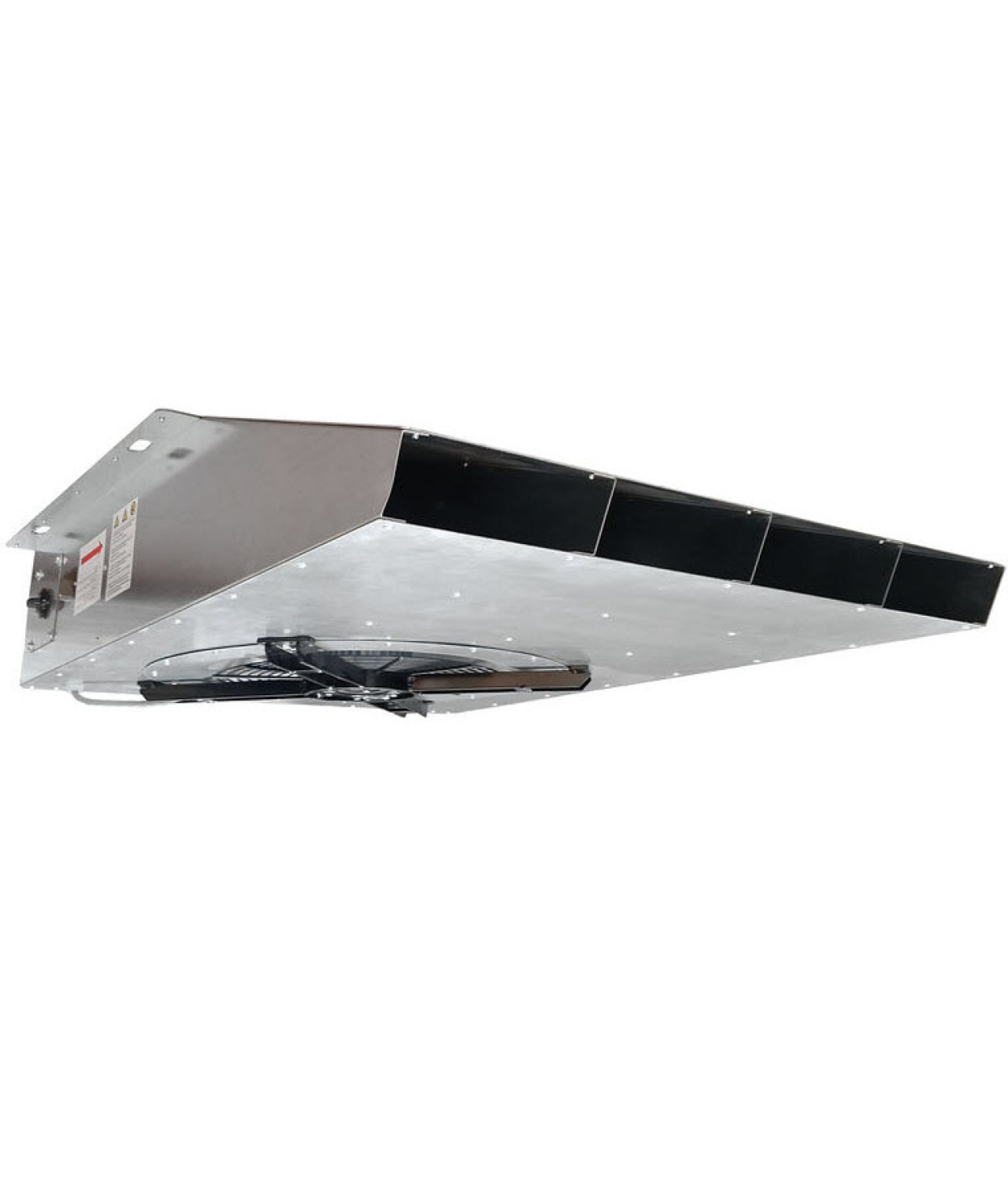

CC-JC - compact centrifugal induction fans designed for complete removal of polluted air, CO, cold smoke from parking lots and car service stations

• CC-JC - compact centrifugal induction fans designed for complete removal of polluted air, CO, cold smoke from parking lots and car service stations
• thanks to their extremely compact dimensions they can be easily installed in garages with significant height limitations
• this series is suitable for continuous running in a temperature range from -20 °C to +50 °C
• the special impulse and induction fans technology represents the most innovative and cost-effective alternative to traditional duct mechanical extraction systems: the drastic reduction of installation costs (complete removal of ducted and grilled systems) and the considerable running cost savings ensured by the system distinctive features (ventilation / extraction can be partial and only if necessary) are only two of the multiple benefits of car park ventilation systems based on JET fans
• thurst up to 110 N

CONSTRUCTION

• hub impeller and airfoil profile blades made of steel sheet. balanced according to iso 1940 standard
• housing made of electrolytically galvanized steel sheet
• protective guard installed on the inlet side
• mounting brackets made of galvanized steel sheet for ceiling or wall installation, supplied pre-assembled
• service switch installed, suitable for high-temperature operation

MOTOR

• asynchronous three-phase motors 380–420 v, 50 hz according to international standards iec 60034, iec 60072, emc 2014/30/eu, lvd 2014/35/eu
• motors suitable for direct on line (dol) starting
• ce marked. protection class ip55, insulation class f
• version 4 (with impeller directly coupled to motor and mounted on feet)
