Axial fans WOC ≤1520 m³/h
EU shipping 14 working days, non EU 21 working days
Ask a question about this item
Ask a question about this item

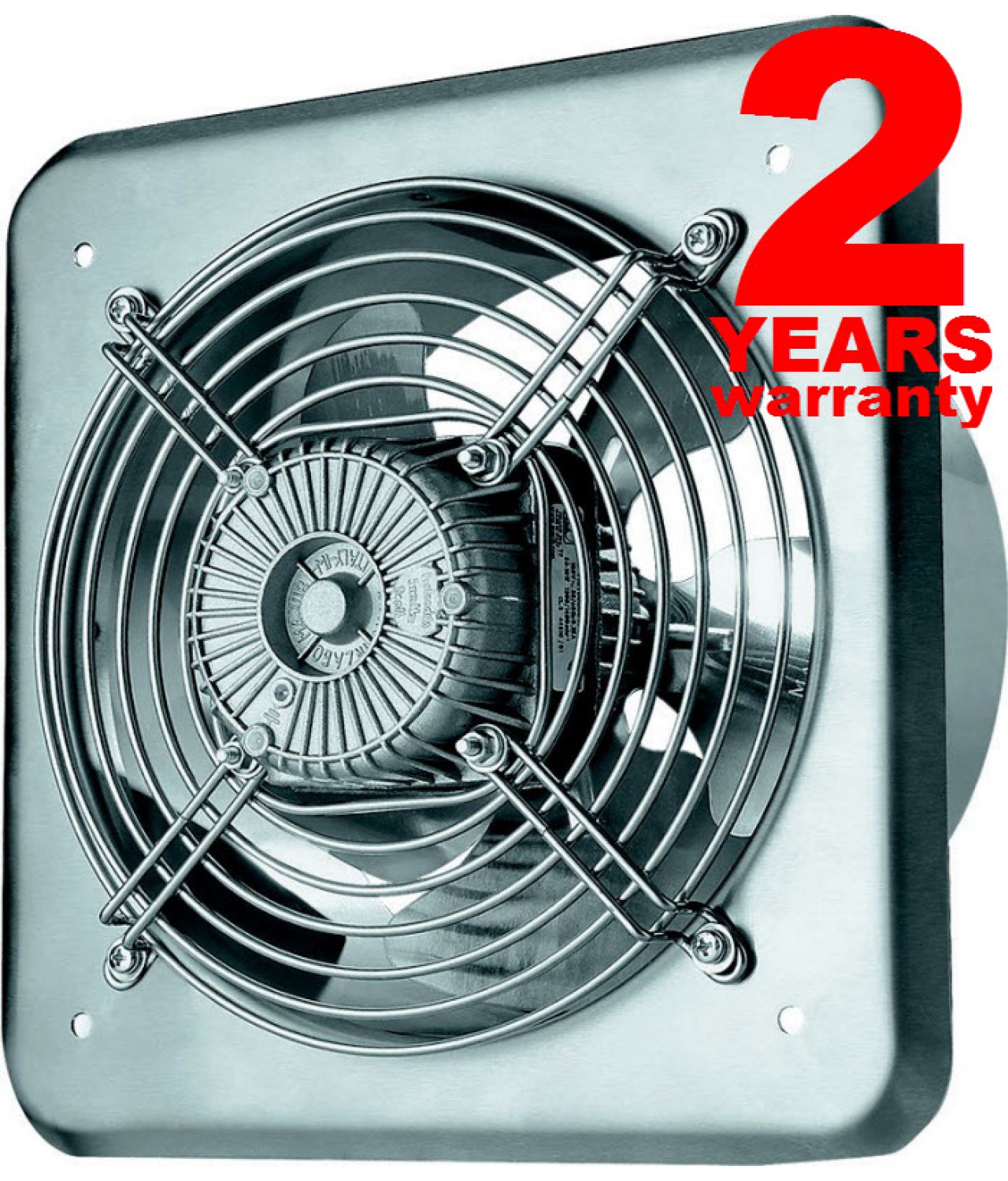

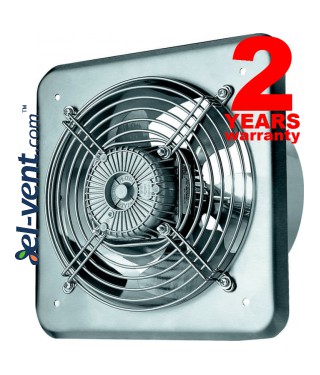

Axial fans WOC ≤1520 m³/h
- Attention! This series is sold out. We recommend the more powerful and higher performance AXIS models
- for medium and large room ventilation
- galvanized steel housing
- with protection grilles
- fastened with screws (supplied)
- max. temperature of extracted air 40 °C
- made in Poland
- 2 years warranty
- in the outer side of the wall it is recommended to install gravity louvers
Brand: ESEM
|

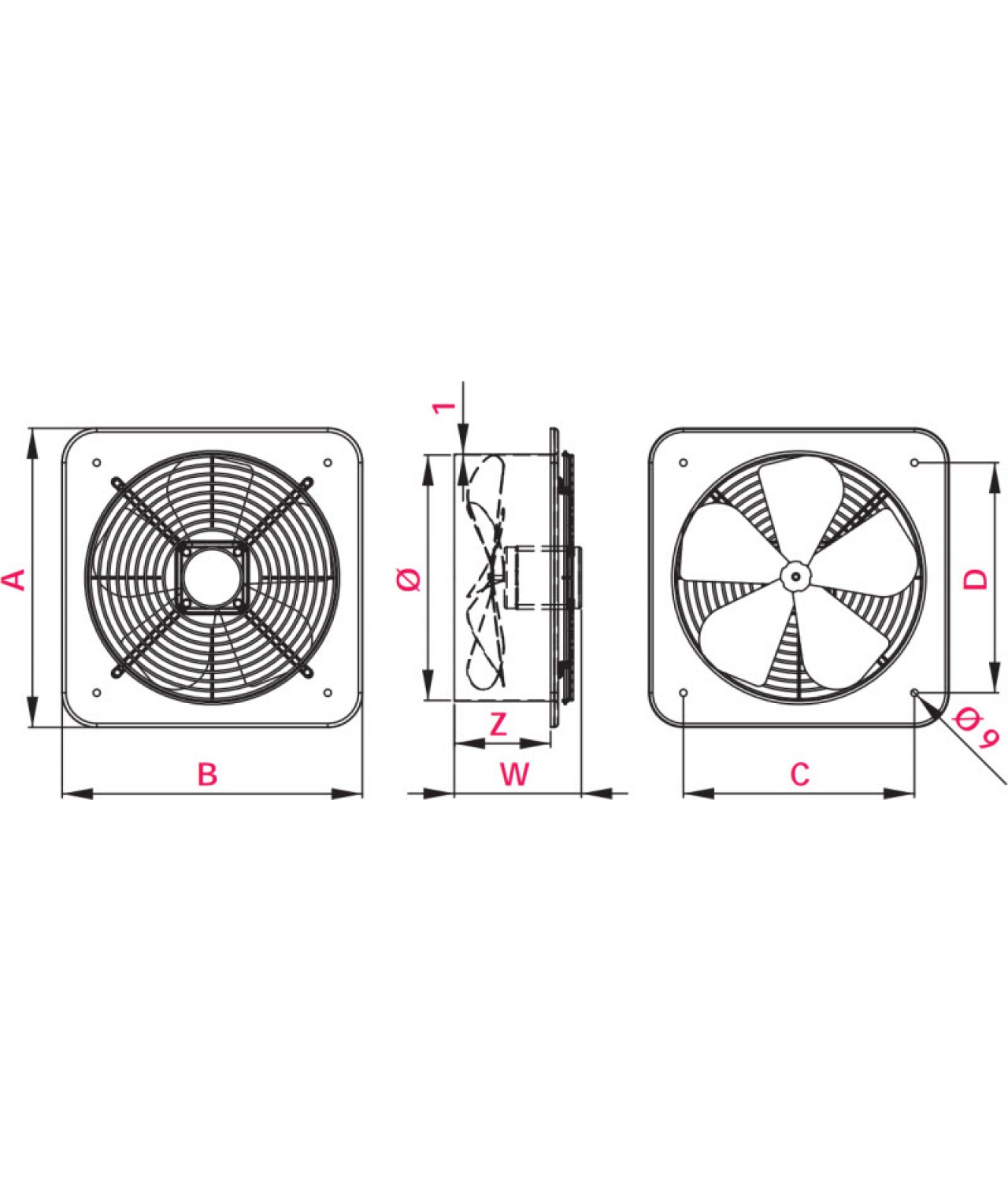

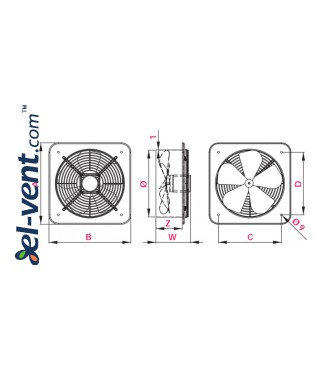

Code
|
Ø
|
A
|
B
|
C
|
D
|
W
|
Z
|
|
WOC210
|
210
|
280
|
280
|
200
|
200
|
120
|
80
|
| WOC320 | 320 | 390 | 390 | 305 | 305 | 170 | 132 |
| Code |
Voltage, V
|
Frequency, Hz
|
Power, W
|
Speed, min-1
|
Power, m³/h
|
Noise level, dB
|
Protection class IP
|
Pressure,
Pa
|
|
WOC210
|
230
|
50
|
31
|
1400
|
470
|
42
|
X2
|
65 |
| WOC320 | 230 | 50 | 110 | 1350 | 1520 | 46 | X2 | 120 |
Speed controllers (Attention! If you choose an electronic speed controller, the fan may emit an extraneous sound, the speed change will not be consistent, so we strongly recommend choosing a transformer speed controller):
| Jetline100-160 | Jetline200-315 |
| EMTY05 - 0.5 A (fan may make noise) | EETY15/EETX15 - 1.5 A (fan may make noise) |
 |
 |
| Jetline100-315 | |
| 5 step, transformer ESTR-1-10L10 - 1.0 A | |
 |
|
