    • Price:

SEARCH
Price / AVMACH:
Select
  • 40 697.30 €
  • 50 754.27 €
  • 56/1 814.35 €
  • 56/2 884.46 €
  • 56/3 924.51 €
  • 63/1 980.22 €
  • 63/2 1,019.64 €
  • 63/3 1,061.58 €
  • 71/1 1,114.80 €
  • 71/2 1,171.13 €
  • 71/3 1,341.38 €
  • 80/1 1,306.34 €
  • 80/2 1,476.59 €
  • 80/3 1,566.73 €
  • 100AM 1,690.66 €
  • 100AD 2,065.59 €
  • 120AM 2,382.32 €
  • 120AD 3,541.55 €
Qty.:

European delivery - 30 days, other countries +7 days.

Ask a question about this item

Ask a question about this item

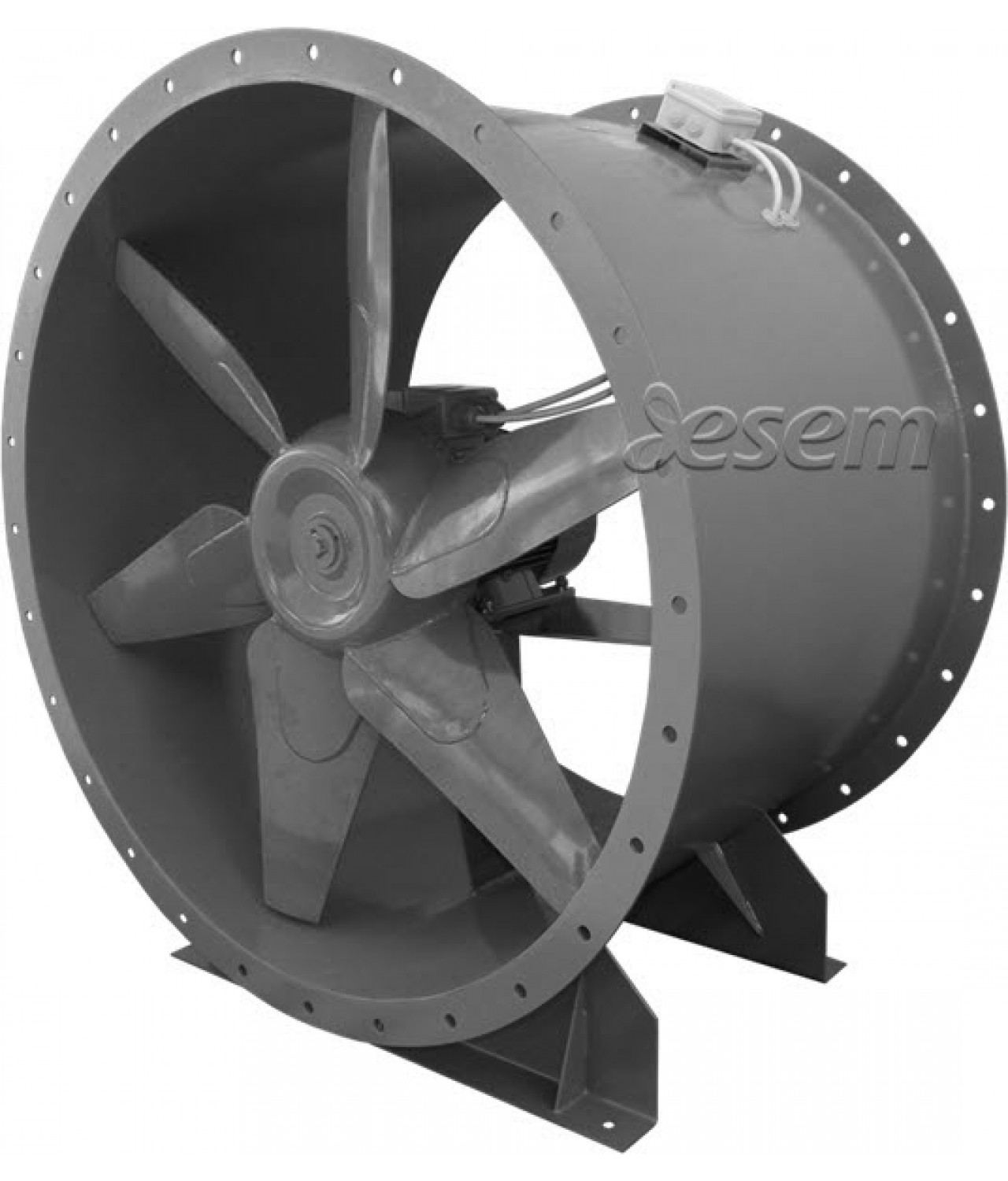

High performance axial duct fans AVMACH ≤82800 m³/h

  • AVMACH - Ø400-1200 mm high performance axial duct fans for direct air and steam transporting through duct systems
  • body and impeller in steel, coated with a corrosion resistant powder coating
  • III phase motor IP55 protected, speed can be regulated through industrial controllers
  • suitable for commercial and industrial environments
  • max. temperature of extracted air 40 °C
  • made in Poland
  • 2 years warranty

Brand: ESEM

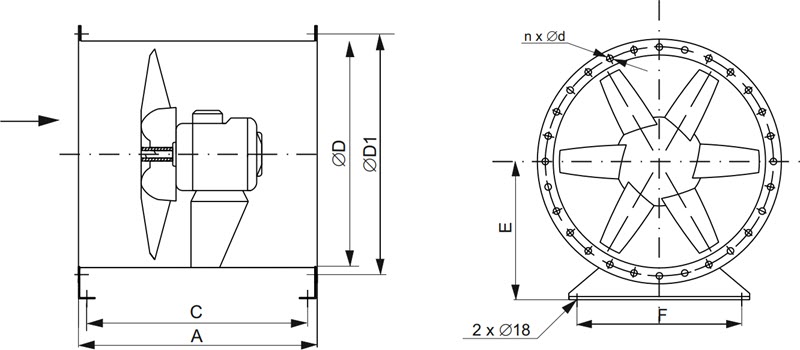

Code
AVMACH
ØD
ØD1 A B E C F
nxØd
40 400 438 440 - 260 385 300 4x9.5
50 500 538 450 - 310 395 370 8x9.5
56 560 600 500 - 370 310 340 12x9.5
63 630 670 540 - 405 350 460 12x9.5
71 710 750 550 - 445 410 510 12x9.5
80 800 840 630 - 550 550 580 16x9.5
100A 1000 1073 700 140 600 400 700 24x15
120A 1200 1273 850 150 750 550 840 28.19



Ø40-80 mm



Ø100-120 mm

Code
AVMACH
IP class
Phase
Voltage, V at 50 Hz
Capacity, m³/h
Pressure, Pa
Power, W Noise level, dB(A)1m Current, A Speed, min-1 Weight, kg
40 55 III 400 5000 51 250 75 0.71 1400 40
50 55 III 400 8250 83 370 77 0.98 1400 41
56/1 55 III 400 7900 200 550 78 1.6 1400 43
56/2 55 III 400 12200 210 1100 82 2.7 1400 52
56/3 55 III 400 14200 218 1500 86 3.7 1400 55
63/1 55 III 400 12600 190 1100 86 2.7 1400 56
63/2 55 III 400 15800 225 1500 86 3.7 1400 59
63/3 55 III 400 19900 250 2200 88 5.2 1400 66
71/1 55 III 400 19800 270 2200 82 5.2 1400 111
71/2 55 III 400 25200 320 3000 83 6.9 1400 115
71/3 55 III 400 28800 340 4000 85 8.3 1400 123
80/1 55 III 400 25300 320 3000 85 6.9 1400 122
80/2 55 III 400 32700 360 4000 85 8.3 1400 130
80/3 55 III 400 37800 380 5500 86 11.1 1400 144
100AM 55 III 400 29830 137 3000 92 6.9 950 210
100AD 55 III 400 46400 330 7500 100 14.4 1400 220
120AM 55 III 400 61200 195 5500 92 12 950 310
120AD 55 III 400 82800 450 18500 105 32.2 1400 406



Pressure loss diagrams
