High performance smoke exhaust axial duct fans AXI F300/2H ≤95270 m³/h
High performance smoke exhaust axial duct fans AXI F300/2H ≤95270 m³/h
High performance smoke exhaust axial duct fans AXI F300/2H ≤95270 m³/h
Price / AXI F300/2H:
Select
  • AXI F300/2H 450-5-25
  • AXI F300/2H 500-5-25
  • AXI F300/2H 560-5-25
  • AXI F300/2H 630-5-30
  • AXI F300/2H 710-5-30
  • AXI F300/2H 800-5-30
  • AXI F300/2H 800-5-35
  • AXI F300/2H 900-5-35
  • AXI F300/2H 900-5-40
  • AXI F300/2H 1000-5-40
  • AXI F300/2H 900-8-40
  • AXI F300/2H 1000-8-40
  • AXI F300/2H 1000-8-45
  • AXI F300/2H 1120-8-40
Qty.:

European delivery - 30 working days, other countries +7 working days.

Ask a question about this item

Ask a question about this item

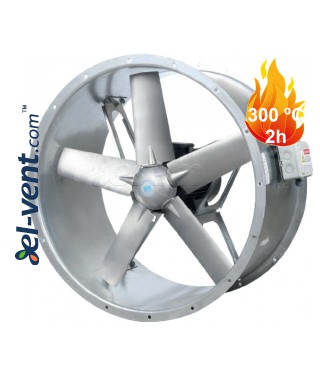

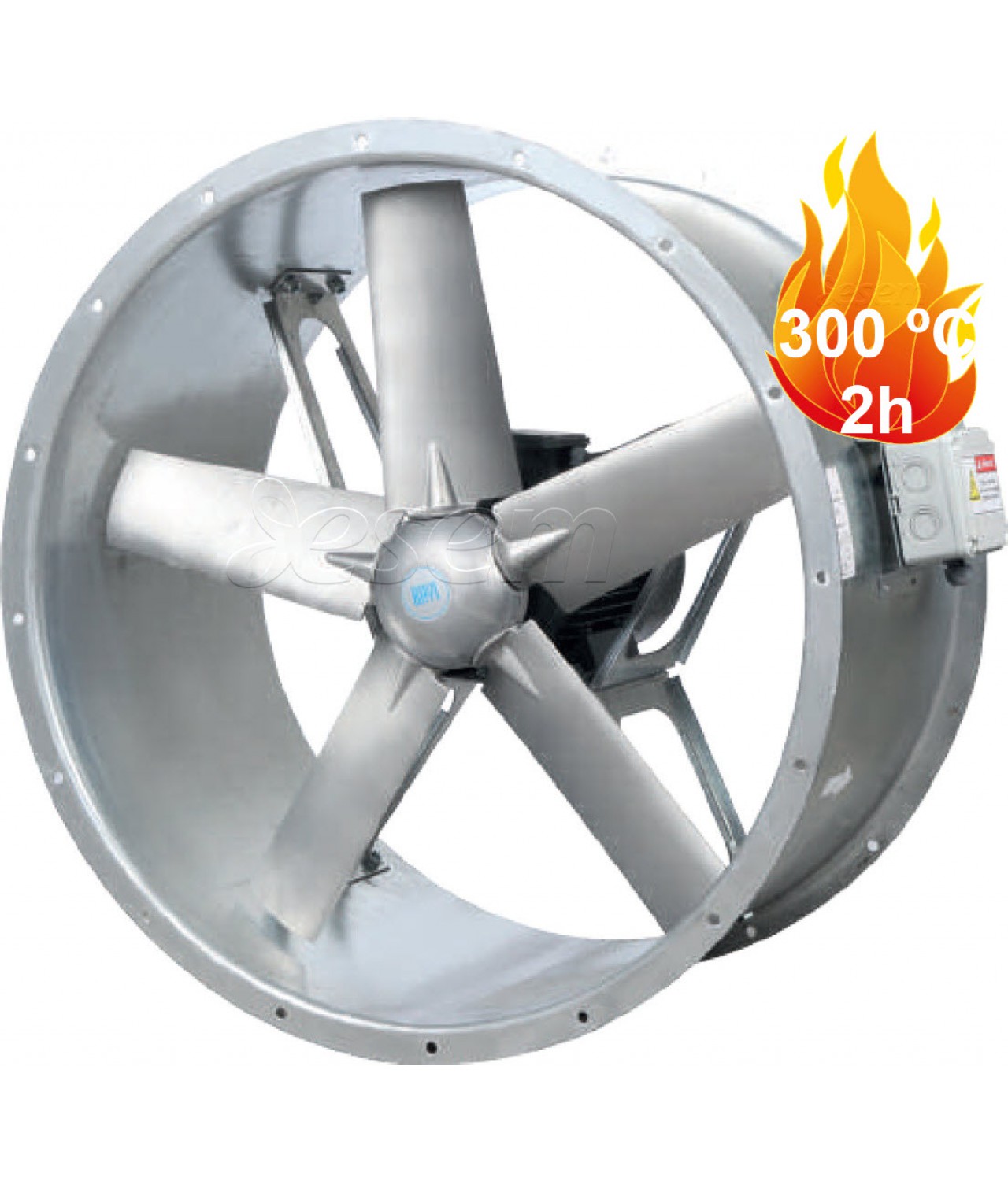

High performance smoke exhaust axial duct fans AXI F300/2H ≤95270 m³/h

  • AXI F300/2 - Ø530-1200 mm high performance smoke exhaust axial duct fans
  • F300 °C / 2H
  • motor insulation class - H
  • motor efficiency class - IE1-IE2
  • body made from galvanized sheet metal
  • impeller made from aluminium
  • III phase motor IP55 protected, speed can be regulated through industrial controllers
  • suitable for commercial and industrial environments
  • max. temperature of extracted air 50 °C
  • complies with IEC-60335-2-80, ISO 1940-1
  • made in Turkey
  • 2 years warranty

Brand: ESEM
Code
AXI F300/2H
A
B C D N (number of holes)
450-5-25  450 530 320 50 8
500-5-25 500 580 320 70 8
560-5-25 560 640 320 60 12
630-5-30 630 710 420 45 12
710-5-30 710 790 420 25 12
800-5-30 800 880 420 50 16
800-5-35 800 880 420 50 16
900-5-35 900 980 520 0 16
900-5-40 900 980 520 35 16
1000-5-40 1000 1080 520 150 16
900-8-40 900 980 520 75 16
1000-8-40 1000 1080 520 180 16
1000-8-45 1000 1080 520 250 16
1120-8-40 1120 1200 520 250 16
1120-8-45 1120 1200 520 300 16

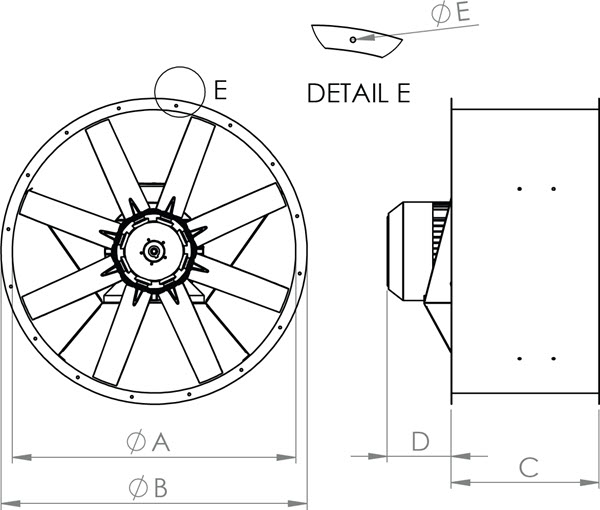

Kanalinio ventiliatoriaus AXI brėžinys



Code
AXI F300/2H
IP class Phase Voltage, V at 50 Hz Capacity, m³/h Power, W Noise level, dB(A) Speed, min-1
450-5-25 55 III 380 4180 550 69 1456
500-5-25 55 III 380 5845 550 72 1453
560-5-25 55 III 380 8150 750 75 1466
630-5-30 55 III 380 13480 1100 80 1465
710-5-30 55 III 380 19210 1500 83 1472
800-5-30 55 III 380 25560 2200 85 1459
800-5-35 55 III 380 30940 3000 89 1463
900-5-35 55 III 380 39250 4000 90 1471
900-5-40 55 III 380 44635 5500 93 1472
1000-5-40 55 III 380 54570 7500 94 1478
900-8-40 55 III 380 46200 11000 94 1454
1000-8-40 55 III 380 62250 15000 97 1456
1000-8-45 55 III 380 69070 18500 99 1458
1120-8-40 55 III 380 86620 22000 100 1471
1120-8-45 55 III 380 95270 30000 102 1474

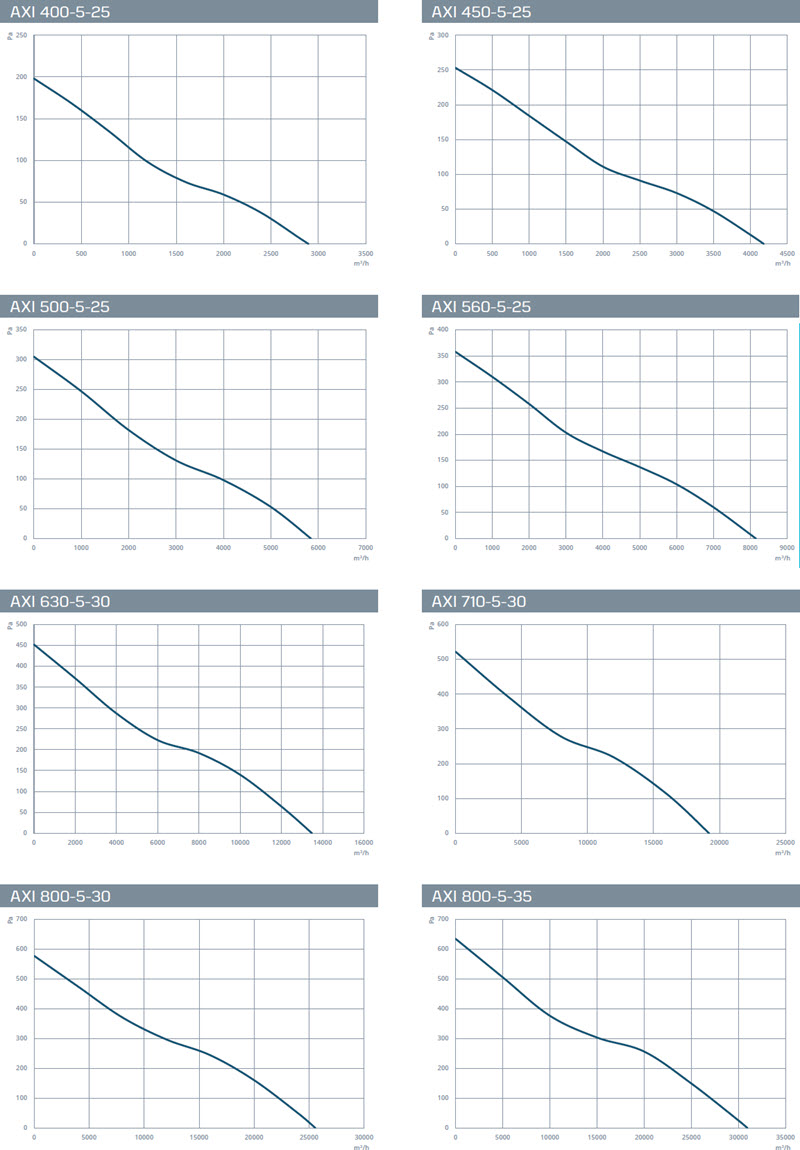

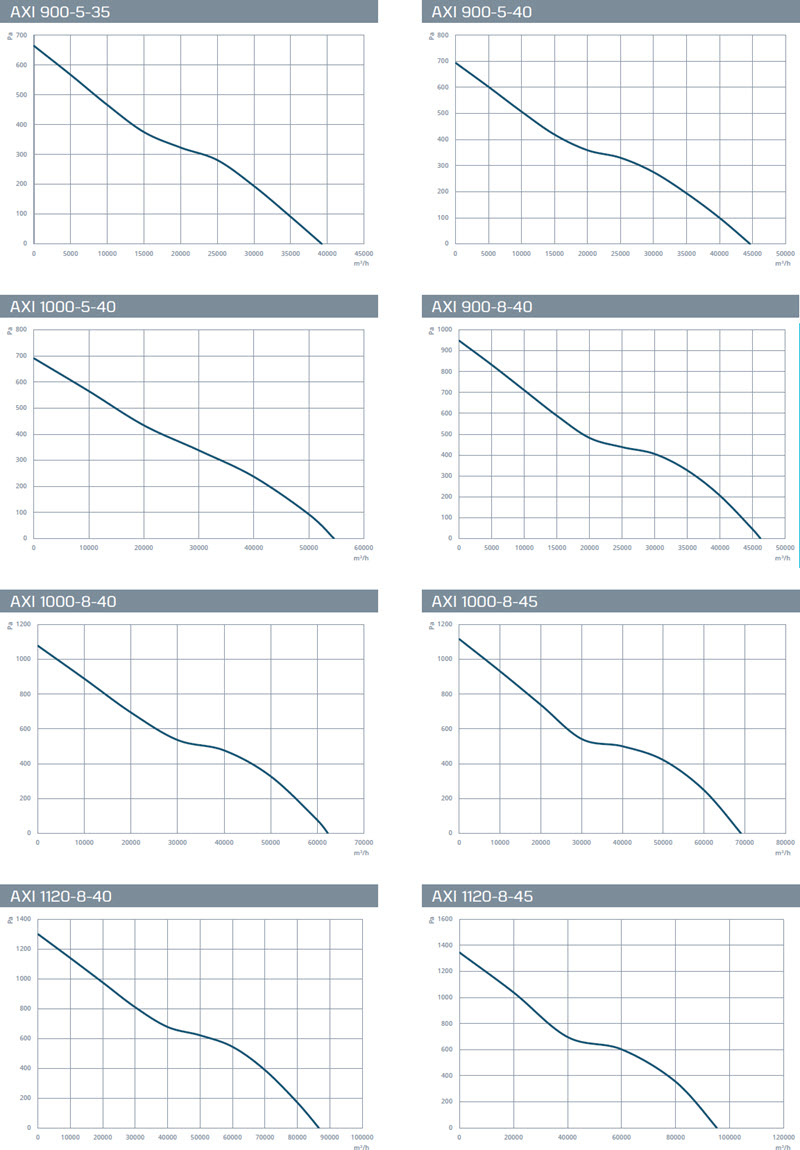

Pressure loss diagrams
