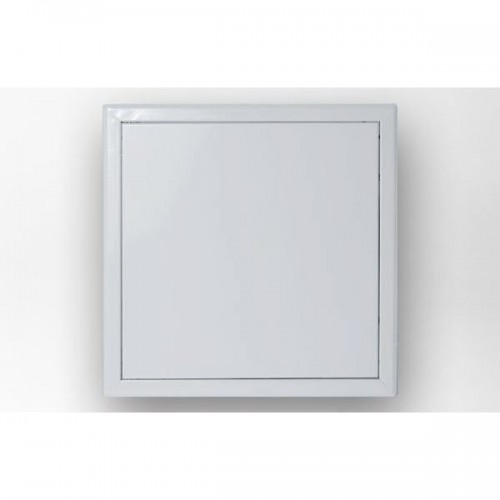

STEEL-CLICK™ – metal access panels for walls and ceilings
STEEL-CLICK™ – metal access panels for walls and ceilings

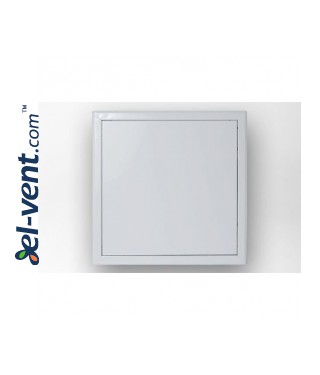

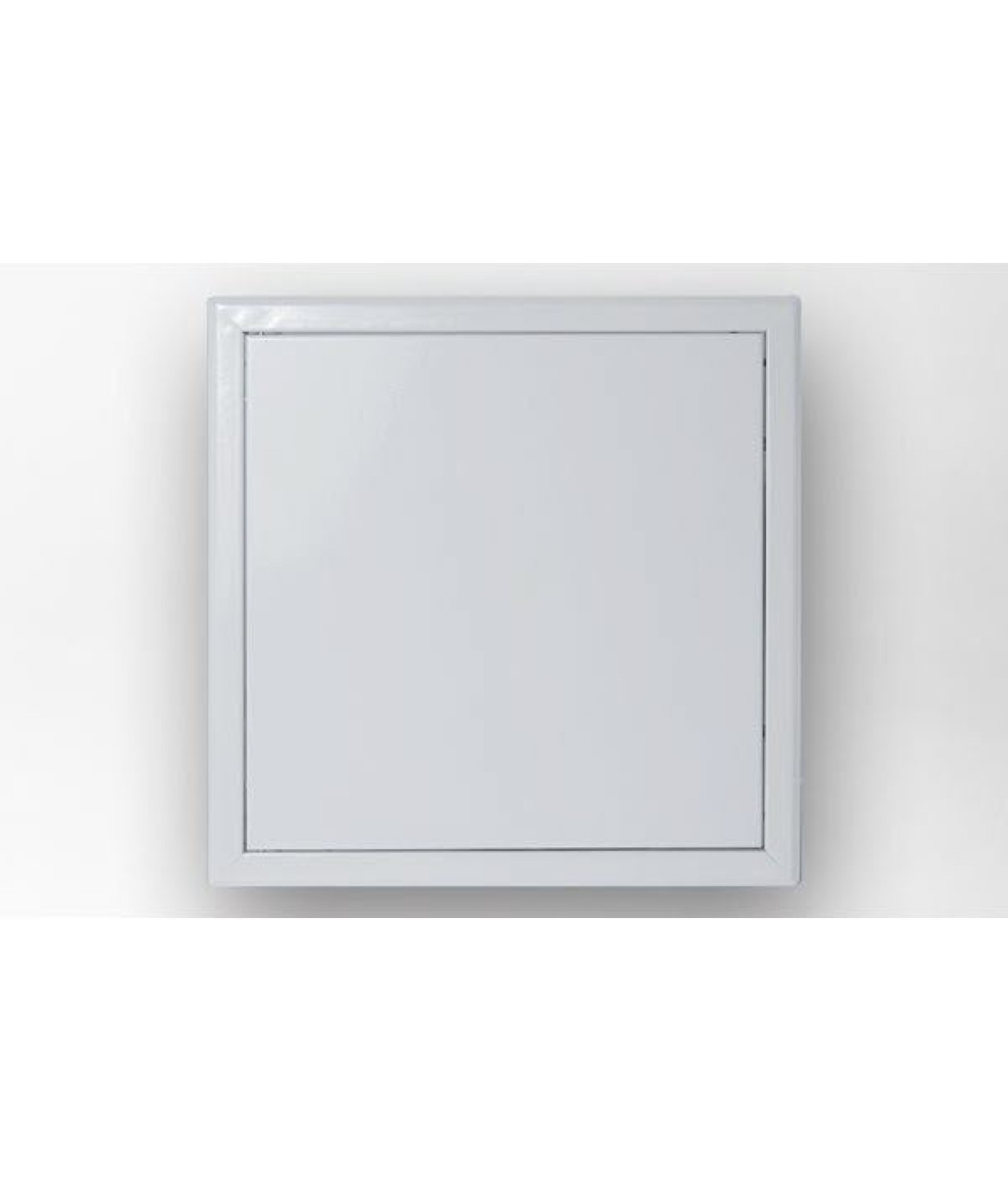

STEEL-CLICK™ – metal access panels made of white painted steel, designed for installation in walls and ceilings. The access panels are equipped with a click-clack closing mechanism.
- designed for installation in walls and ceilings
- frame made of white painted steel
- door frame made of white painted steel
- click-clack closing mechanism
- without sealing gasket
- without SHARK™ profile
- suitable for installation thicknesses of 13, 15 or 25 mm
- standard sizes – 200x200, 300x300, 400x400, 500x500 and 600x600 mm
- the manufacturer's catalogue includes special sizes up to 900x900 mm
- for significant projects, the manufacturer can produce access panels in custom sizes from 120x120 mm
- manufacturer – AKIFIX®, Italy
According to the manufacturer's catalogue, custom-sized access panels have a minimum order quantity of 10 pcs and the stated delivery time is 5 weeks.
Brand: Akifix
STEEL-CLICK™ – metal access panels for walls and ceilings – dimensions and product codes
STEEL-CLICK™ metal access panels are suitable for installation thicknesses of 13, 15 or 25 mm. The standard and special sizes specified in the manufacturer's catalogue are listed below.
| Product code | Dimensions, mm | Unit weight, kg |
| NAMCP04000 | 200x200 | 0.50 |
| NAMCP04001 | 300x300 | 0.90 |
| NAMCP04002 | 400x400 | 1.50 |
| NAMCP04005 | 500x500 | 2.20 |
| NAMCP04003 | 600x600 | 3.00 |
| NAMCP04068 | 200x400 | – |
| NAMCP04070 | 200x600 | – |
| NAMCP04055 | 300x500 | – |
| NAMCP04031 | 300x600 | – |
| NAMCP04027 | 400x600 | – |
| NAMCP04083 | 400x800 | – |
| NAMCP04064 | 400x1000 | – |
| NAMCP04057 | 500x1000 | – |
| NAMCP04006 | 600x800 | – |
| NAMCP04058 | 600x1000 | – |
| NAMCP04004 | 600x1200 | – |
| NAMCP04056 | 800x800 | – |
| NAMCP04060 | 800x1000 | – |
| NAMCP04059 | 900x900 | – |
– weight is not specified in the manufacturer's catalogue.
STEEL-CLICK™ – metal access panels for walls and ceilings – technical information
| Manufacturer | AKIFIX®, Italy |
| Series | STEEL-CLICK™ |
| Installation location | walls and ceilings |
| Frame material | white painted steel |
| Door frame material | white painted steel |
| Sealing gasket | no |
| SHARK™ profile | no |
| Closing mechanism | click-clack |
| Installation thickness | 13, 15 or 25 mm |
| Standard sizes | 200x200, 300x300, 400x400, 500x500 and 600x600 mm |
| Special sizes listed in the catalogue | 200x400, 200x600, 300x500, 300x600, 400x600, 400x800, 400x1000, 500x1000, 600x800, 600x1000, 600x1200, 800x800, 800x1000 and 900x900 mm |
| Custom-made sizes | from 120x120 mm |
STEEL-CLICK™ – metal access panels for walls and ceilings – installation instructions
STEEL-CLICK™ metal access panels are designed for installation in walls and ceilings.
The manufacturer's catalogue specifies that the access panels are suitable for installation thicknesses of 13, 15 or 25 mm.

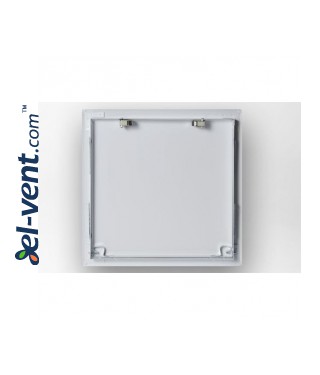

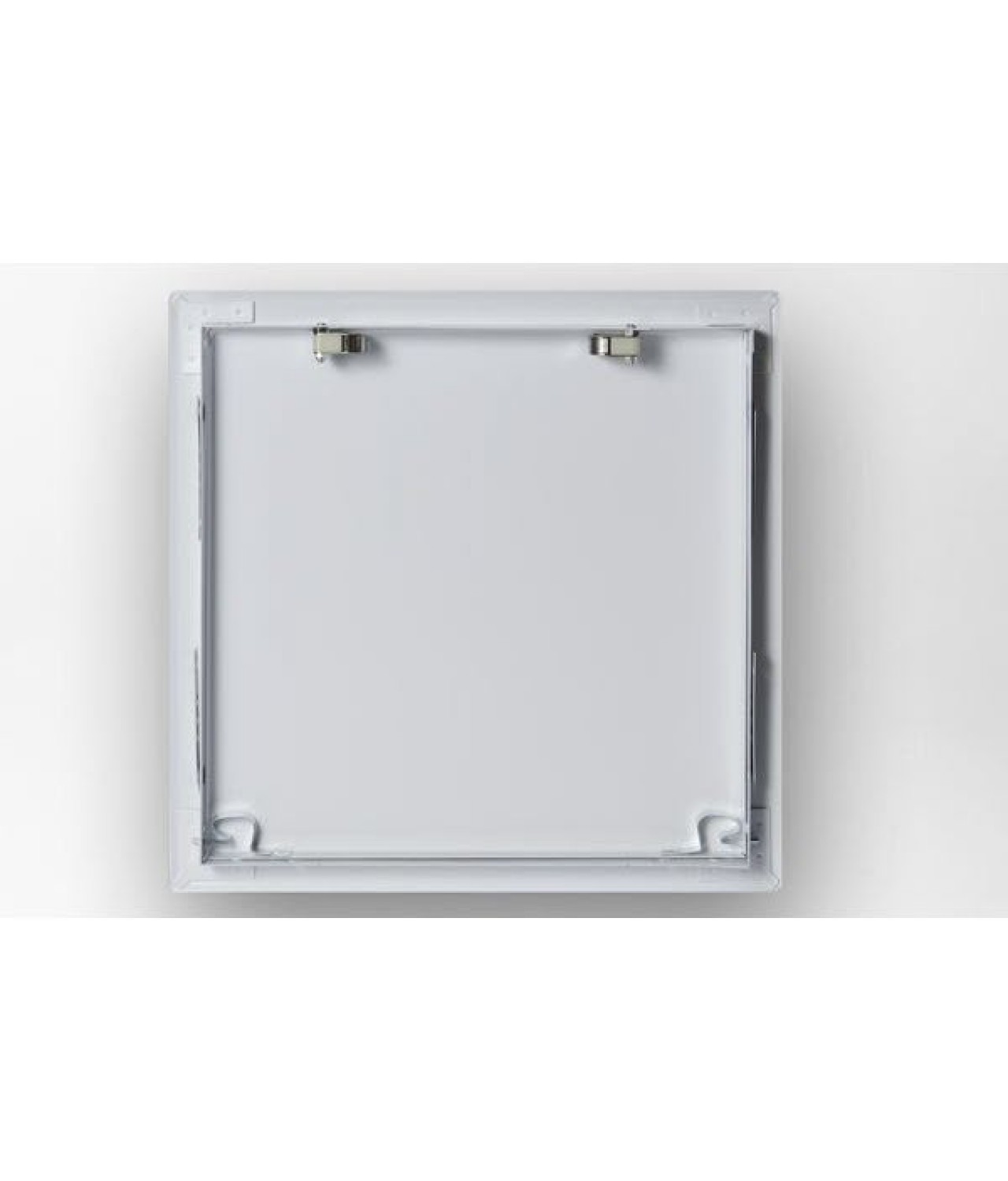

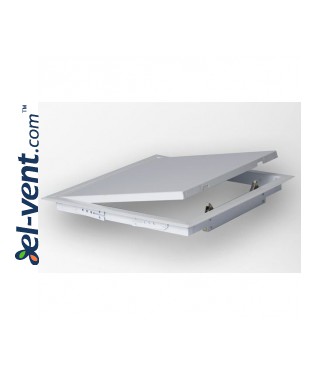

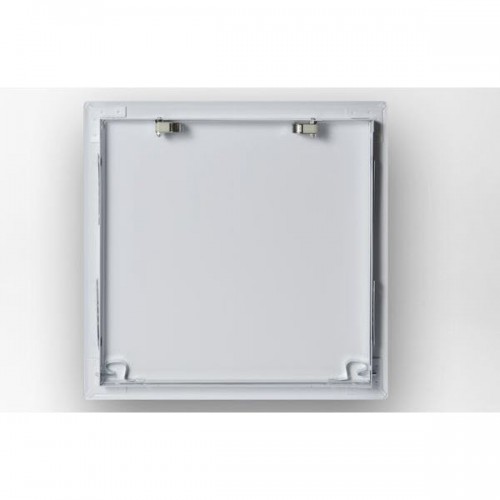

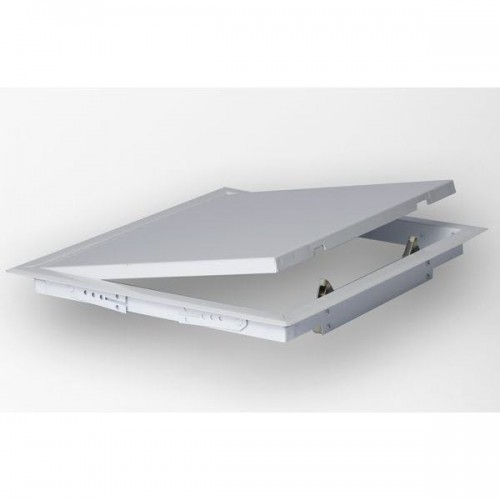

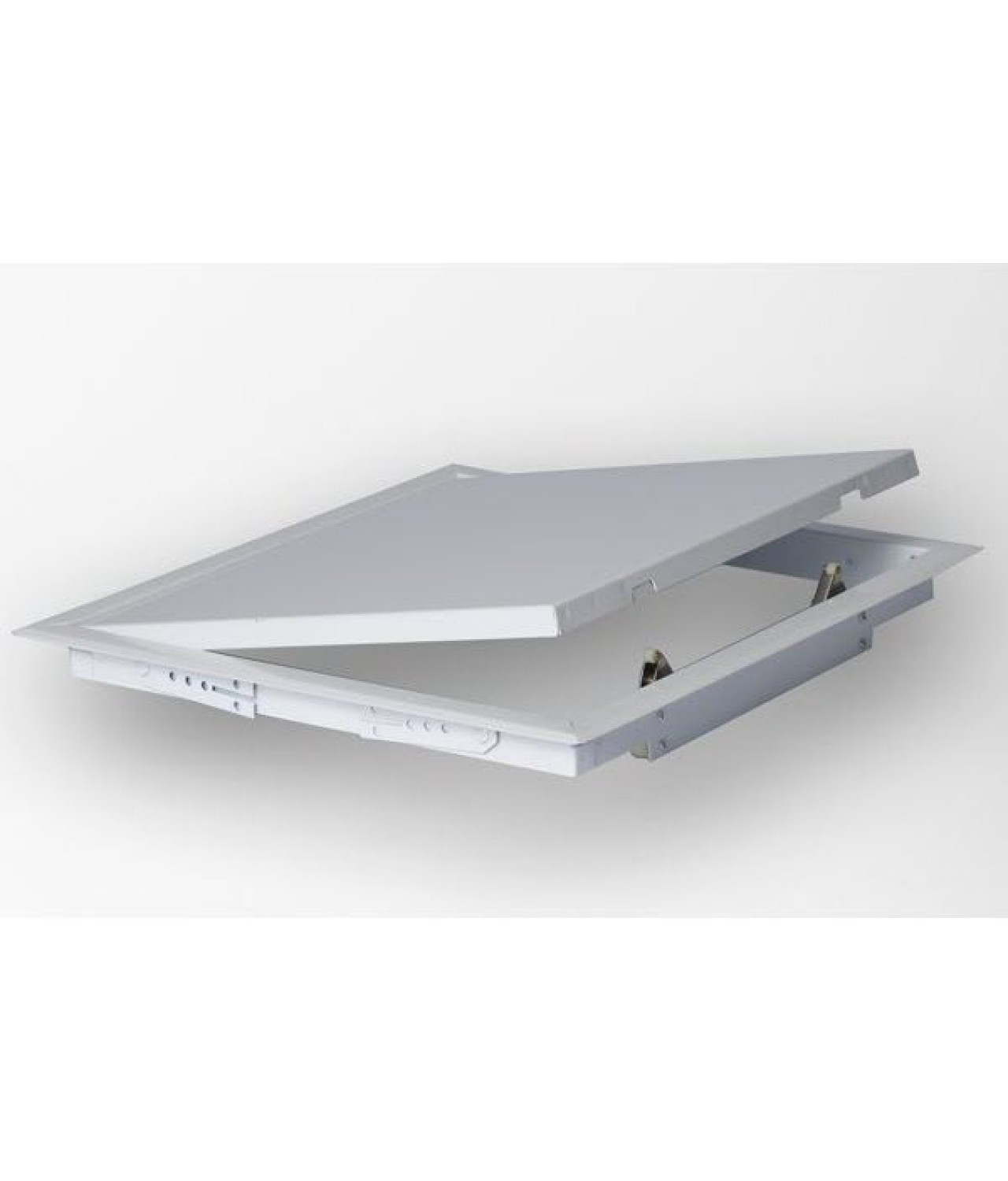

The access panels are opened and closed using a click-clack mechanism.
The manufacturer's catalogue does not specify a detailed installation procedure, installation opening dimensions, fixing method or arrangement of fixing elements.
