ALUMA - plasterboard access panels with external frame for all types of walls and ceilings


  1. Ventilation systems ›
  2. Access panels, doors, hatches
  3. › Tile access panels
  4. › ALUMA - plasterboard access panels with external frame for all types of walls and ceilings
ALUMA - plasterboard access panels with external frame for all types of walls and ceilings ALUMA - plasterboard access panels with external frame for all types of walls and ceilings - opened ALUMA - plasterboard access panels with ceramic tile - opened ALUMA - plasterboard access panels with ceramic tile
Price / ALUMA:
Select
  • 200x200 mm 62.21 € 46.66 € (-24%)
  • 300x300 mm 79.15 € 59.35 € (-25%)
  • 400x400 mm 90.96 € 68.22 € (-24%)
  • 500x500 mm 116.11 € 87.08 € (-25%)
  • 600x600 mm 127.46 € 95.59 € (-25%)
  • 600x1200 mm 203.24 € 152.44 € (-24%)
Qty.:

EU shipping 14 working days, non EU 21 working days

Ask a question about this item

Ask a question about this item

ALUMA - plasterboard access panels with external frame for all types of walls and ceilings

Send
  • ALUMA - plasterboard access panels with external frame for all types of walls and ceilings, for plastering, painting or tiling. Tiles up to 1 cm thick can be glued on doors up to 600x600 mm if the door opens from the side like a door or from top to bottom
  • thanks to the universal outer frame, it is ideal for installation in any type of wall or ceiling (concrete, masonry, brick, plasterboard or other)
  • the frame is made of aluminium profile and electrostatically coated with RAL 9016 white paint
  • easy to open and close with a simple click thanks to the highly reliable latches
  • the inner part of the panel can be completely removed from the frame
  • no need for a handle
  • for wall or ceiling mounting
  • for plastering and painting:

applicable to all sizes - the long side of the door can be both horizontal and vertical when wall-mounted

  • when used for ceramic tiling:

size up to 60x60 cm - the long edge of the door can be both horizontal and vertical when mounted on the wall

size 60x60 cm and above - the door is not intended for tiling, but only for plastering and painting

  • fix as specified in the installation instructions

  • can be installed in wet rooms

  • made in Turkey

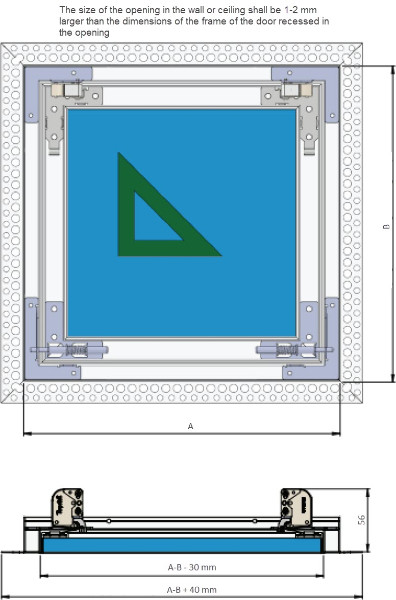

  • ALUMA access panel construction:

ALUMA - gipso kartono revizinės durelės su išoriniu rėmeliu betoninėms sienoms ir luboms - konstrukcija


Brand: ESEM
Code
A
B
 dimension of opening inwall/ceiling panel plasterboard thickness
door dimension
ALUMA2020 200 200 A+1 B+1 12.5
ALUMA3030 300 300 A+1 B+1 12.5
ALUMA4040 400 400 A+1 B+1 12.5
ALUMA5050 500 500 A+1 B+1 12.5
ALUMA6060 600 600 A+1 B+1 12.5





ALUMA user manual

ALUMA Declaration of Conformity of Performance
