Duct fan with ball bearings and timer TURBO125T, Ø125 mm

PRICE:
31.35 €    36.88 €
Qty.:

EU shipping 14 days, non EU 21 days

Ask a question about this item

Ask a question about this item

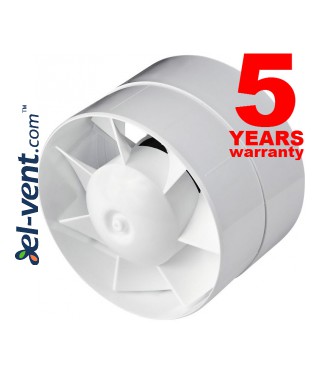

Duct fan with ball bearings and timer TURBO125T, Ø125 mm

  • can be mounted in any position, in the wall or ceiling
  • with timer
  • motor with ball bearings, patented in Italy
  • for mounting with Ø125 mm duct system
  • made in Poland
  • 5 years warranty
Code
Ø
W
Z
TURBO100
100
89
55
TURBO125 125 83 40
TURBO150 150 90 56







Code
Voltage, V
Frequency, Hz
Power, W
Capacity, m³/h
Noise level, dB
Protection class IP
Pressure,
Pa
TURBO125T
230
50
17
154
38
X4
47



Pressure loss graph

Installation



Connection to the power supply

T - phase through switch
N - null
L - phase
