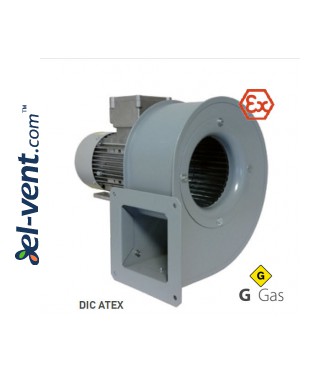

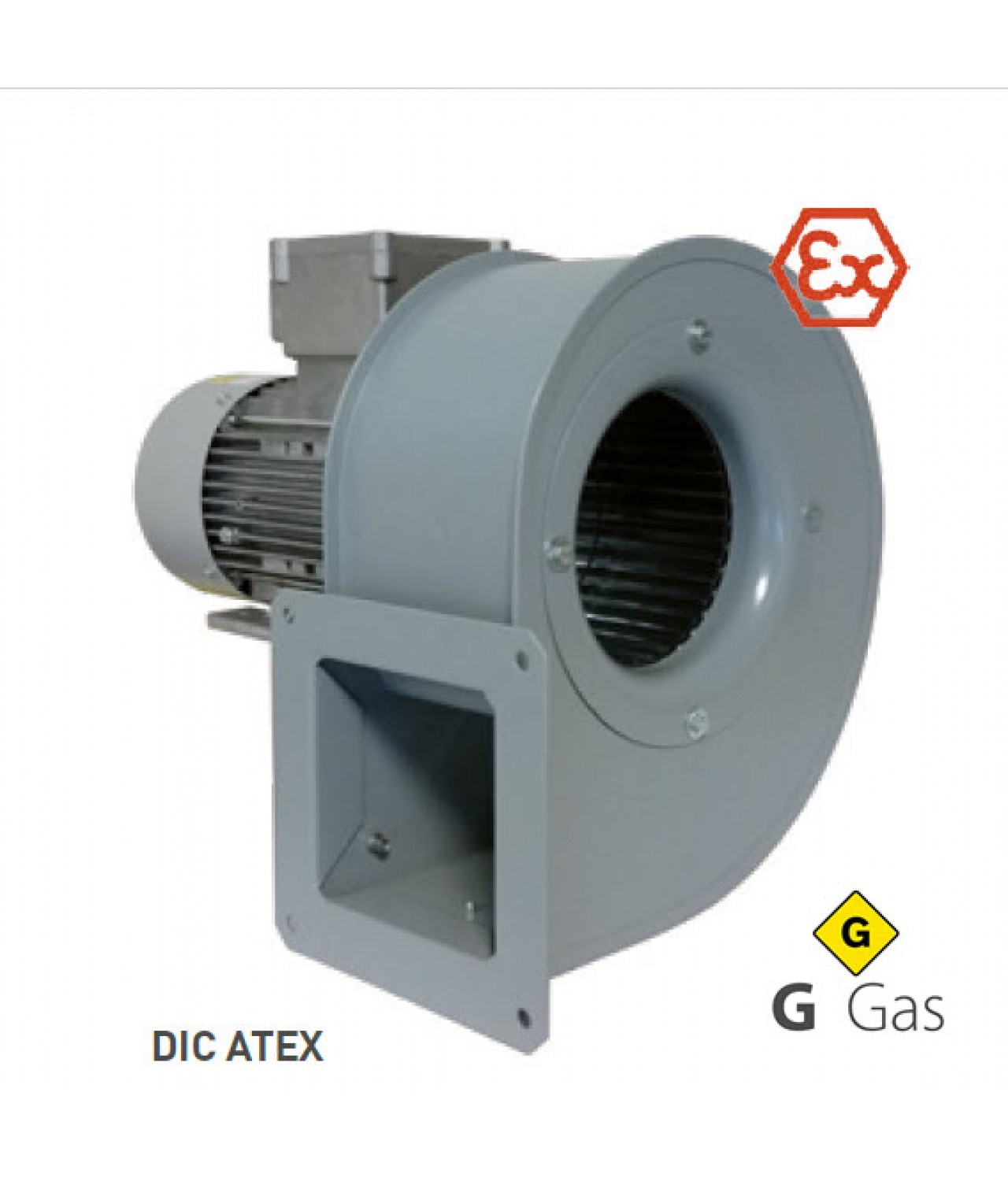

Low capacity and high pressure centrifugal fans with forward curved impeller designed for operation in explosive gas environments DIC ATEX GAS ≤2400 m³/h

• DIC ATEX GAS centrifugal explosion-proof fans for use in explosive atmospheres (zone 1), up to 2400 m³/h
• DIC ATEX GAS series centrifugal fans are designed and certified according to the ATEX directive 2014/34/EU, these units are intended for continuous operation in industrial environments where a small amount of air at high pressure is required

• other modifications of the DIC series fans:

1. DIC - centrifugal fans of the series are designed to transport clean and dust-free air and smoke with a temperature of up to +100 °C

2. DIC INOX - centrifugal fans with stainless steel casing for the transport of corrosive gases or fumes up to +80 °C

3. DIC AT - centrifugal fans for the transport of clean air or fumes up to +150 °C

4. DIC INOX / AT - centrifugal fans with stainless steel housing for corrosive gases or fumes up to +150 °C only on special order, to be combined separately

5. DIC INOX ATEX - explosion-proof centrifugal fans with stainless steel housing for the transport of corrosive gases or fumes up to +40 °C

• housing positions (price may vary when ordering with RD housing)::

APPLICATION AND CERTIFICATION

• DIC ATEX GAS fans are specifically designed for use in zone 1 – environments where a high safety factor must be ensured against potential explosions due to gases, vapors, or mist (II2G)
• certification marking: II2G Ex h IIB T4 Gb
• additional versions upon request: options available for operation with dust zone 21 (II2D Ex h IIIB T135°C Db) and in hydrogen environment zone 1 (II2G Ex IIB+H2 T4 Gb)
• compliance with standards: EN 14986:2017, EN 1127-1, EN ISO 80079-36, EN ISO 80079-37

TECHNICAL DESCRIPTION

• fans feature a compact and robust construction, adapted for transporting clean air with temperatures ranging from -20 °C to +60 °C

CONSTRUCTION

• spiral casing made of powder-coated steel sheets. Impeller: single suction, with forward curved blades (sirocco type), made of galvanized steel. Casing is easily orientable every 45 degrees, standard position LG 270

MOTOR

• explosion-proof asynchronous three-phase or single-phase motor, IP55 protection class, F insulation class. Motor is separated from the transported air flow

ADVANTAGES

• high safety level: motor is equipped with PTC thermistors protecting against overheating and is suitable for speed regulation by frequency inverter for three-phase versions
• compactness: ideal solution for industrial systems where high static pressure is required in limited space

ACCESSORIES

• the air intake and exhaust opening protective grilles are manufactured according to UNI 12499 rules and are protected from atmospheric factors

(see detailed dimensions and parameters on the manufacturer's catalog page)

Exhaust (OUT)	Intake (IN)

• steel engine support made of sheet steel, painted with epoxy resin

(see detailed dimensions and parameters on the manufacturer's catalog page)

• air exhaust connection from rectangular to round

(see detailed dimensions and parameters on the manufacturer's catalog page)

• a round adapter for the air intake is included

(see detailed dimensions and parameters on the manufacturer's catalog page)

• speed controller, please choose fan model you wish to purchase and contact us to find the right one
• made in Italy
• 2 years warranty

Technical information
