Explosion proof dust extraction fans IVWTK EX ≤20000 m³/h


  1. Ventilation systems ›
  2. Industrial fans
  3. › Explosion proof fans
  4. › Explosion proof dust extraction fans IVWTK EX ≤20000 m³/h

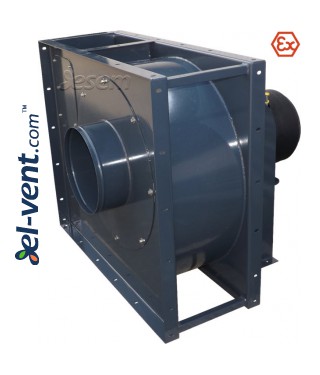

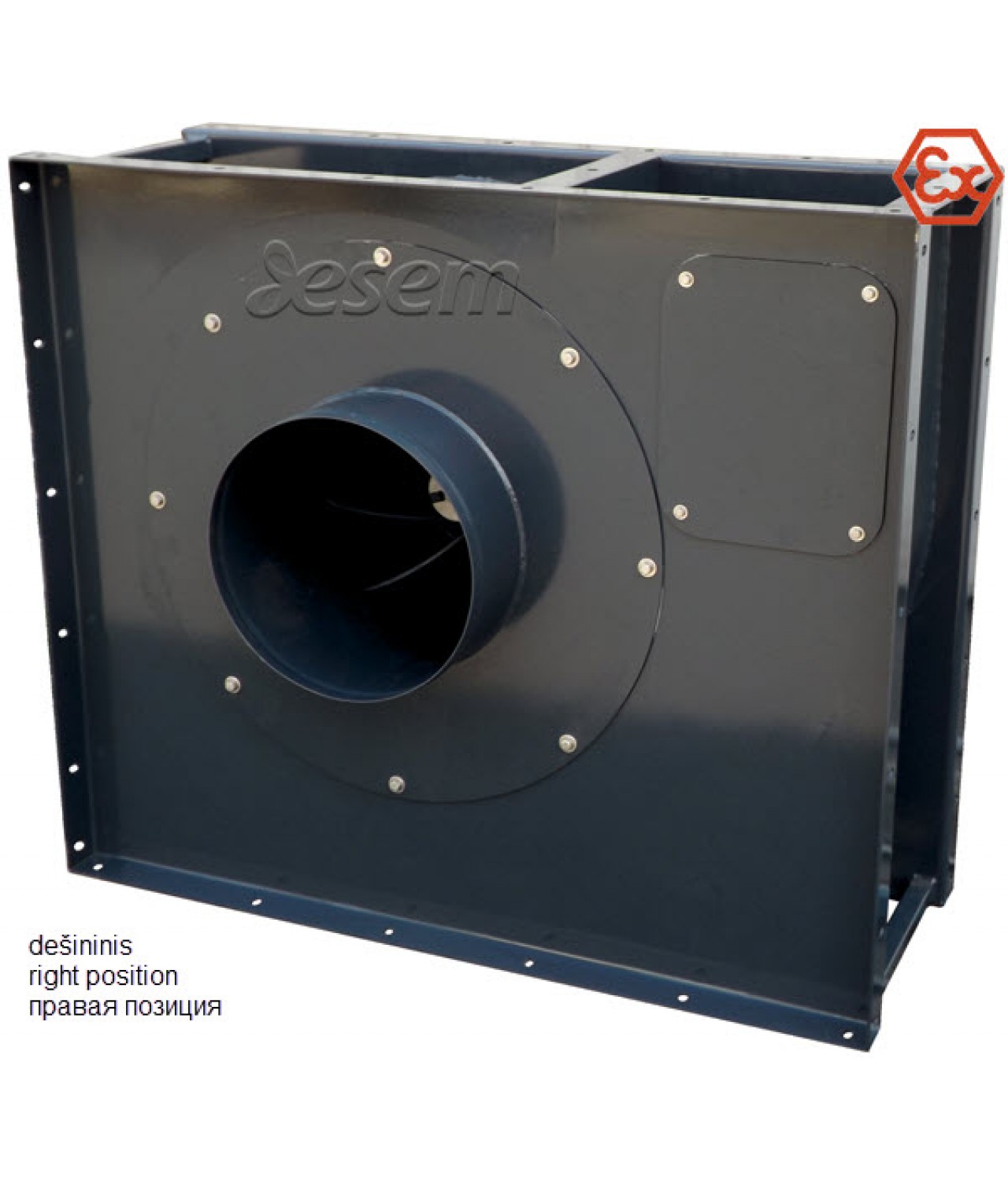

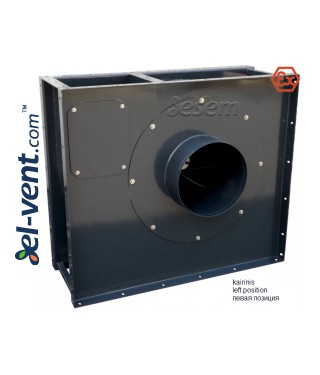

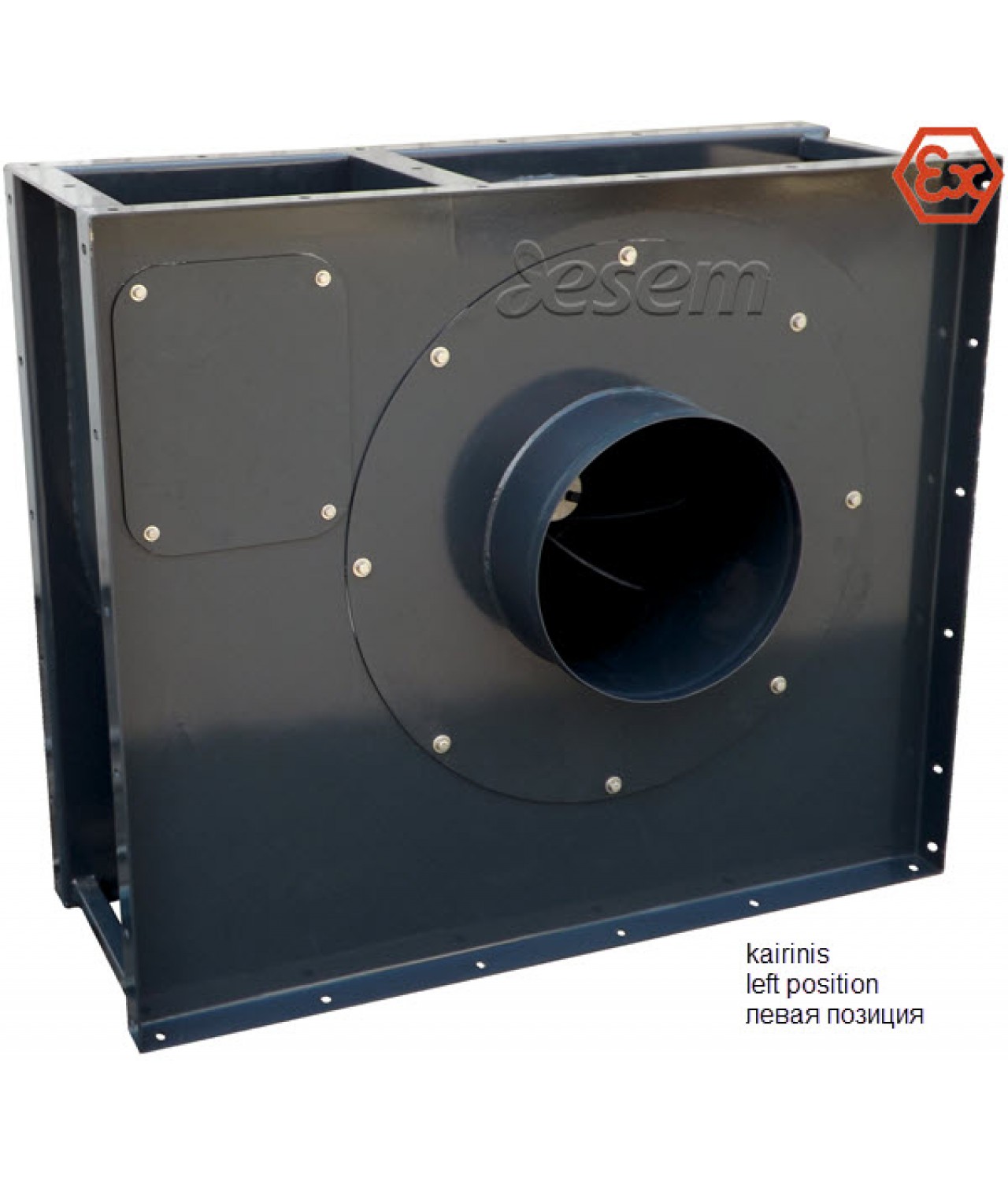

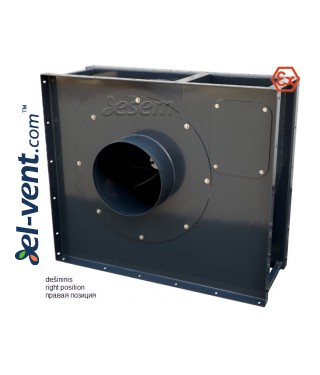

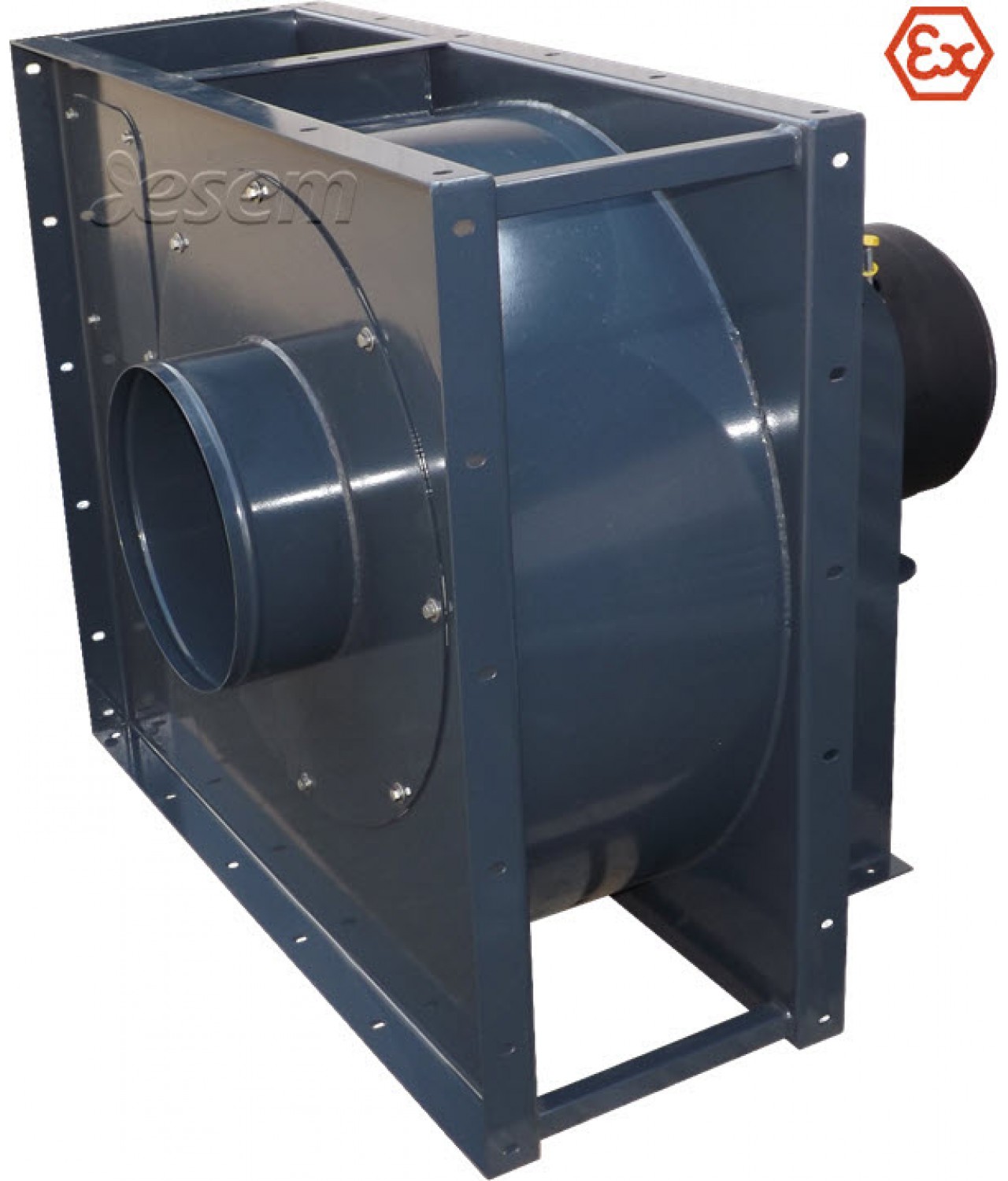

Explosion proof dust extraction fans IVWTK EX ≤20000 m³/h IVWTK EX - left impeller housing position IVWTK EX - right impeller housing position
Price / IVWTK EX:
Select
  • IVWTK EX1 4,344.21 € 3,258.15 € (-25%)
  • IVWTK EX2 4,733.96 € 3,550.47 € (-25%)
  • IVWTK EX4 6,780.71 € 5,085.53 € (-24%)
  • IVWTK EX5 8,560.65 € 6,420.49 € (-24%)
  • IVWTK EX7 9,717.03 € 7,287.77 € (-25%)
  • IVWTK EX11 12,347.18 € 9,260.38 € (-25%)
  • IVWTK EX15 13,849.89 € 10,387.43 € (-24%)
  • IVWTK EX22 18,373.31 € 13,779.99 € (-24%)
Qty.:

European delivery - 30 working days, other countries +7 working days.

Ask a question about this item

Ask a question about this item

Explosion proof dust extraction fans IVWTK EX ≤20000 m³/h

Send
  • IVWTK EX - explosion-proof centrifugal fans for dust transportation, manufactured in accordance with Directives 94/9/WE (ATEX) and 98/37/EC
  • explosion hazard zone marking: zone 21 - inside the fan, zone 22 - behind the fan
  • symbols for marking IVWTK EX fans:

  • the fan's self-cleaning impeller and connection are made of massive wear-resistant steel
  • the fan housing is made of reinforced steel sheet, covered by heating polyester
  • all fans with three-phase explosion-proof motors with integrated overheating protection
  • use the EX switch to start
  • temperature class: T1 to T3 (special order T4)
  • explosion group: II (Subgroups IIA and IIB)
  • fans not fitted for speed control
  • maximum ambient temperature 120 °C
  • 1 year warranty



Standard IVWTK EX-1 - IVWTK EX-7 models are produced with a left impeller housing position, right position only by special order. IVWTK EX-11 - IVWTK EX-22 are manufactured with L0 housing. Other housing types are available on request.




Brand: ESEM
Code IVWTK EX
A
B
C
ØD
E
 F G H I
1 550 650 500 160 240 295 160 200 230
2 650 720 562 180 295 325 180 225 250
4 720 800 645 200 320 336 200 260 295
5 720 850 735 250 315 366 220 270 315
7 800 900 750 250 350 387 230 290 325
11 1000 900 885 305 404 442 250 315 360
15 1050 900 885 325 400 450 280 340 380
22 1155 990 1055 355 560 660 315 370 437





Code
IVWTK EX
Phase
 Voltage, V at 50 Hz
Capacity, m³/h
Pressure, Pa
 Power, W Current, A Speed, min-1 Weight, kg
1 III 400 2900 1950 1500 3.1 2800 55
2 III 400 3500 2250 2200 4.6 2800 67
4 III 400 4800 2650 4000 7.5 2800 114
5 III 400 6500 3000 5500 10.6 2800 136
7 III 400 8800 3600 7500 14.3 2800 151
11 III 400 12100 4150 11000 20.0 2800 252
15 III 400 14600 4500 15000 30.0 2800 265
22 III 400 20000 4900 22000 40.0 2800 378



Pressure loss diagrams
