BOX-T - ultra-quiet centrifugal ducted fans with acoustically insulated housing ≤30000 m³/h


  1. Ventilation systems ›
  2. Industrial fans
  3. › Inline duct centrifugal fans
  4. › BOX-T - ultra-quiet centrifugal ducted fans with acoustically insulated housing ≤30000 m³/h
BOX-T - ultra-quiet centrifugal ducted fans with acoustically insulated housing ≤30000 m³/h BOX-T - Made in Italy
Price / BOX-T:
Select
  • BOX-T 7-7 - 0.37 kW (1BT1996) 2,719.21 € 1,903.45 € (-29%)
  • BOX-T 7-7 - 0.55 kW (1BT1997) 2,860.80 € 2,002.56 € (-30%)
  • BOX-T 7-7 - 0.75 kW (1BT1998) 2,915.25 € 2,040.68 € (-30%)
  • BOX-T 9-7 - 0.75 kW (1BT2647) 2,998.76 € 2,099.13 € (-29%)
  • BOX-T 9-7 - 1.1 kW (1BT2648) 3,091.33 € 2,163.93 € (-30%)
  • BOX-T 9-7 - 1.5 kW (1BT2649) 3,178.46 € 2,224.92 € (-30%)
  • BOX-T 9-9 - 0.75 kW (1BT2997) 3,078.63 € 2,155.03 € (-30%)
  • BOX-T 9-9 - 1.1 kW (1BT2998) 3,178.46 € 2,224.92 € (-30%)
  • BOX-T 9-9 - 1.5 kW (1BT2999) 3,287.38 € 2,301.17 € (-29%)
  • BOX-T 10-8 - 1.1 kW (1BT3647) 3,203.87 € 2,242.71 € (-30%)
  • BOX-T 10-8 - 1.5 kW (1BT3648) 3,301.90 € 2,311.33 € (-29%)
  • BOX-T 10-8 - 2.2 kW (1BT3649) 3,421.70 € 2,395.20 € (-29%)
  • BOX-T 10-10 - 1.1 kW (1BT3996) 3,245.63 € 2,271.93 € (-30%)
  • BOX-T 10-10 - 1.5 kW (1BT3997) 3,350.91 € 2,345.63 € (-30%)
  • BOX-T 10-10 - 2.2 kW (1BT3998) 3,470.72 € 2,429.50 € (-30%)
  • BOX-T 12-9 - 1.5 kW (1BT4647) 3,911.81 € 2,738.27 € (-29%)
  • BOX-T 12-9 - 2.2 kW (1BT4648) 4,155.06 € 2,908.54 € (-30%)
  • BOX-T 12-9 - 3 kW (1BT4649) 4,523.55 € 3,166.49 € (-29%)
  • BOX-T 12-12 - 1.5 kW (1BT4993) 4,046.14 € 2,832.30 € (-30%)
  • BOX-T 12-12 - 2.2 kW (1BT4994) 4,278.49 € 2,994.94 € (-29%)
  • BOX-T 12-12 - 3 kW (1BT4995) 4,645.17 € 3,251.62 € (-29%)
  • BOX-T 15-15 - 2.2 kW (1BT5997) 4,719.59 € 3,303.71 € (-30%)
  • BOX-T 15-15 - 3 kW (1BT5998) 5,071.74 € 3,550.22 € (-29%)
  • BOX-T 15-15 - 4 kW (1BT5999) 5,501.95 € 3,851.37 € (-29%)
  • BOX-T 18-18 - 3 kW (1BT6997) 5,953.95 € 4,167.76 € (-30%)
  • BOX-T 18-18 - 4 kW (1BT6998) 6,300.65 € 4,410.46 € (-29%)
  • BOX-T 18-18 - 5.5 kW (1BT6999) 6,723.59 € 4,706.52 € (-29%)
  • BOX-T 500 - 4.0 kW (1BT7572) 7,794.59 € 5,456.20 € (-30%)
  • BOX-T 500 - 5.5 kW (1BT7573) 8,068.68 € 5,648.07 € (-30%)
  • BOX-T 500 - 7.5 kW (1BT7574) 9,052.54 € 6,336.77 € (-30%)
  • BOX-T 560 - 5.5 kW (1BT7997) 9,573.51 € 6,701.45 € (-30%)
  • BOX-T 560 - 7.5 kW (1BT7998) 9,927.48 € 6,949.24 € (-30%)
  • BOX-T 560 - 11 kW (1BT7999) 11,203.58 € 7,842.51 € (-30%)
  • BOX-T 630 - 5.5 kW (1BT8997) 11,056.54 € 7,739.58 € (-29%)
  • BOX-T 630 - 7.5 kW (1BT8998) 11,671.91 € 8,170.33 € (-30%)
  • BOX-T 630 - 11 kW (1BT8999) 13,107.75 € 9,175.43 € (-29%)
Qty.:

European delivery - 30 working days, other countries +7 working days.

Ask a question about this item

Ask a question about this item

BOX-T - ultra-quiet centrifugal ducted fans with acoustically insulated housing ≤30000 m³/h

Send
  • BOX-D - ultra-quiet centrifugal ducted fans with acoustically insulated housing ≤8600 m³/h
  • BOX-DR - similar to BOX-D but with round connection
  • ideal for clean air supply, extraction or filtration in environments where low noise levels are essential - residential homes, offices, bars or restaurants, gyms
  • the low noise level of the fan is due to the acoustic-insulated fan casing
  • operating temperatures from -20 °C to +40 °C

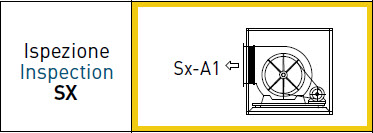

  • installation direction:

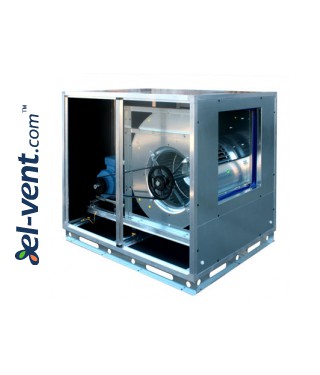

CONSTRUCTION

  • frame made of pressed aluminium profiles, removable panels made of galvanized sheet steel
  • inspection hatch with ergonomic handles for easy access
  • 20 mm thick sound insulation cover made of self-extinguishing polyurethane foam (HF1 class according to UL94 standard) with smooth PU protective easy-to-clean film
  • high-quality centrifugal fan, double inlet with forward-curved impeller, connected to the motor by trapezoidal belts and pulleys
  • maintenance-free trapezoidal EPDM belts
  • maximum energy efficiency, exceptional power, antistatic, high dimensional accuracy, minimal voltage losses
  • pulleys with trapezoidal grooves made of cast iron with protective phosphating treatment and statically balanced, cast iron tapered bushings with ISO G7 holes
  • fan and motor mounted on an aluminium profile base, isolated from the structure by anti-vibration supports and a flexible coupling element on the outlet, which guarantees vibration absorption by correct weight distribution inside the ventilation unit
  • anti-vibration elastomeric mountings for sizes 7/7 to 12/12 and springs for sizes 15/15 to 630
  • motor mounted on a tensioned belt slider for easy maintenance and possible replacement



MOTOR

  • three-phase asynchronous motors comply with international standards IEC 60034, IEC 60072, EMC 2014/30 / EU, LVD 2014/35 / EU, CE marked, IP55, class F
  • corresponds to class S1 (continuous operation with constant load)
  • made in Italy
  • 2 year warranty

ACCESSORIES
  • see manufacturer's catalogue page for detailed dimensions and parameters

Brand: DYNAIR
