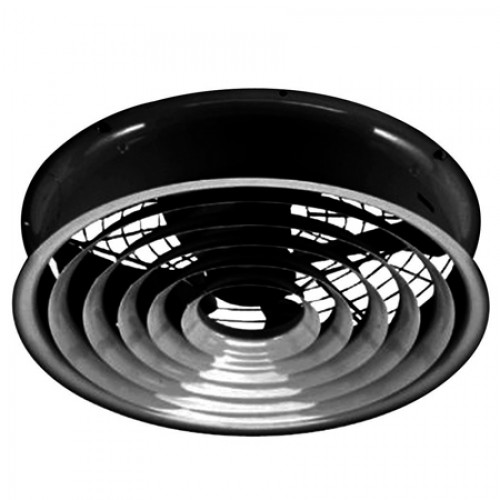

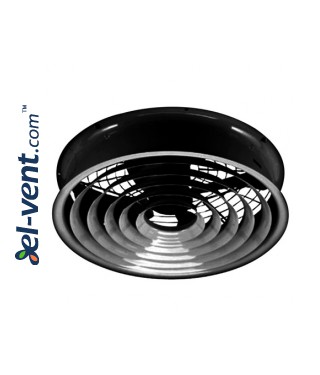

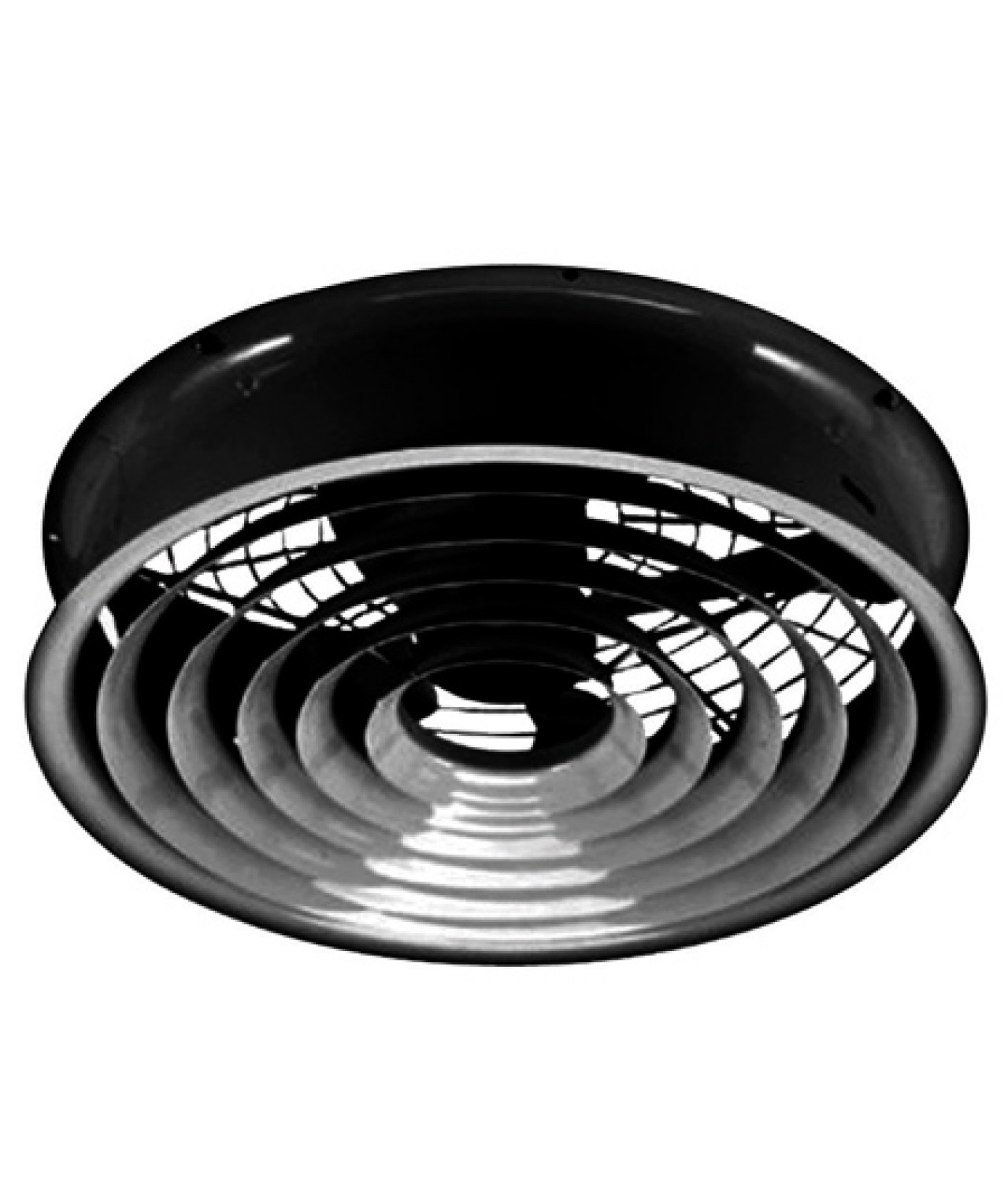

Air scatters, destratifiers MP800 ≤11000 m³/h

MP800 – destratification fans for large heated industrial and sports premises, airflow up to 11,000 m³/h. The destratification fan brings warm air collected under the ceiling back down, saving energy in winter and summer; one unit covers 200 m².

  • MP800 - air scatters, destratifiers
  • ideal for large heated industrial or sports facilities
  • offers significant energy savings in both winter and summer
  • impeller diameter 800 mm
  • supplied with ceiling fixing chains
  • robust industrial construction: circular deflectors in steel sheet with epoxy paint, impeller in technopolymer with aluminium hub
  • single-phase (230 V) or three-phase (400 V) motors suitable for continuous operation
  • adjustable speed
  • one scatters covers an area of 200 m²
  • made in Italy
  • 24-month warranty

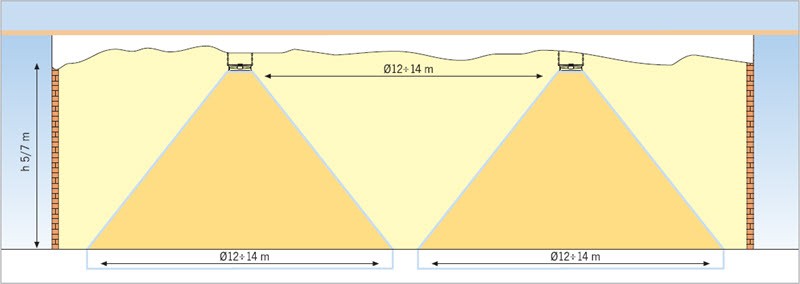

  • recommended installation planogram:

Air scatters, destratifiers MP800 ≤11000 m³/h

Where to use

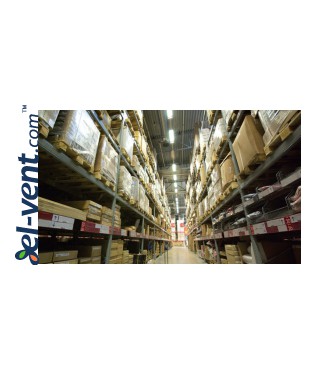

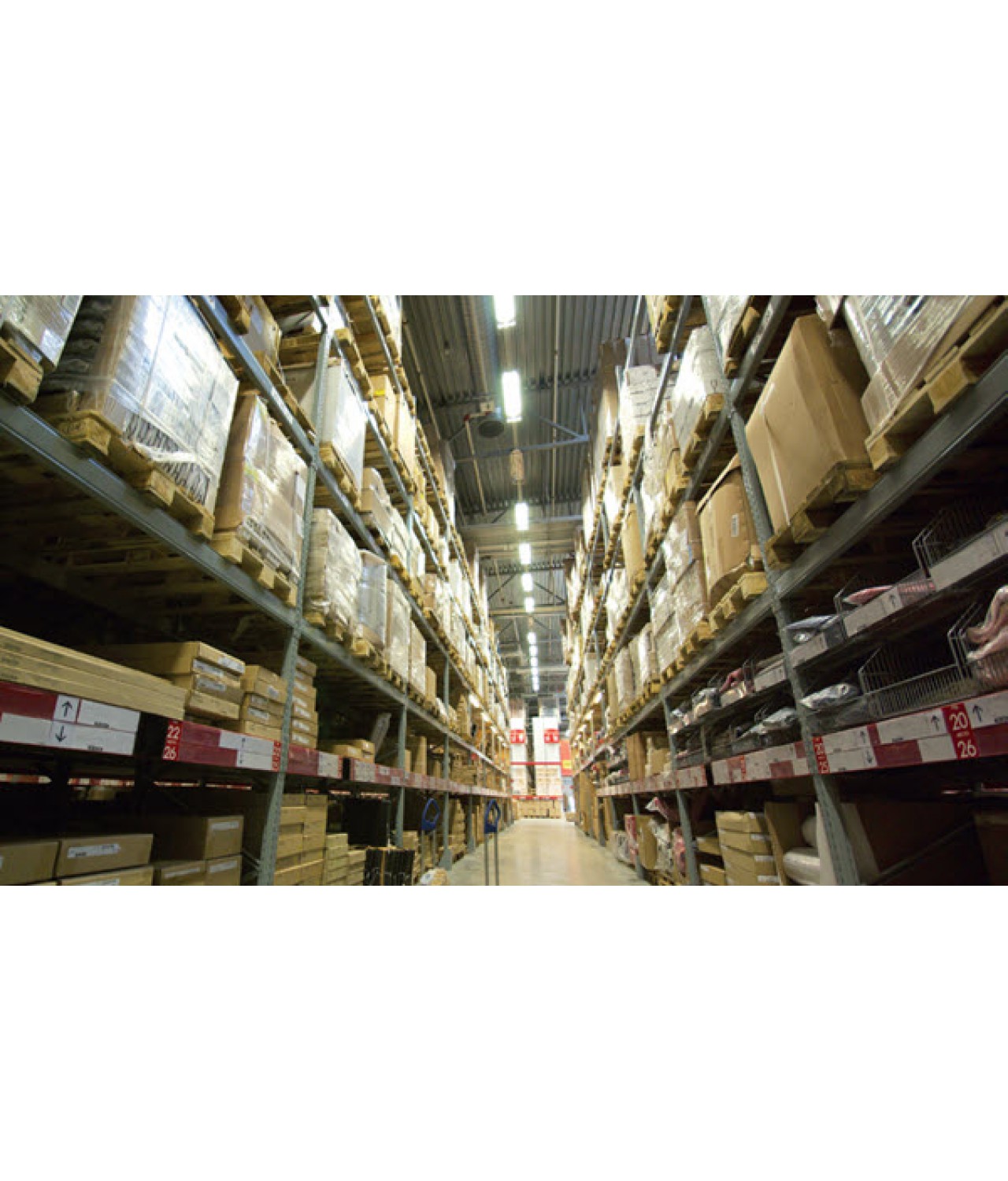

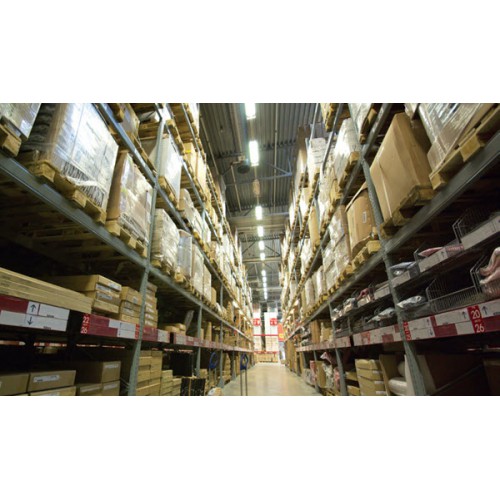

For large heated production premises, warehouses and sports halls where warm air builds up under high ceilings. The air mixer evens out the temperature between ceiling and floor, reducing heating costs.

Advantages

  • impeller diameter 800 mm, airflow up to 11,000 m³/h
  • robust industrial design: ring deflectors of epoxy-painted sheet steel
  • technopolymer impeller with aluminium hub
  • single-phase (230 V) or three-phase (400 V) motors for continuous operation
  • adjustable speed
  • protection class IP55

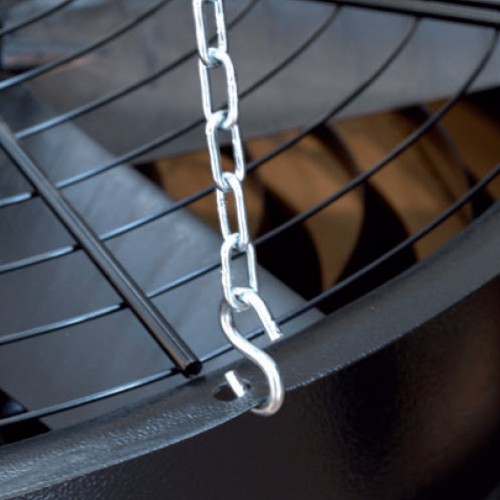

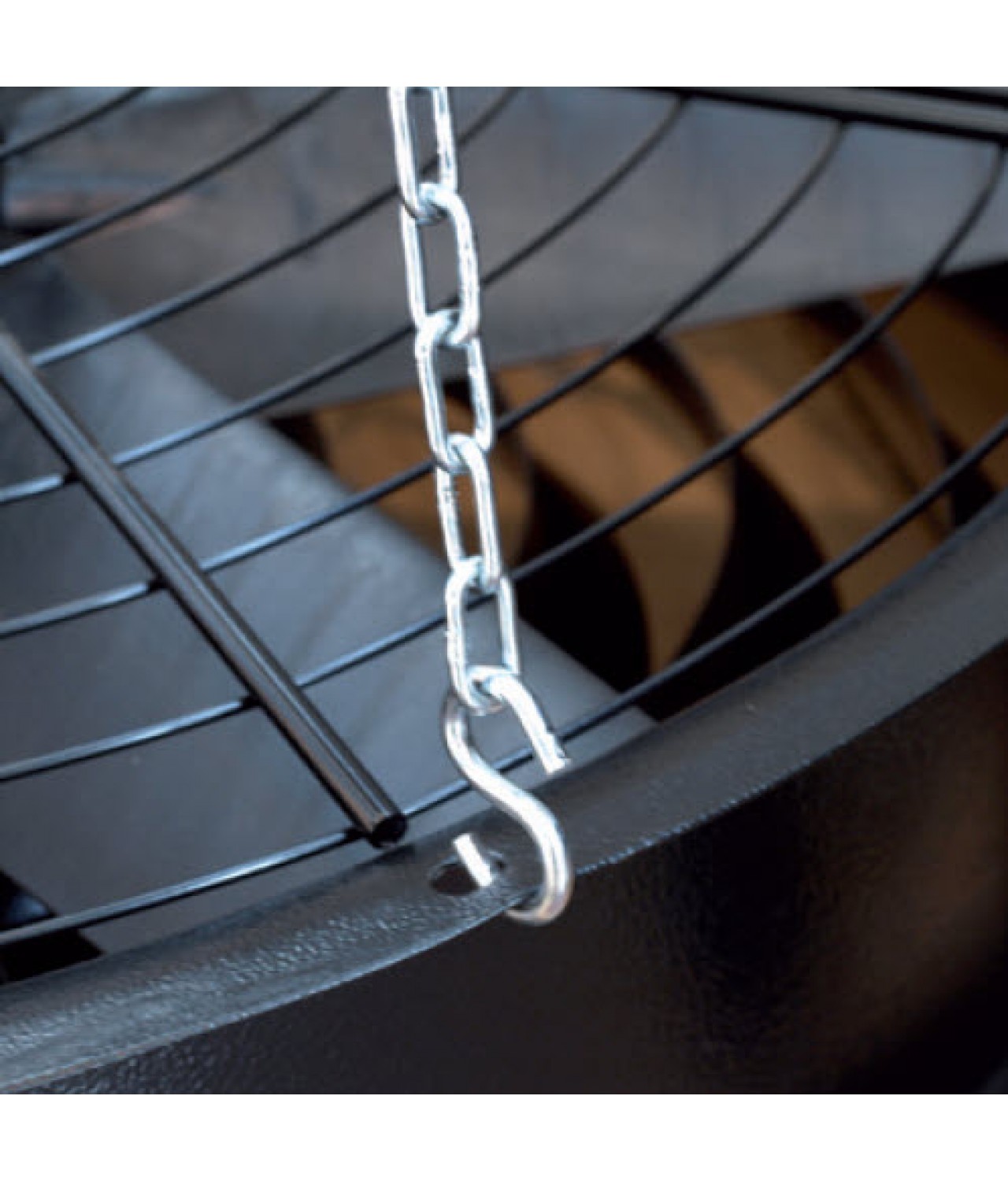

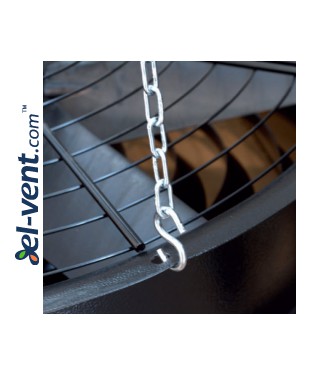

  • ceiling suspension chains included
  • made in Italy, 24-month warranty

Installation

MP800 hangs on the supplied chains. One unit covers 200 m²; the recommended layout is shown in the description above. Dimensions are in the dimensions tab.

Sizes

  • MP800/1F – 230 V, 0.18 kW, 700 rpm, 11,000 m³/h
  • MP800/3F – 230/400 V, 0.18 kW, 330 rpm, 11,000 m³/h

Noise 66 dB(A) at 6 m. Full data is in the technical information tab.

Related products


Brand: DYNAIR

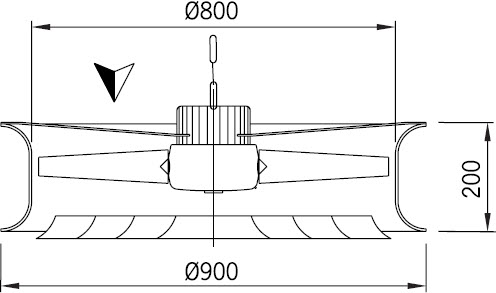

Code Ø A B Ø C
MP800 915 180 800



Air scatters, destratifiers MP800 ≤11000 m³/h – 2

Code
V-50 Hz
kW A min-1 IP
m³/h
dB(A)6m Weight, kg
MP800/1F 230 0.18 1.54 700 55 11000 66 22
MP800/3F 230/400 0.18 1.44/0.83 330 55 11000 66 22
