Metmaster SNAP - big size access panels with snap lock
| Price / Metmaster SNAP: |
Select
|
| Safety rope kit for ceiling installation: |
Select
|
Qty.:
European delivery - 30 working days, other countries +7 working days.
Ask a question about this item
Ask a question about this item

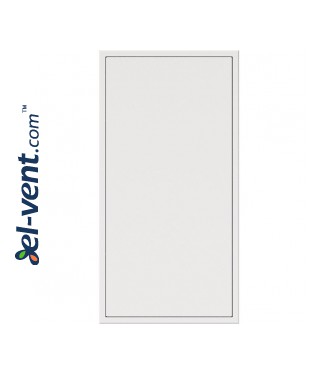

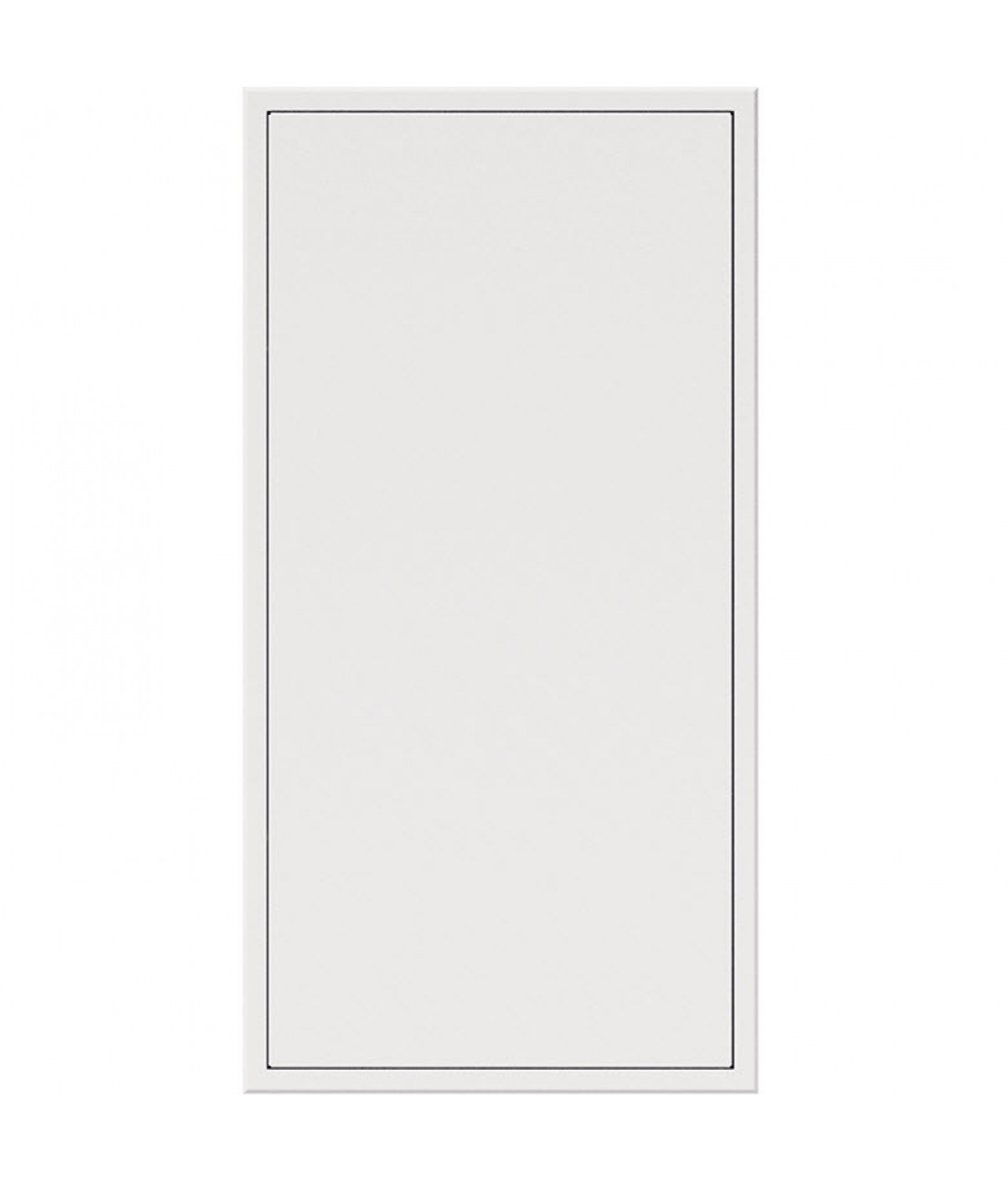

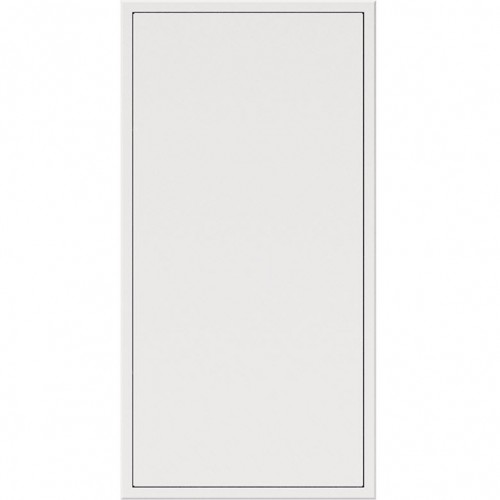

Metmaster SNAP - big size access panels with snap lock
- Metmaster SNAP - big size access panels with snap lock for mounting in wall or ceiling

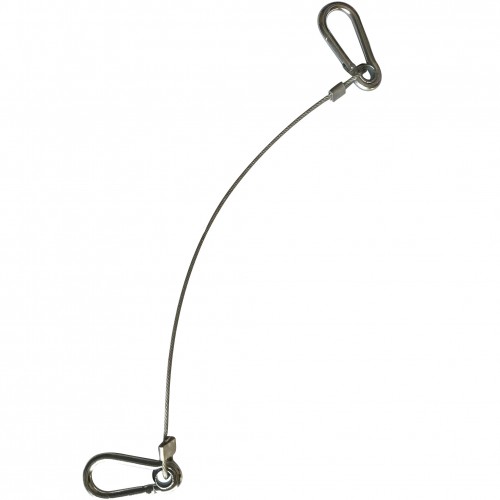

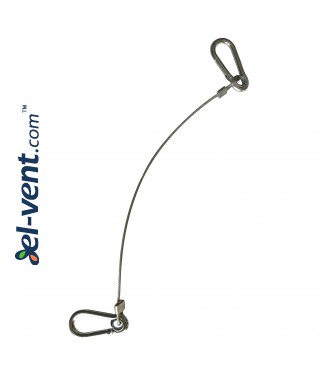

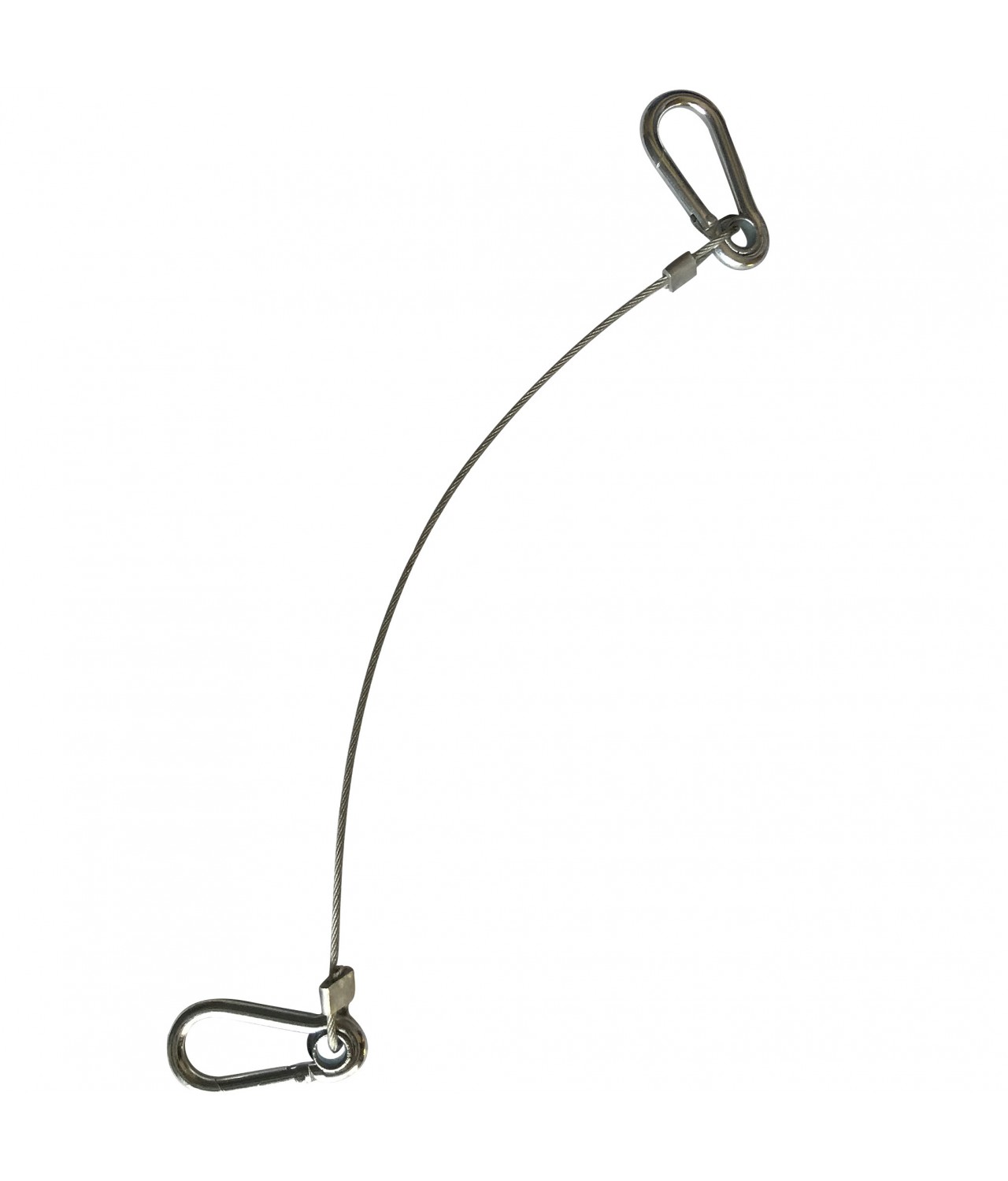

- for ceiling installation, we recommend ordering an additional safety rope kit that will prevent the door from accidentally opening:
- frame from welded aluminium, doors made from galvanized steel sheet and coated in white RAL9016
- removable door panel galvanised steel sheet for right and lefthanded hinging
- handle is unnecessary
- to open: press the door panel to release the snap locks
- to close: press the door panel again to close the snap locks
- easy to install with mounting glue or cement
- can be opened to the right or left, up and down
- custom sizes to the nearest cm on request, painted according requested RAL colour
- Made in Germany
Brand: ESEM

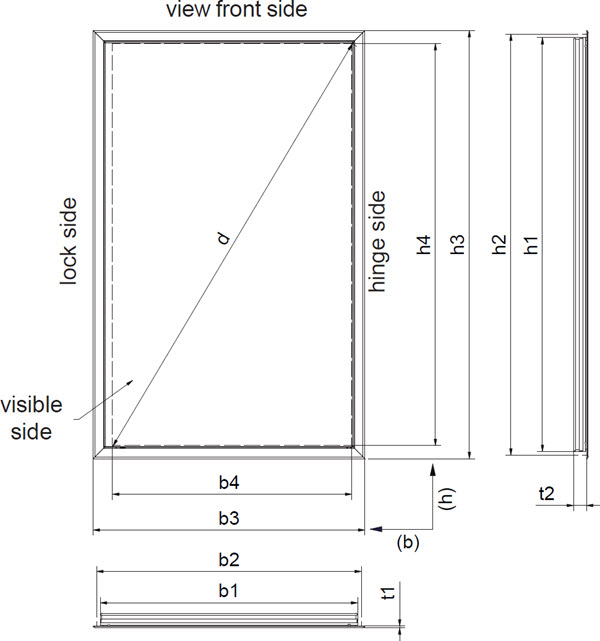

| Metmaster SNAP |
b x h
|
b1 x h1 min. | b2 x h2 max. | b3 x h3 | b4 x h4 | d | t1 | t2 | Locks |
| 20011 | 400x800 | 395x795 | 403x803 | 420x820 | 358x770 | 848 | 3.5 | 25 | 2 |
| 20013 | 500x800 | 495x795 | 503x803 | 520x820 | 458x770 | 895 | 3.5 | 25 | 2 |
| 20015 | 500x1000 | 495x995 | 503x1003 | 520x1020 | 458x970 | 1072 | 3.5 | 25 | 2 |
| 20017 | 600x800 | 595x795 | 603x803 | 620x820 | 558x770 | 950 | 3.5 | 25 | 2 |
| 20019 | 600x1000 | 595x995 | 603x1003 | 620x1020 | 558x970 | 1119 | 3.5 | 25 | 2 |
| 24189 | 600x1200 | 595x1195 | 603x1203 | 620x1220 | 558x1170 | 1296 | 3.5 | 25 | 2 |
| 24183 | 700x700 | 695x695 | 703x703 | 720x720 | 658x670 | 939 | 3.5 | 25 | 2 |
| 24184 | 700x800 | 695x795 | 703x803 | 720x820 | 658x770 | 1012 | 3.5 | 25 | 2 |
| 24185 | 700x1000 | 695x995 | 703x1003 | 720x1020 | 658x970 | 1172 | 3.5 | 25 | 2 |
| 20020 | 800x800 | 795x795 | 803x803 | 820x820 | 758x770 | 1080 | 3.5 | 25 | 2 |
| 24187 | 800x1000 | 795x995 | 803x1003 | 820x1020 | 758x970 | 1231 | 3.5 | 25 | 2 |
| 24190 | 800x1200 | 795x1195 | 803x1203 | 820x1220 | 758x1170 | 1394 | 3.5 | 25 | 2 |
| 20021 | 1000x1000 | 995x995 | 1003x1003 | 1020x1020 | 958x970 | 1363 | 3.5 | 25 | 2 |
