Gypsum diffusers FRAMELESS
| Price / FRAMELESS: |
Select
|
Qty.:
EU shipping 14 working days, non EU 21 working days
Ask a question about this item
Ask a question about this item
Gypsum diffusers FRAMELESS

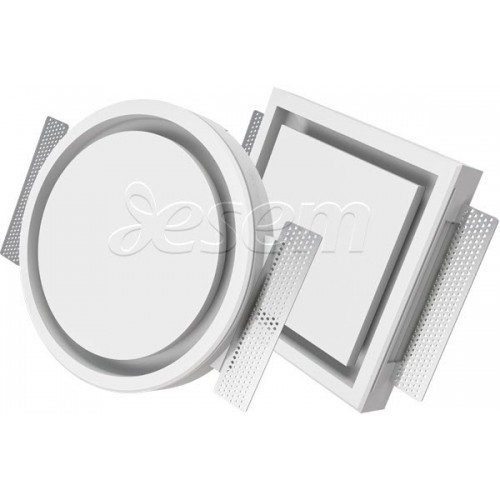

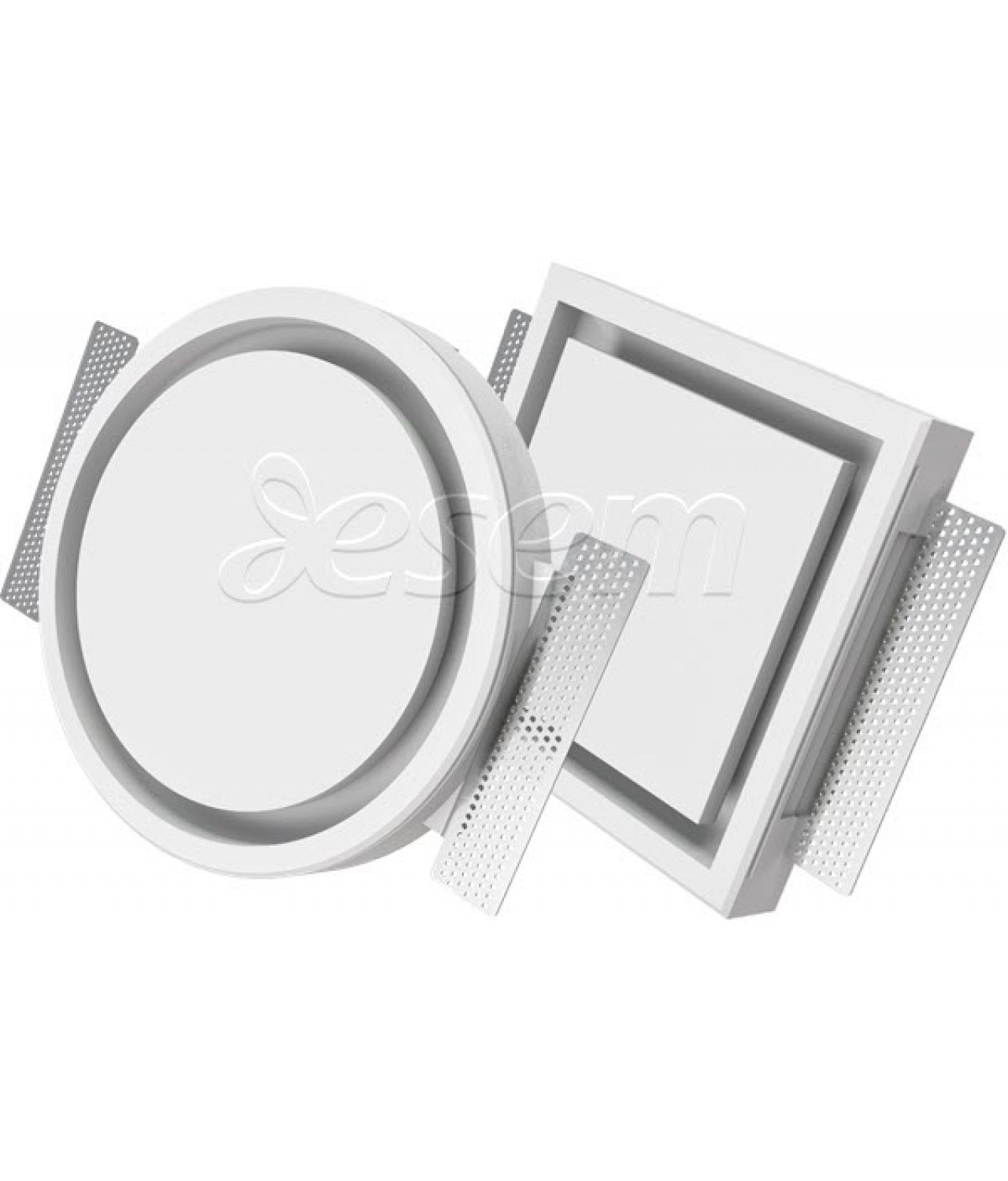

- FRAMELESS - gypsum diffusers for installation in plasterboard ceilings
- the gap is sealed and painted in the same colour, leaving only an aesthetic ring-shaped slit in the ceiling for air flow

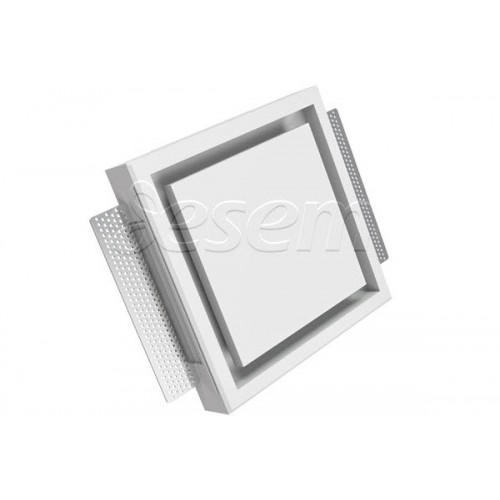

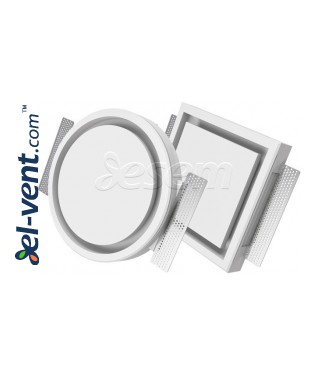

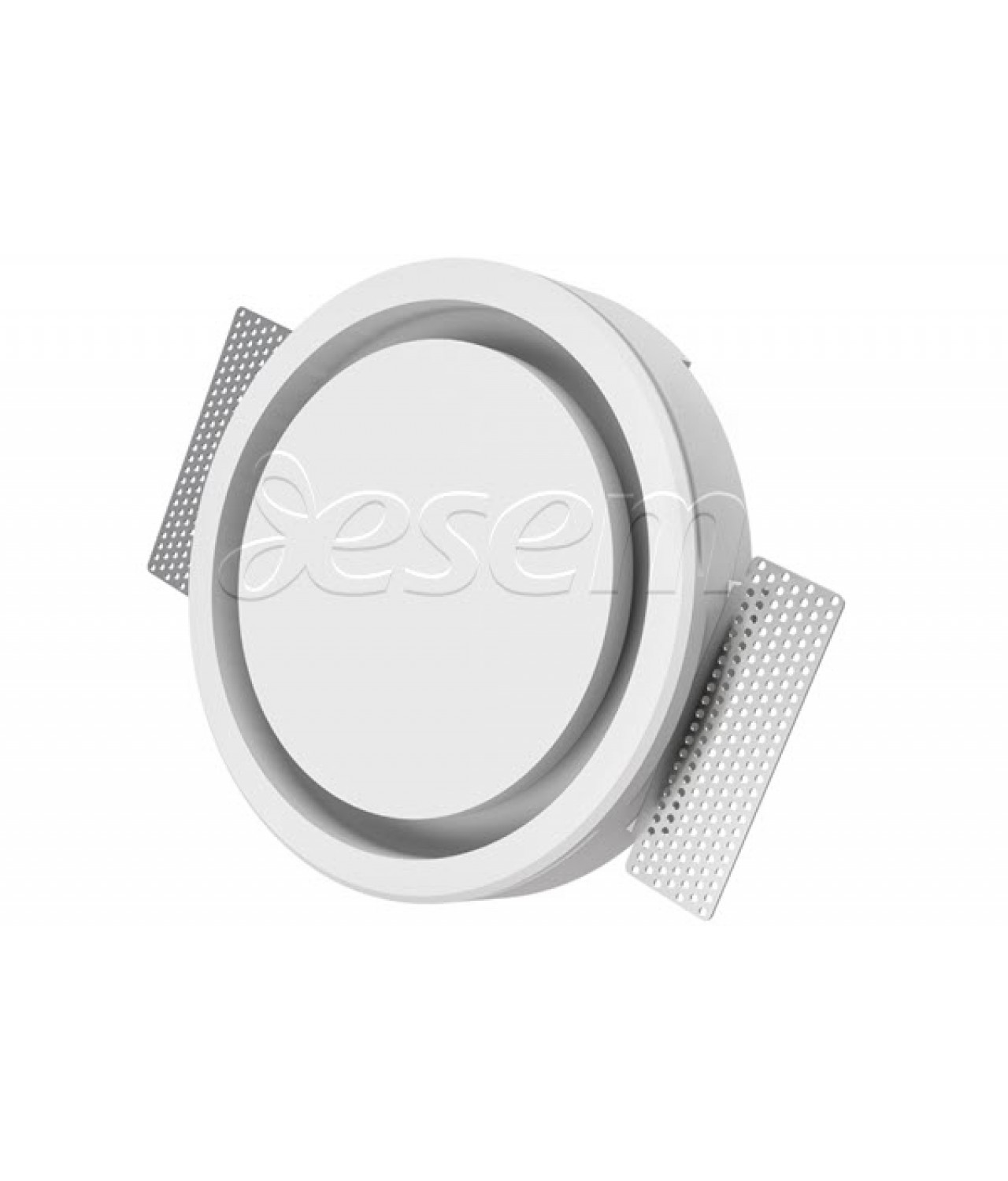

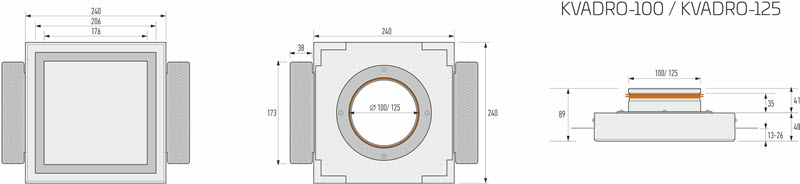

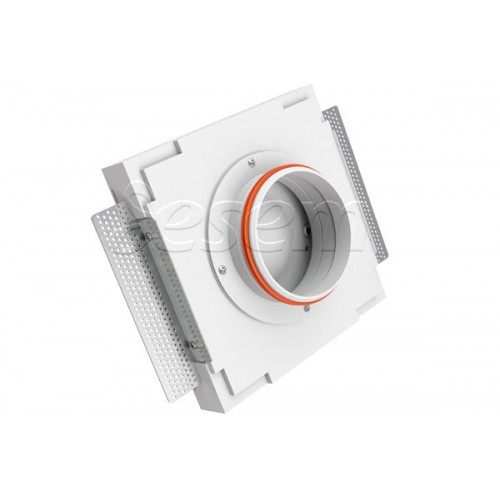

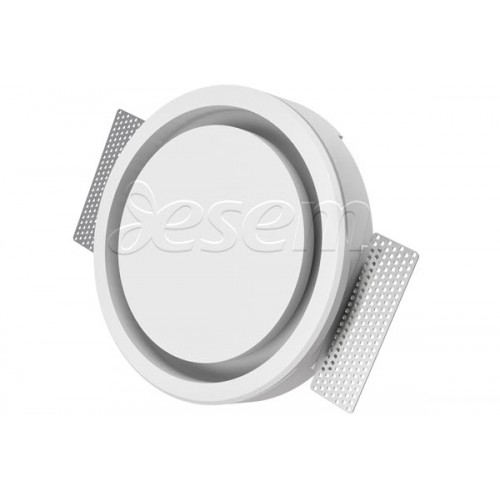

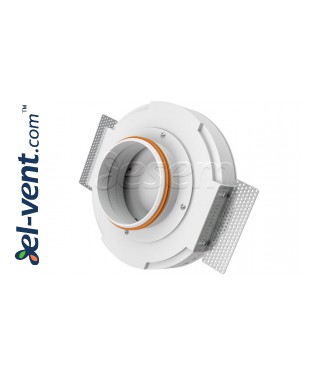

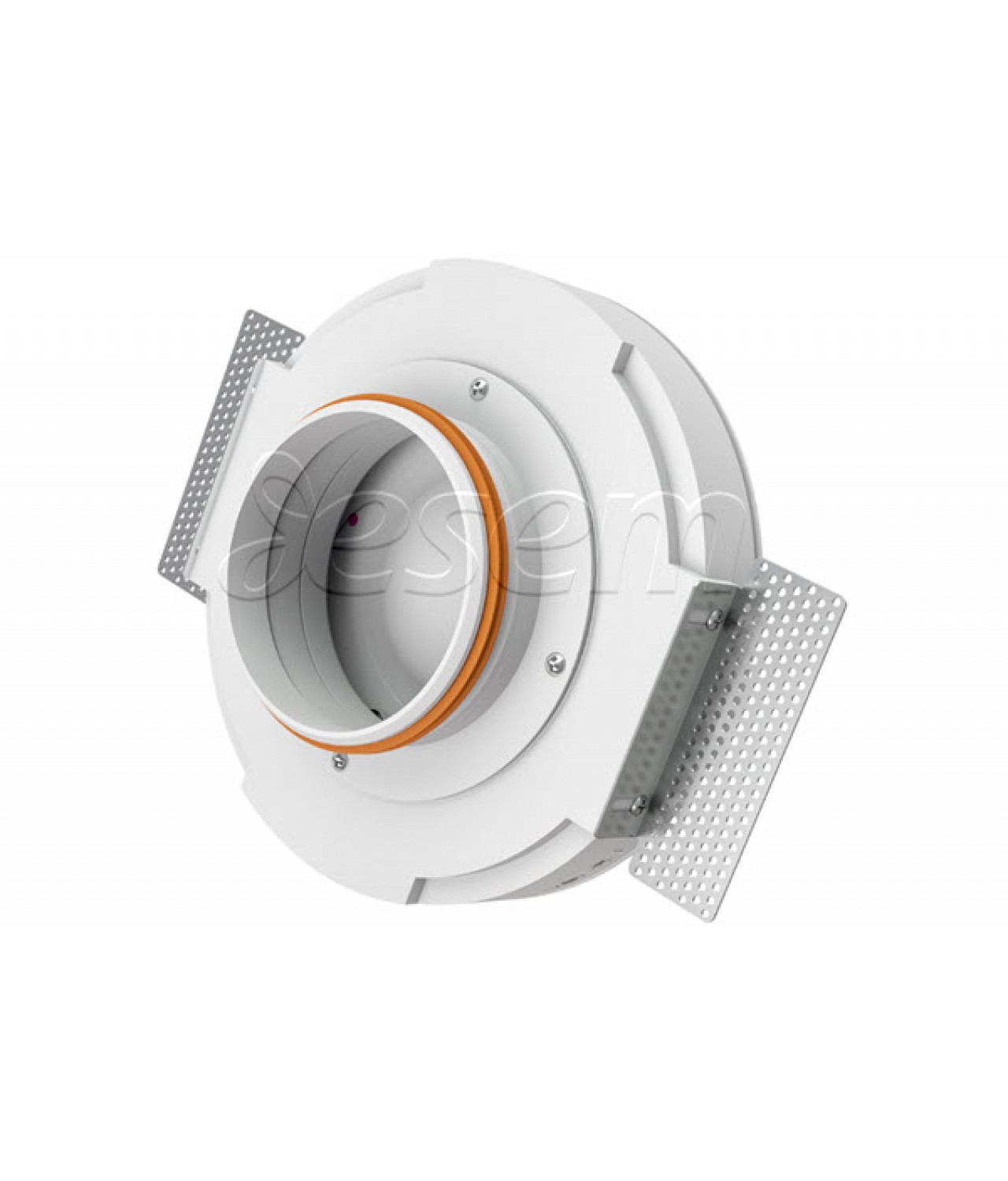

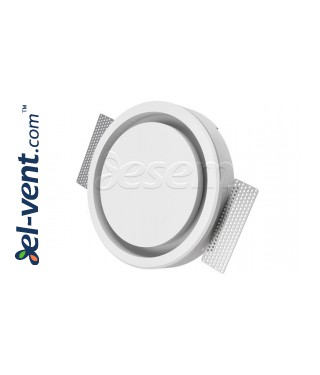

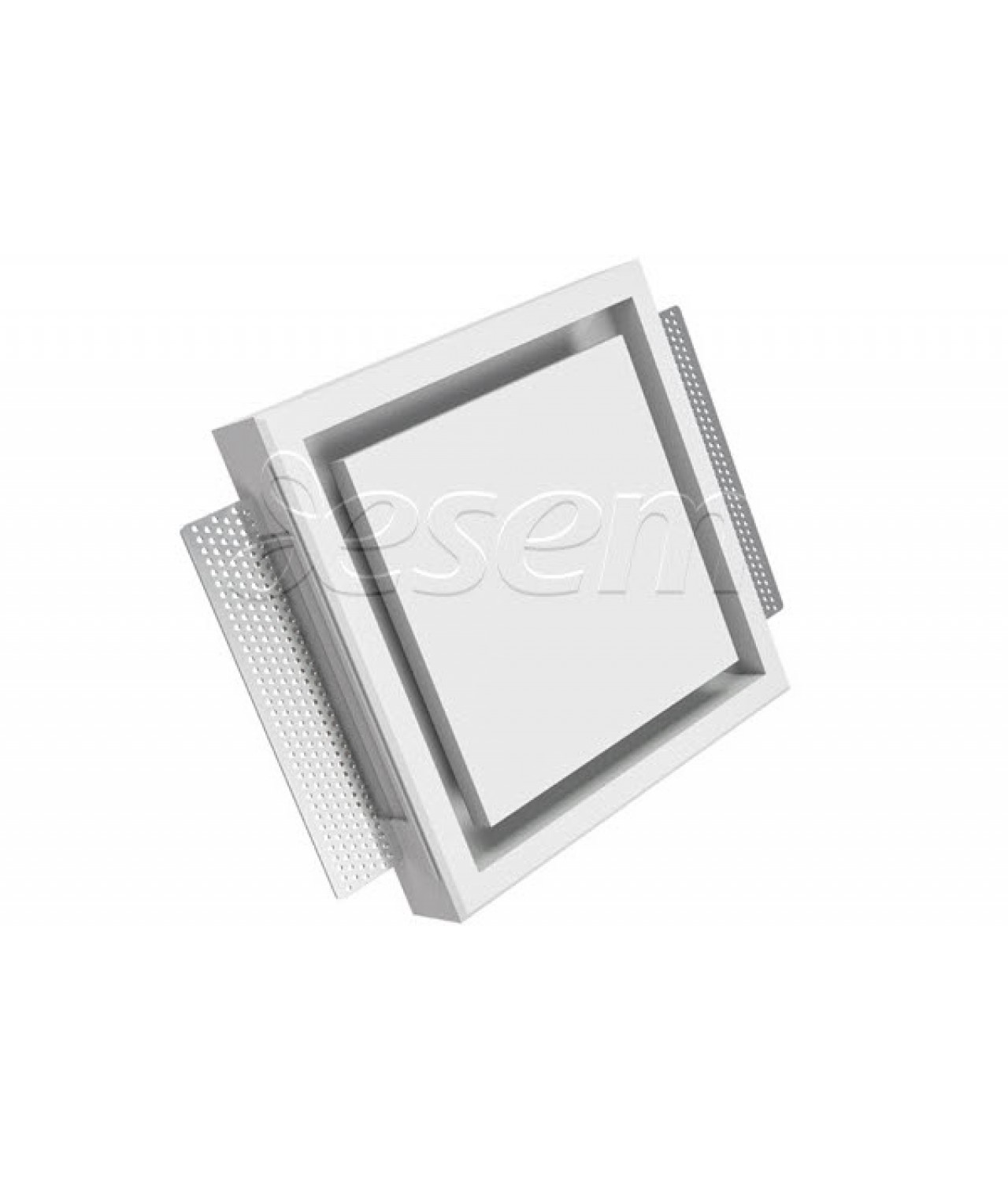

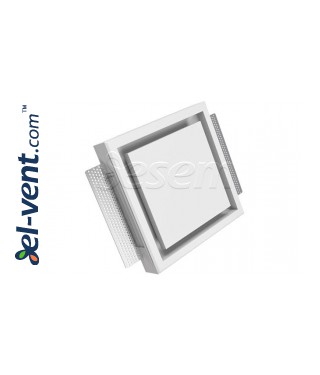

- square diffusers Ø100-125 mm (KVADRO), round diffusers Ø100-125-160 mm (RONDO)
- the entire diffuser can be painted with the same ceiling colour
- easy to install, suitable for all connection methods, can be installed in single or double plasterboard ceilings
- each diffuser is sold in individual and secure packaging with detailed installation instructions

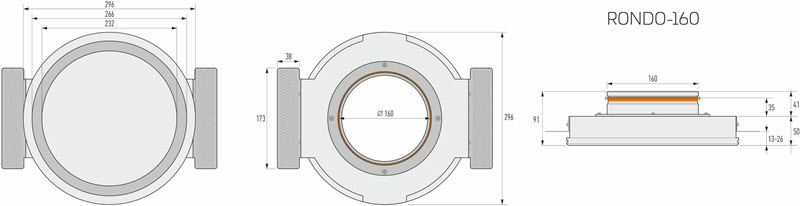

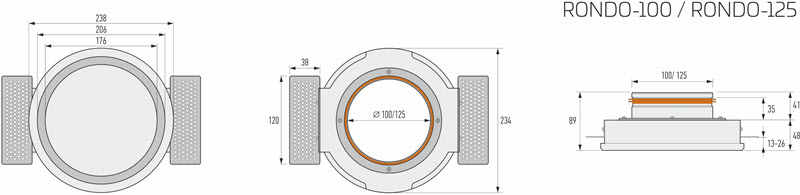

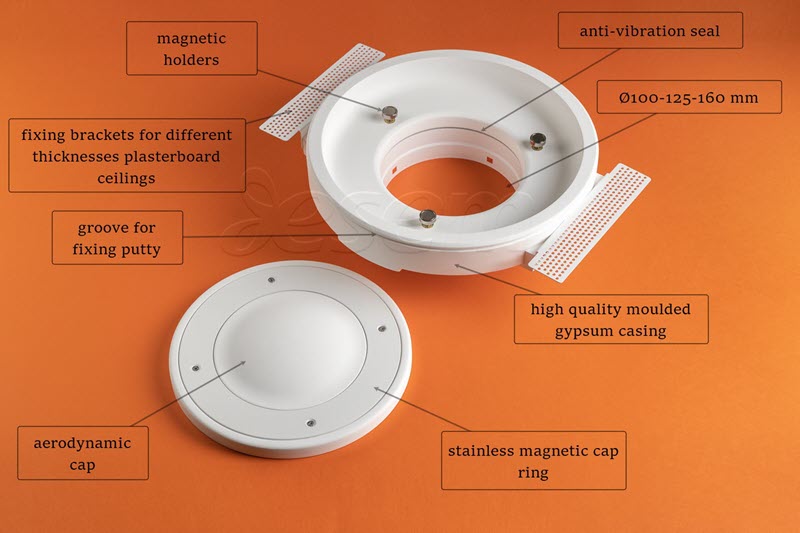

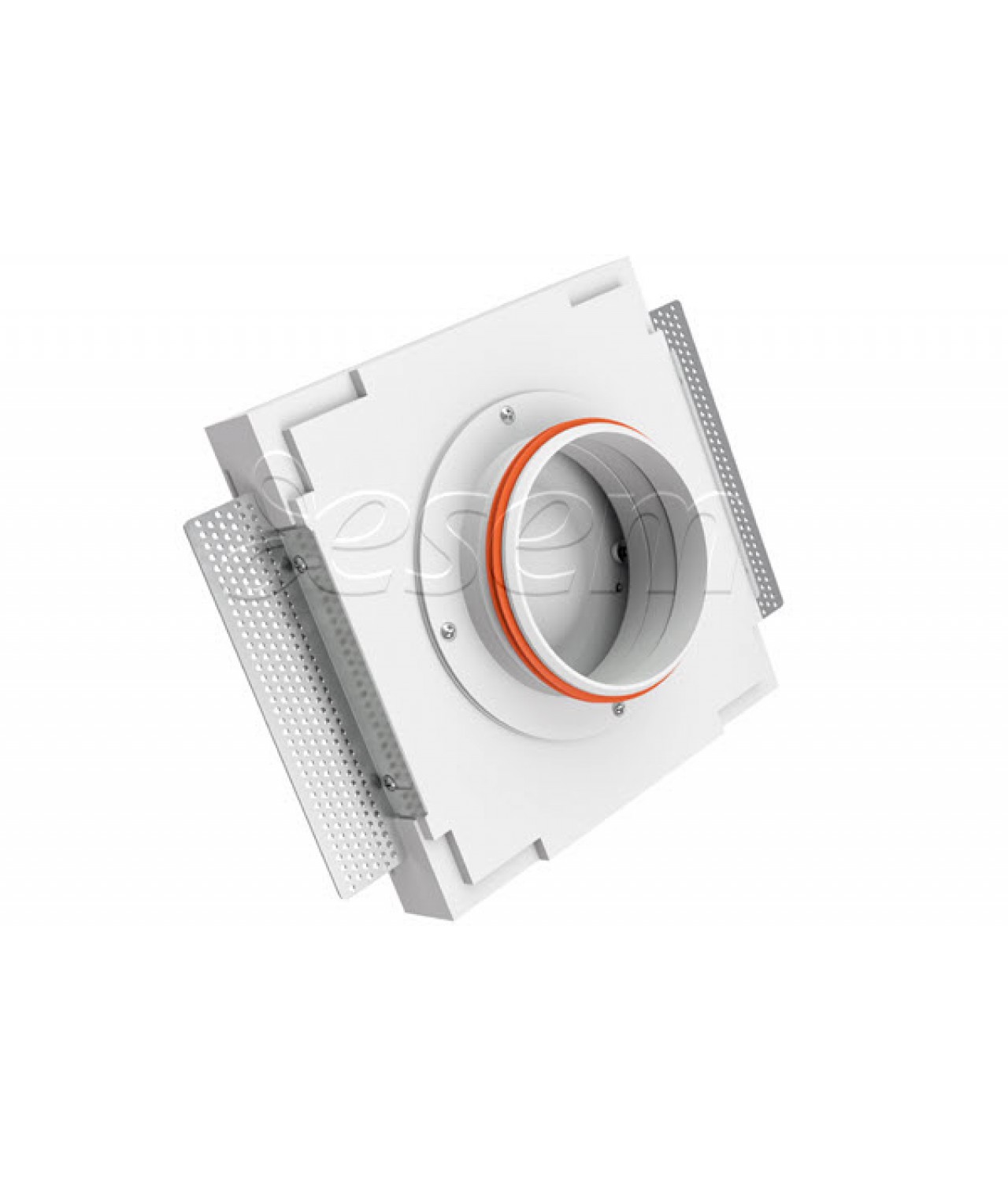

Diffuser design:

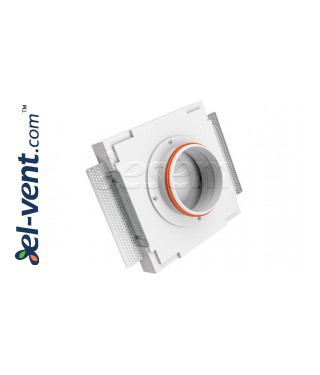

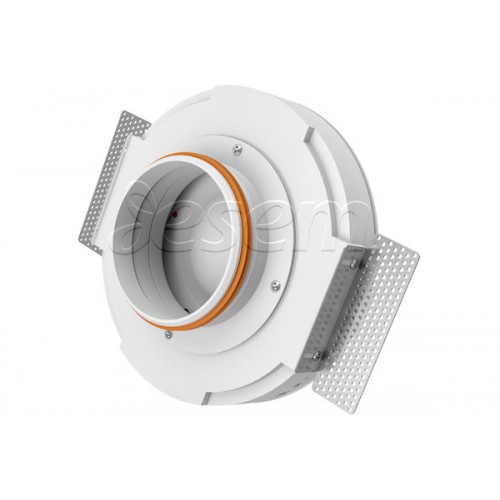

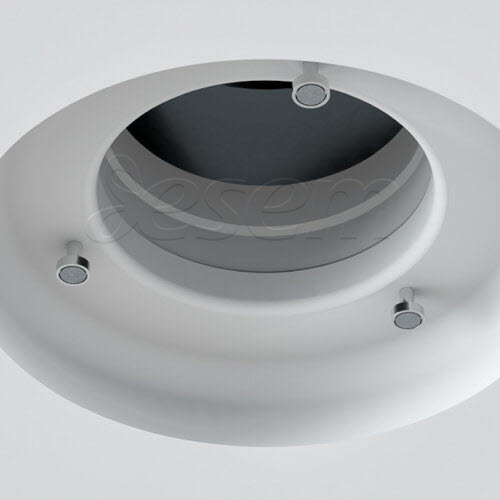

The cap is held firmly in place by sturdy magnetic holders rather than screw heads:
Brand: ESEM
| Ø | Max. air flow, m³/h |
| 100 mm | 90 |
| 125 mm | 90 |
| 160 mm | 120 |

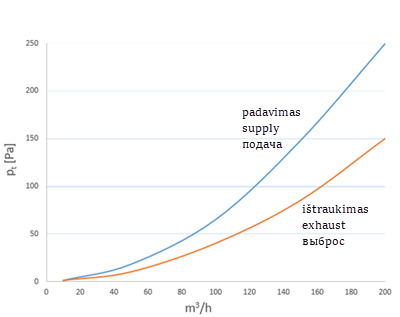

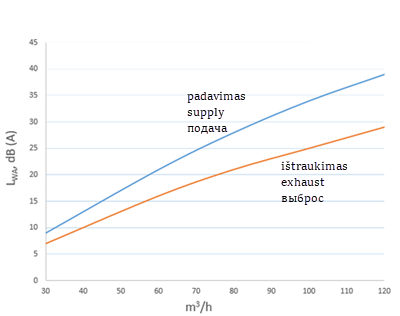

Pressure loss and noise diagrams:
