E-VSD + CP-AQS - smart fan speed controller with temperature, humidity and air quality sensor

• E-VSD + CP-AQS - smart fan speed controller with temperature, humidity and air quality sensor

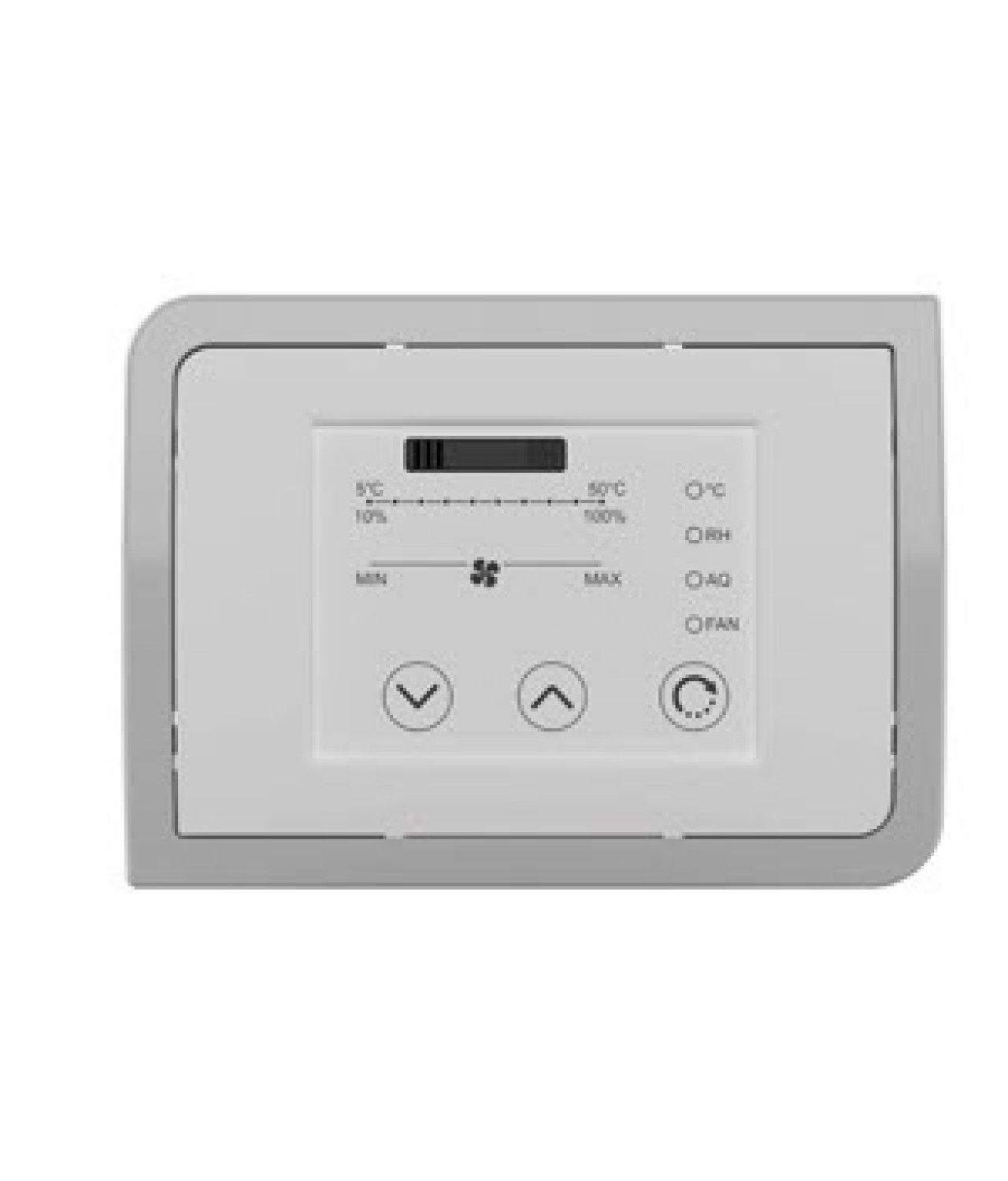

• the set consists of an E-VSD continuously variable speed drive for fan and a CP-AQS touch control panel
• principle of operation - when one of the settings (temperature or humidity) rises above the set limit, the controller switches to smart mode, i.e. the fan speed is maintained in proportion to the set indoor air quality parameters - as the temperature or humidity increases, the fan speed automatically increases, and vice versa—as it decreases, the speed decreases
• the automatic fan operating mode (adjustable speed) is indicated by a flashing LED next to the parameter that is currently controlling the fan
• air quality sensors operate independently of each other, controlling the fan operation according to the selected settings
• the ability to adjust the fan speed in manual mode
• the ability to activate standby mode, i.e. the fan is on, but the impeller is not rotating
• temperature control scale 5-50 °C
• relative humidity control scale 10-100%
• CO₂ equivalent - 400-2000 ppm (ppm - parts per million)
• VOC (Volatile Organic Compounds. These are chemicals that easily evaporate into the air and can affect air quality and human health. VOCs are often found in paints, cleaning products, fuel vapors, and industrial emissions) - 60-750 ppb (ppb - parts per billion)
• The E-VSD drive housing consists of an aluminum cover and self-extinguishing plastic UL-5VA
• made in Italy
• 2 years warranty

E-VSD

CP

• CO₂ equivalent - 400-2000 ppm (ppm - parts per million)
• VOC - 60-750 ppb (ppb - parts per billion)
• temperature control range 5-50 °C
• relative humidity control range 10-100 %
• IP42
• maximum load 100W, 0.5 A
• 230 V / 50-60 Hz
• weight: 0.7 kg
