Price / DNZOT:
Select
  • 1N / 2600 m³/h 1,198.05 €
  • 2N / 3500 m³/h 1,749.49 €
  • 4 / 4700 m³/h 3,116.55 €
  • 4-2 / 5700 m³/h 2,668.36 €
Qty.:

European delivery - 21 days, other countries +7 days.

Ask a question about this item

Ask a question about this item

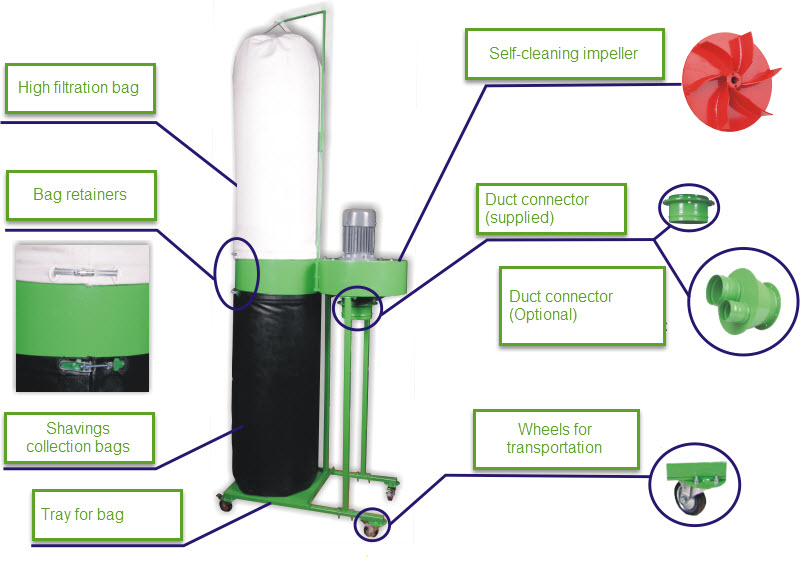

Dust and shavings extraction kits DNZOT ≤5700 m³/h

  • DNZOT - dust, shavings and sawdust removal kits
  • centrifugal, self-cleaning impeller creates extremely high pressure, which allows for high volumes of air to be transported with particles at a capacity of 0.1 - 0.2 kg/m³
  • kit includes dust filtration and dust collection bags
  • kit must not be used in explosive atmospheres or for the transport of gases or substances which may be explosive
  • the appliance is not suitable for pumping air containing corrosive or sticky contaminants
  • maximum transported air temperature 60 °C
  • engine operating temperature -15 - 40 °C
  • made in Poland
  • engine warranty - 12 months (shipment at the expense of the buyer to the factory for expertice, if, after inspection, it turns out that the engine defective transportation costs are covered by the manufacturer, otherwise - by customer)
  • kit includes:



Code
Phase
Voltage, V at 50 Hz
Capacity, m³/h
Capacity, l/h
Pressure, Pa
Power, W Speed, min-1 T max., °C Weight, kg
DNZOT-1N III 400 2600 ~200 1700 1500 2800 60 ~70
DNZOT-2N III 400 3500 ~2x250 2100 2200 2800 60 ~100
DNZOT-4 III 400 4700 ~4x250 2450 4000 2800 60 ~150
DNZOT-02/04 III 400 5700 ~2x350 2400 4000 2800 60 ~120



Pressure loss diagramss
