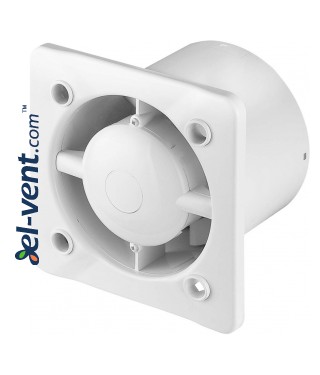

Bathroom fan with hygrostat, timer and ball bearings SISTEMA+125H, Ø125 mm

PRICE:
75.47 €    100.62 €
Qty.:

EU shipping 14 days, non EU 21 days

Ask a question about this item

Ask a question about this item

Bathroom fan with hygrostat, timer and ball bearings SISTEMA+125H, Ø125 mm

  • humidity sensor adjustment scale from 40% to 90%
  • can be mounted in any position, in the wall or ceiling
  • choose interior panel by your style
  • to connect use three-core cable
  • with Italian quality motor with ball bearings
  • ABS plastic housing
  • mount with screws (supplied)
  • made in Poland
  • 5 years warranty



Application area

Code
Ø
A
B
X
Y
W
Z
SISTEMA+100
100
109
109
128
128
88
77
SISTEMA+125 125 137 137 156 156 88 77





Code
Voltage, V
Frequency, Hz
Power, W
Capacity,
m³/h
Noise level, dB
Protection class IP
Pressure,
Pa
SISTEMA+125H
230
50
6.0
145
32
X4
41



Download the installation guide



Connection to the power supply

T - phase through switch
N - null
L - phase
