Duct fan with ball bearings and timer TURBO100T, Ø100 mm

PRICE:
20.18 €    33.64 €
Qty.:

EU shipping 14 days, non EU 21 days

Ask a question about this item

Ask a question about this item

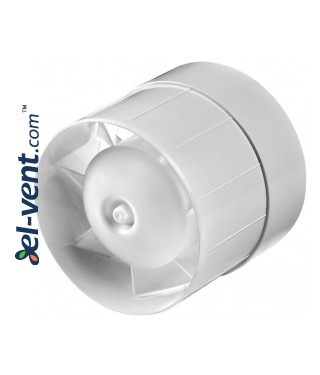

Duct fan with ball bearings and timer TURBO100T, Ø100 mm

  • can be mounted in any position, in the wall or ceiling
  • motor with ball bearings, patented in Italy
  • for mounting with Ø100 mm duct system
  • made in Poland
  • 5 years warranty
Code
Ø
W
Z
TURBO100
100
89
55
TURBO125 125 83 40
TURBO150 150 90 56







Code
Voltage, V
Frequency, Hz
Power, W
Capacity, m³/h
Noise level, dB
Protection class IP
Pressure,
Pa
TURBO100T
230
50
14
125
36
X4
45




Pressure loss graph

Installation

Connection to the power supply

T - phase through switch
N - null
L - phase
