Exhaust fan with automatic shutter and timer A-MATIC100T, Ø100 mm

PRICE:
48.28 €    64.37 €
Qty.:

EU shipping 14 days, non EU 21 days

Ask a question about this item

Ask a question about this item

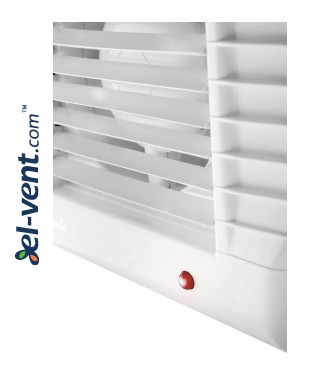

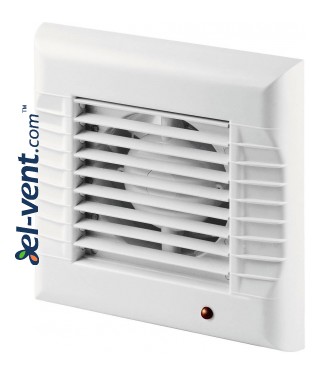

Exhaust fan with automatic shutter and timer A-MATIC100T, Ø100 mm

  • can be mounted in any position, in the wall or ceiling
  • with timer
  • with automatic shutter
  • ABS plastic housing
  • mount with screws (supplied)
  • with the operation indicator
  • made in Poland
  • 2 years warranty

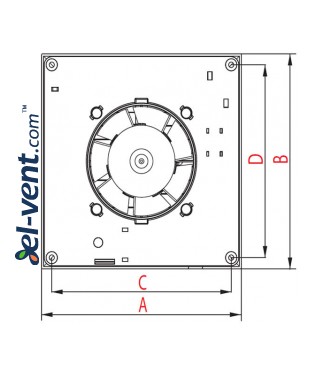

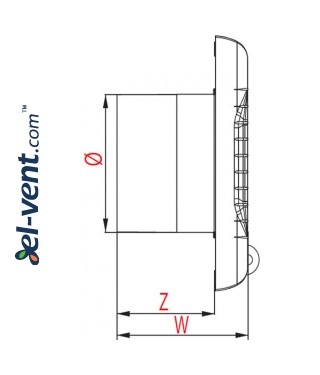

Code
Ø
A
B
X
Y
W
Z
A-MATIC100T
100
166
166
185
185
102
77





Code
Voltage, V
Frequency, Hz
Power, W
Capacity, m³/h
Noise level, dB
Protection class IP
Pressure,
Pa
A-MATIC100T
230
50
14
116
36.5
X2
38.1



Pressure loss diagram

Connection to the power supply

T - phase through switch
N - null
L - phase
