Whole house fan with ball bearings and timer VEGA100T, Ø100 mm

PRICE:
28.46 €    40.64 €
Qty.:

EU shipping 14 days, non EU 21 days

Ask a question about this item

Ask a question about this item

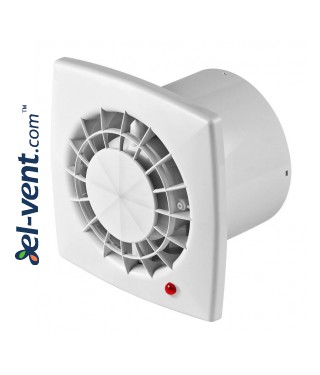

Whole house fan with ball bearings and timer VEGA100T, Ø100 mm

  • can be mounted in any position, in the wall or ceiling
  • with timer, to connect use tree-core cable
  • with Italian quality motor with ball bearings
  • ABS plastic housing
  • mount with screws (supplied)
  • with the operation indicator
  • made in Poland

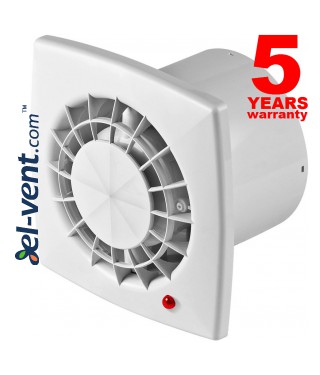

  • 5 years warranty

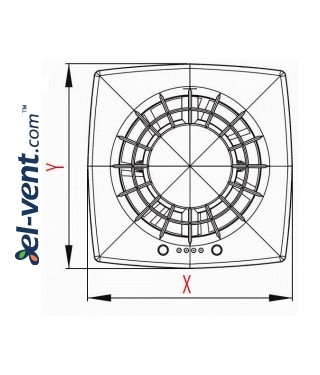

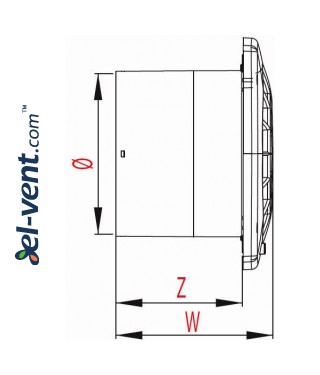

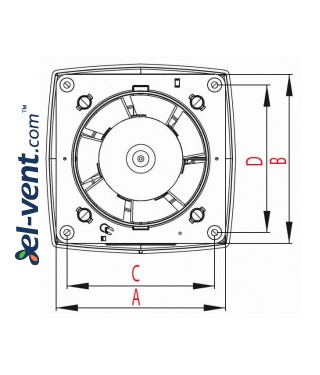

Code
Ø
A
B
C
D
X
Y
W
Z
VEGA100T
100
125
125
109
109
140
140
95
77
Code
Voltage, V
Frequency, Hz
Power, W
Capacity, m3/h
Noise level, dB
Protection class IP
Pressure,
Pa
VEGA100T
230
50
10
105
35
X4
33



Pressure loss diagram

Connection to the power supply

T - phase through switch
N - null
L - phase
