Explosion proof centrifugal fans CB EX-ATEX ≤1450 m³/h

Price / CB:
Qty.:

European delivery - 30 days, other countries +7 days.

Ask a question about this item

Ask a question about this item

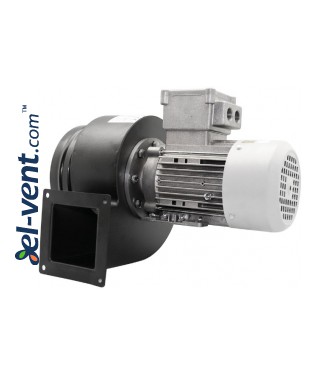

Explosion proof centrifugal fans CB EX-ATEX ≤1450 m³/h

  • CB EX-ATEX - explosion proof certified centrifugal fans to extract air and fumes through medium/long sized ducts in compliance with ATEX Directive 84/9/EEC effective from July 1st 2003 in EU
  • suitable for applications in commercial and industrial environments where the risk of explosion is high and where the surrounding atmosphere contains gas, vapoursor highly inflammable steam
  • the whole product and not just the electrical parts, has been certified by CESI Institute with CESI n°3 ATEX 251 certificate
  • fan group II, cat. 2 for gases, construction safety C, max surface temp. T3 (200°C)
  • classified for zones 1 and 2
  • this approval homologation has required specific safety tests and proper examinations on products to verify how the adopted solutions have satisfied the essential Directive requirements
  • steel plated frame protected by an epoxy-based anticorrosive paint and aluminium centrifugal impeller statically and dynamically balanced
  • ball bearing class F insulation motor IP55 protected
  • max temperature of extracted air 40 °C
  • standard product supplied with impeller housing position
  • reference standards: EN 13463-1, EN 13463-5, EN 14986
  • made in Italy - O.ERRE
  • 1 year warranty
  • it is recomended to install fan with sealing clamps:







Standard product supplied with impeller housing position CCW 270, different positions available on request

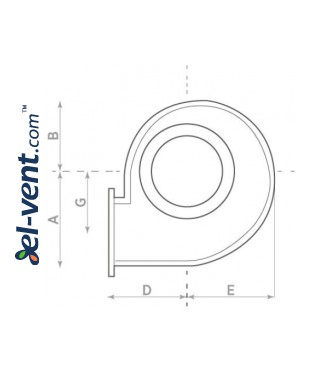

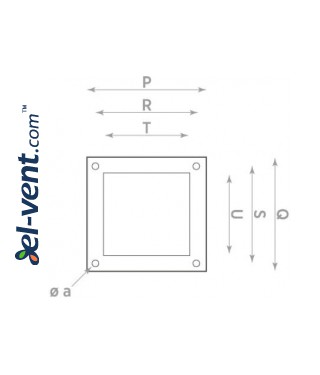

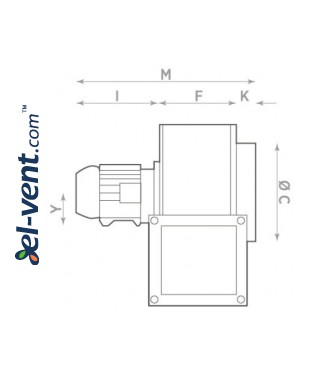

Code
A
B
Ø C
D
E
F
G Y K I M P Q R S T U z Ø a
CB230 139 108 180 127 122 94 91 63 42 242 378 135 135 114 114 88 90 4 8.2
CB240 172 128 200 146 150 112 117 63 45 242 399 152 152 126 126 105 105 4 8.2
Code
Marking IP class
Phase
N° poles
Voltage, V at 50Hz
Capacity, m³/h
Pressure, Pa
Power, W Current, A Noise level, dB(A)2m Speed, min-1 Weight, kg
230 V 400 V
CB230/2M II 2G c T4 55 I 2 230 1000 677 450 2.5 - 76 2750 10
CB240/2M II 2G c T4 55 I 2 230 1450 883 850 3.8 - 83 2800 12
CB230/2T II 2G c T4 55 III 2 230/400 1000 677 400 1.4 0.8 76 2750 10
CB240/2T II 2G c T4 55 III 2 230/400 1450 883 800 2.3 1.3 83 2800 12



Pressure loss diagrams
