Explosion proof axial fans EB EX-ATEX ≤4500 m³/h

Price / EB EX-ATEX:
Qty.:

European delivery - 30 days, other countries +7 days.

Ask a question about this item

Ask a question about this item

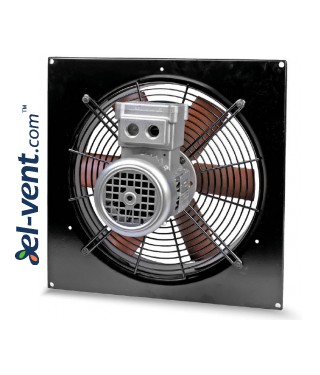

Explosion proof axial fans EB EX-ATEX ≤4500 m³/h

  • CS EX-ATEX - explosion proof axial fans to extract air and fumes directly outside through short ducting, wall or panel mounting, in compliance with ATEX Directive 84/9/EEC effective from July 1st 2003 in EU
  • suitable for applications in commercial and industrial environments where the risk of explosion is high and where the surrounding atmosphere contains gas, vapoursor highly inflammable steam
  • the whole product and not just the electrical parts, has been certified by CESI Institute with CESI n°3 ATEX 251 certificate
  • fan group II, cat. 2 for gases, construction safety C, max surface temp. T4 (135 °C)
  • classified for zones 1 and 2
  • this approval homologation has required specific safety tests and proper examinations on products to verify how the adopted solutions have satisfied the essential Directive requirements
  • steel plated frame protected by an epoxy-based anticorrosive paint
  • impeller made of VO reinforced conductive nylon
  • Exd-II B - T4, ball bearing class F insulation motor IP55 protected
  • max temperature of extracted air 40 °C
  • reversibility: all models
  • reference standards: EN 13463-1, EN 13463-5, EN 14986
  • made in Italy - O.ERRE
  • 1 year warranty

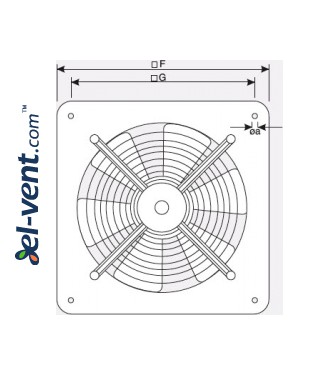

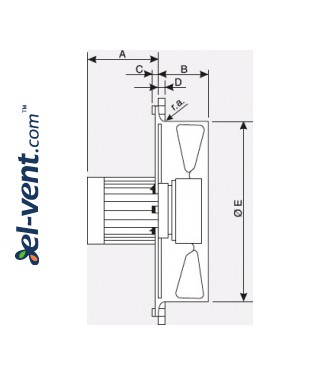

Code
A
B
C
D
E
F
G r.a. Ø a
EB 25 Ex-ATEX 190 66 9 8 260 340 325 15 8.3
EB 30 Ex-ATEX 190 75 9 10 312 390 375 15 8.3
EB 35 Ex-ATEX 190 85 10 12 365 460 439 15 12.3
EB 40 Ex-ATEX 190 85 10 12 415 510 490 15 12.3
EB 50 Ex-ATEX 190 101 10 15 515 630 610 15 12.3
Code
Marking IP class
Phase
N° poles
Voltage, V at 50Hz
Capacity, m³/h
Pressure, Pa
Power, W Current, A Noise level, dB(A)2m Speed, min-1 Weight, kg
230 V 400 V
EB25/4M II 2G c T4 55 I 4 230 900 98 120 0.7 - 55 1460 10
EB30/4M II 2G c T4 55 I 4 230 1500 118 140 0.75 - 59 1400 10
EB35/4M II 2G c T4 55 I 4 230 2250 98 160 0.8 - 62 1350 11
EB40/4M II 2G c T4 55 I 4 230 2900 88 180 0.85 - 65 1290 12
EB50/4M II 2G c T4 55 I 4 230 4500 137 210 1 - 70 1200 14
EB25/4T II 2G c T4 55 III 4 230/400 900 98 100 0.67 0.39 55 1460 9
EB30/4T II 2G c T4 55 III 4 230/400 1500 118 125 0.69 0.40 59 1430 9
EB35/4T II 2G c T4 55 III 4 230/400 2250 98 150 0.72 0.42 63 1400 10
EB40/4T II 2G c T4 55 III 4 230/400 2900 88 180 0.74 0.43 66 1350 11
EB50/4T II 2G c T4 55 III 4 230/400 4500 137 230 0.78 0.45 72 1270 13



Pressure loss diagrams
