Centrifugal roof fans TXV ≤18800 m³/h

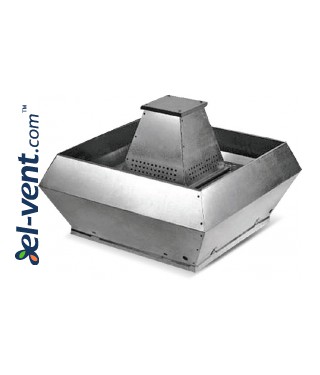

  • TXV - the most powerfull centrifugal roof fans with vertical outlet to extract air or fumes directly outside or through ducting. Ideal for medium and large buildings
  • suitable for industrial applications, such as restaurants, sport facilities, supermarkets and shopping centers, factories, warehouses, offices and apartment buildings
  • motor impeller with external rotor, statically and dynamically balanced
  • equipped with a ball bearing class F insulation motor, IP55 protected
  • max temperature of extracted air  60 °C
  • zinc-plated steel frame and impeller and cover
  • safety protection outside grille
  • self-cleaning backward curved blade impeller, statically and dynamically balanced
  • in accordance with the essential requirements of 2006/42/EC Directive concerning machines and European Standards UNI EN ISO 13857, UNI EN ISO 12499, CEI EN 60204-1
  • made in Italy
  • 2 years warranty
  • adjustable speed through RGM 2, RGM 4, RGT 1, RGT 2:





    RGM 2 (TXV 3M, TXV 6M):



    RGM 4 (TXV 7M, TXV 8M, TXV 10M):



    RGT 1 (TXV 3T, TXV 6T, TXV 7T):



    RGT 2 (TXV 8T, TXV 10T):

Code
AxA
BxB C
DxD
ØE
H

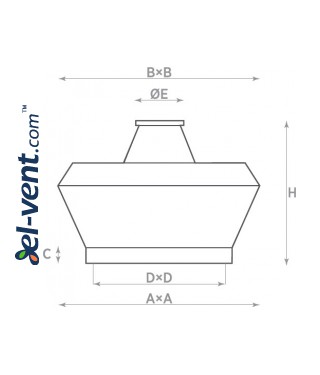

TXV3 400 590 40 350 200 480
TXV6 400 590 40 350 250 500
TXV7 560 780 40 460 300 630
TXV8 560 780 40 460 350 630
TXV10 710 930 40 610 400 700
TXV12 900 1210 40 800 500 780
TXV14 900 1210 45 800 550 820
TXV15 900 1210 45 800 600 860
TXV18 900 1210 45 800 600 900



Code
Voltage, V
Frequency, Hz
N° poles
Capacity, m³/h
Pressure, Pa
Power, W Current, A 230 V Current, A 400 V Noise level, dB(A)2m Speed, min-1 Weight, kg
TXV 3M 230 50/60 4 1200 196 120 0.81 - 60 1400 20
TXV 6M 230 50/60 4 1800 294 180 1.05 - 66 1400 26
TXV 7M 230 50/60 4 3100 392 250 1.40 - 69 1400 35
TXV 8M 230 50/60 4 4200 441 370 1.90 - 70 1400 42
TXV 10M 230 50/60 4 5700 549 750 3.40 - 75 1400 55
TXV 3T 230/400 50/60 4 1200 196 120 0.8 0.47 60 1400 20
TXV 6T 230/400 50/60 4 1800 294 180 1.05 0.60 66 1400 26
TXV 7T 230/400 50/60 4 3100 392 250 1.42 0.82 69 1400 35
TXV 8T 230/400 50/60 4 4200 441 370 1.90 1.10 70 1400 42
TXV 10T 230/400 50/60 4 5700 549 750 3.40 1.80 75 1400 55
TXV 12T 230/400 50/60 6 7100 382 750 3.81 2.20 71 900 77
TXV 14T 230/400 50/60 6 10800 471 1100 5.37 3.10 75 900 100
TXV 15T 230/400 50/60 6 14200 559 2200 9.35 5.40 80 900 122
TXV 18T 230/400 50/60 6 18800 637 3000 11.95 6.90 84 900 138
