  • 100 ECOWATT 257.57 € 154.54 € (-40%)
  • 125 ECOWATT 258.00 € 154.80 € (-40%)
  • 150 ECOWATT 566.10 € 339.66 € (-40%)
  • 160 ECOWATT 567.76 € 340.65 € (-40%)
  • 200 ECOWATT 807.31 € 484.39 € (-40%)
  • 250 ECOWATT 829.46 € 497.67 € (-40%)
  • 315 ECOWATT 847.46 € 508.48 € (-39%)
  • 355 ECOWATT 1,824.98 € 1,094.99 € (-40%)
  • 400 ECOWATT 1,857.04 € 1,114.23 € (-39%)
Speed controller:
Select
  • REB-ECOWATT 99.55 € 59.73 € (-40%)
Qty.:

European delivery - 21-28 days, other countries +7 days.

Ask a question about this item

Ask a question about this item

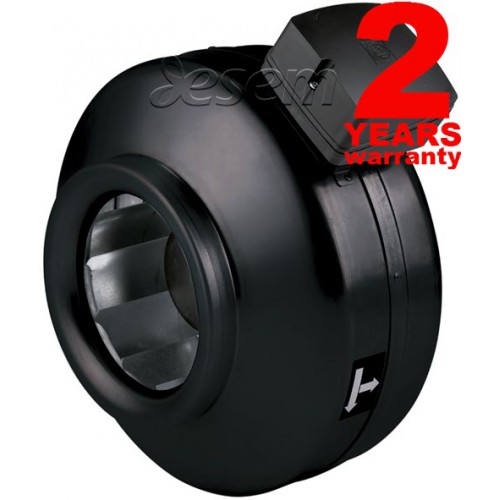

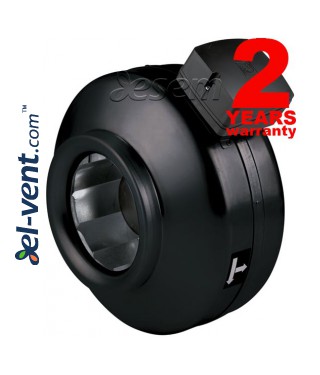

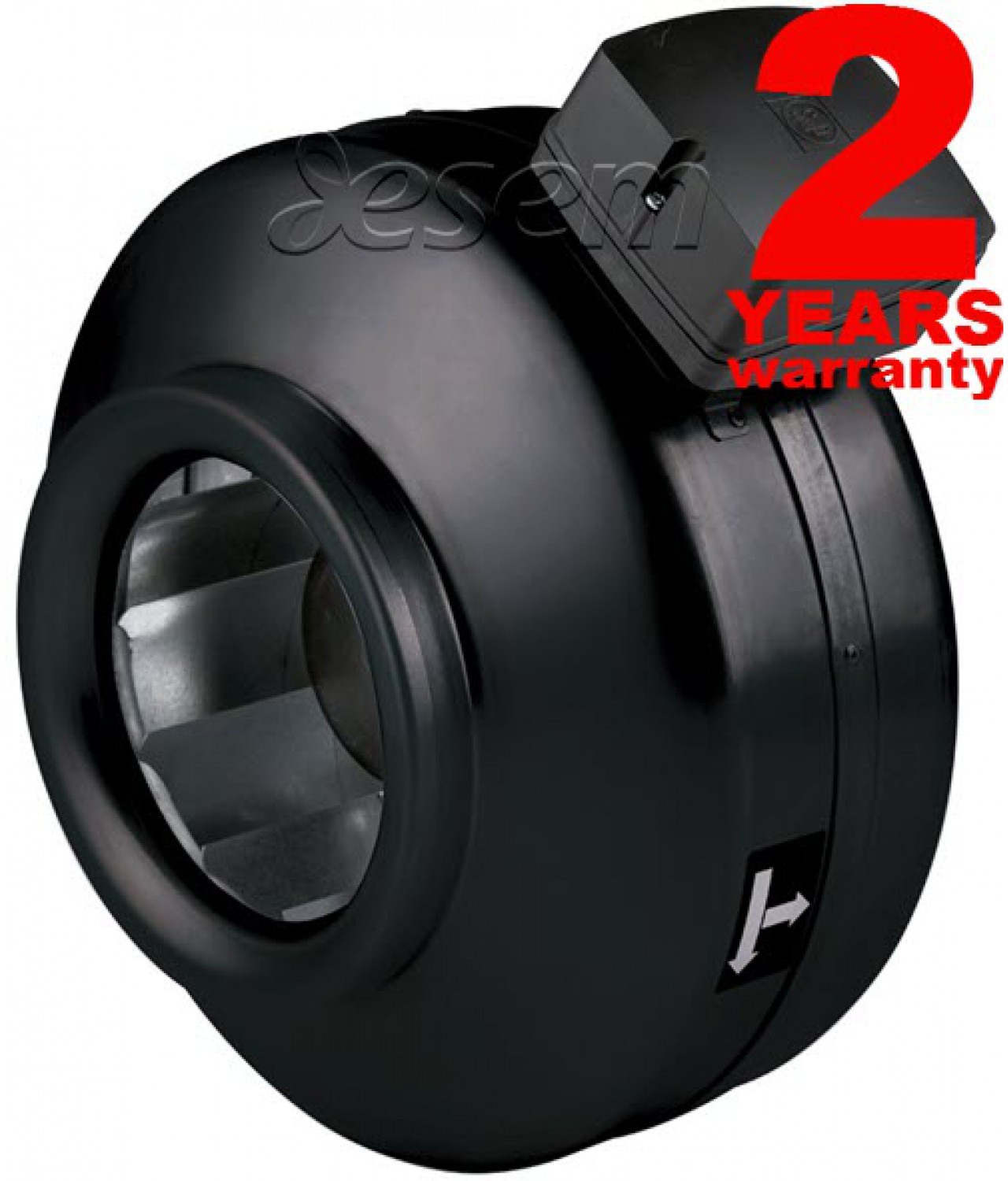

VENT ECOWATT - centrifugal in-line fans with EC motors ≤3390 m³/h

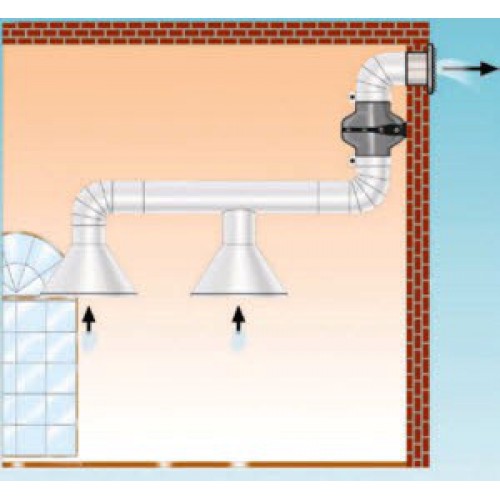

  • VENT ECOWATT - centrifugal duct fans with EC motors for direct exhaust of air and steam from kitchens, bathrooms, offices and other domestic, commercial or public premises
  • centrifugal impeller causes high pressure and blows extremely large volumes of air through Ø100-400 mm ducts and more complex duct systems
  • housing made of high-quality corrosion-resistant pressed galvanized steel, coated with black polyester paint
  • motors with bearings and thermal protection, safety class IP44
  • control the motor speed with a potentiometer integrated in the junction box or with a REB-ECOWATT speed controller with a 0-10 V signal

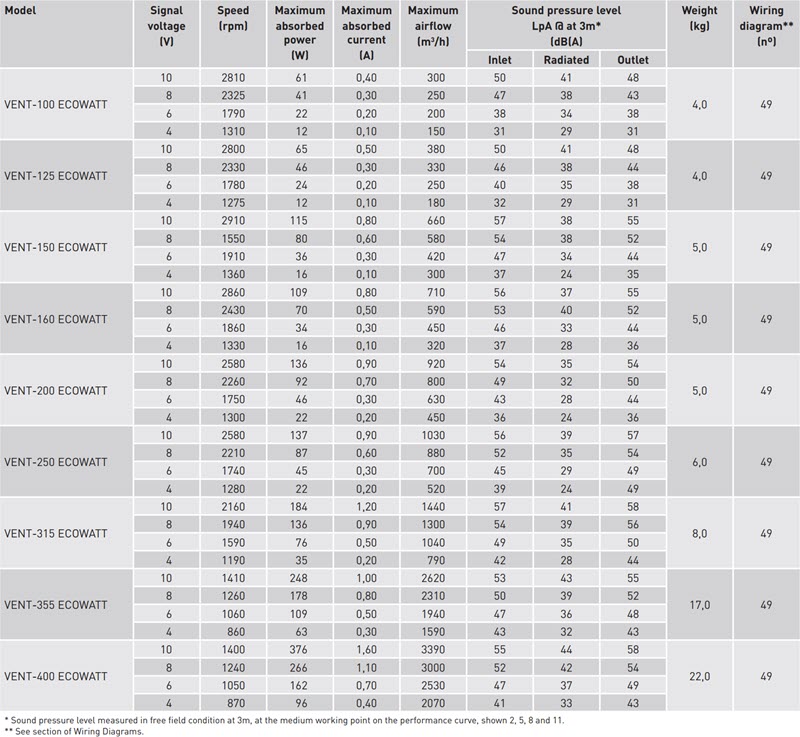

  • transported air temperature -20 - +40 °C (see technical specification)
  • made in Spain
  • 2 years warranty
  • it is recomended to install fan with anti-vibration sealing clamps:




Brand: Soler & Palau
Code
A
B
C
D D2 E* F* G* H* J*
VENT100ECOWATT 251 23 243 98
VENT125ECOWATT 253 27 243 123
VENT150ECOWATT 214 22 333 147
VENT160ECOWATT 222 27 333 157
VENT200ECOWATT 223 25 333 198
VENT250ECOWATT 206 27 333 248
VENT315ECOWATT 230 25 401 312
VENT355ECOWATT 410 25 508 354 314 552 100 170 587 11
VENT400ECOWATT 441 25 568 399 354 628 100 185 647 11



Speed controller for all modelis:

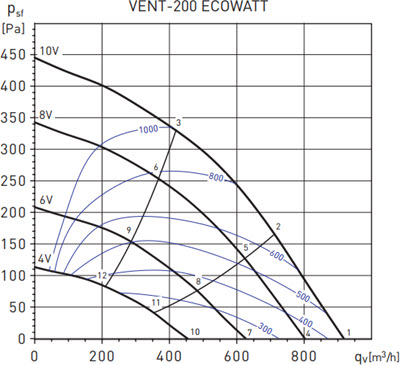

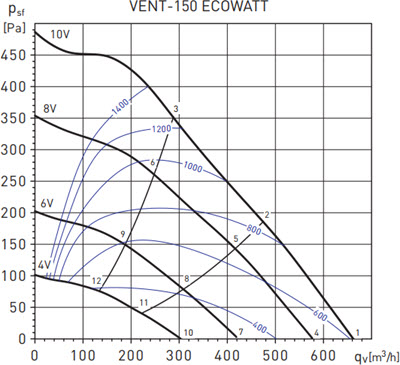

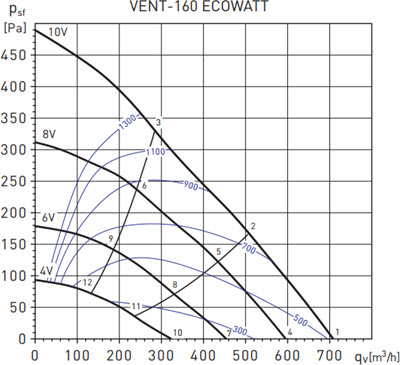

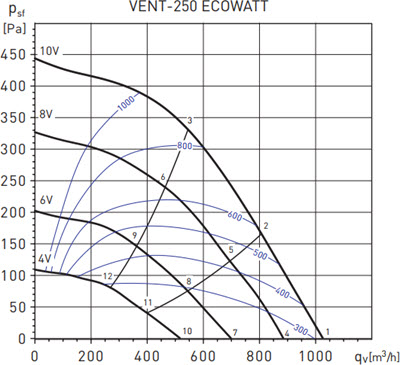

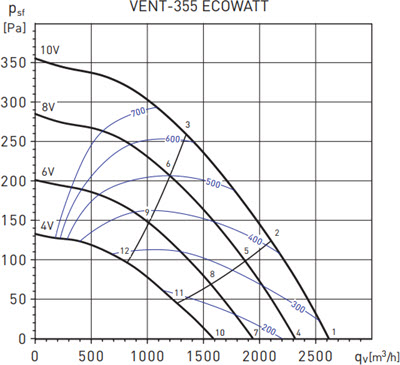

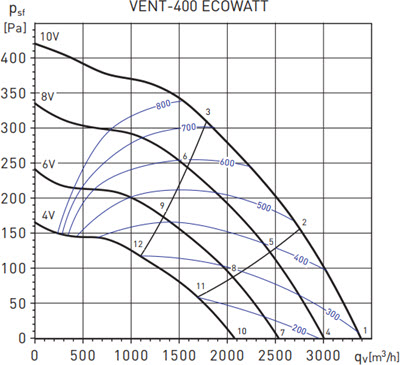

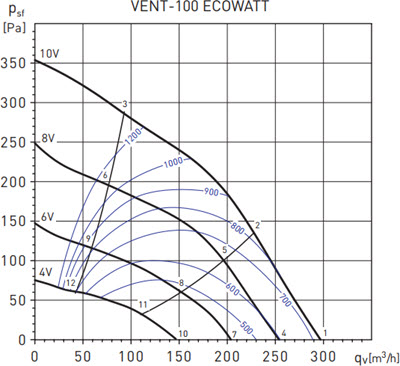

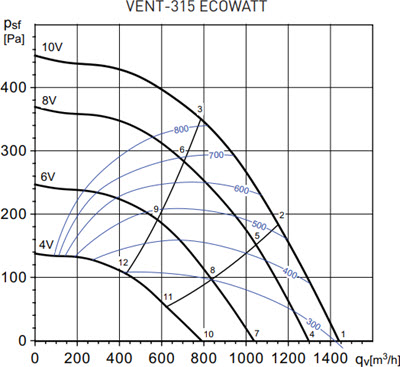

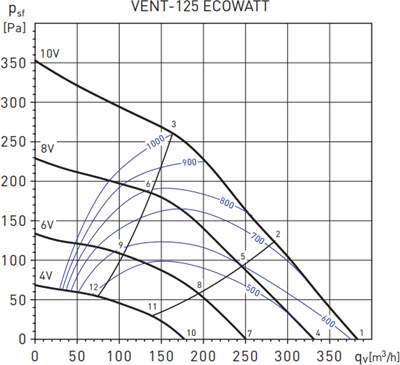

Pressure loss diagrams
