Duct fan WP125, Ø125 mm

PRICE:
83.41 €    111.21 €
Qty.:

EU shipping 14 days, non EU 21 days

Ask a question about this item

Ask a question about this item

Duct fan WP125, Ø125 mm

  • three speed motor with ball bearings
  • for mounting with Ø100mm duct system
  • housing made from mechanically durable plastic
  • with mounting bracket
  • balanced turbine
  • max. temperature of extracted air 40 °C
  • made in Poland
  • 2 years warranty
  • it is recomended to install fan with sealing clamps:

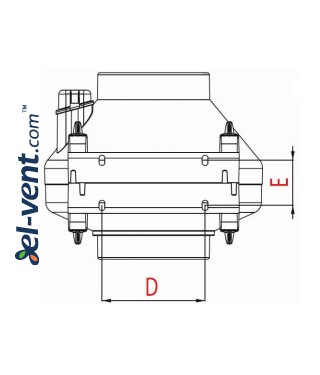

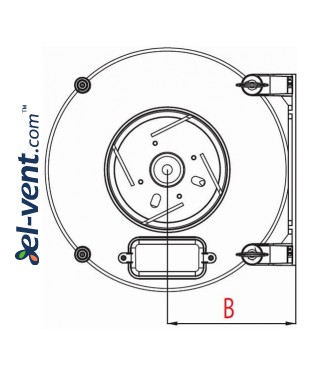

Code
Ø1
Ø2
A
B
C
D
E
WP100
100
100
208
128
161
115
50
WP125 125 125 208 128 150 115 50
WP150/160 150/160 150/160 285/237 190 137/192 115 50
WP200 200 200 225 190 167 115 50



Code Capacity, m3/h Power, W
Pressure, Pa
Noise level, dB Protection class, IP
Speed Speed Speed Speed
I II III I II III I II III I II III
WP100 180 235 270 50 52 58 335 370 395 47 54 57 44
WP125 220 295 340 53 55 61 310 345 370 44 51 55 44
WP150/160 565 640 770 112 115 120 435 453 478 51 54 57 44
WP200 668 735 822 102 105 108 450 465 490 52 53 55 44



We recommend to control speed by:

1. speed controller RG E





2. three step fan speed controller SMT-1-30-4C



Connection to the power supply
