Duct fan DV200, Ø200 mm

PRICE:
98.40 €    131.20 €
Qty.:

EU shipping 14 days, non EU 21 days

Ask a question about this item

Ask a question about this item

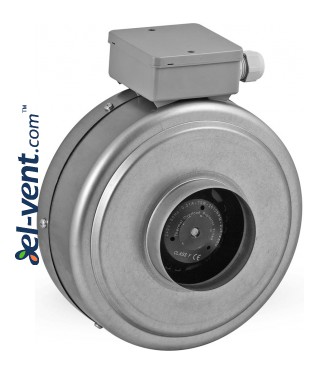

Duct fan DV200, Ø200 mm

  • for mounting with Ø200 mm duct system
  • metal mounting bracket kit
  • motor with thermal protection
  • galvanized steel housing
  • balanced turbine
  • made in Poland
  • 1 year warranty
  • expected life of the product is 10 years
  • it is recomended to install fan with sealing clamps:

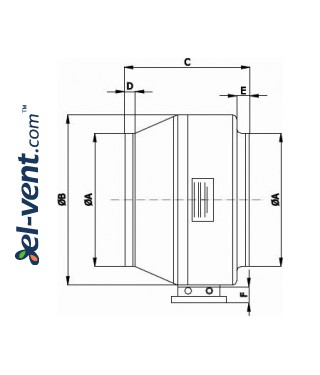

Code
ØA
ØB
C
D
E
F
DV200
196
330
230
30
28
50
Code
Capacity,
m3/h
Power,
W
Capacitance,
μF
Speed,
min-1
Voltage,
V
Noise level,
dB
Operating temperature, oC
Frequency,
Hz
Protection class, IP
Weight,
kg
DV200
735
95
2,5
2280
230
55
-20 +40
50
X2
4.4



Pressure loss diagram
