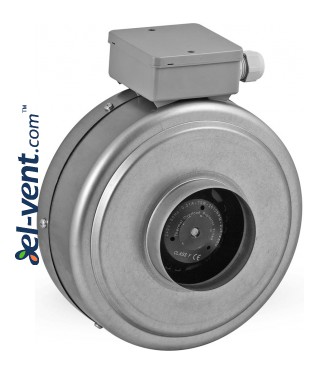

Duct fan DV160, Ø160 mm

PRICE:
81.02 €    108.03 €
Qty.:

EU shipping 14 days, non EU 21 days

Ask a question about this item

Ask a question about this item

Duct fan DV160, Ø160 mm

  • for mounting with Ø160 mm duct system
  • metal mounting bracket kit
  • motor with thermal protection
  • galvanized steel housing
  • balanced turbine
  • made in Poland
  • 1 year warranty
  • expected life of the product is 10 years
  • it is recomended to install fan with sealing clamps:

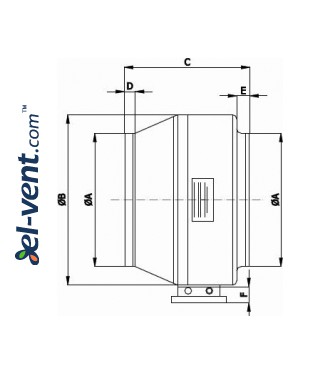

Code
ØA
ØB
C
D
E
F
DV160
157
272
192
23
25
14
Code
Capacity,
m3/h
Power,
W
Capacitance,
μF
Speed,
min-1
Voltage,
V
Noise level,
dB
Operating temperature, oC
Frequency,
Hz
Protection class, IP
Weight,
kg
DV160
390
90
2,5
2385
230
55
-20 +40
50
X2
3.0



Pressure loss diagram
