Kitchen roof fans ST-DVN E30 ≤8215 m³/h, 120 °C

Attention! Model ST-DVN 225 E2 30 are always on stock.

  • with ball bearings
  • roof fan for exhaust air applications
  • conveyed exthaust up to 120 °C
  • radial impeller
  • integrated grease tray with drain
  • motor outside the air stream (VDI 2052)
  • motor protection on site
  • isolator switch mounted on the housing, IP55
  • outdoor installation over heated rooms
  • installation position vertical
  • snow load class 0
  • connection flange dimensions according to DIN 24154R3
  • the housing is made of seawater resistant aluminum
  • the backward curved impeller is made of powder-coated sheet steel
  • the motors used can be voltage controlled via transformer
  • made in Germany
  • 2 years warranty
  • it is recommended to control the speed through speed controller:





Code
A
B
C
D
E
F
G H J
ST-DVN 225 E2 30
452 467 363 341 482 514 245 4xØ9 Ø216 6xM6x15
ST-DVN 250 E2 30 452 467 363 341 482 514 245 4xØ9 Ø216 6xM6x15
ST-DVN 280 E2 30 569 512 464 441 551 614 330 4xØ11 Ø286 6xM6x15
ST-DVN 315 E2 30 569 512 464 441 551 614 330 4xØ11 Ø286 6xM6x15
ST-DVN 400 E4 30 722 565 625 602 604 678 450 4xØ11 Ø438 6xM6x15
ST-DVN 450 E4 30 902 737 697 674 776 - 535 4xØ11 Ø438 6xM6x15
ST-DVN 500 E4 30 902 737 697 674 776 - 535 4xØ11 Ø438 6xM6x15

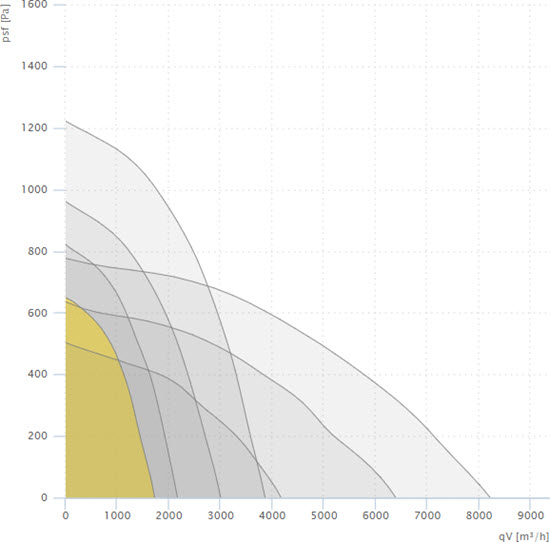

Code
Voltage, V
Frequency, Hz
Capacity, m³/h
Pressure, Pa
Power, W Current, A Noise level, dB(A)3m Speed, min-1 Weight, kg
ST-DVN 225 E2 30 230 50 1720 650 273 2.1 75 2930 22.7
ST-DVN 250 E2 30 230 50 2160 820 437 3.3 79 2950 25.0
ST-DVN 280 E2 30 230 50 3000 960 661 3.8 85 2910 32.0
ST-DVN 315 E2 30 230 50 3860 1220 1111 7.1 88 2940 36.5
ST-DVN 400 E2 30 230 50 4170 500 503 2.9 72 1450 43.5
ST-DVN 450 E2 30 230 50 6390 635 828 4.6 75 1450 62.0
ST-DVN 500 E2 30 230 50 8215 780 1384 7.6 79 1460 69.0
