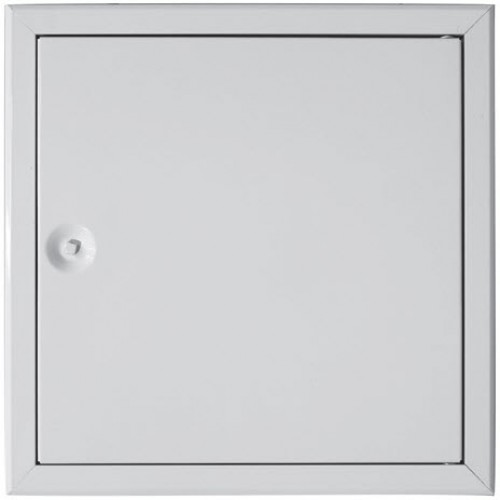

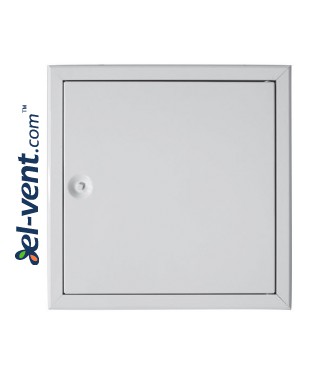

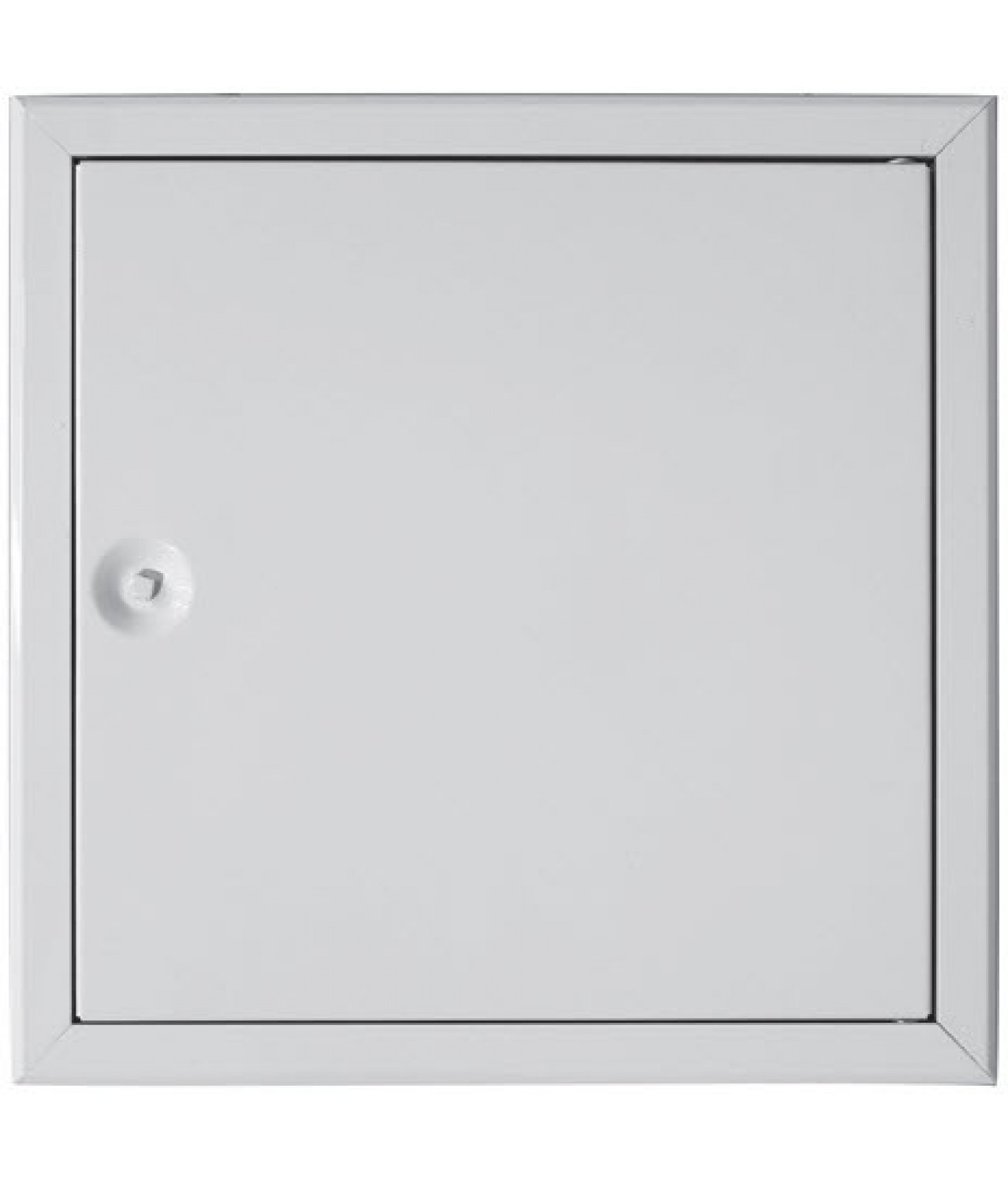

Metmaster RAIN - airtight, dustproof and waterproof access panels with square lock

  • Metmaster RAIN - airtight, dustproof and waterproof access panels with square lock
  • door leaf coated with a special, weather-resistant material and perimeter sealing strip
  • air permeability tested according to DIN EN 1026 (according to), classified according to DIN EN 12207, class 4 (value based on test bench measurement results)
  • resistance to heavy rain tested according to DIN EN 1027 (according to), classified according to EN 12208, class 2A (value based on test bench measurement results)
  • airborne sound insulation tested according to ISO 10140-2, evaluation of results according to ISO 717-1: Rw (C;Ctr): depending on installation conditions, a value of 49 dB can be achieved
  • made of aluminum, painted with a special powder coating in RAL9016 color
  • high-quality compression hinge
  • can be selected to open to the left or right before installation
  • "EasyLock" wall mounting anchors can be installed on all sides
  • special quality assurance for all components
  • square key made of plastic, sold separately
  • can be manufactured to individual dimensions on special order, ceiling-mounted, painted in a color of your choice from the RAL palette
  • made in Germany

Brand: ESEM
Metmaster

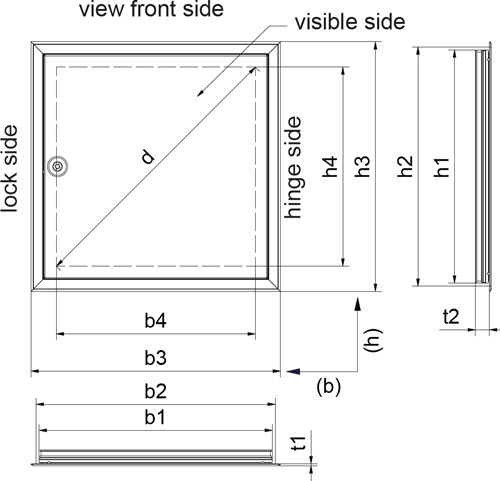

b x h
b1 x h1 b2 x h2 b3 x h3 b4 x h4 t1 t2 d Locks
23820 200x200 195x195 203x203 220x220 135x135 3.5 25 190 1
23821 300x300 295x295 303x303 320x320 235x235 3.5 25 332 1
23822 400x400 395x395 403x403 420x420 335x335 3.5 25 473 1
23823 500x500 495x495 503x503 520x520 435x435 3.5 25 615 1
23824 600x600 595x595 603x603 620x620 535x535 3.5 25 756 2
23827 600x800 595x795 603x803 620x820 535x735 3.5 25 909 2
23828 600x1200 595x1195 603x1203 620x1220 535x1135 3.5 25 1254 3
