Price / Metmaster CSWP:
Select
  • 200x200 24010 939.53 € 610.70 € (-34%)
  • 300x300 24011 939.53 € 610.70 € (-34%)
  • 400x400 24012 1,059.72 € 688.82 € (-35%)
  • 500x500 24013 1,088.37 € 707.44 € (-35%)
  • 600x600 24014 1,403.41 € 912.21 € (-35%)
  • 600x800 24015 1,811.56 € 1,177.52 € (-34%)
  • 600x1200 24016 1,918.93 € 1,247.30 € (-34%)
Qty.:

European delivery - 25 working days, other countries +7 working days.

Ask a question about this item

Ask a question about this item

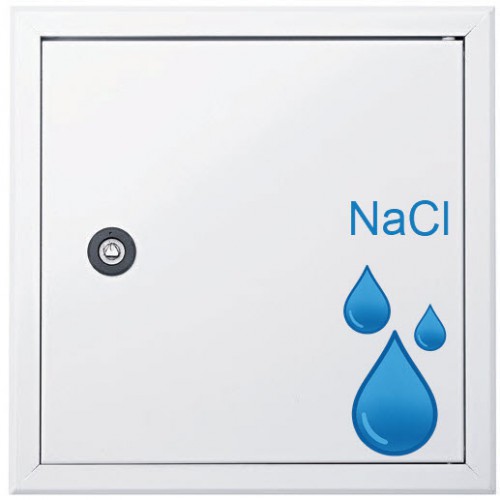

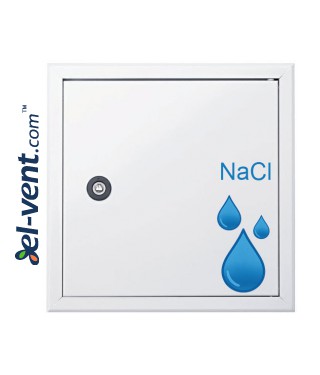

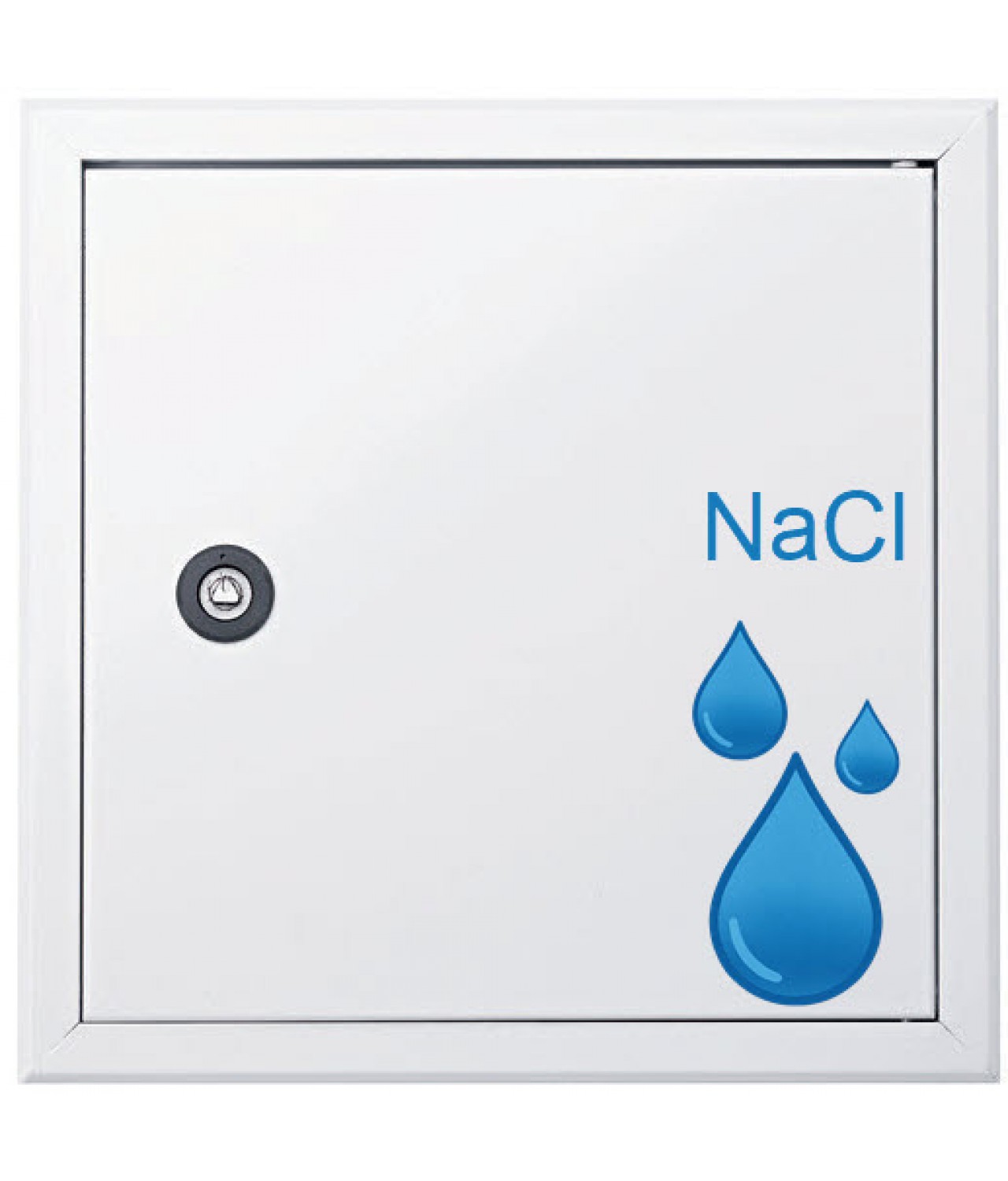

Metmaster CSWP - corrosion-resistant and saltwater access panels for walls

  • Metmaster CSWP - corrosion-resistant and saltwater access panels for walls
  • the tests were carried out at the Corrosion Protection Institute of Dresden GmbH and proven by a specially designed test (salt spray test according to DIN EN ISO 9227 NSS with reduced NaCL concentration (1%), condensed water constant climate according to DIN EN ISO 6720-2 and dry phase)
  • made of aluminium, specially powder-coated in RAL9016
  • high quality clamping latch
  • can be selected to open left or right before installation
  • "EasyLock" wall mounting anchors can be installed on all sides
  • special quality assurance of all components
  • triangular key made of steel and black powder-coated, sold separately
  • can be made to individual dimensions on special order, ceiling-mounted, painted in the RAL colour of your choice
  • made in Germany

Brand: ESEM
Code b x h b1 x h1 b2 x h2 b3 x h3 b4 x h4 d t1 t2 locks
24010 200x200 195x195 203x203 220x220 135x135 190 3.5 25 1
24011 300x300 295x295 303x303 320x320 235x235 332 3.5 25 1
24012 400x400 395x395 403x403 420x420 335x335 473 3.5 25 1
24013 500x500 495x495 503x503 520x520 435x435 615 3.5 25 1
24014 600x600 595x595 603x603 620x620 535x535 756 3.5 25 1
24015 600x800 595x895 603x803 620x820 535x735 909 3.5 25 2
24016 600x1200 595x1195 603x1203 620x1220 535x1135 1254 3.5 25 3
