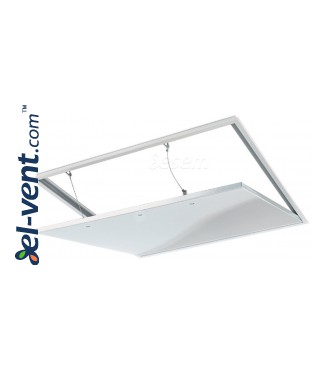

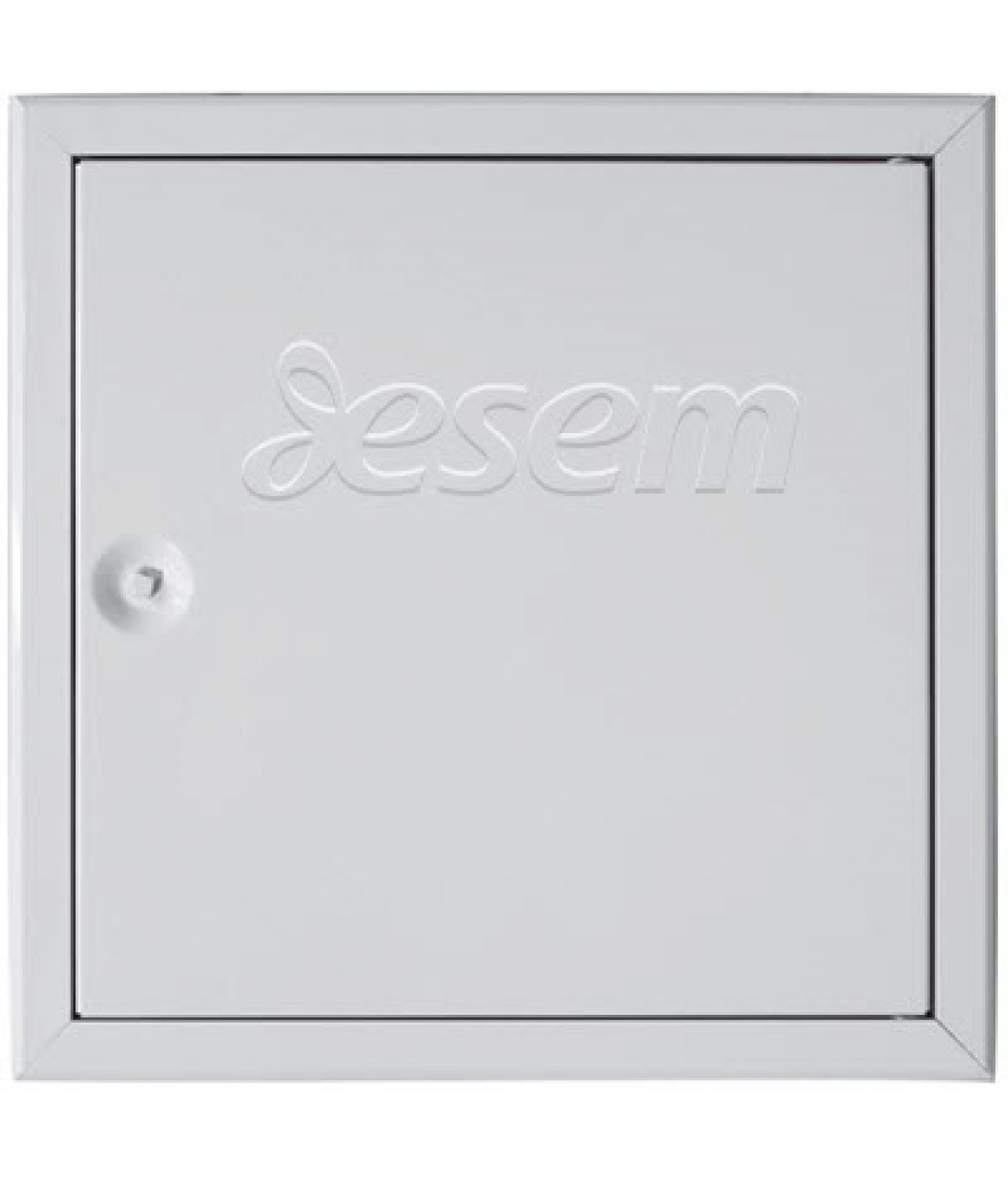

Metmaster Akustik Airproof - acoustically insulated and airtight revision door with square locks
European delivery - 30 working days, other countries +7 working days.
Ask a question about this item
Ask a question about this item

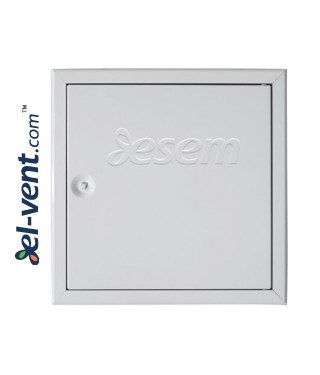

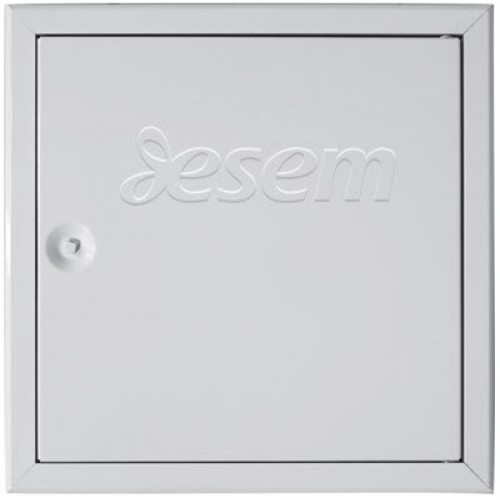

Metmaster Akustik Airproof - acoustically insulated and airtight revision door with square locks
- Metmaster Akustik Airproof - acoustically insulated and airtight revision door with square locks
- welded aluminium frame, doors made from galvanized steel sheet and coated in white RAL9016
- apply silicone sealant to the frame during installation
- removable door panel galvanised steel sheet for right and lefthanded hinging
- air permeability in accordance with EN 1026: 2016-03. Based on EN 12207, class 4
- tested for airborne sound insulation in accordance with ISO 10140-2., Result evaluation according to ISO 717-1: Rw (C;Ctr): according to the installation situation, values between 34 dB and 49 dB are achieved

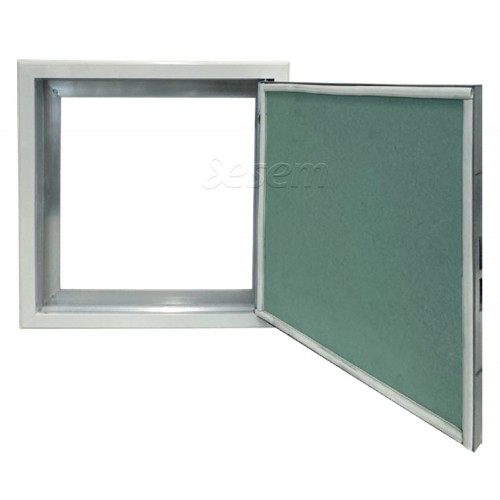

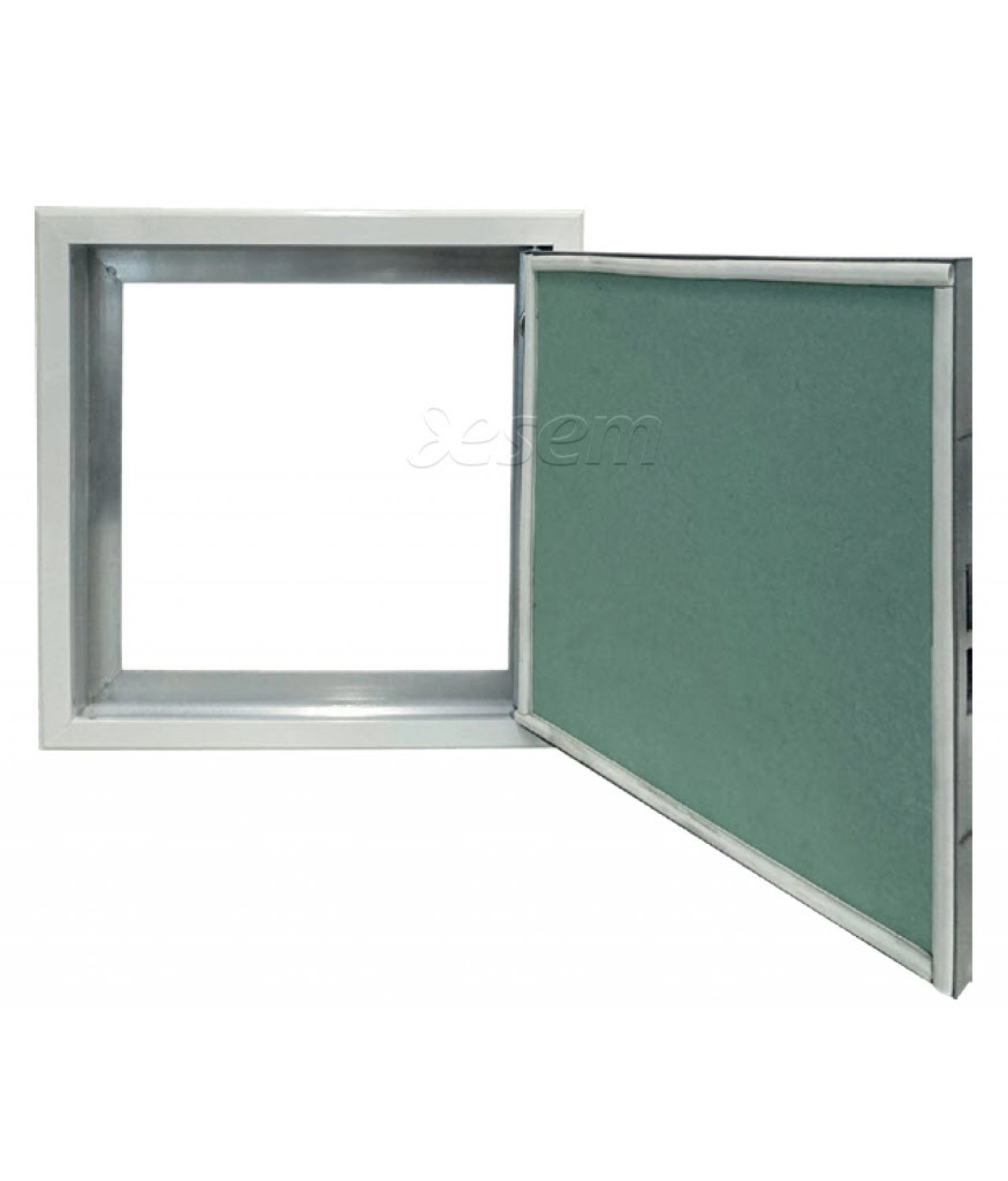

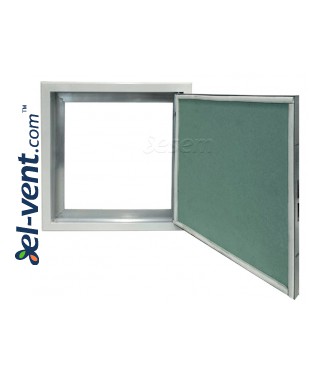

- door leaf with GKB insert and a circumferential silicone omega seal
- special sizes in 5 cm steps on request
- handle is unnecessary
- easy to install with mounting glue or cement

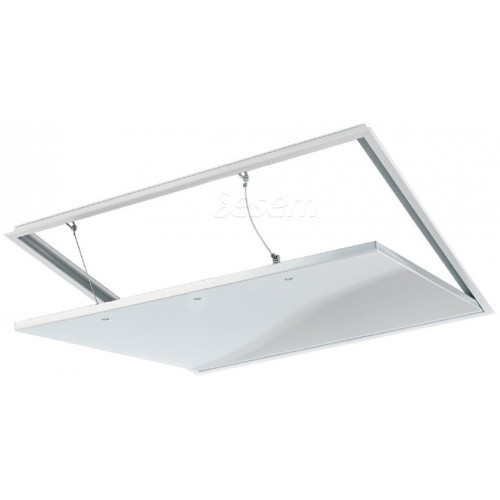

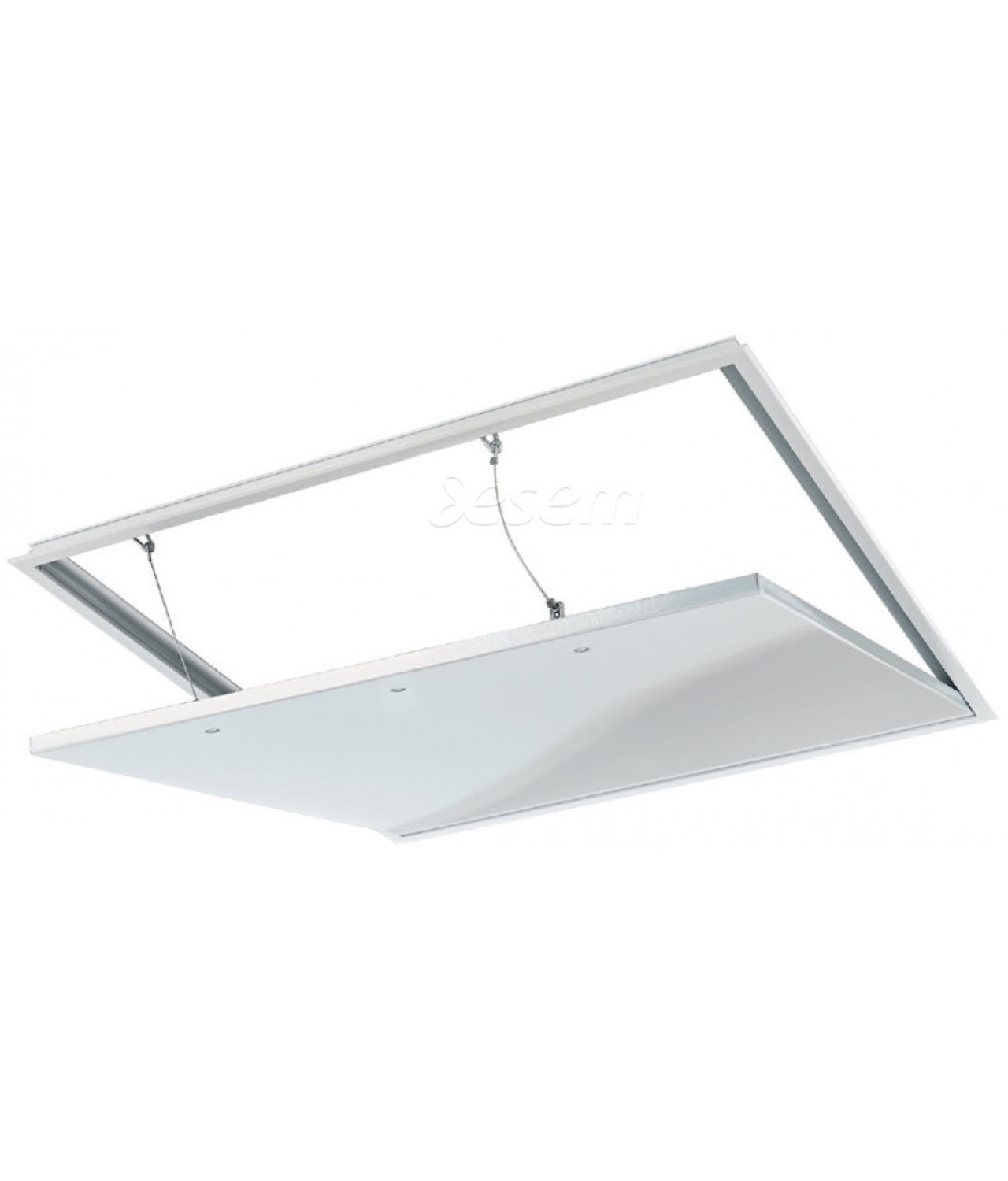

- can be opened to the right or left, up and down
- custom sizes to the nearest cm on request, painted according requested RAL colour
- Made in Germany.
Brand: ESEM

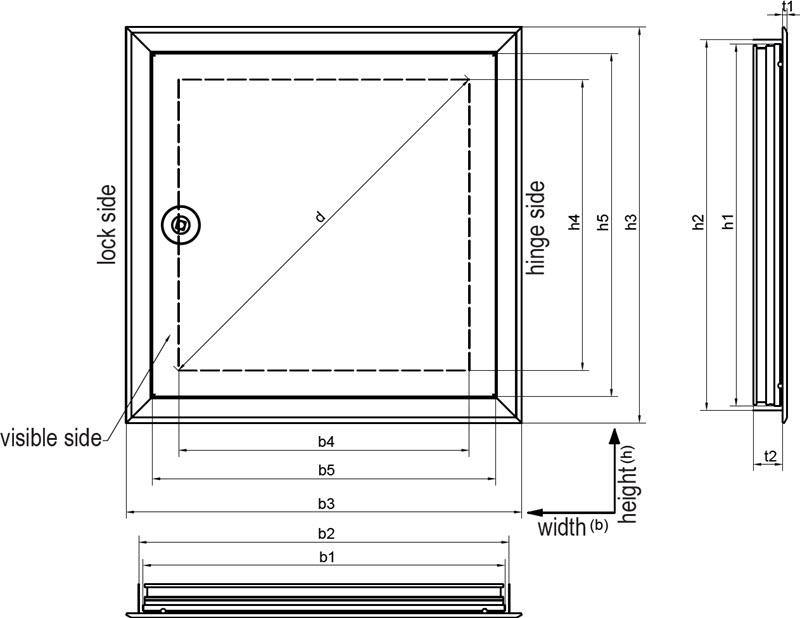

| Metmaster Akustik Airproof |
b x h
|
b1 x h1 | b2 x h2 min. | b2 x h2 max. | b3 x h3 | b4 x h4 | b5 x h5 | t1 / t2 | d | Locs |
| wall and ceiling | ||||||||||
| 23810 | 200x200 | 193x193 | 195x195 | 203x203 | 220x220 | 135x135 | 177x177 | 3.5x25 | 190 | 1 |
| 23811 | 300x300 | 293x293 | 295x295 | 303x303 | 320x320 | 235x235 | 277x277 | 3.5x25 | 332 | 1 |
| 23812 | 400x400 | 393x393 | 395x395 | 403x403 | 420x420 | 335x335 | 377x377 | 3.5x25 | 473 | 1 |
| 23813 | 500x500 | 493x493 | 495x495 | 503x503 | 520x520 | 435x435 | 477x477 | 3.5x25 | 615 | 1 |
| 23814 | 600x600 | 593x593 | 595x595 | 603x603 | 620x620 | 535x535 | 577x577 | 3.5x25 | 756 | 2 |
| wall | ||||||||||
| 23817 | 600x800 | 593x793 | 595x795 | 603x803 | 620x820 | 535x735 | 577x777 | 3.5x25 | 909 | 2 |
| 23818 | 600x1200 | 593x1193 | 595x1195 | 603x1203 | 620x1220 | 535x1135 | 577x177 | 3.5x25 | 1254 | 3 |
