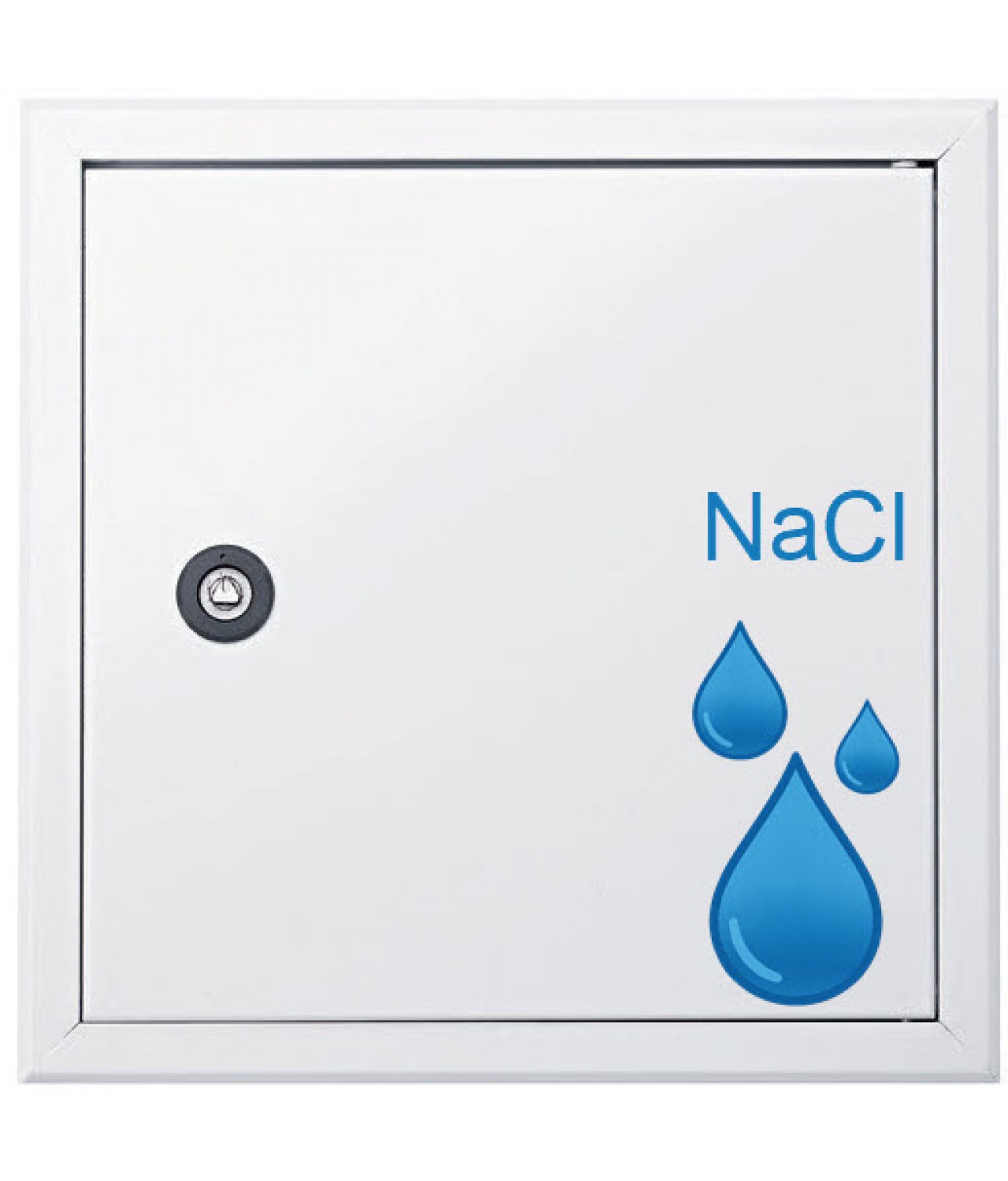

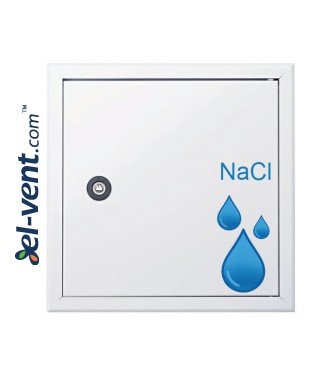

Metmaster CSWP RAIN - airtight, dustproof, and waterproof, highly resistant to corrosion and salt water access panels designed for outdoor installation
EU shipping 14 working days, non EU 21 working days
Ask a question about this item
Ask a question about this item
Metmaster CSWP RAIN - airtight, dustproof, and waterproof, highly resistant to corrosion and salt water access panels designed for outdoor installation
- Metmaster CSWP RAIN - airtight, dustproof, and waterproof, highly resistant to corrosion and salt water access panels designed for outdoor installation
- the door leaf is coated with a special weather-resistant material and perimeter sealing tape
- air permeability tested in accordance with DIN EN 1026, classified in accordance with DIN EN 12207, class 4 (value based on test bench measurements)
- heavy rain resistance tested in accordance with DIN EN 1027, classified in accordance with EN 12208, Class 2A (value based on test bench measurements)
- airborne sound insulation tested in accordance with ISO 10140-2, evaluation according to ISO 717-1: Rw (C;Ctr): depending on installation conditions, a value of 49 dB can be achieved
- corrosion protection: salt spray test according to DIN EN ISO 9227 NSS and condensation - constant climate test according to DIN EN ISO 6720-2 and drying phase
- special fixing frames can be ordered separately for installation in a special thermal insulation composite system (ETICS) coating
- made of aluminium, specially powder-coated in RAL9016
- high quality clamping latch
- can be selected to open left or right before installation
- "EasyLock wall mounting anchors can be installed on all sides
- special quality assurance for all components
- triangular key made of steel and black powder-coated, sold separately
- can be made for ceiling installation, to individual dimensions on special order, painted in the RAL colour of your choice
- made in Germany
Brand: ESEM
| Metmaster |

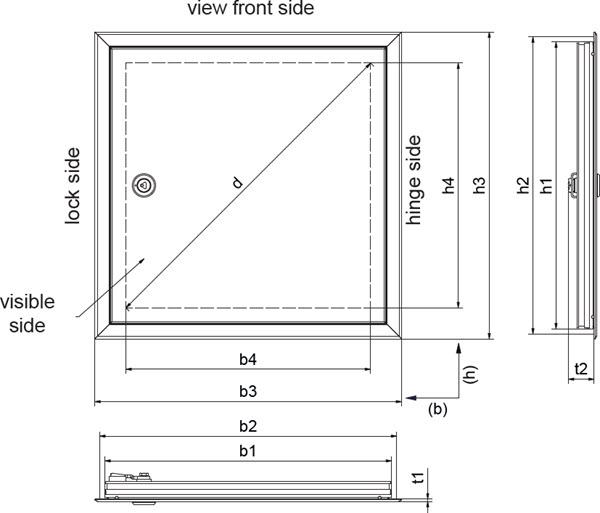

b x h
|
b1 x h1 | b2 x h2 | b3 x h3 | b4 x h4 | t1 | t2 | d | Locks |
| 23830 | 200x200 | 195x195 | 203x203 | 220x220 | 135x135 | 3.5 | 25 | 190 | 1 |
| 23831 | 300x300 | 295x295 | 303x303 | 320x320 | 235x235 | 3.5 | 25 | 332 | 1 |
| 23832 | 400x400 | 395x395 | 403x403 | 420x420 | 335x335 | 3.5 | 25 | 473 | 1 |
| 23833 | 500x500 | 495x495 | 503x503 | 520x520 | 435x435 | 3.5 | 25 | 615 | 1 |
| 23834 | 600x600 | 595x595 | 603x603 | 620x620 | 535x535 | 3.5 | 25 | 756 | 2 |
| 23837 | 600x800 | 595x795 | 603x803 | 620x820 | 535x735 | 3.5 | 25 | 909 | 2 |
| 23838 | 600x1200 | 595x1195 | 603x1203 | 620x1220 | 535x1135 | 3.5 | 25 | 1254 | 3 |
