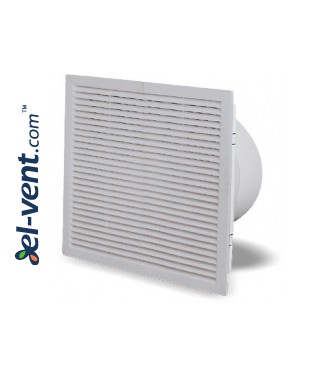

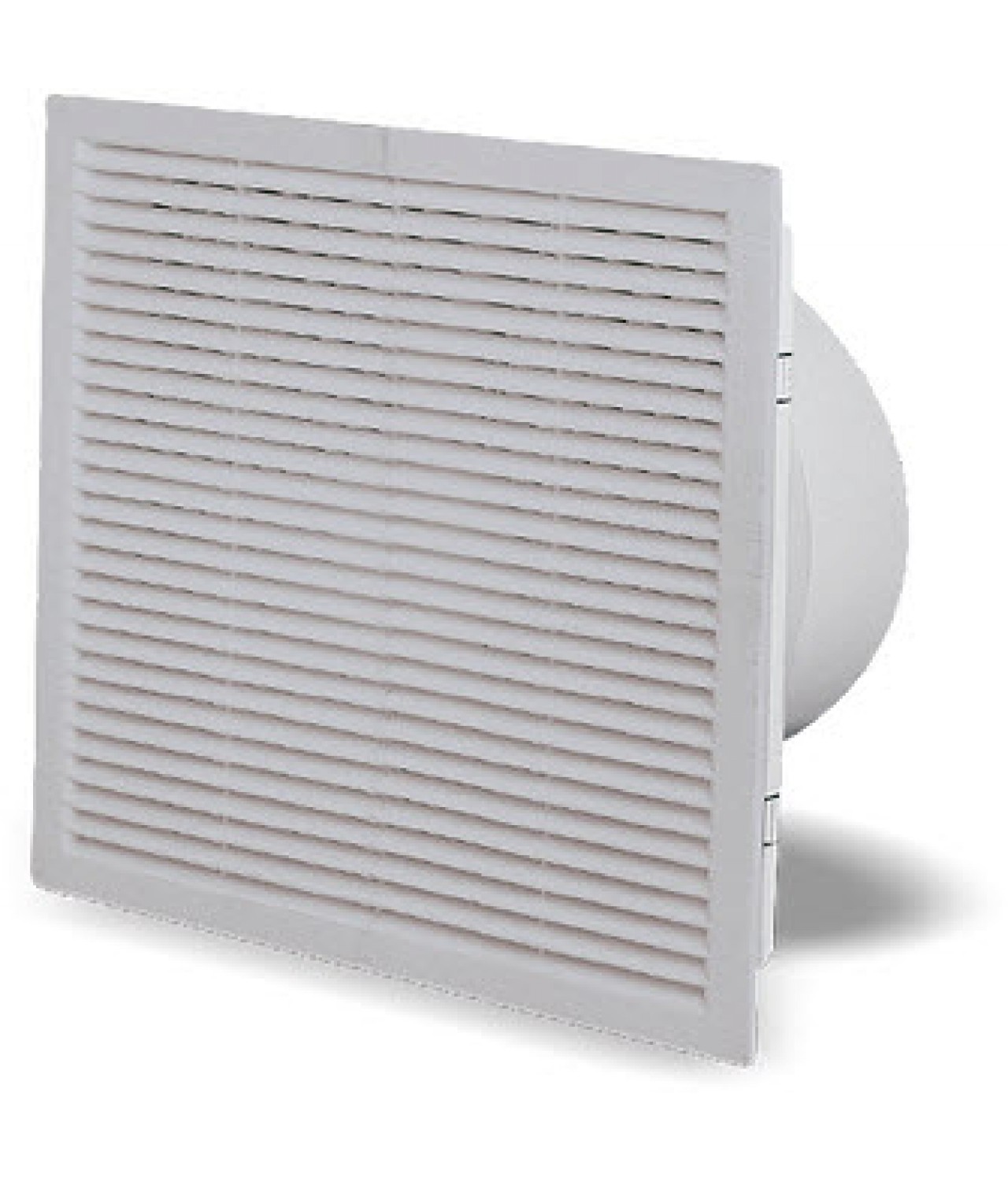

Fans for electrical cabinets RC 20.32 SP 320x320 mm, 800 m³/h

  • RCQ 20.32 SP - axial fans supplied with grille and filter
  • usual type - the fan is installed at the bottom of the cabinet, filtering and emitting air, while through the top of the grille, hot air is expelled, creating a through exchange of air, obtaining efficient heat dissipation
  • E type (only in RAL7035) - air extraction fan must be installed up and grille in the bottom - the opposite than standard version
  • low external profile
  • IP44 or IP54 protection degree
  • maximum operating temperature - 50 °C
  • quick and functional assembly of the fan on the electrical cabinet through elastic click hooks and gasket pre-installed on the product
  • possible installation with screws (provided)
  • body made of ABS self-extinguishing material grey RAL7035
  • ball bearing motor
  • grille in grey RAL7032, RAL7035, black RAL9005
  • easily removable grille to allow quick replacement of the filter
  • slotted external grilles to allow drainage of condensation
  • in accordance with European Standard EN 60529, EN 60335-2-80
  • made in Italy
  • 2 years warranty
Code
A
B
C
D
Ø E
RC 20.32 SP 318.5 318.5 5.5 160 204





Drilling scheme for fan and grille assembly

Code
A
B
Ø C
RCQ 20.32 SP 291 x 291 302 x 302 4.5



Code
Voltage, V
Frequency, Hz
Capacity, m3/h
Power, W Current, A Noise level, dB(A)3m Weight, kg
with filter without filter
RC 20.32 SP and SP E
IP44 110-120V 110-120 50/60 650 800 55 0.6 56 2.6
IP44 220-240V 220-240 50/60 650 800 55 0.3 56 2.6
IP54 110-120V 110-120 50/60 600 800 55 0.6 56 2.6
IP54 220-240V 220-240 50/60 600 800 55 0.3 56 2.6



Pressure loss diagram
