Integrated centrifugal bathroom fans DIVERSO IN

Price / Diverso IN:
Qty.:

EU shipping 14 days, non EU 21 days

Ask a question about this item

Ask a question about this item

Integrated centrifugal bathroom fans DIVERSO IN

Attention! DIVERSO IN80T, DIVERSO IN160T are always on the stock, other models delivery time - 30 days

  • DIVERSO IN - integrated centrifugal fans to extract air through ducting or pipes from Ø80-100 mm
  • suitable for wall/ceiling mounting even through ducts in awkward places thanks to the position of the outlet hole in the corner
  • ball bearing motor
  • double speed
  • backdraught shutter to prevent ingress of air and foul odours
  • simple to remove the washable filter
  • three models: Base, T (timer), HT (hygrostat and timer) model options
  • T (timer) turn-off delay adjustable from 2 to 25 min.
  • HT (hygrostat and timer) - the fan automatically starts when the humidity in the room is higher than the preset value, adjustable from 40% to 90%
  • double insulated product, without ground wire for fast connection
  • body and grille in white ABS
  • adjustable speed through RGE or RG 5 controller (base version only)
  • IPX5 protected (EN 60529), 45 °C working temperature
  • in accordance with Standard EN 60335-2-80
  • made in Italy - O.ERRE
  • 2 years warranty



Open the cover and reach the filter



The rotating body allows air extraction from different spigot positions

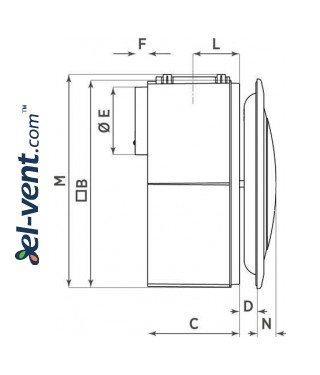

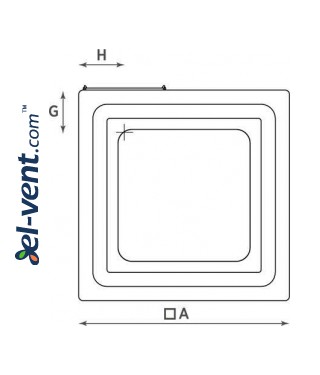

Kodas
A
B
C
Dmax.
Ø E
F
G H L M
DIVERSOIN80
244 238 103.5 17.5 75 18.5 55 55 50 24
DIVERSOIN160
300 296 131 25 96.7 18 60 65 66.5 304.5
DIVERSOIN240
300 296 131 25 96.7 18 60 65 66.5 304.5
Code
Ø hole, mm
Voltage, V
Frequency, Hz
Capacity, m3/h max./min..
Pressure,
Pa
max./min.
Power, W max./min. Noise level, dB(A)3m max./min. Weight, kg
DIVERSO80 80-100 220-240 50 90/65 167/157 28/18 38/34 1.5
DIVERSO80T 80-100 220-240 50 90/65 167/157 28/18 38/34 1.5
DIVERSO80HT 80-100 220-240 50 90/65 167/157 28/18 38/34 1.5
DIVERSO160 100 220-240 50 190/125 343/245 50/35 40/35 2.7
DIVERSO160T 100 220-240 50 190/125 343/245 50/35 40/35 2.7
DIVERSO160HT 100 220-240 50 190/125 343/245 50/35 40/35 2.7
DIVERSO240 100 220-240 50 270/150 442/295 80/45 43/35 2.9
DIVERSO240T 100 220-240 50 270/150 442/295 80/45 43/35 2.9
DIVERSO240HT 100 220-240 50 270/150 442/295 80/45 43/35 2.9



Speed controllers RG 5 and RGE





Pressure loss diagrams

low speed / high speed
