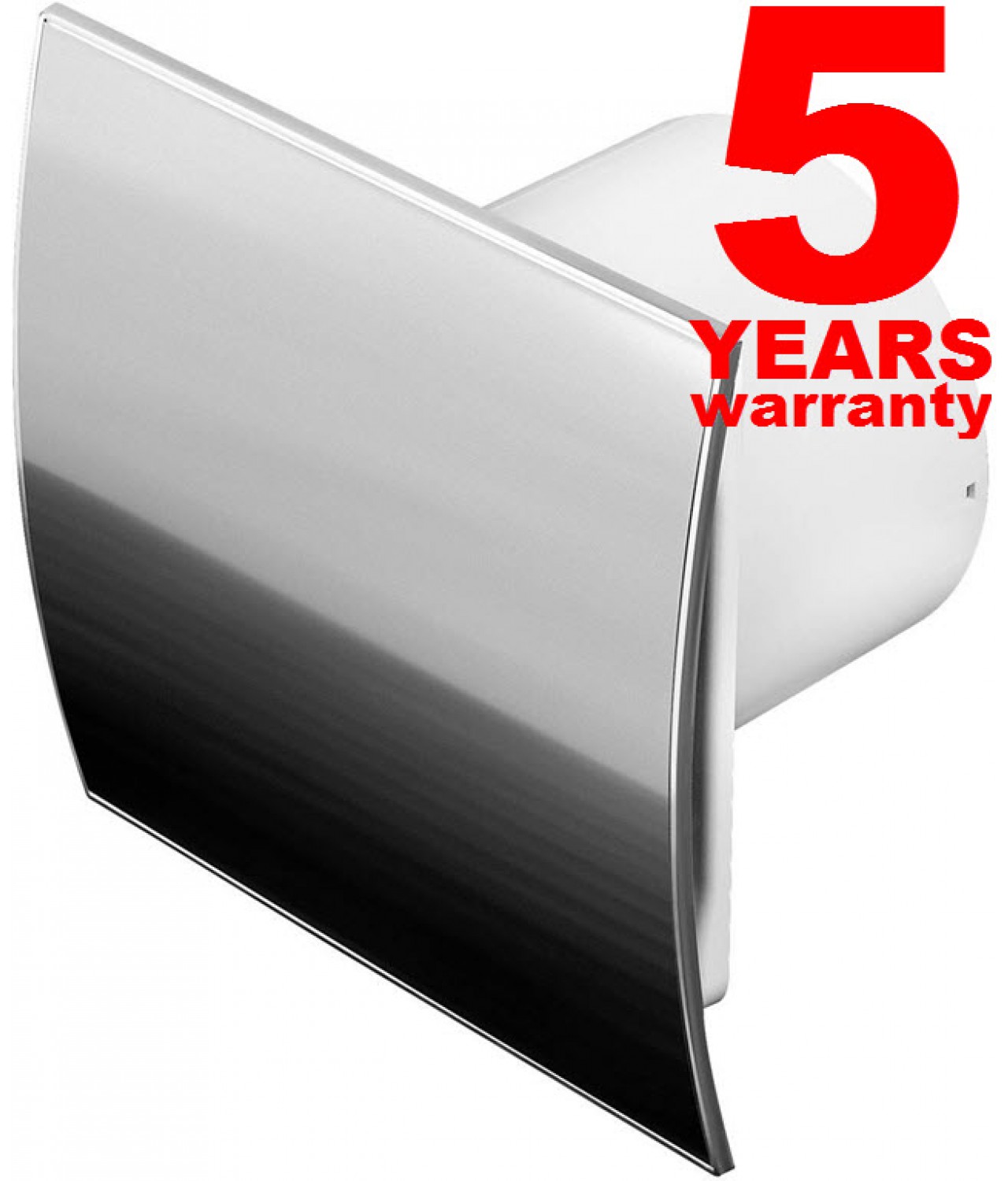

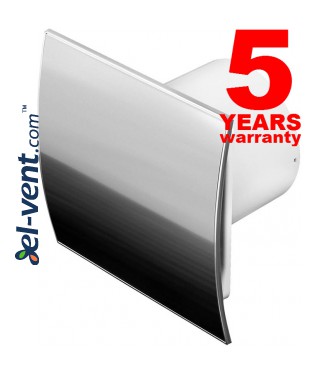

Quiet fan with ball bearings and stainless steel panel ESCUDO inox


  1. Ventilation systems ›
  2. Bathroom exhaust fans
  3. › Quiet fan with ball bearings and stainless steel panel ESCUDO inox

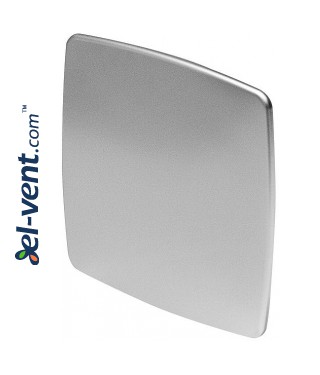

Quiet fan with ball bearings and stainless steel panel ESCUDO inox Mounting example ESCUDO inox Fan panel PEI100/125 Fan panel PNI100/125 Fan panel PTI100/125 Engine ball bearings ESCUDO
Price / Fan:
Select
  • Ø100 - standard model 69.05 € 48.34 € (-29%)
  • Ø100H - with hygrostat and timer 130.96 € 91.67 € (-30%)
  • Ø100T - with timer 106.81 € 74.77 € (-29%)
  • Ø100W - with pull cord 91.71 € 64.19 € (-30%)
  • Ø100CTR - with timer and speed controller 153.05 € 107.13 € (-30%)
  • Ø125 - standard model 81.09 € 56.76 € (-30%)
  • Ø125H - with hygrostat and timer 145.35 € 101.74 € (-30%)
  • Ø125T - with timer 121.12 € 84.78 € (-30%)
  • Ø125W - with pull cord 105.16 € 73.60 € (-30%)
  • Ø125CTR - with timer and speed controller 167.14 € 116.99 € (-30%)
Price / Cover:
Select
  • PEI100 42.35 € 29.65 € (-30%)
  • PEI125 42.35 € 29.65 € (-30%)
  • PNI100 42.35 € 29.65 € (-30%)
  • PNI125 42.35 € 29.65 € (-30%)
  • PTI100 42.35 € 29.65 € (-30%)
  • PTI125 42.35 € 29.65 € (-30%)
Price / Обратный клапан:
Select
  • Ø100 mm - ZZ100 8.35 € 6.27 € (-24%)
  • Ø125 mm - ZZ125 9.14 € 6.85 € (-25%)
Qty.:

EU shipping 14 working days, non EU 21 working days

Ask a question about this item

Ask a question about this item

Quiet fan with ball bearings and stainless steel panel ESCUDO inox

Send
  • press this link to check full list of Fan panels from stainless steel
  • ESCUDO - wide selection of silent fans with covers, the fan can be selected from the following modifications:
  1. standard
  2. H - with timer and humidity sensor, adjustment scale from 40% to 90%
  3. T - with timer
  4. W - with pull cord switch
  5. CTR - with timer and 4 speed controller:

  • can be mounted in any position, in the wall or ceiling
  • standard and W models - to connect use two-core cable
  • H, T and CTR models - to connect use tree-core cable
  • with Italian quality motor with ball bearings
  • ABS plastic housing
  • mount with screws (supplied)
  • made in Poland
  • 5 years warranty

Brand: ESEM

Fan corpus

Kodas
Ø
A
B
X
Y
W
Z
ESCUDO100
100
109
109
128
128
88
77
ESCUDO125 125 137 137 156 156 88 77





Fan covers

PE_

Code
X
 Y V W Z
PE_100
160
 160 30 14 7
PE_125 180 208 43 14 7







PN_



Kodas
X
 Y V W Z
PN_100
156
 156 30 14 7
PN_125 180 180 30 14 7







PT_



Code
X
 Y V W Z
PT_100
162
 162 32 14 7
PT_125 178 178 32 14 7



Standard, H, T and W models

Code
Voltage, V
Frequency, Hz
Power, W
Capacity, m³/h
 Noise level, dB
Protection class IP
Pressure, Pa
ESCUDO100 230 50 5.0 75 26 X4 26
ESCUDO125
230
50
6.0
145
 32
X4
 28



CTR model

ESCUDO CTR (100/125)
Speed (diameter 100 mm / 125 mm)
I
II
III
IV
Capacity, m³/h
44/67
 77/100 87/150 110/215
Noise level, dB (distance 3 m)
19/16
 30/26 34/34 36/42
Power, W
5/6
 8/9 9/12 14/19
Pressure, Pa 10/6 26/13 32/27 40/62



Connection to the power supply:

Standard and W models
N - null
L - phase





H, T and CTR models
T - phase through switch
N - null
L - phase
