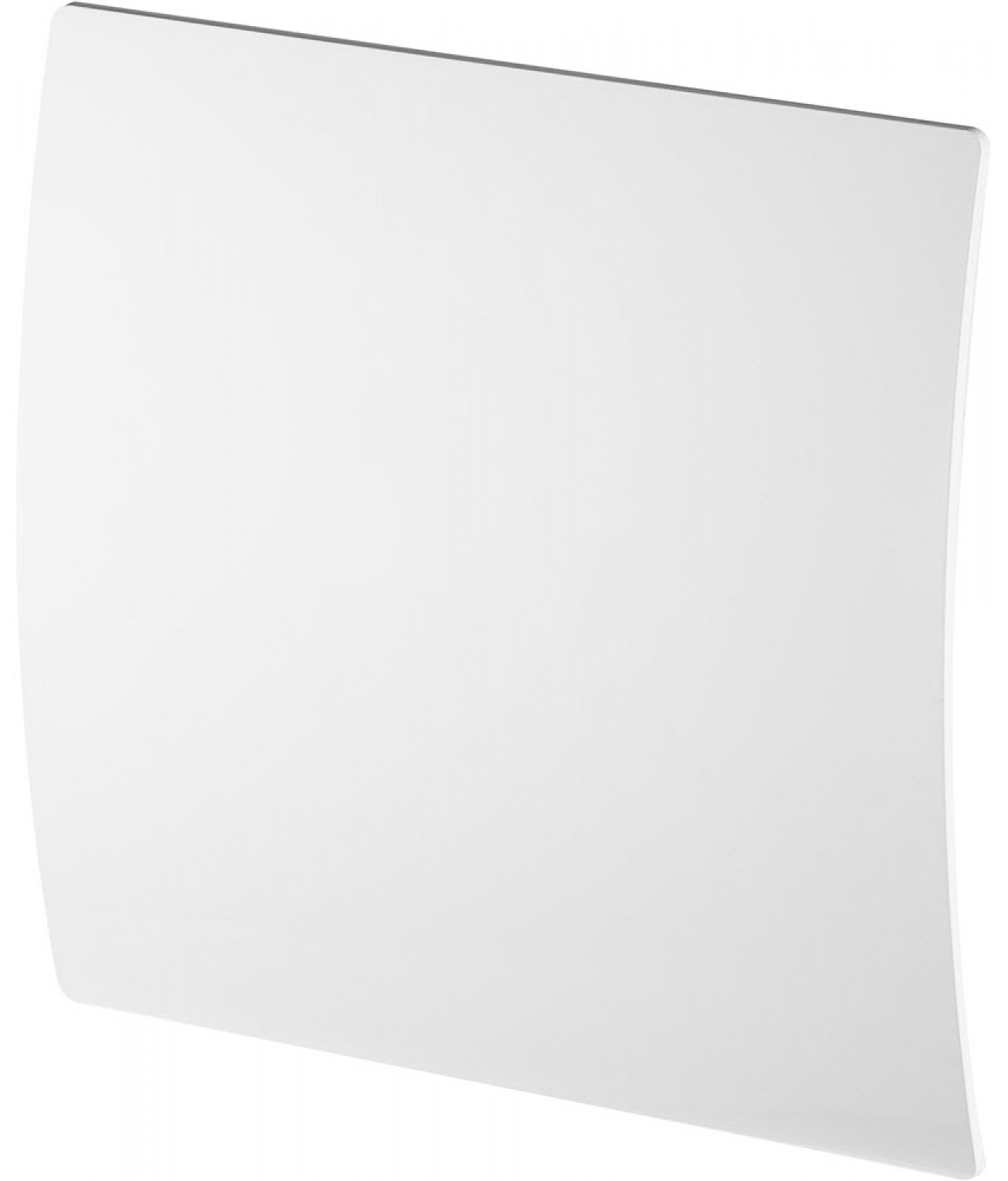

  • PEB100 19.44 € 13.61 € (-29%)
  • PEB125 19.44 € 13.61 € (-29%)

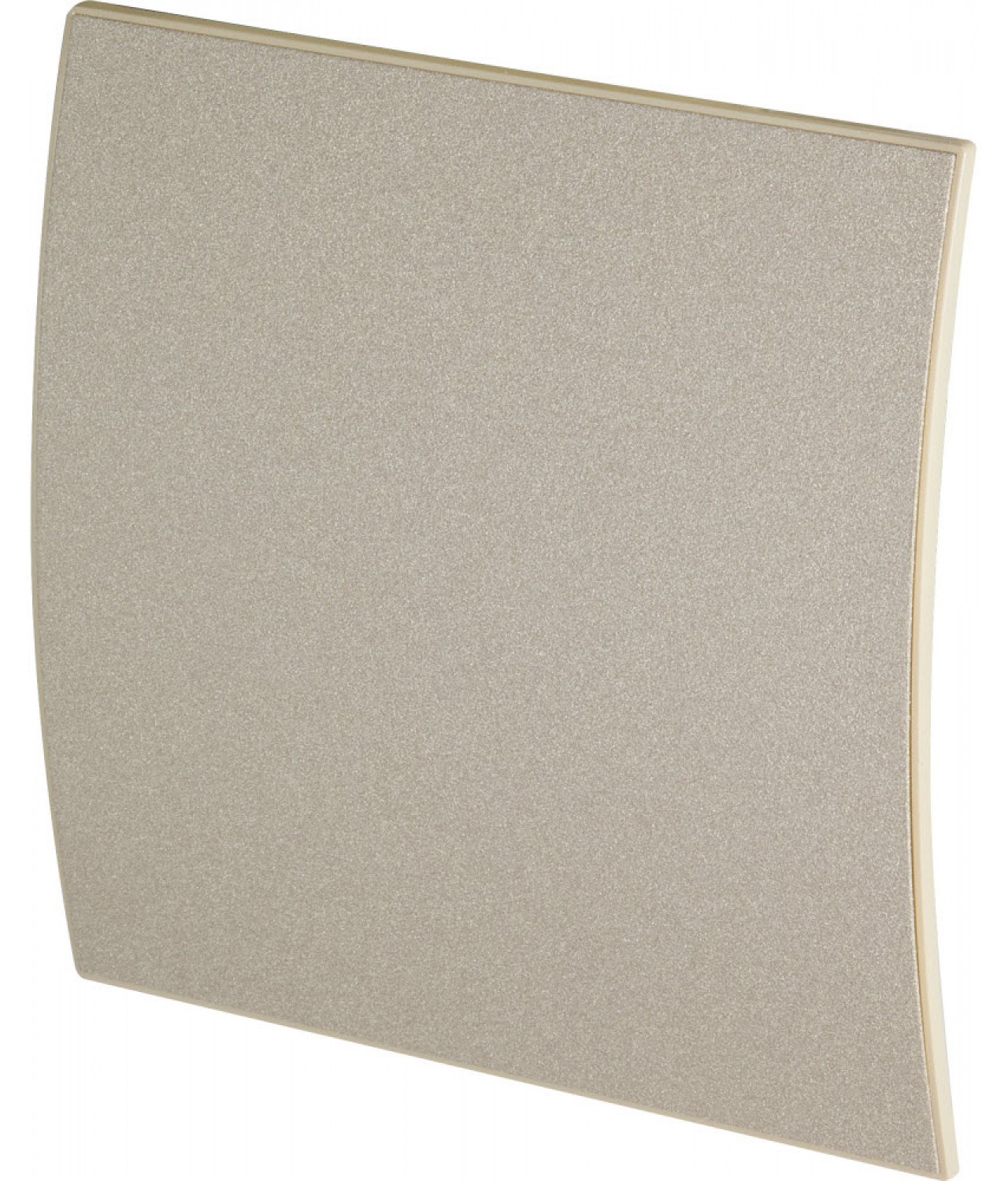

  • PEBS100 19.44 € 13.61 € (-29%)

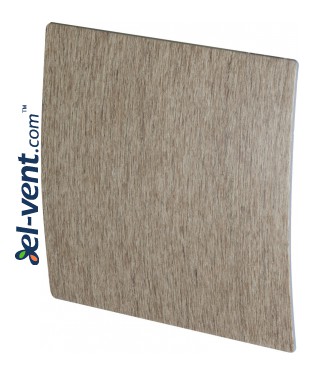

  • PEDD100 19.44 € 13.61 € (-29%)
  • PEDM100 19.44 € 13.61 € (-29%)
  • PEDM125 19.44 € 13.61 € (-29%)

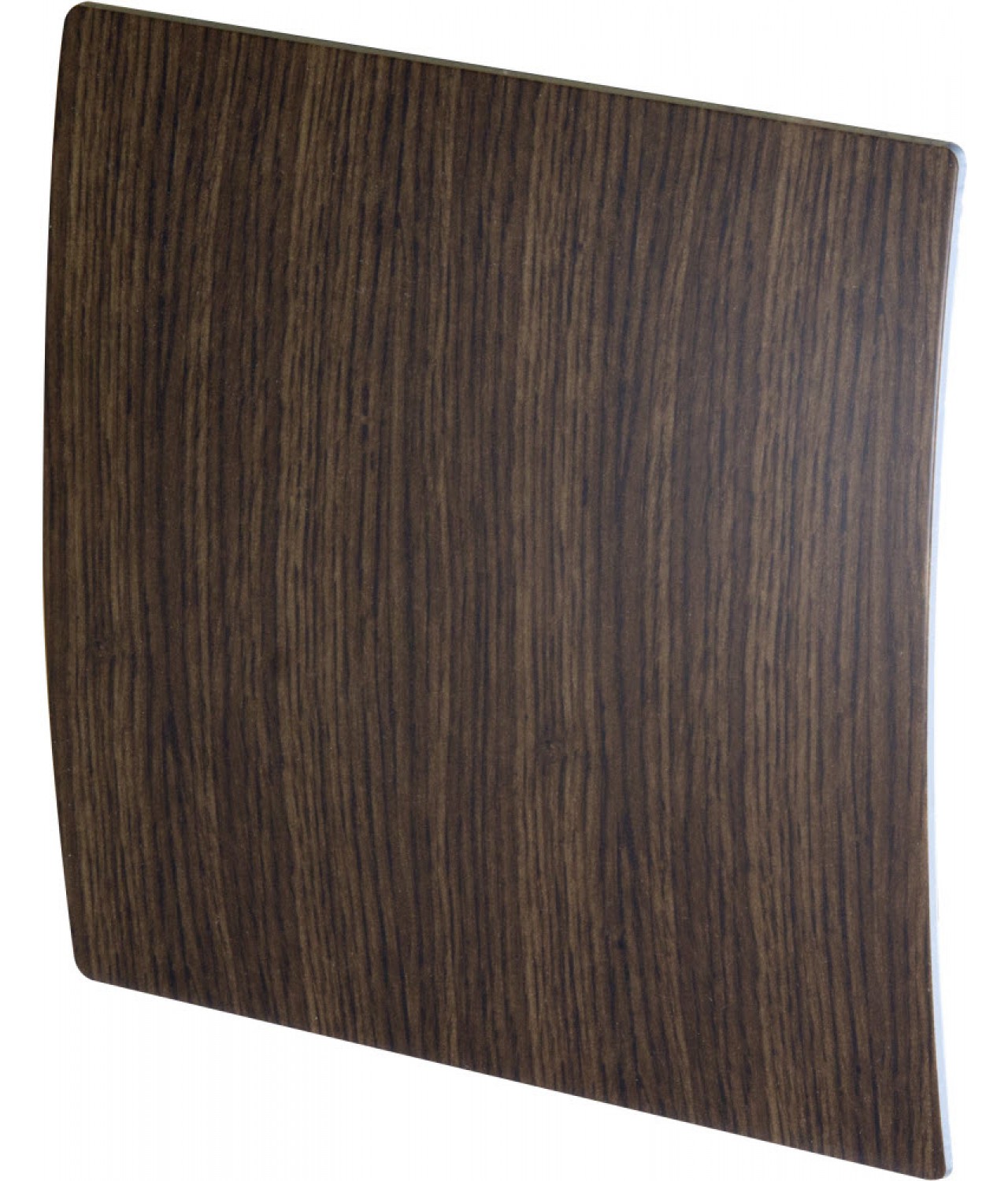

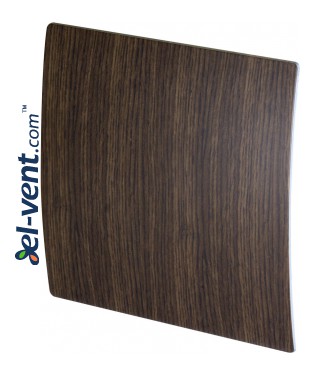

  • PEDW100 19.44 € 13.61 € (-29%)

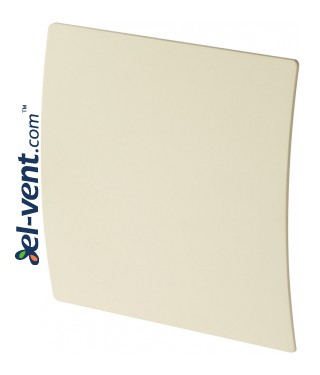

  • PEE100 19.44 € 13.61 € (-29%)
  • PEE125 19.44 € 13.61 € (-29%)
  • PEGS100 19.44 € 13.61 € (-29%)

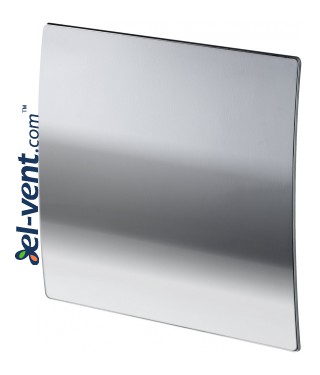

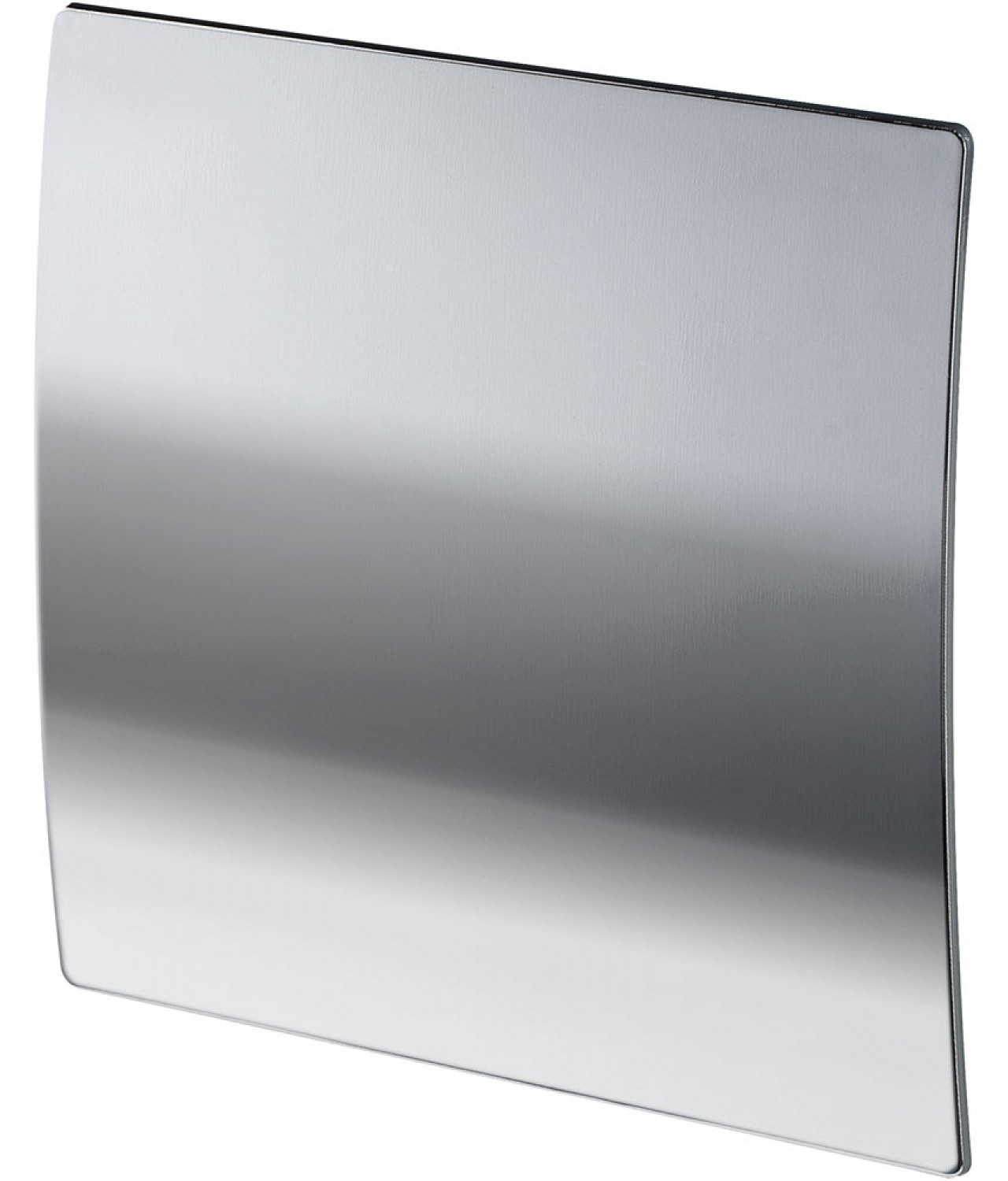

  • PEH100 19.44 € 13.61 € (-29%)
  • PEH125 19.44 € 13.61 € (-29%)
  • PES100 19.44 € 13.61 € (-29%)
  • PES125 19.44 € 13.61 € (-29%)

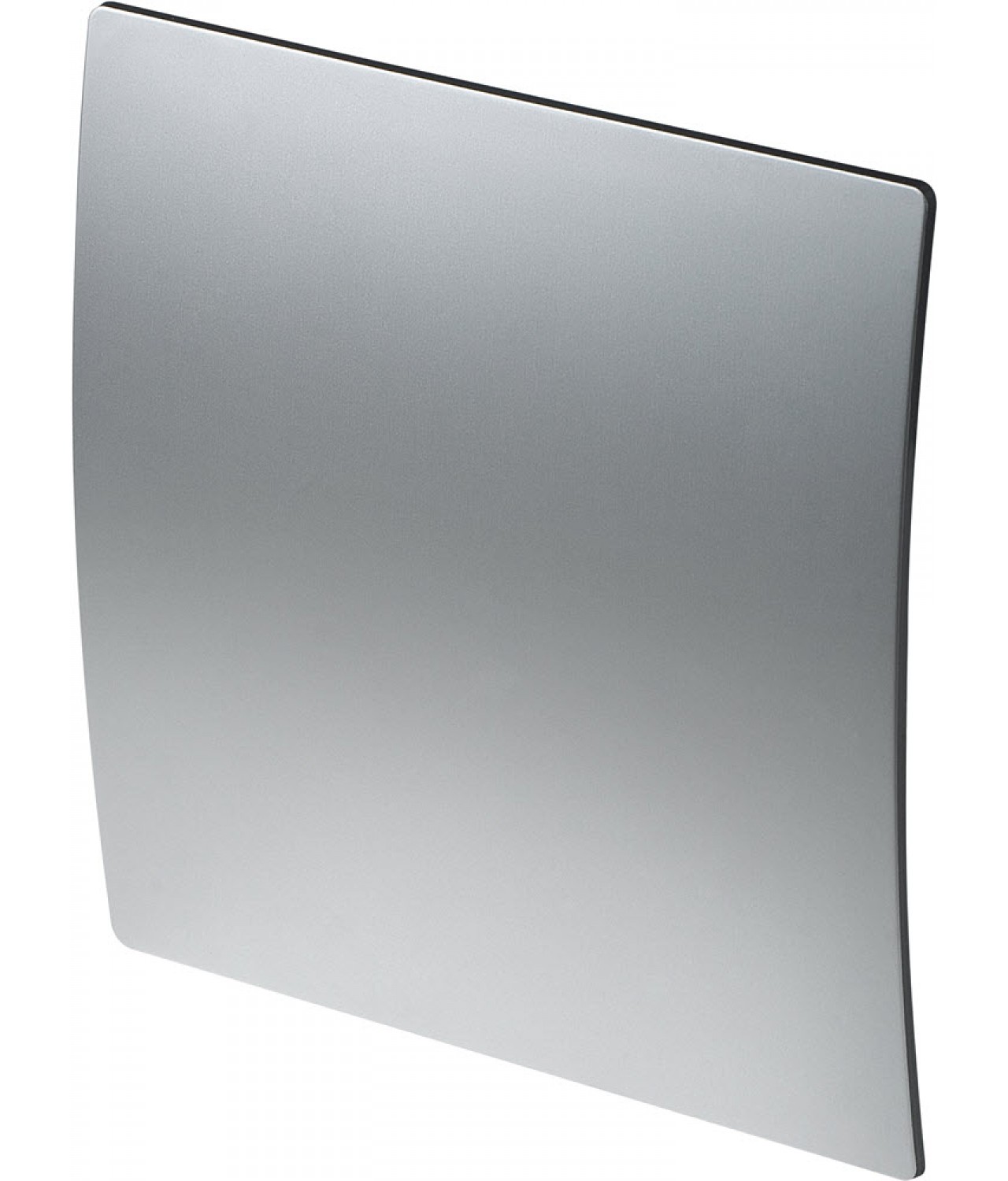

  • PET100 19.44 € 13.61 € (-29%)
  • PET125 19.44 € 13.61 € (-29%)
  • PEZ100 19.44 € 13.61 € (-29%)
  • PEZ125 19.44 € 13.61 € (-29%)
  • PLB100 19.44 € 13.61 € (-29%)
  • PLE100 19.44 € 13.61 € (-29%)
  • PLS100 19.44 € 13.61 € (-29%)
  • PI100 19.44 € 13.61 € (-29%)
  • PI125 19.44 € 13.61 € (-29%)
  • PNB100 19.44 € 13.61 € (-29%)
  • PNB125 19.44 € 13.61 € (-29%)
  • POB100 19.44 € 13.61 € (-29%)
  • POB125 19.44 € 13.61 € (-29%)

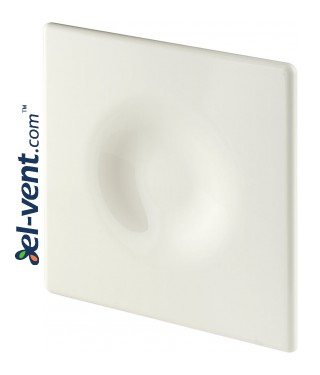

  • POE100 19.44 € 13.61 € (-29%)

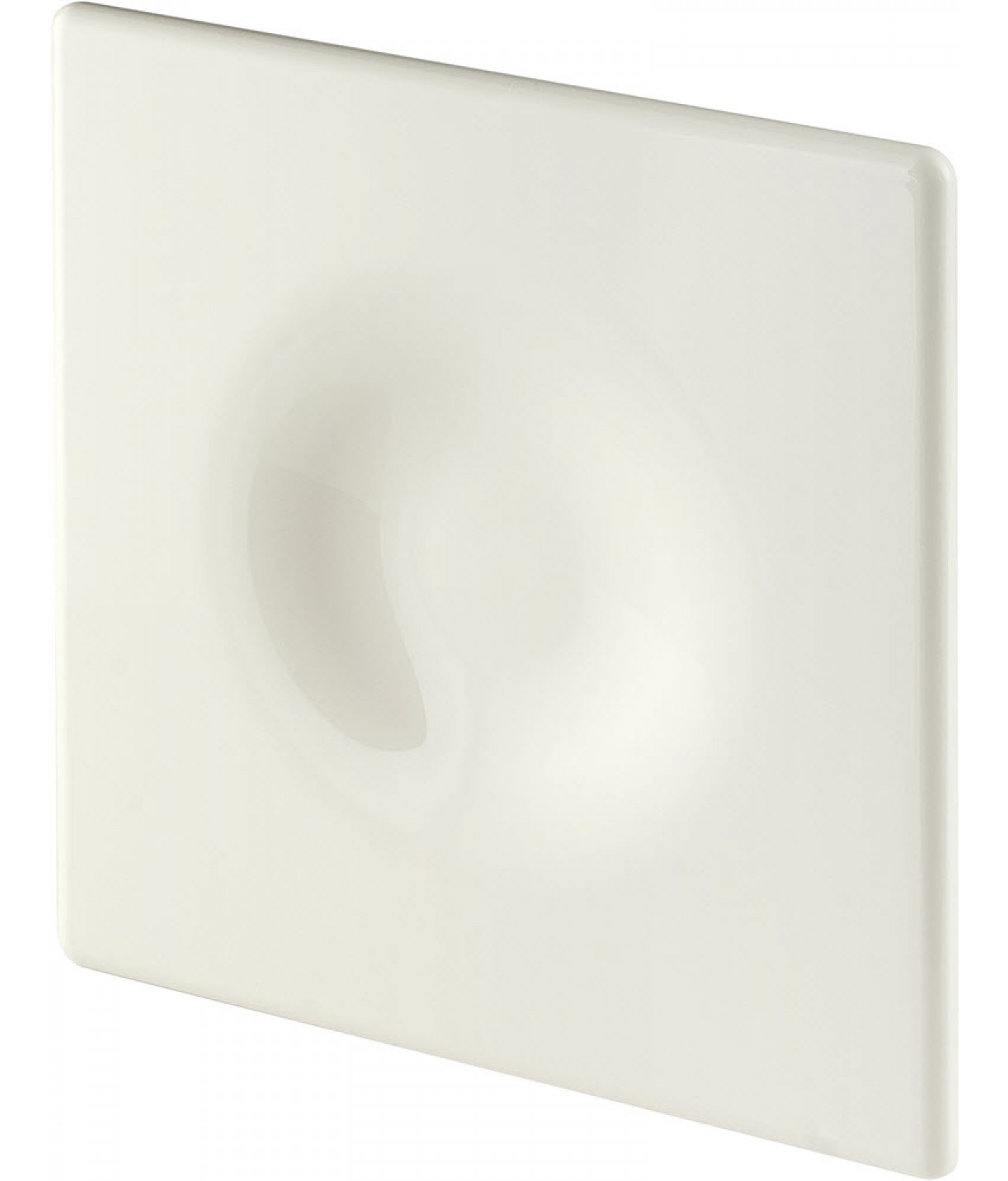

  • POE125 19.44 € 13.61 € (-29%)
  • POS100 19.44 € 13.61 € (-29%)
  • POS125 19.44 € 13.61 € (-29%)
  • PSB100 19.44 € 13.61 € (-29%)
  • PSE100 19.44 € 13.61 € (-29%)
  • PSS100 19.44 € 13.61 € (-29%)
  • PTB100 19.44 € 13.61 € (-29%)
  • PTB125 19.44 € 13.61 € (-29%)
  • PVB100 19.44 € 13.61 € (-29%)

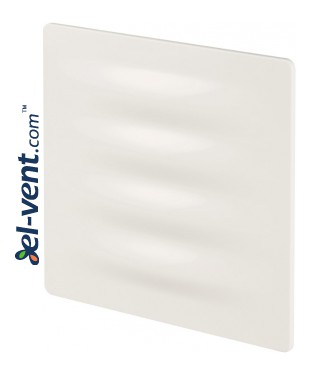

  • PVE100 19.44 € 13.61 € (-29%)
Price / Fan:
Select
  • Ø100 - standard model 61.44 € 43.00 € (-30%)
  • Ø100H - with hygrostat and timer 116.75 € 81.72 € (-30%)
  • Ø100T - with timer 95.23 € 66.66 € (-29%)
  • Ø100W - with pull cord 81.74 € 57.21 € (-30%)
  • Ø100CTR - with timer and speed controller 136.48 € 95.53 € (-30%)
  • Ø125 - standard model 73.05 € 51.13 € (-29%)
  • Ø125H - with hygrostat and timer 130.81 € 91.57 € (-29%)
  • Ø125T - with timer 109.01 € 76.30 € (-30%)
  • Ø125W - with pull cord 94.66 € 66.26 € (-30%)
  • Ø125CTR - with timer and speed controller 150.34 € 105.25 € (-29%)
Price / Обратный клапан:
Select
  • Ø100 mm - ZZ100 7.24 € 5.43 € (-24%)
  • Ø125 mm - ZZ125 8.00 € 6.00 € (-24%)
Qty.:

EU shipping 14 days, non EU 21 days

Ask a question about this item

Ask a question about this item

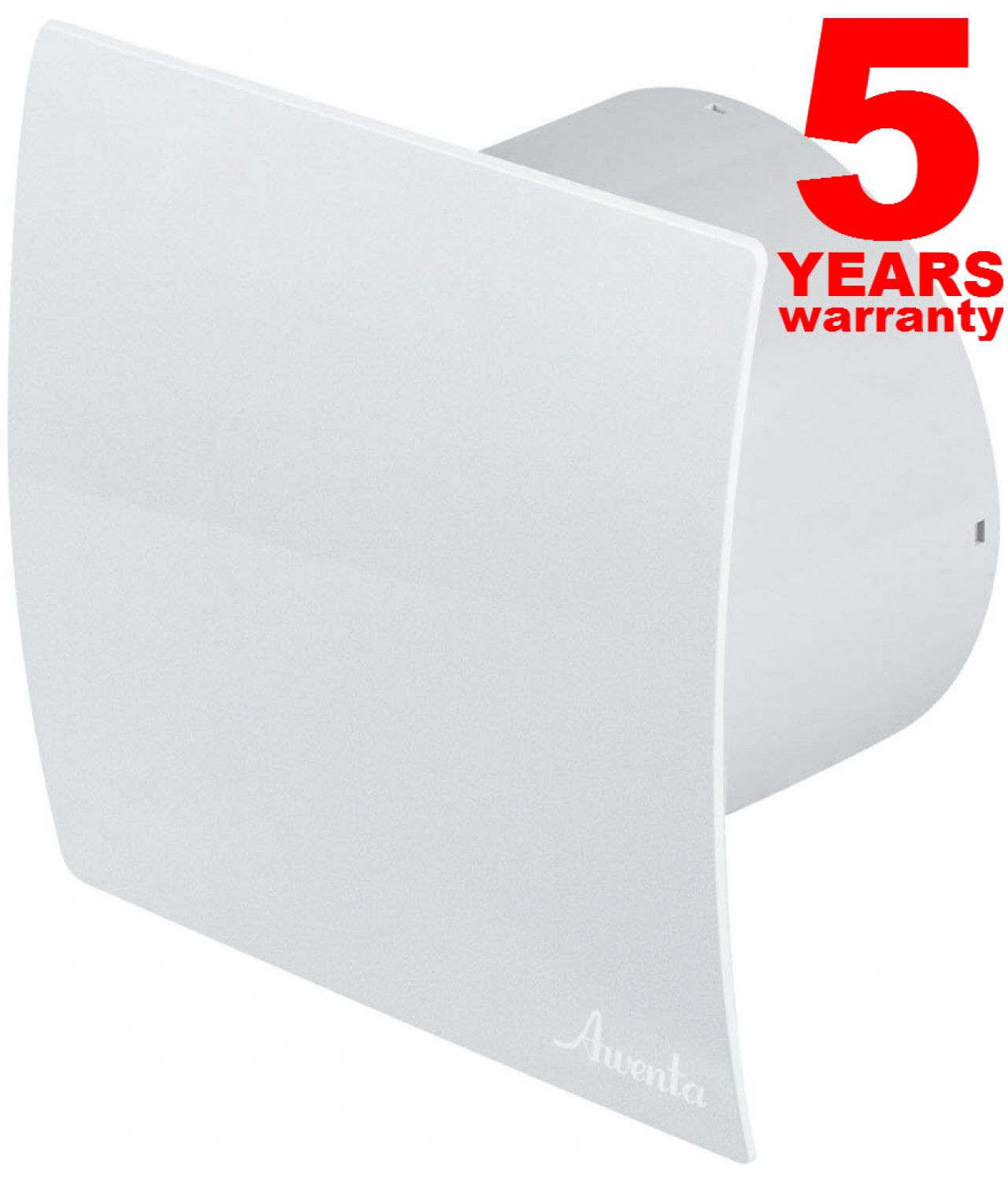

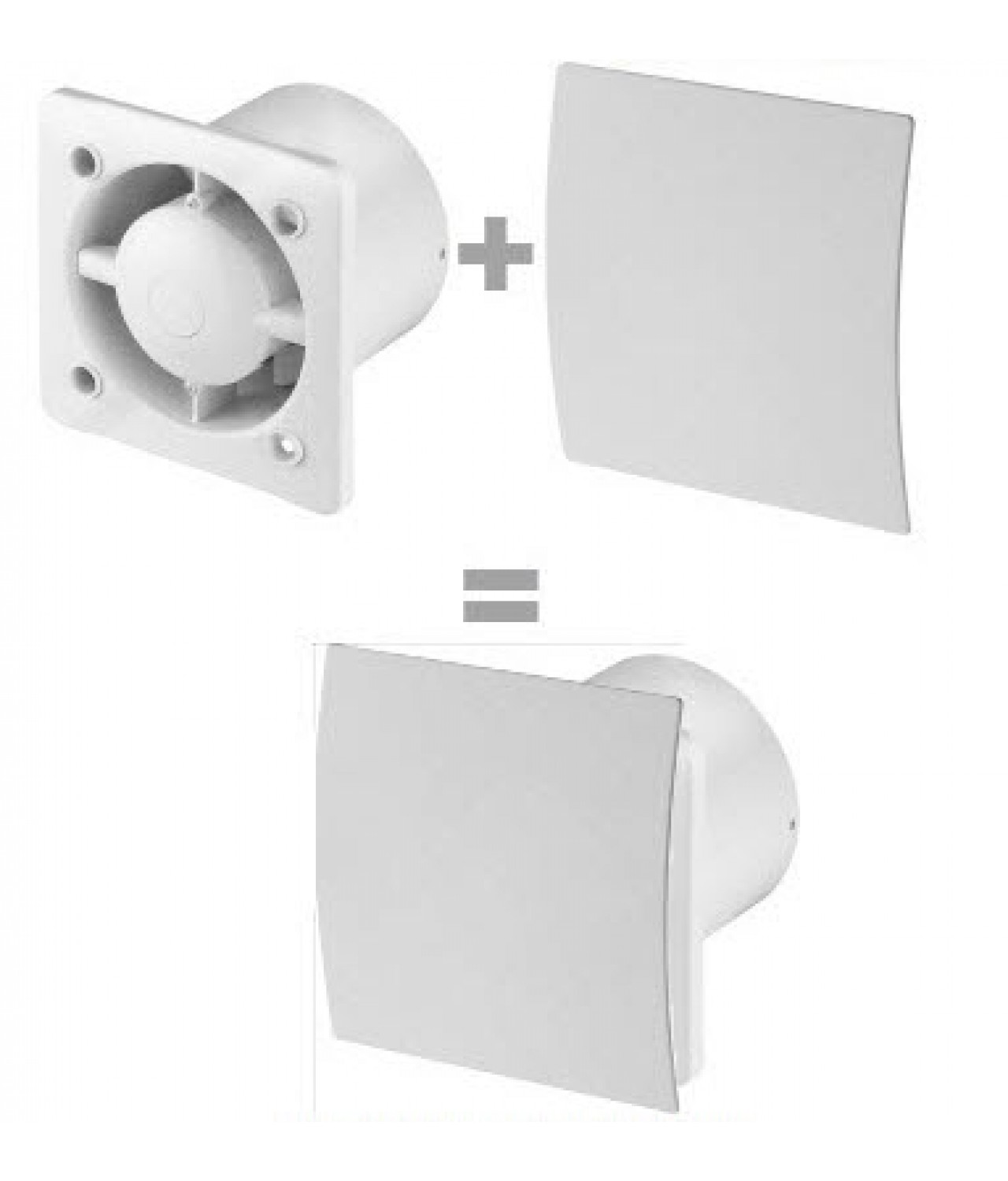

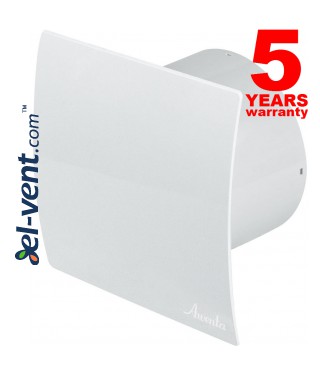

Quiet fan with ball bearings and plastic panel ESCUDO plastic

  • press this link to check full list of Fan panels from plastic
  • ESCUDO - wide selection of silent fans with covers, the fan can be selected from the following modifications:
  1. standard
  2. H - with timer and humidity sensor, adjustment scale from 40% to 90%
  3. T - with timer
  4. W - with pull cord switch
  5. CTR - with timer and 4 speed controller:

  • can be mounted in any position, in the wall or ceiling
  • standard and W models - to connect use two-core cable
  • H, T and CTR models - to connect use tree-core cable

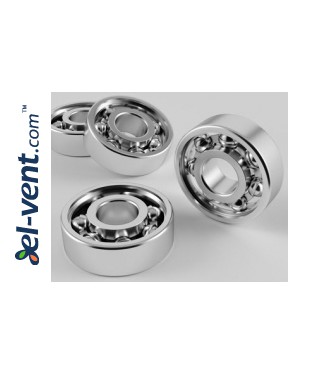

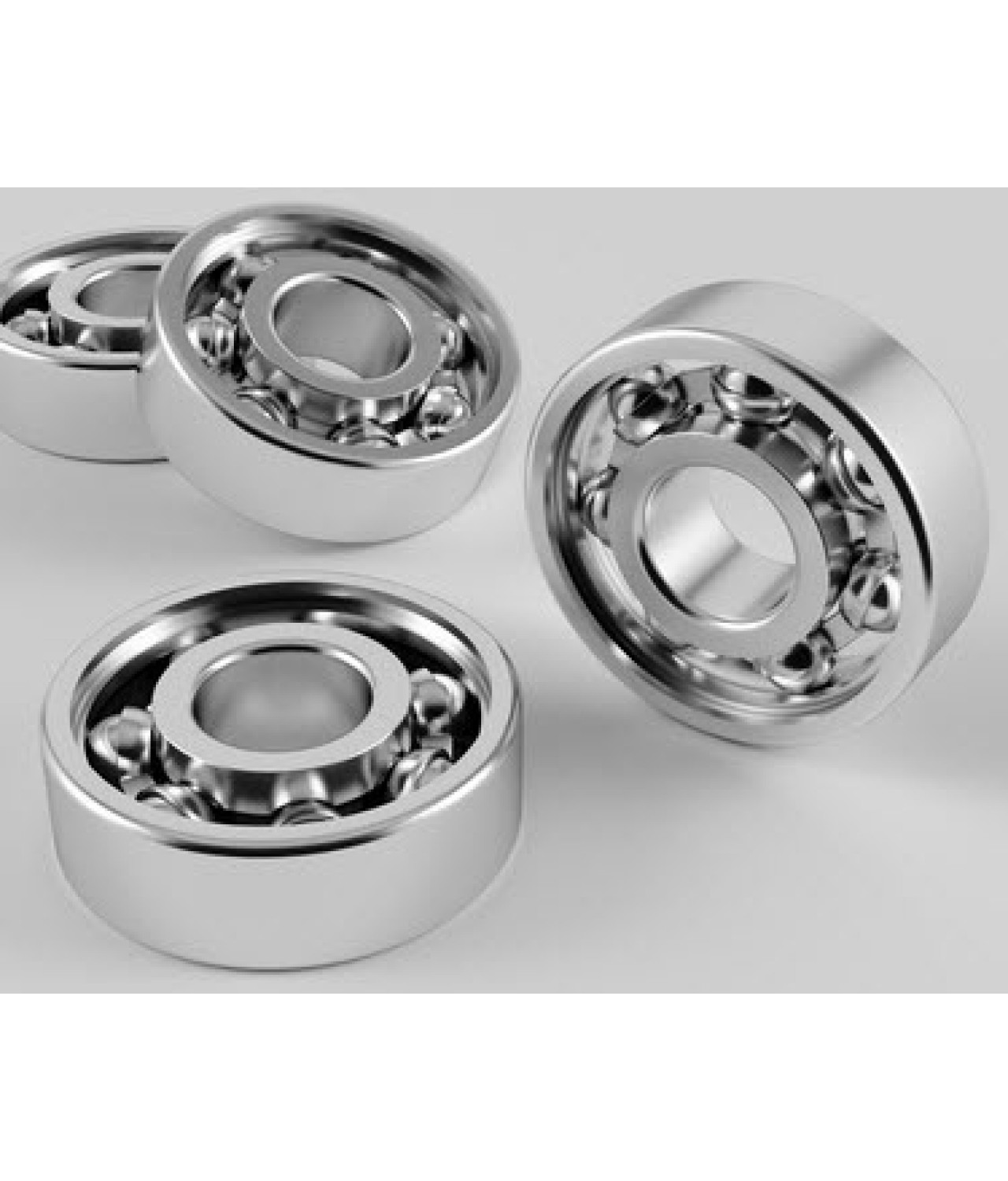

  • with Italian quality motor with ball bearings
  • ABS plastic housing
  • mount with screws (supplied)
  • made in Poland
  • 5 years warranty

Brand: ESEM

Fan corpus

Kodas
Ø
A
B
X
Y
W
Z
ESCUDO100
100
109
109
128
128
88
77
ESCUDO125 125 137 137 156 156 88 77

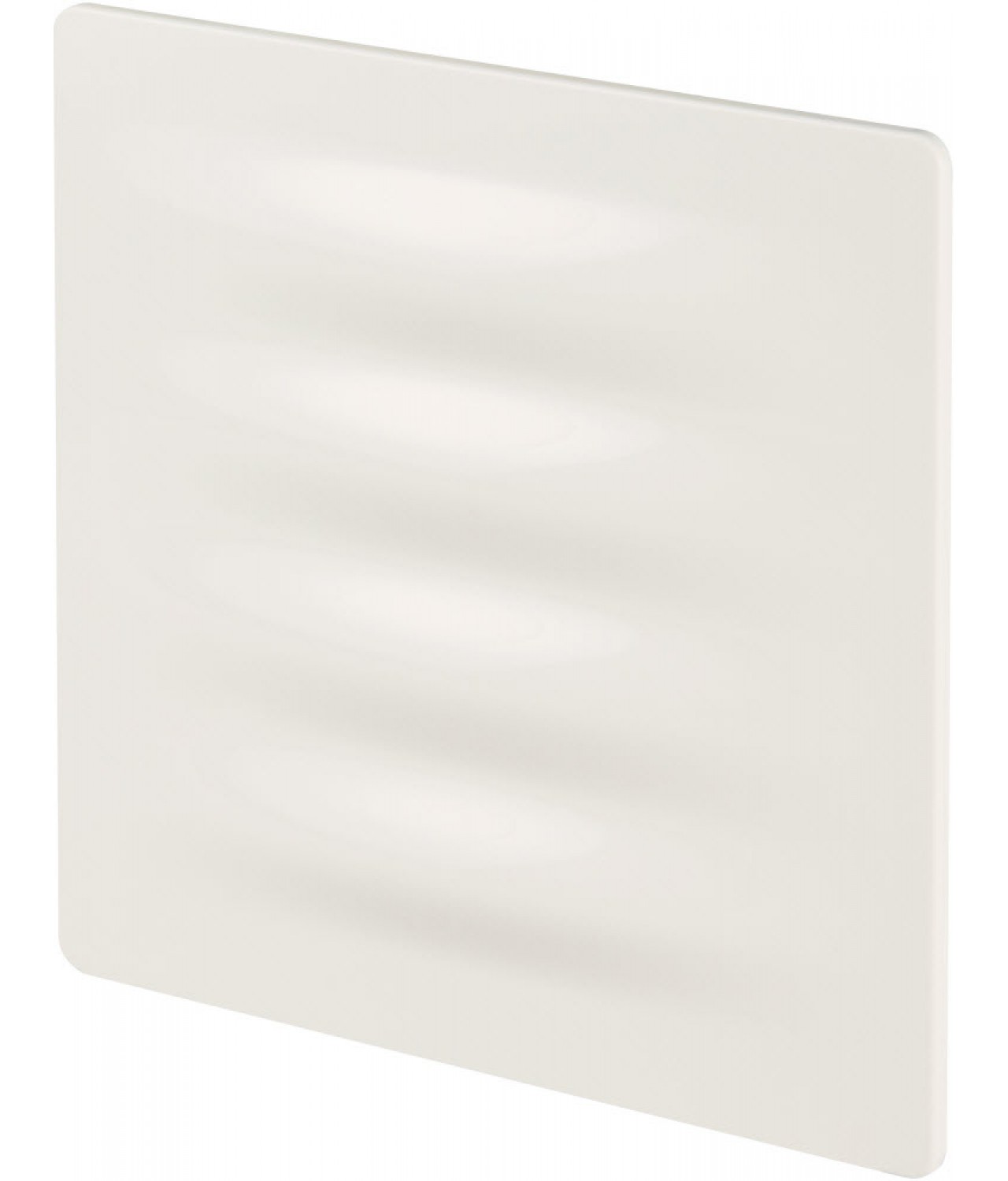

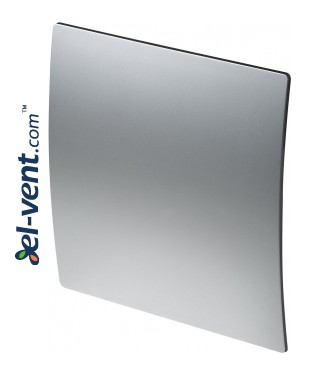

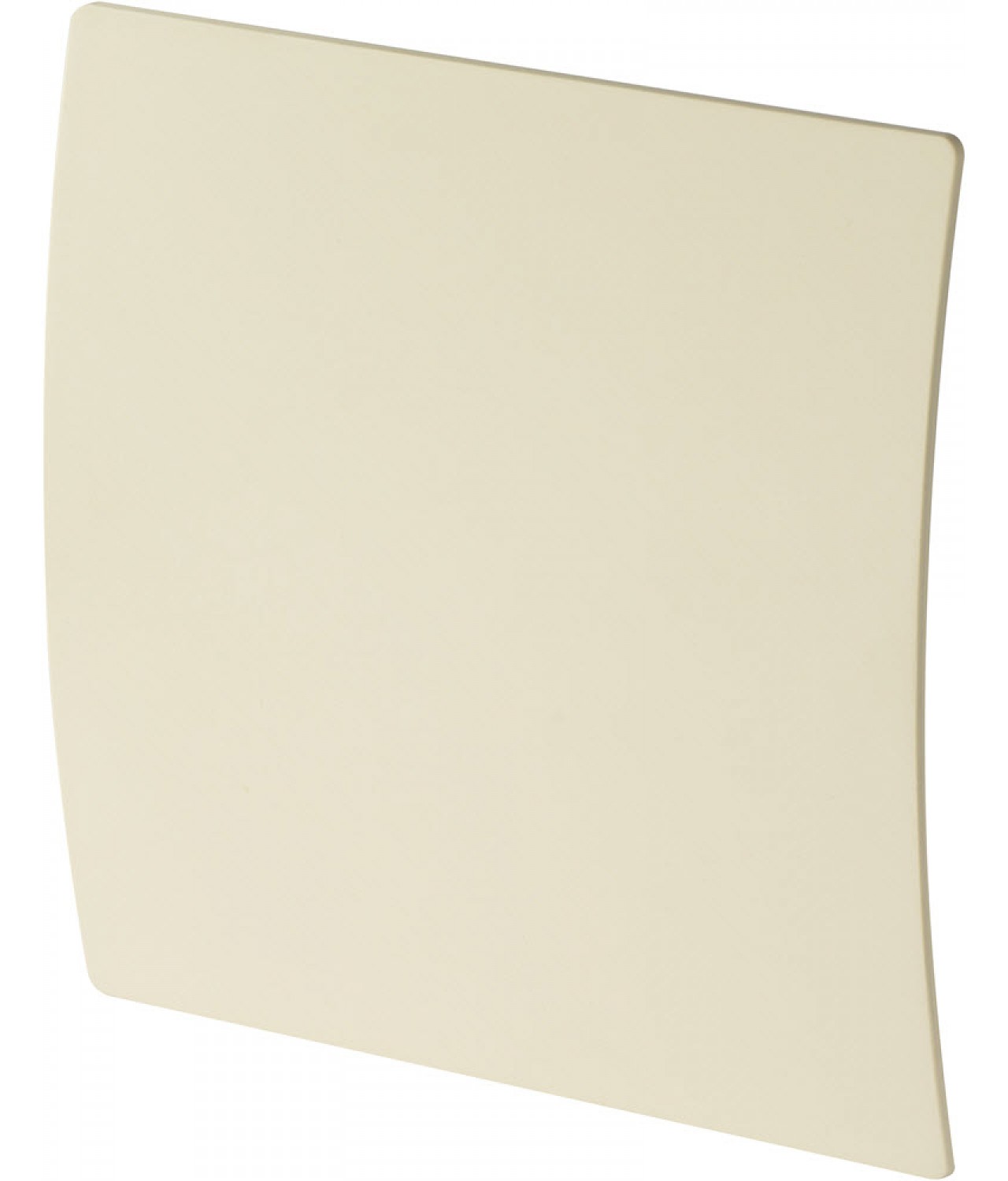

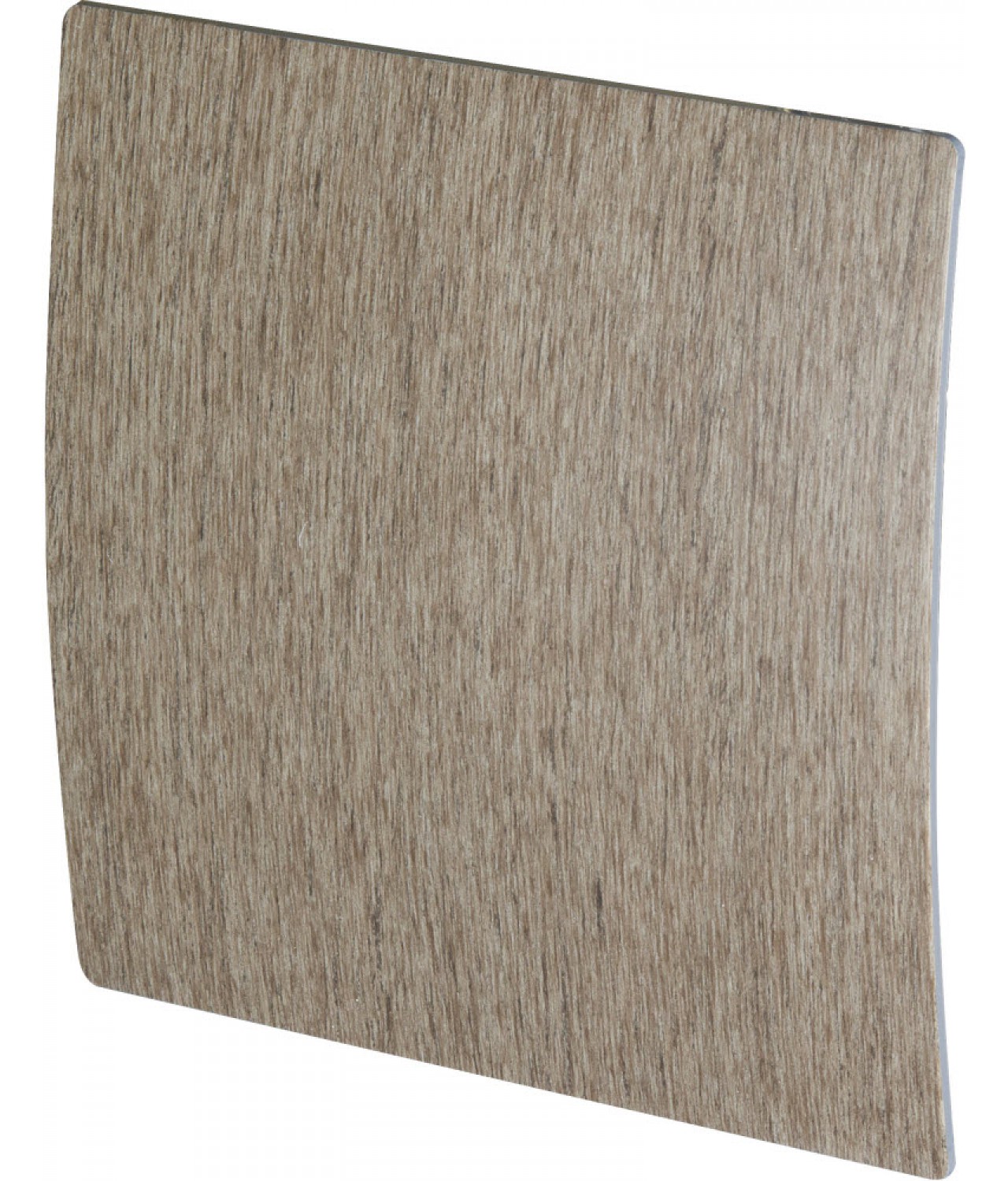

Fan covers

PE_

Code
X
Y V W Z
PE_100
160
160 30 14 7
PE_125 180 208 43 14 7







PI

Code
X
Y V W Z
PI100
160
160 35 14 7
PI125 177 177 35 14 7







PN_

Kodas
X
Y V W Z
PN_100
156
156 30 14 7
PN_125 180 180 30 14 7







POB, POE, POS

Коdas
X
Y V W Z
PO_100
161
161 31 14 7
PO_125 201 201 31 14 7





PT_

Code
X
Y V W Z
PT_100
162
162 32 14 7
PT_125 178 178 32 14 7





PS_

Code
X
Y V W Z
PS_100
160
160 26 14 7





PV_

Code
X
Y V
PV_100
160
160 35
PV_125 202 202 35



Standard, H, T and W models

Code
Voltage, V
Frequency, Hz
Power, W
Capacity,
m³/h
Noise level, dB
Protection class IP
Pressure,
Pa
ESCUDO100 230 50 5.0 75 26 X4 26
ESCUDO125
230
50
6.0
145
32
X4
28



CTR model

ESCUDO CTR (100/125)
Speed (diameter 100 mm / 125 mm)
I
II
III
IV
Capacity, m³/h
44/67
77/100 87/150 110/215
Noise level, dB (distance 3m)
19/16
30/26 34/34 36/42
Power, W
5/6
8/9 9/12 14/19
Pressure, Pa 10/6 26/13 32/27 40/62



Connection to the power supply:

Standard and W models
N - null
L - phase





H, T and CTR models
T - phase through switch
N - null
L - phase
