Inline duct fans WP ≤822 m³/h


  1. Ventilation systems ›
  2. Industrial fans
  3. › Kitchen fans
  4. › Inline duct fans WP ≤822 m³/h
Inline duct fans WP ≤822 m³/h Duct fan WP100 Duct fan WP125 Duct fan WP150-160 Duct fan WP200
Price / WP:
Select
  • Ø100 mm 150.42 € 112.81 € (-25%)
  • Ø125 mm 153.17 € 114.89 € (-24%)
  • Ø150-160 mm 274.14 € 205.60 € (-25%)
  • Ø200 mm 286.48 € 214.86 € (-25%)
Speed switch:
Select
  • 3 speeds SMT-1-30-4C 3.0 A IP44/54 67.06 € 50.30 € (-24%)
Qty.:

EU shipping 14 days, non EU 21 days

Ask a question about this item

Ask a question about this item

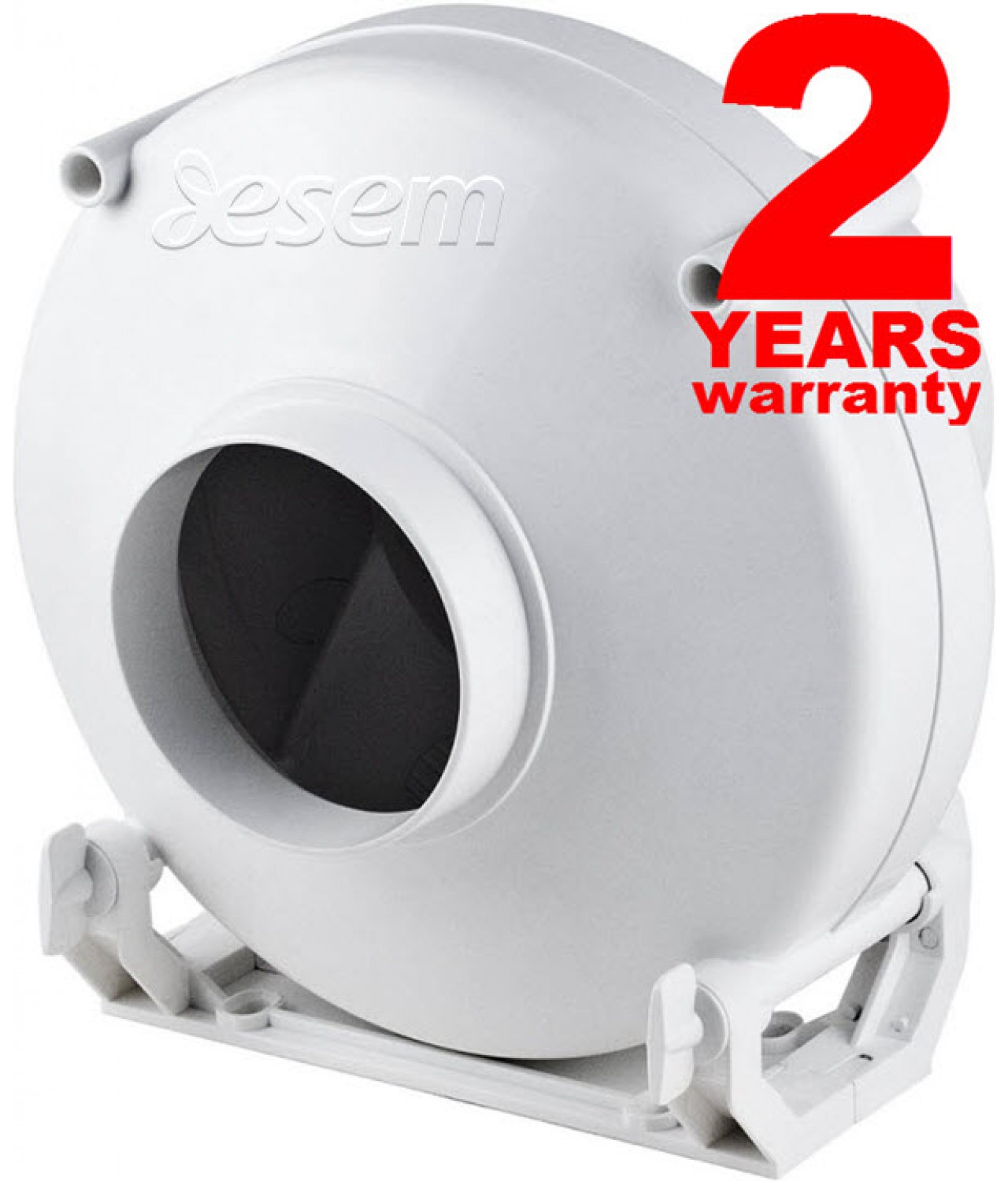

Inline duct fans WP ≤822 m³/h

Send
  • three speed motors with ball bearings
  • housing made from mechanically durable plastic
  • with mounting bracket
  • balanced turbine
  • max. temperature of extracted air 40 °C
  • made in Poland
  • 2 years warranty
  • Attention! If you want to install the fan on the cooker hood, you must install special filters before the fan to fully clean the contaminated air. These fans are designed to transport clean air. If the fan is installed without filters, the fan is not covered by the warranty.
  • it is recommended to control the speed through the three-speed controller (if the fan has two speeds, use the first two connection terminals in speed controller):



  • it is recomended to install fan with sealing clamps:




Brand: ESEM
Code
Ø1
Ø2
A
B
C
D
E
WP100
100
100
208
128
161
115
50
WP125 125 125 208 128 150 115 50
WP150/160 150/160 150/160 285/237 190 137/192 115 50
WP200 200 200 225 190 167 115 50





Code Capacity, m³/h Power, W
Pressure, Pa
 Noise level, dB Protection class, IP
Speed Speed Speed Speed
I II III I II III I II III I II III
WP100 180 235 270 50 52 58 335 370 395 47 54 57 44
WP125 220 295 340 53 55 61 310 345 370 44 51 55 44
WP150/160 565 640 770 112 115 120 435 453 478 51 54 57 44
WP200 668 735 822 102 105 108 450 465 490 52 53 55 44



We recommend to control speed by:

three step fan speed controller SMT-1-30-4C



Connection to the power supply
