Jetline - quiet and energy efficient duct fans ≤1610 m³/h


  1. Ventilation systems ›
  2. Industrial fans
  3. › Kitchen fans
  4. › Jetline - quiet and energy efficient duct fans ≤1610 m³/h
Jetline - quiet and energy efficient duct fans ≤1610 m³/h Jetline inline duct fans No.1 Jetline inline duct fans No.2 Jetline inline duct fans No.3 Jetline inline duct fans - ball bearings Transformer fan speed controller RVS, ordered separately Transformer fan speed controller ESTR-1-10L10, ordered separately Transformer fan speed controller EMTY05, ordered separately Transformer fan speed controller EETY15/EETX15, ordered separately
Price / Jetline:
Select
  • Ø100 mm, 260 m³/h 337.34 € 202.40 € (-40%)
  • Ø125 mm, 420 m³/h 344.87 € 206.92 € (-40%)
  • Ø160 mm, 760 m³/h 397.34 € 238.41 € (-39%)
  • Ø200 mm, 1080 m³/h 539.81 € 323.88 € (-40%)
  • Ø250 mm, 1280 m³/h 584.67 € 350.80 € (-39%)
  • Ø315 mm, 1610 m³/h 592.22 € 355.33 € (-40%)
Speed controller:
Select

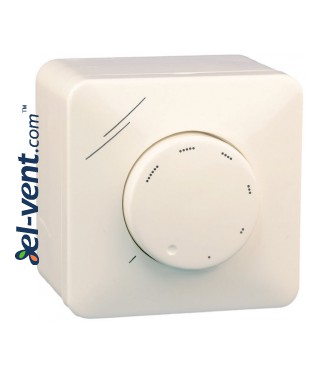

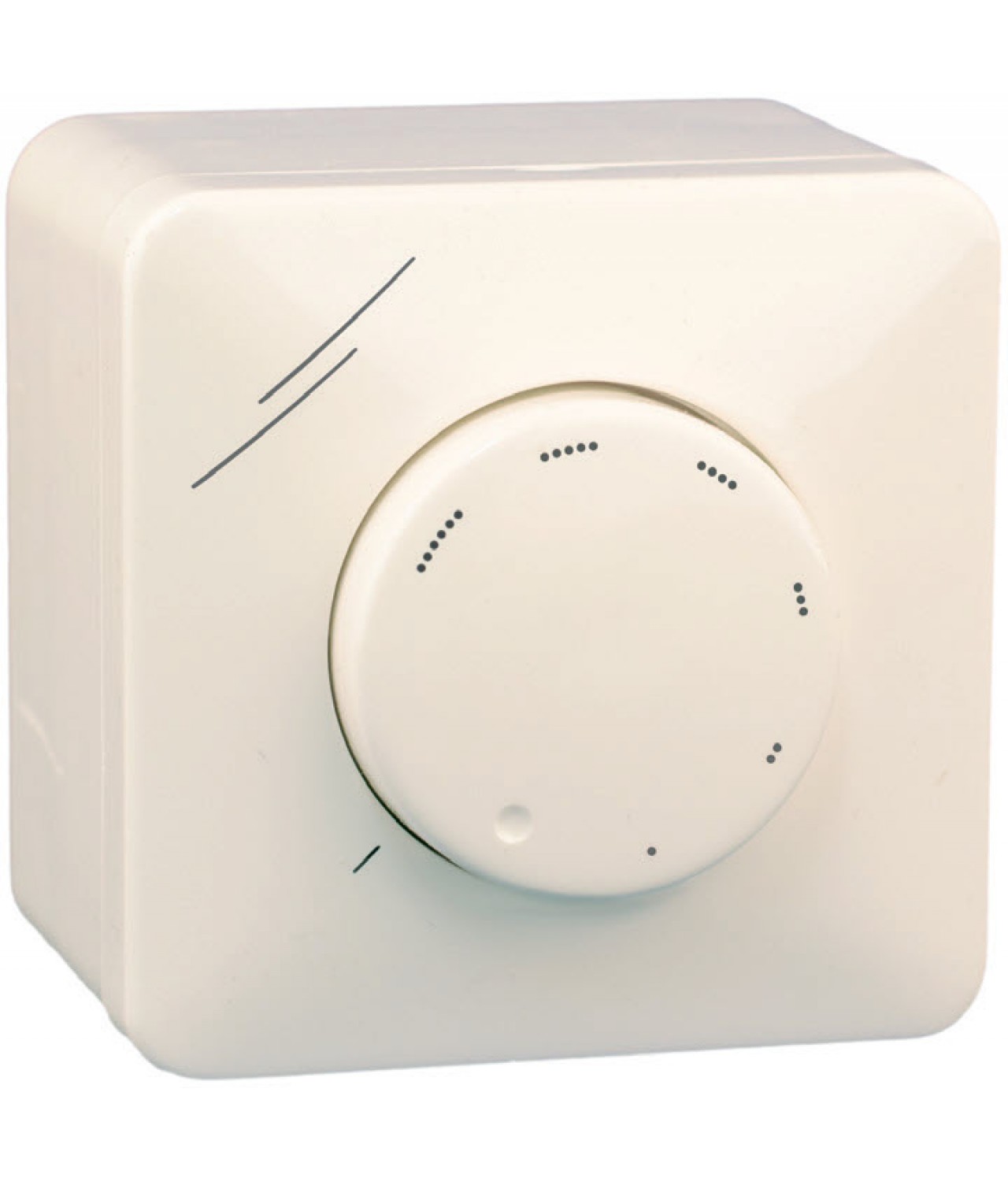

  • EMTY05 0.5 A, IP44/54 66.95 € 50.22 € (-24%)
  • EETX15 1.5 A, IP44/54 72.22 € 54.16 € (-25%)

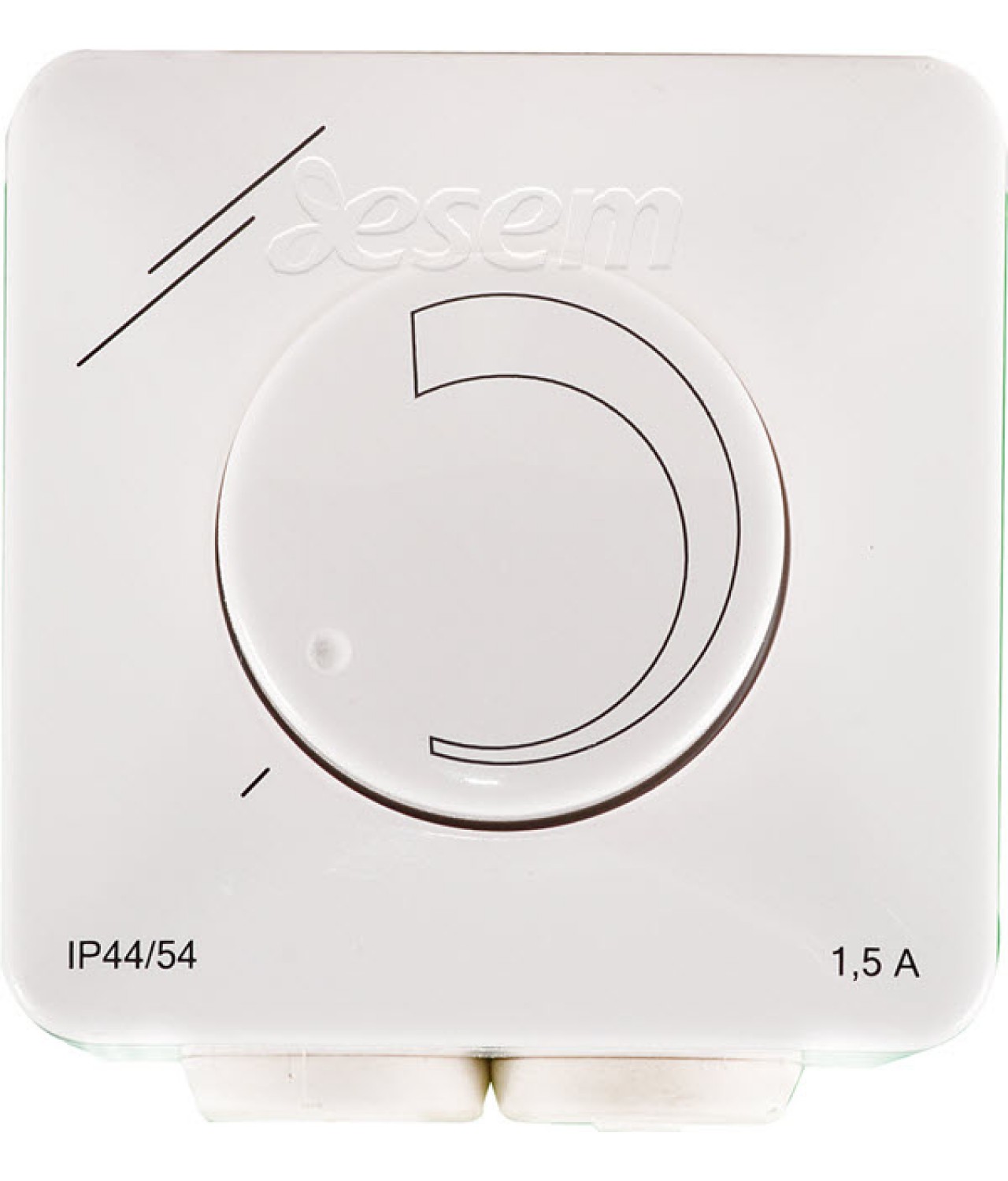

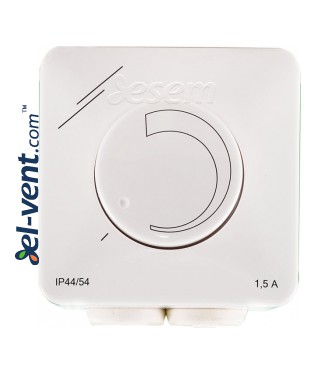

  • EETY15 1.5 A, IP44/54 72.22 € 54.16 € (-25%)

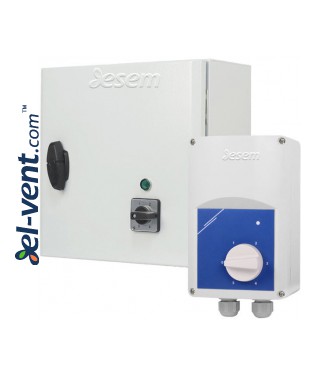

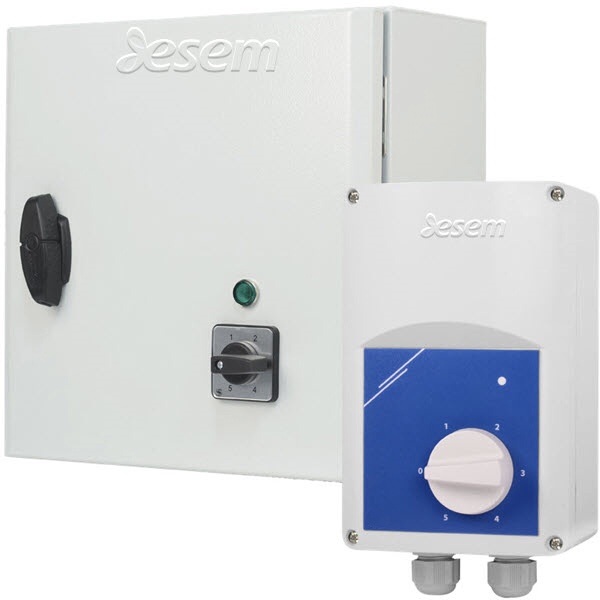

  • ESTR-1-10L10 1.0 A, IP54 180.06 € 135.05 € (-24%)
  • RVS 0.5 A, IP42 95.95 € 67.17 € (-30%)
Qty.:

EU shipping 14 working days, non EU 21 working days

Ask a question about this item

Ask a question about this item

Jetline - quiet and energy efficient duct fans ≤1610 m³/h

Send
  • Jetline - in-line fans for circular ducts, designed for high aerodynamic performances with a very compact profiles and very low sound levels, designed for Ø100-315 mm ducts
  • suitable for domestic, commercial and industrial environments
  • low profile compact casing manufactured from galvanised sheet steel
  • the terminal box and the mounting bracket do not increase the product’s profile
  • temperature of extracted air -25 - +60 °C
  • optimised design of the impeller, guide vanes and outlet diffuser, manufactured from injection-moulded plastic, to increase performance and low sound level
  • airtight joint between the galvanised steel casing and the plastic guide vanes to avoid air leaks
  • rubber gaskets on the flanges to improve airtightness with the ducts
  • silent-block between the motor and the holder to reduce the motor’s vibrations and lower the sound level of the installation, even in terms of speed regulation
  • ball bearing motor IP44 protected with thermal protection and with class F insulation
  • electrical box IP65 protected
  • made in Spain
  • 2 years warranty
  • Attention! If you want to install the fan on the cooker hood, you must install special filters before the fan to fully clean the contaminated air. These fans are designed to transport clean air. If the fan is installed without filters, the fan is not covered by the warranty.
  • fan construction:



  • you can install the fan in two positions:



  • preliminariai kiek sutaupoma vietos pasirenkant Jetline ventiliatorių:

  • it is recomended to install fan with anti-vibration sealing clamps:




Brand: Soler & Palau
Code
A
B1
B2
 C1 C2 ØD E F G H I ØJ K
Jetline-100 276 15 15 181 190 95 256 306 70 98 - 15 6.5
Jetline-125 279 15 15 206 214 120 265 315 70 111 - 15 6.5
Jetline-160 323 20 20 243.5 252 155 298.5 348 70 130 - 15 6.5
Jetline-200 322 30 30 273 281 195 320 369 100 144.5 - 15 6.5
Jetline-250 329 20 30 293 301 245 326 375 120 154.3 50 15 6.5
Jetline-315 369 20 33 322 331 310 357.5 407 120 170 50 15 6.5





Code
 Ø hole, mm
Voltage, V
Frequency, Hz
Capacity, m³/h
 Power, W Current, A Noise level, dB(A)1.5m Speed, min-1 Weight, kg
Jetline-100 100 220-240 50/60 260 19 0.10 22 2690 3.0
Jetline-125 125 220-240 50/60 420 40 0.20 25 2640 3.4
Jetline-160 160 220-240 50/60 760 84 0.40 31 2730 4.5
Jetline-200 200 220-240 50/60 1080 125 0.50 42 2630 5.6
Jetline-250 250 220-240 50/60 1280 160 0.70 45 2710 6.5
Jetline-315 315 220-240 50 1610 215 0.90 49 2600 8.4



Speed controllers (Attention! If you choose an electronic speed controller, the fan may emit an extraneous sound, the speed change will not be consistent, so we strongly recommend choosing a transformer speed controller):

Jetline100-160 Jetline100-160 Jetline200-315
electronic EMTY05 - 0.5 A (fan may make noise) 5 step, transformer RVS - 0.5 A electronic EETY15/EETX15 - 1.5 A (fan may make noise)
Jetline200-315
5 step, transformer ESTR-1-10L10 - 1.0 A



Pressure loss diagrams
