Alumaster W2 - double-leaf access panels for plasterboard walls
European delivery - 25 working days, other countries +7 working days.
Ask a question about this item
Ask a question about this item

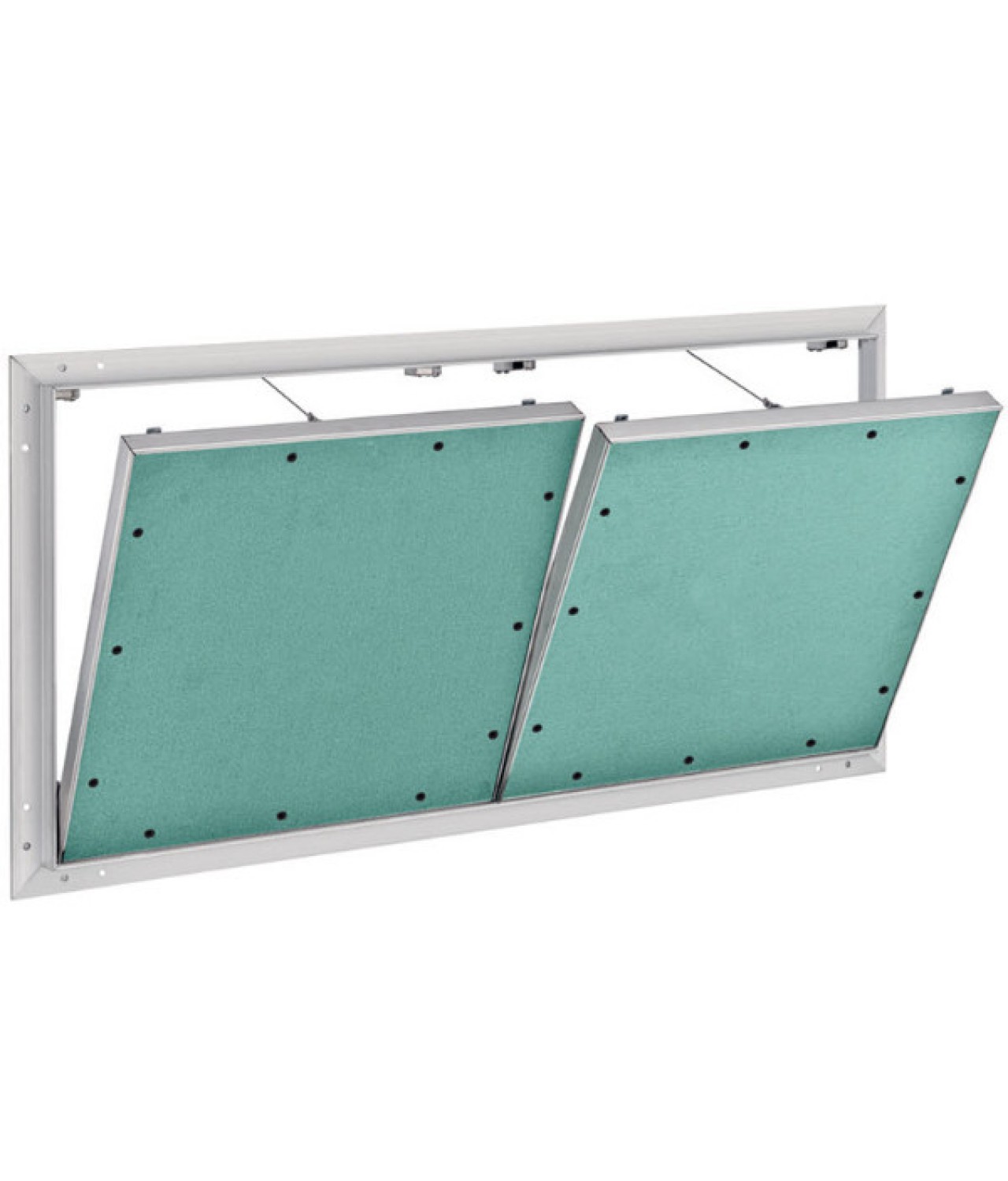

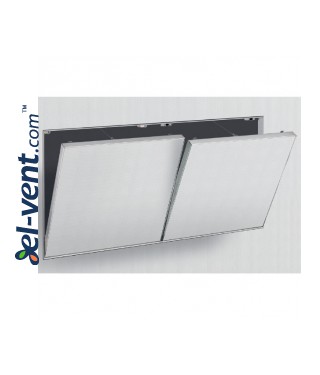

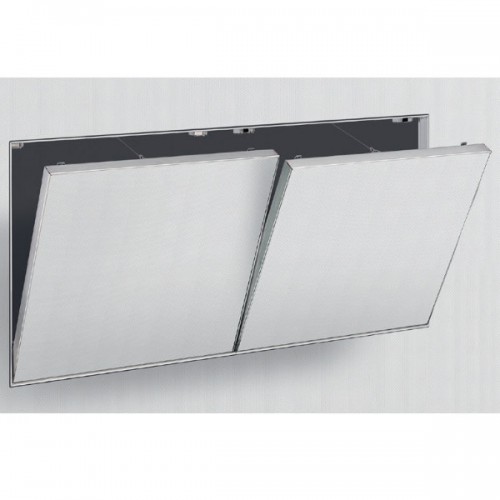

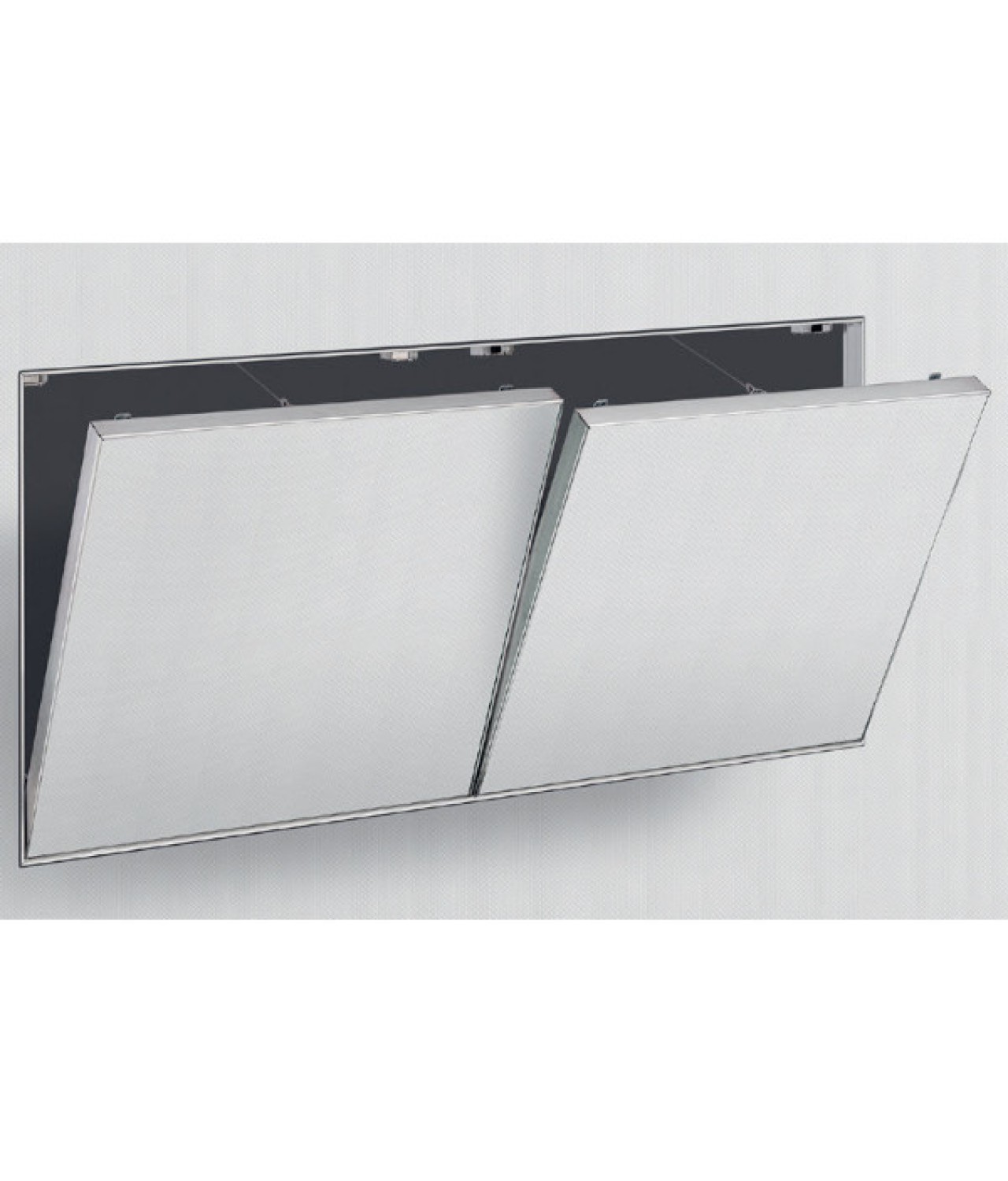

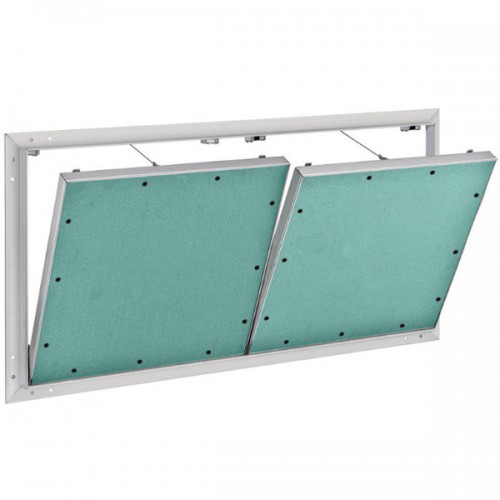

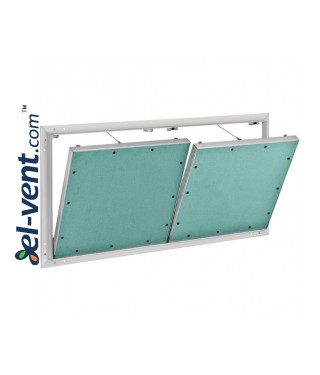

Alumaster W2 - double-leaf access panels for plasterboard walls
- Alumaster W2 - double-leaf access panels for plasterboard walls for plastering and painting, made from waterproof GKBI plaster board insert H2 per DIN EN 520, GKBI per DIN 18180
- available door thicknesses - 12.5, 15, 25 mm
- no internal partition - this maximizes the access area
- suitable for covering the heat recovery unit
- frame made of aluminum profile with galvanized joints
- thanks latches easily can be opened and closed by soft touch
- handle is unnecessary
- with a safety rope holding the open hatch
- for installation on the wall (see "Dimensions" table)
- suitable for installation in wet areas
- the door can be completely removed from the frame
- when mounting in the wall, the latches must be at the top
- latches are always fitted on the longer side of the door
- possibility to make individual sizes
- Made in Germany
Brand: ESEM

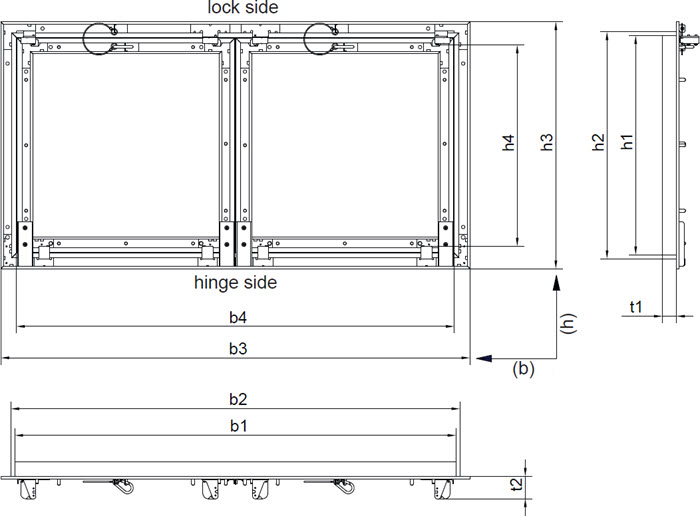

| Alumaster C2 |
b x h
|
b1 x h1 | b2 x h2 min. | b2 x h2 maks. | b3 x h3 | b4 x h4 | t1 / t2 | Locks |
| 20394 - 800/400 | 800x400 | 795x395 | 797x397 | 810x410 | 845x445 | 789x363 | 13 / 15.5 / 25.5 / 41 | 4 |
| 20394 - 800/800 | 800x800 | 795x795 | 797x797 | 810x810 | 845x845 | 763x762 | 13 / 15.5 / 25.5 / 41 | 4 |
| 20394 - 1000/800 | 1000x800 | 995x795 | 997x797 | 1010x810 | 1045x845 | 963x762 | 13 / 15.5 / 25.5 / 41 | 4 |
| 20394 - 1200/1200 | 1200x1200 | 1195x1195 | 1197x1197 | 1210x1210 | 1245x1245 | 1163x1162 | 13 / 15.5 / 25.5 / 41 | 6 |
| 20394 - 2000/1000 | 2000x1000 | 1995x995 | 1997x997 | 2010x1010 | 2045x1045 | 1963x962 | 13 / 15.5 / 25.5 / 41 | 6 |
