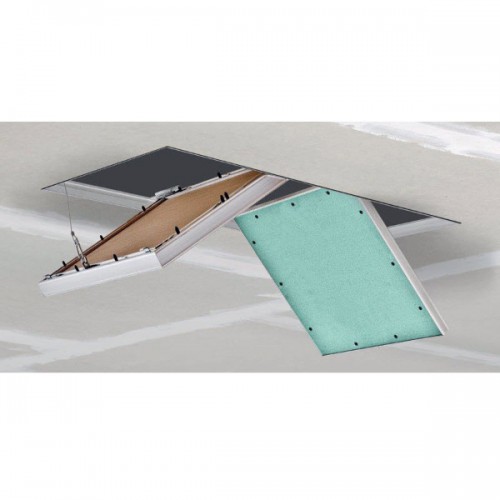

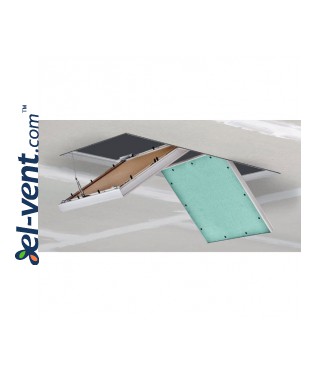

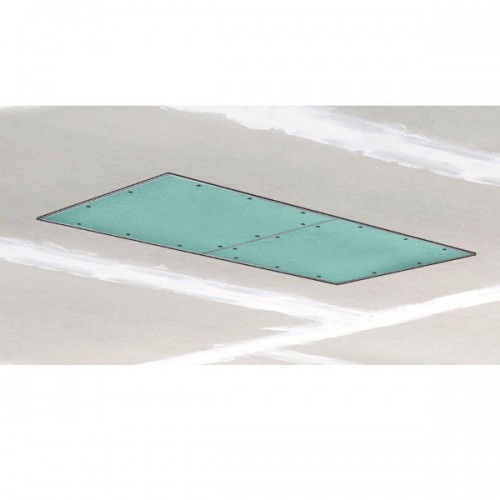

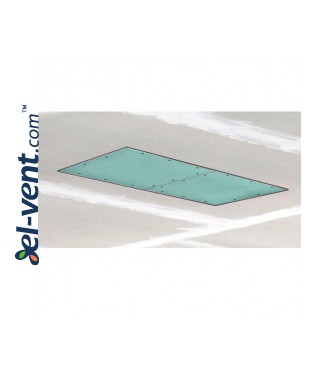

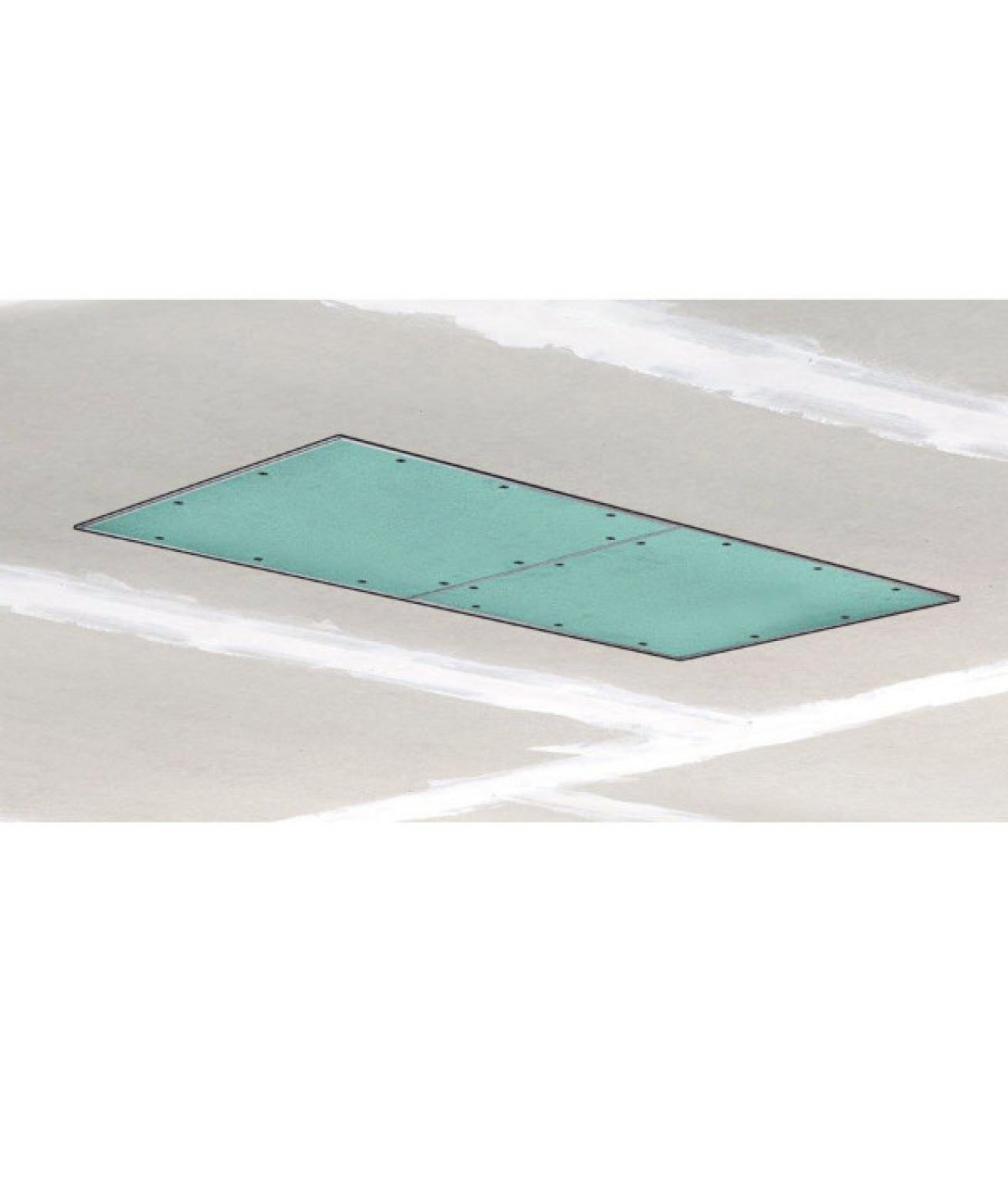

Alumaster C2 - double-leaf access panels for plasterboard ceilings
European delivery - 25 working days, other countries +7 working days.
Ask a question about this item
Ask a question about this item
Alumaster C2 - double-leaf access panels for plasterboard ceilings
- Alumaster C2 - double-leaf access panels for plasterboard ceilings for plastering and painting, made from waterproof GKBI plaster board insert H2 per DIN EN 520, GKBI per DIN 18180
- available door thicknesses - 12.5, 15, 25 mm
- no internal partition - this maximizes the access area
- suitable for covering the heat recovery unit
- frame made of aluminum profile with galvanized joints
- thanks latches easily can be opened and closed by soft touch
- handle is unnecessary
- with a safety rope holding the open hatch
- for installation on the ceiling (see "Dimensions" table)
- suitable for installation in wet areas
- the door can be completely removed from the frame
- when mounting in the wall, the latches must be at the top
- latches are always fitted on the longer side of the door
- possibility to make individual sizes
- Made in Germany
Brand: ESEM

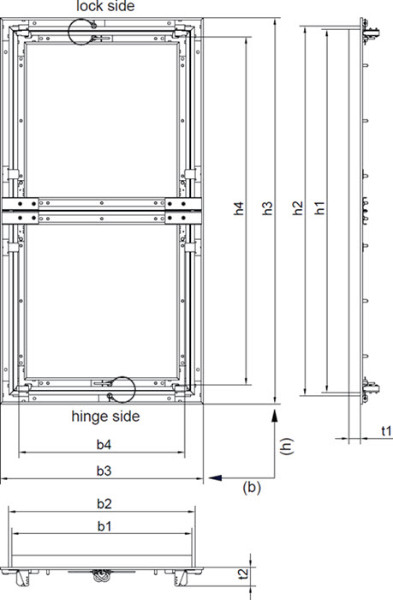

| Alumaster C2 |
b x h
|
b1 x h1 | b2 x h2 min. | b2 x h2 maks. | b3 x h3 | b4 x h4 | t1 / t2 | Locks |
| 20394 - 400/800 | 400x800 | 395x795 | 397x797 | 410x810 | 445x845 | 363x762 | 13 / 15.5 / 25.5 / 41 | 4 |
| 20394 - 800/800 | 800x800 | 795x795 | 797x797 | 810x810 | 845x845 | 762x763 | 13 / 15.5 / 25.5 / 41 | 4 |
| 20394 - 800/1000 | 800x1000 | 795x995 | 797x997 | 810x1010 | 845x1045 | 763x962 | 13 / 15.5 / 25.5 / 41 | 6 |
| 20394 - 1200/1200 | 1200x1200 | 1195x1195 | 1197x1197 | 1210x1210 | 1245x1245 | 1163x1162 | 13 / 15.5 / 25.5 / 41 | 6 |
| 20394 - 1000/2000 | 1000x2000 | 995x1995 | 997x1997 | 1010x2010 | 1045x2045 | 963x1962 | 13 / 15.5 / 25.5 / 41 | 6 |
