Antistatic, antibacterial, antifungal flexible duct HDPE200A, 25 m roll

PRICE:
343.86 €
Qty.:

European delivery - 30 days, other countries +7 days.

Ask a question about this item

Ask a question about this item

Antistatic, antibacterial, antifungal flexible duct HDPE200A, 25 m roll

  • antistatic
  • antibacterial
  • antifungal
  • extremely durable
  • the inner side of the duct is white plastic covered antistatic, antibacterial and antimold coating with silver oxide ions
  • 25 m roll



Selection of diffuser and air distributor (A, B, C, D)

Diffuser Ø, mm
Diffuser usefull area Ø, mm Diffuser usefull area, cm2
Ø75 mm  HDPE duct, P~31.2 cm2
Ø90 mm  HDPE duct, P~44.2 cm2
recommended duct connections to the distributor
80
60 ~28.3
1
1
100 70 ~38.5 1 1
125 100 ~78.5 2 2
160 140 ~154 5 3
200 160 ~201 6 4



Selection of main air distributor (D, E, F, G) connected to heat recovery unit

HRU connectors Ø, mm
HRU connectors area in cm2
Ø75 mm  HDPE duct, P~31.2 cm2
Ø90 mm  HDPE duct, P~44.2 cm2
recommended min. number of duct connectors in air distributor
125 ~122.7 4 3
160 ~201.0 6 4
200 ~314.2 10 7

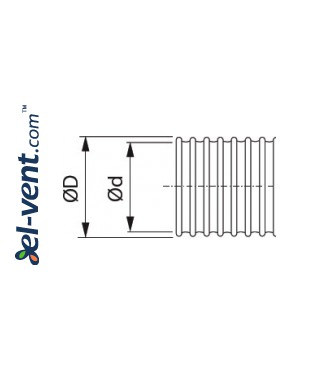

Code
ØD (outer)
Ød (inner)
HDPE200A
200
175
