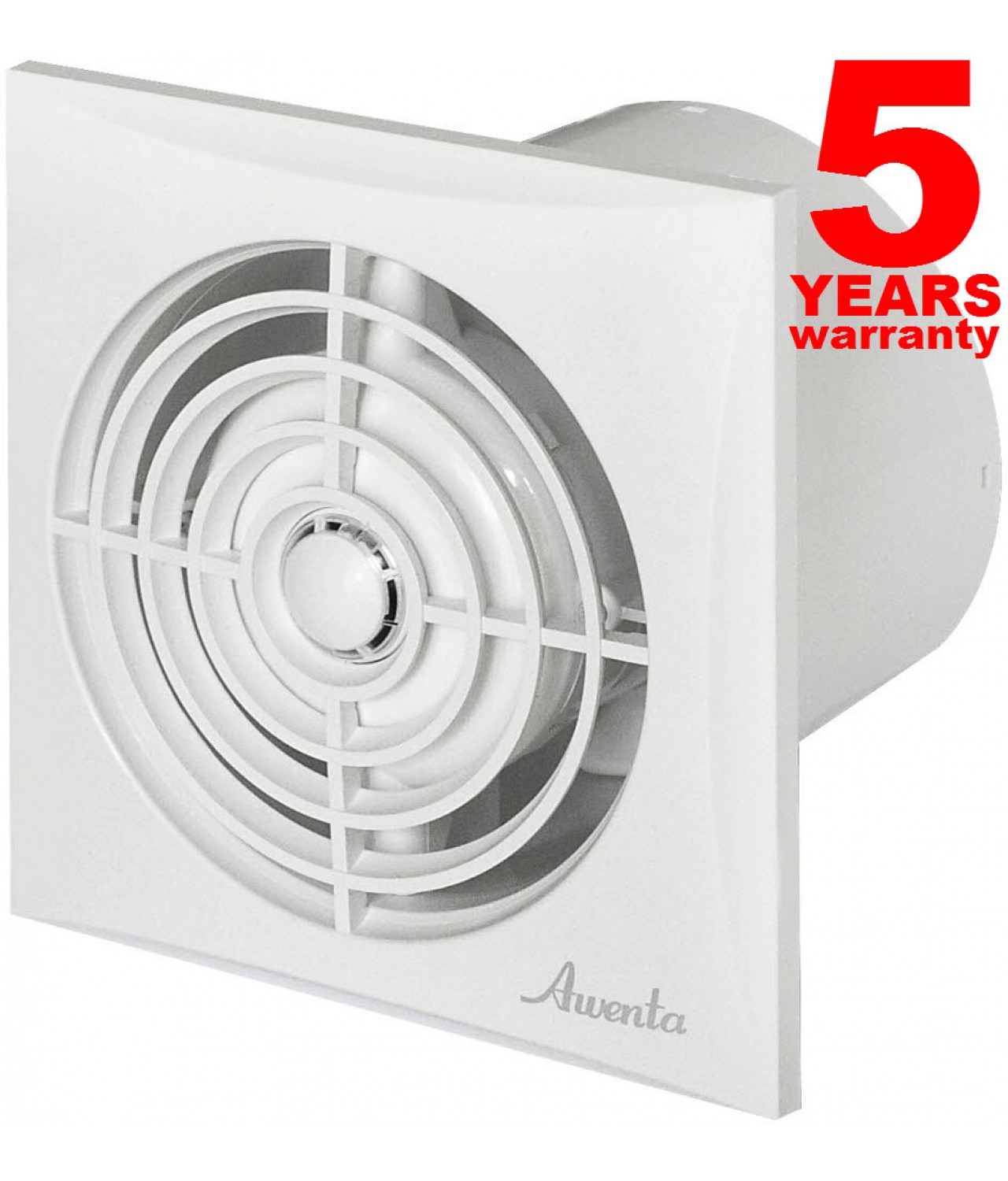

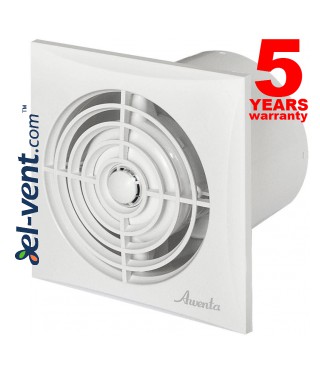

Silent fan with ball bearings SILENCE


  1. Ventilation systems ›
  2. Bathroom exhaust fans
  3. › Silent fan with ball bearings SILENCE
Silent fan with ball bearings SILENCE SILENCE - drawing SILENCE - ball bearings
Price / Fan:
Select
  • Ø100 - standard model 70.03 € 56.02 € (-20%)
  • Ø100T - with timer 92.44 € 73.96 € (-20%)
  • Ø100R - with motion sensor and timer 139.20 € 111.36 € (-20%)
  • Ø125 - standard model 79.38 € 63.50 € (-19%)
  • Ø125T - with timer 101.83 € 81.47 € (-19%)
Price / Обратный клапан:
Select
  • Ø100 mm - ZZ100 8.35 € 6.27 € (-24%)
  • Ø125 mm - ZZ125 9.14 € 6.85 € (-25%)
Qty.:

EU shipping 14 working days, non EU 21 working days

Ask a question about this item

Ask a question about this item

Silent fan with ball bearings SILENCE

Send
  • SILENCE - silent fans with very thin and compact mounting frame, models can be selected from the following modifications:
  1. standard
  2. F - the fan equipped with a brightness sensor and timer is designed for windowless rooms, the device can operate in two modes: Mode I: The fan starts after detection of the increase in light intensity in the room, while after switching off the lighting the device operates for the time set on the potentiometer. Mode II: The fan starts after turning off the light in the room and works according to the time set on the potentiometer. The microswitch located on the controller is used to change the operating mode. The time delay set on the potentiometer is adjustable between 3 and 30 minutes
  3. R - the fan equipped with motion sensor, turns on automatically when any motion is detected in the room where it is installed and operates for a period of time (3 to 30 minutes) after the last motion detection
  4. T - with timer
  • can be mounted in any position, in the wall or ceiling
  • very low noise level and power consumption

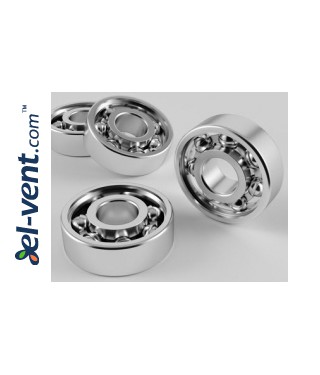

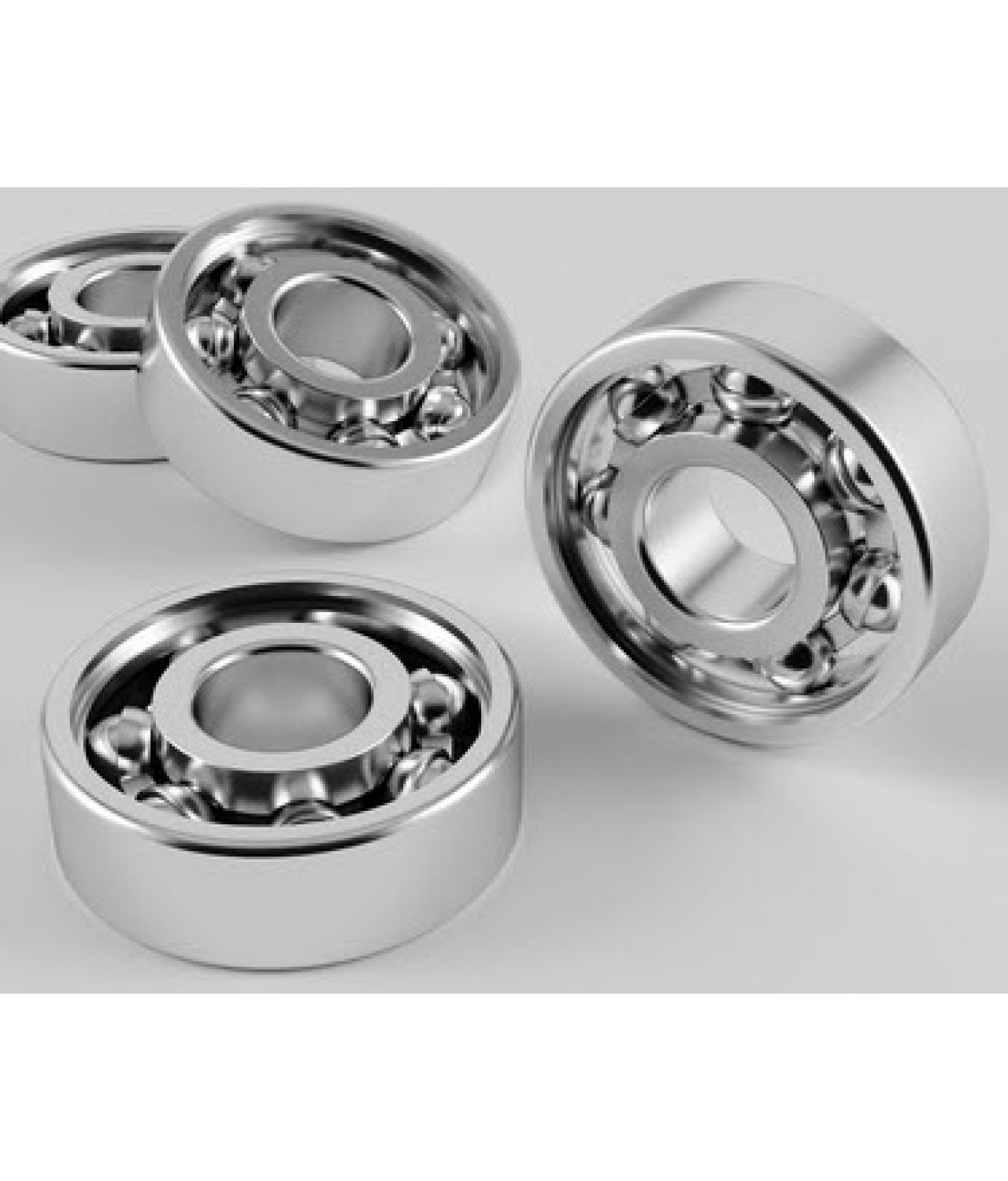

  • with ball bearing motor
  • ABS plastic housing
  • mount with screws (supplied)
  • with the operation indicator
  • made in Poland
  • 5 years warranty

Brand: ESEM

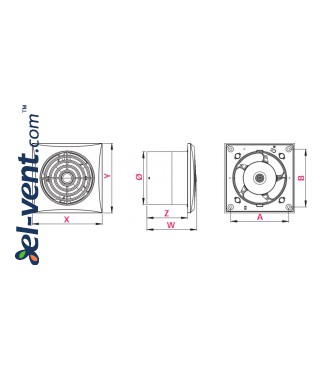

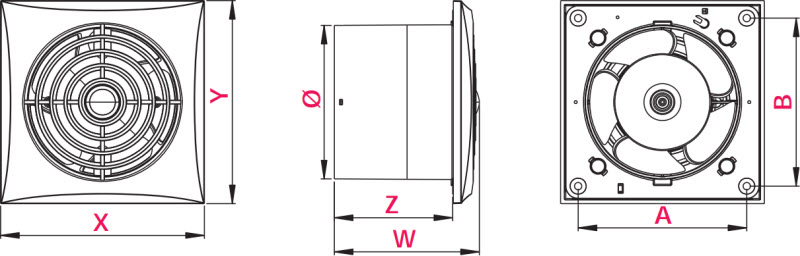

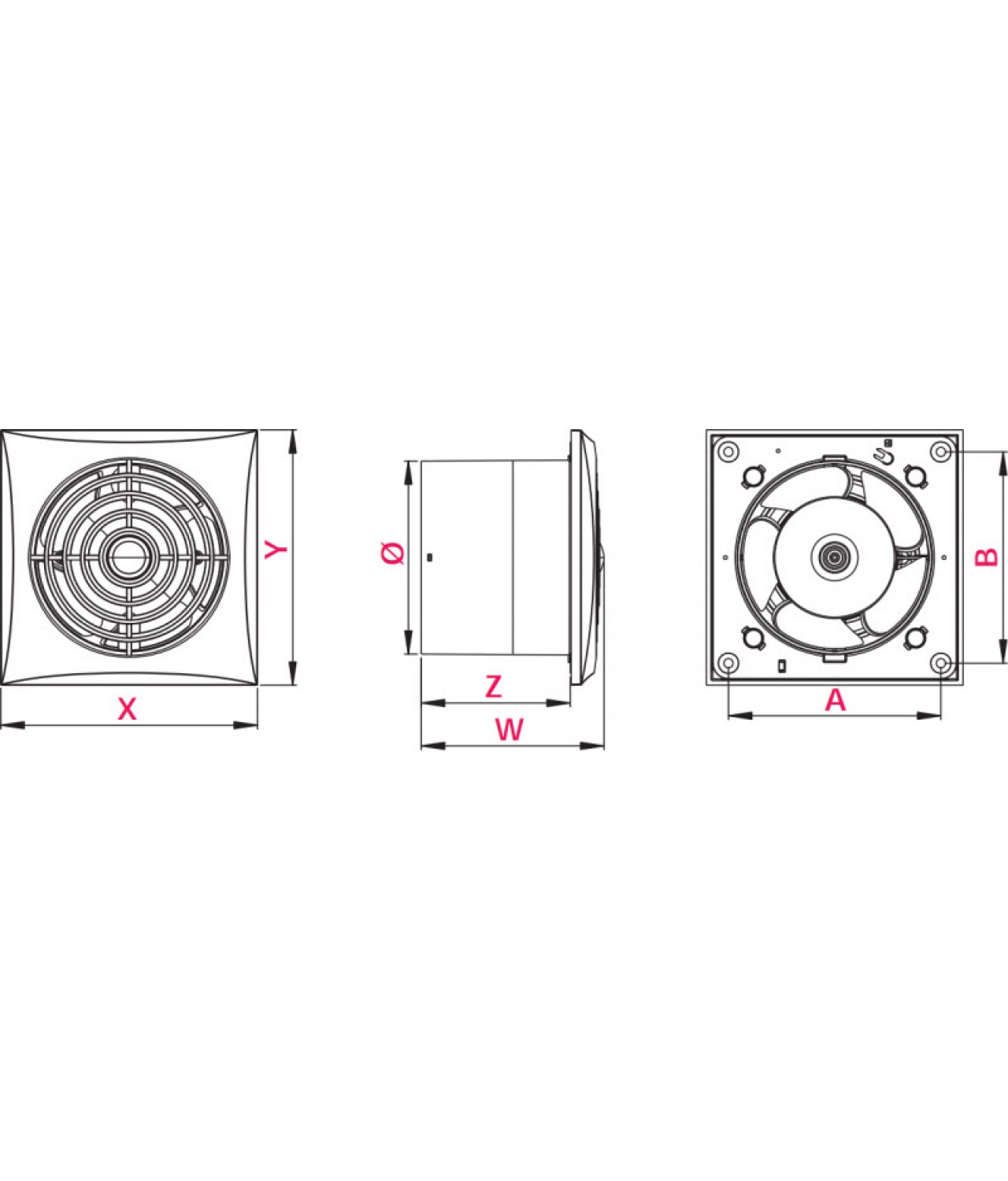

Code
Ø
A
B
X
Y
W
Z
SILENCE100
100
109
109
132
132
94
77
SILENCE125 125 137 137 159 159 94 77





Code
Voltage, V
Frequency, Hz
Power, W
Capacity, m³/h
 Noise level, dB
Protection class IP
Pressure,
Pa
SILENCE100
230
50
5.0
75
 28
X4
 28
SILENCE125 230 50 9.0 135 32 X4 32



Connection to the power supply:

Standard and W models
N - null
L - phase





H, T and CTR models
T - phase through switch
N - null
L - phase






F and R models

N - null
L - phase
