Extractor fan ORBIT
| Price / Fan: |
Select
|
| Price / Обратный клапан: |
Select
|
Qty.:
EU shipping 14 days, non EU 21 days
Ask a question about this item
Ask a question about this item

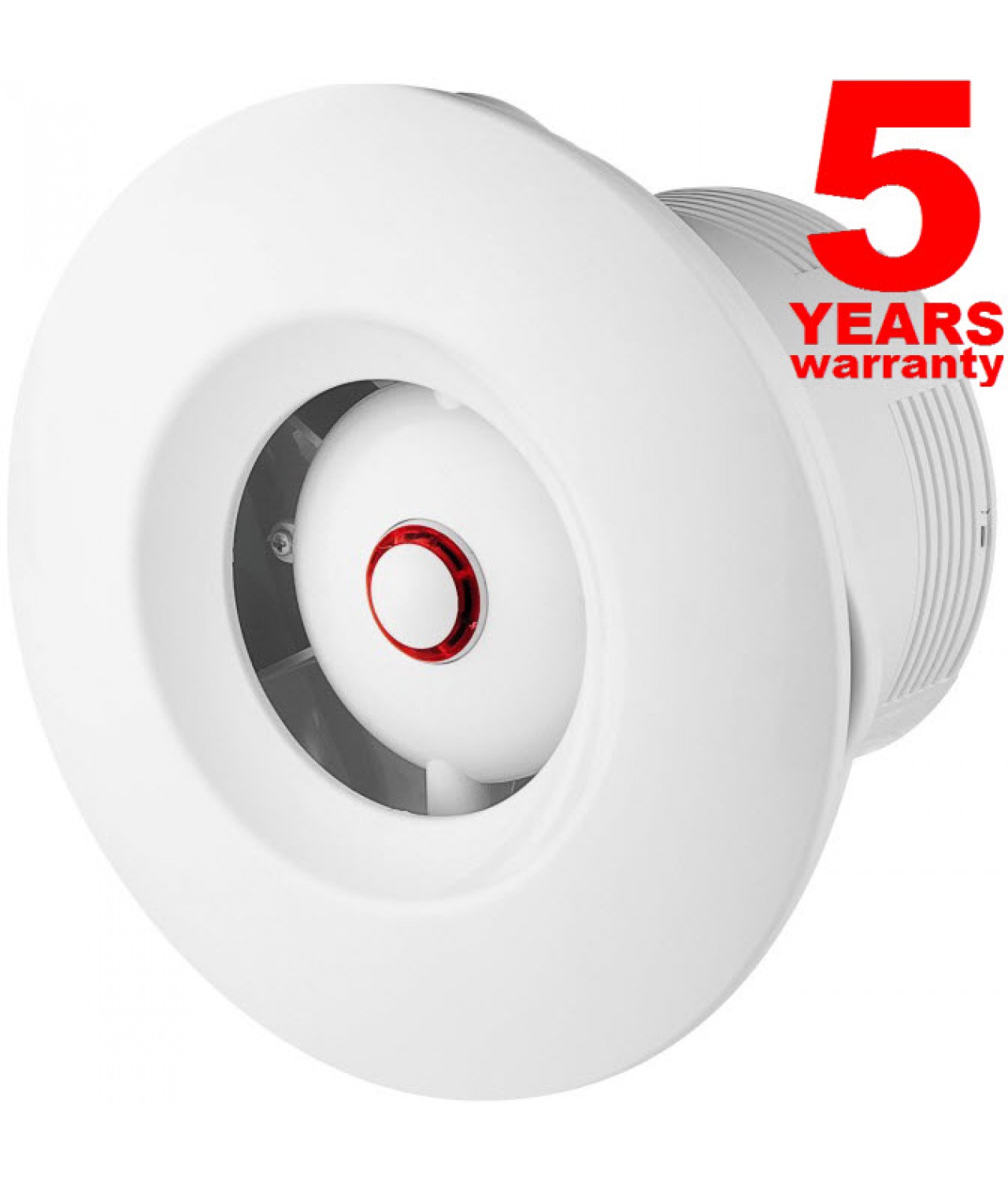

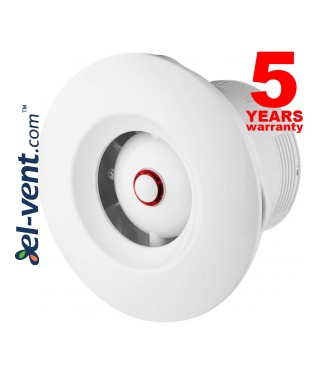

Extractor fan ORBIT
- ORBIT - extractor fans with round panels, models can be selected from the following modifications:
- standard
- R - the fan equipped with motion sensor, turns on automatically when any motion is detected in the room where it is installed and operates for a period of time (3 to 30 minutes) after the last motion detection
- T - with timer
- V - fan with 12 V motor, recomended to connect with transformer CT12/14
- can be mounted in any position, in the wall or ceiling

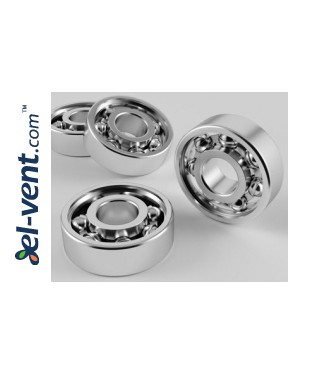

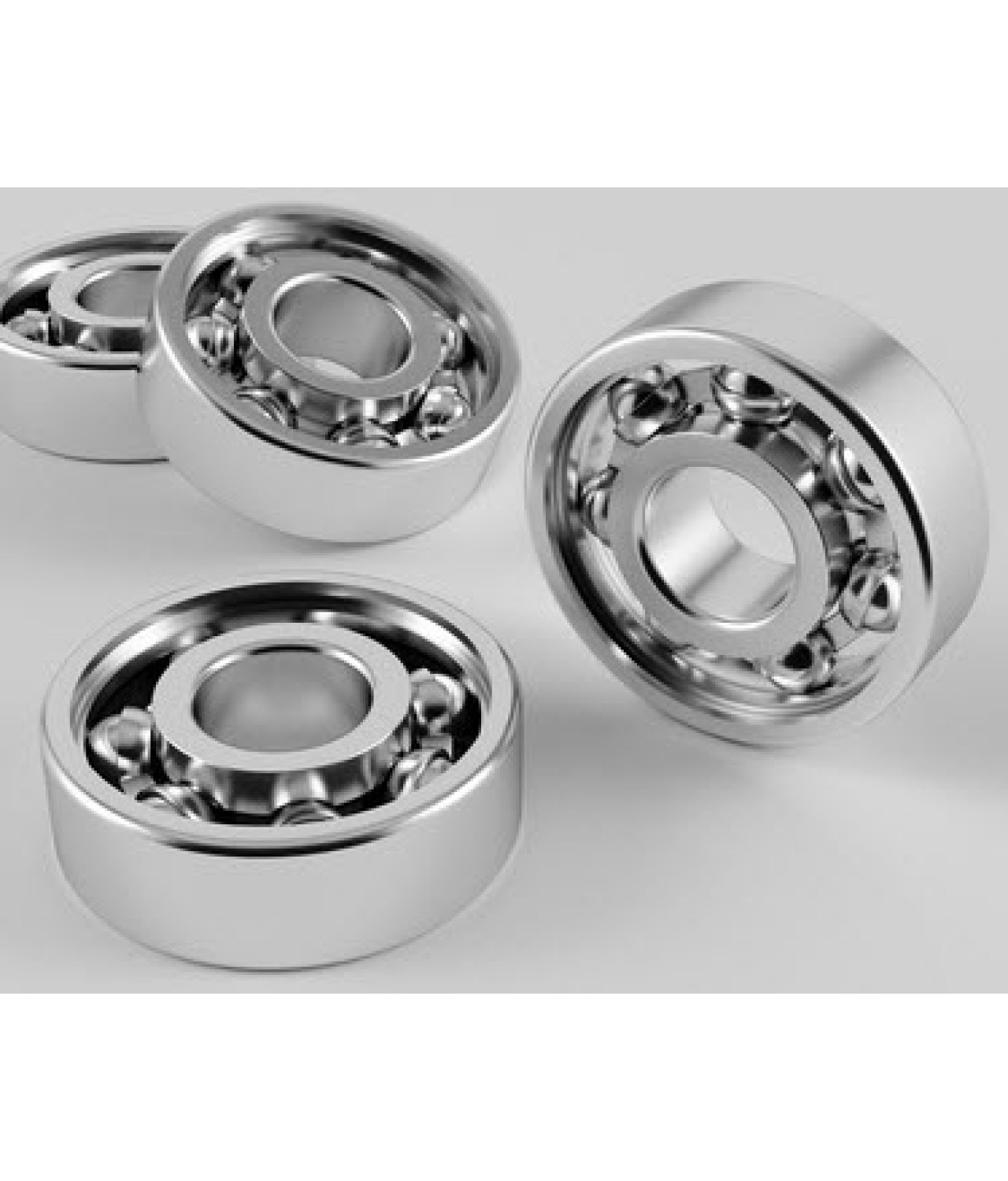

- with ball bearing motor
- ABS plastic housing
- mount with screws (supplied)
- with the operation indicator
- made in Poland
- 5 years warranty
Brand: ESEM
|

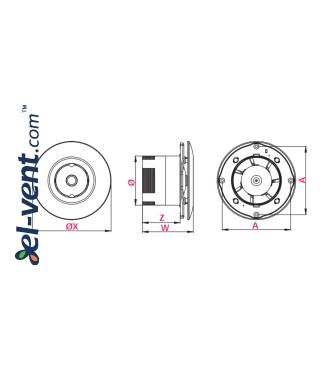

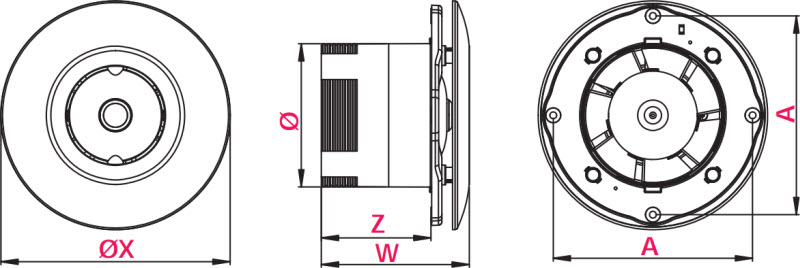

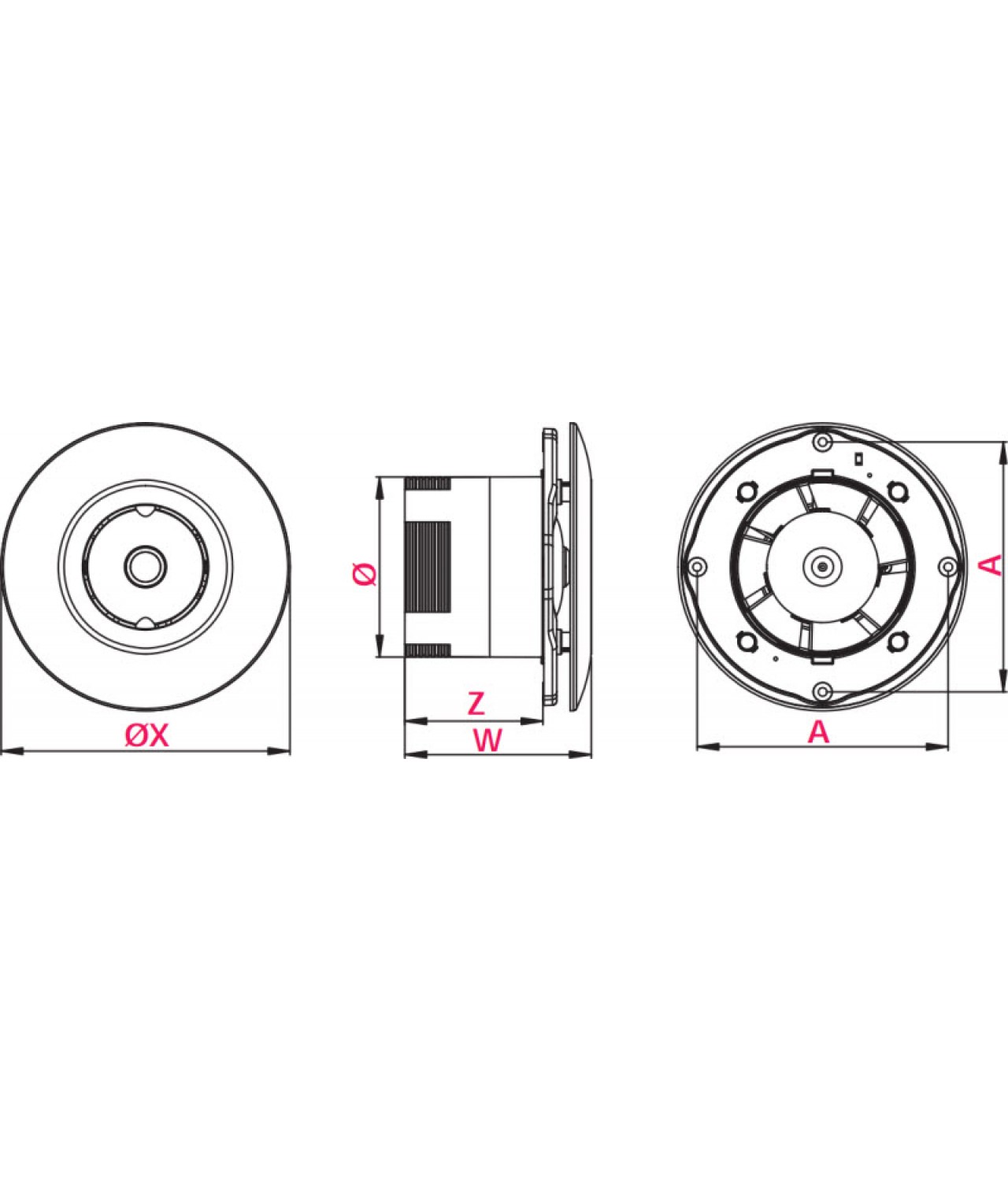

Code
|
Ø
|
A
|
X
|
W
|
Z
|
|
ORBIT100
|
100
|
139
|
160
|
103
|
77
|
| ORBIT125 | 125 | 164 | 187 | 107 | 77 |
| ORBIT150 | 150 | 189 | 210 | 120 | 83 |
|
Code
|
Voltage, V
|
Frequency, Hz
|
Power, W
|
Capacity, m³/h
|
Noise level, dB
|
Protection class IP
|
Pressure,
Pa
|
|
ORBIT100
|
230
|
50
|
13
|
88 | 38 |
X4
|
32 |
| ORBIT100V | 12 | 50 | 21 VA | 85 | 37 | X4 | 30 |
| ORBIT125 | 230 | 50 | 17 | 155 | 43 | X4 | 60 |
| ORBIT150 | 230 | 50 | 18 | 210 | 46 | X4 | 44 |
Connection to the power supply:
Standard and W models
N - null
L - phase
H, T and CTR models
T - phase through switch
N - null
L - phase
F and R models
N - null
L - phase
