Price / Fan:
Select
  • Ø100 - standard model 55.90 € 41.93 € (-25%)
  • Ø100T - with timer 69.62 € 52.22 € (-24%)
Price / Обратный клапан:
Select
  • Ø100 mm - ZZ100 6.61 € 4.96 € (-24%)
Qty.:

EU shipping 14 days, non EU 21 days

Ask a question about this item

Ask a question about this item

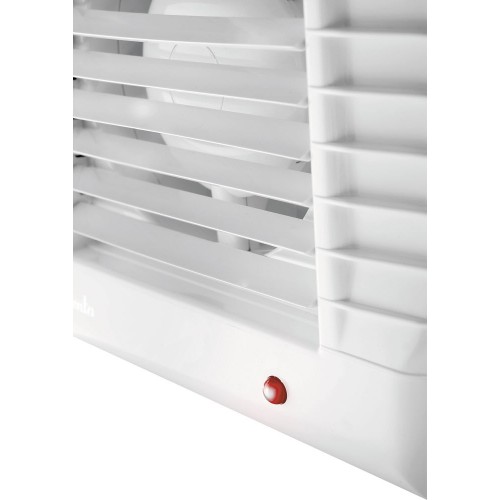

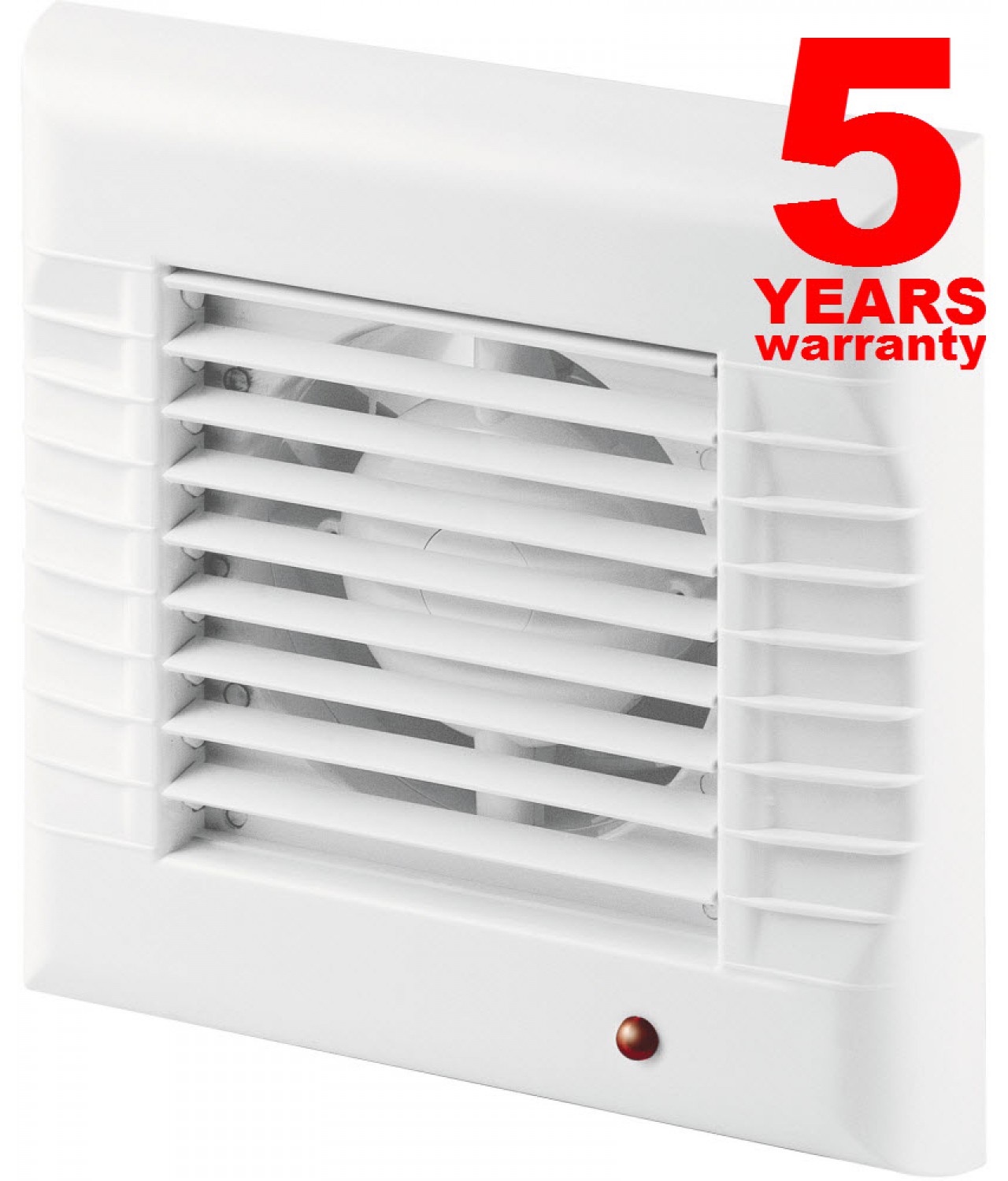

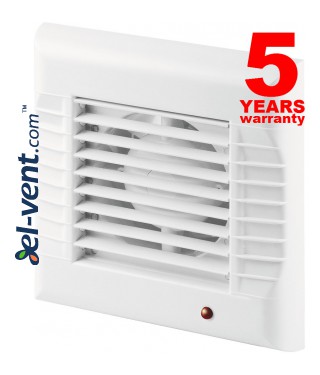

Exhaust fan with automatic shutter A-MATIC

  • A-MATIC - exhaust fans with automatic shutter, models can be selected from the following modifications:
  1. standard
  2. T - with timer
  • can be mounted in any position, in the wall or ceiling
  • with ball bearing motor
  • ABS plastic housing
  • mount with screws (supplied)
  • with the operation indicator
  • made in Poland
  • 5 years warranty

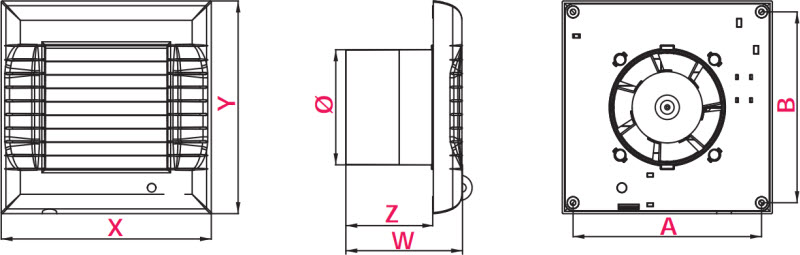

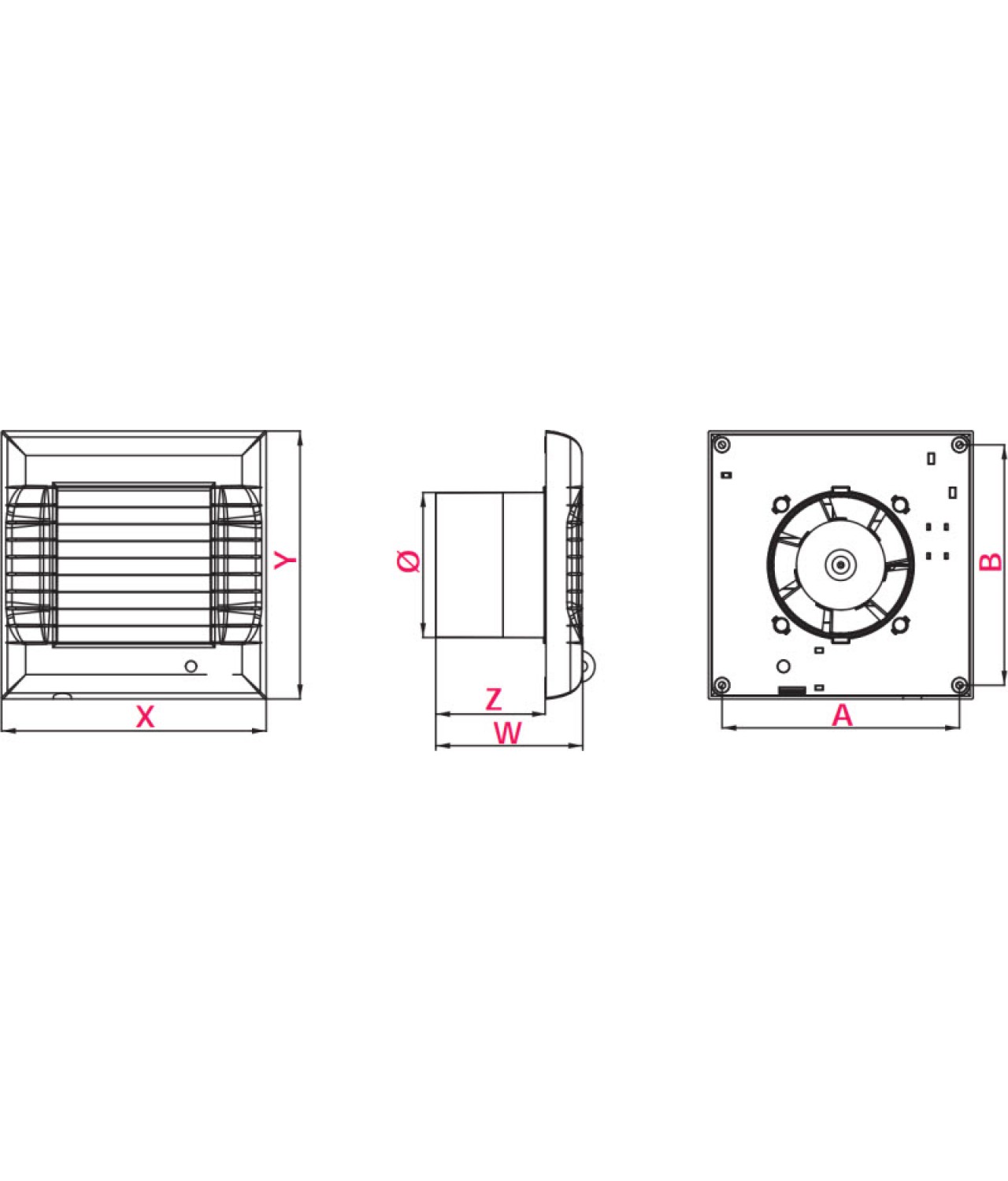

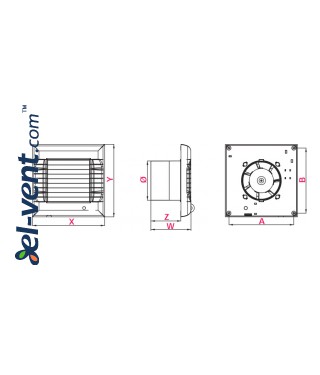

Code
Ø
A
B
X
Y
W
Z
A-MATIC100
100
166
166
185
185
102
77





Code
Voltage, V
Frequency, Hz
Power, W
Capacity, m³/h
Noise level, dB
Protection class IP
Pressure,
Pa
A-MATIC100
230
50
10
98
35
X2
33



Connection to the power supply:

Standard and W models
N - null
L - phase





H, T and CTR models
T - phase through switch
N - null
L - phase






F and R models

N - null
L - phase
