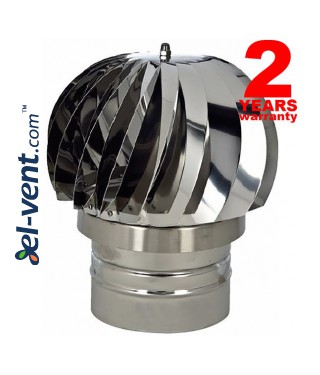

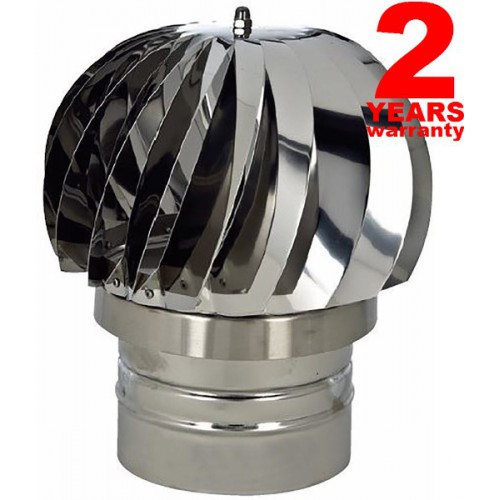

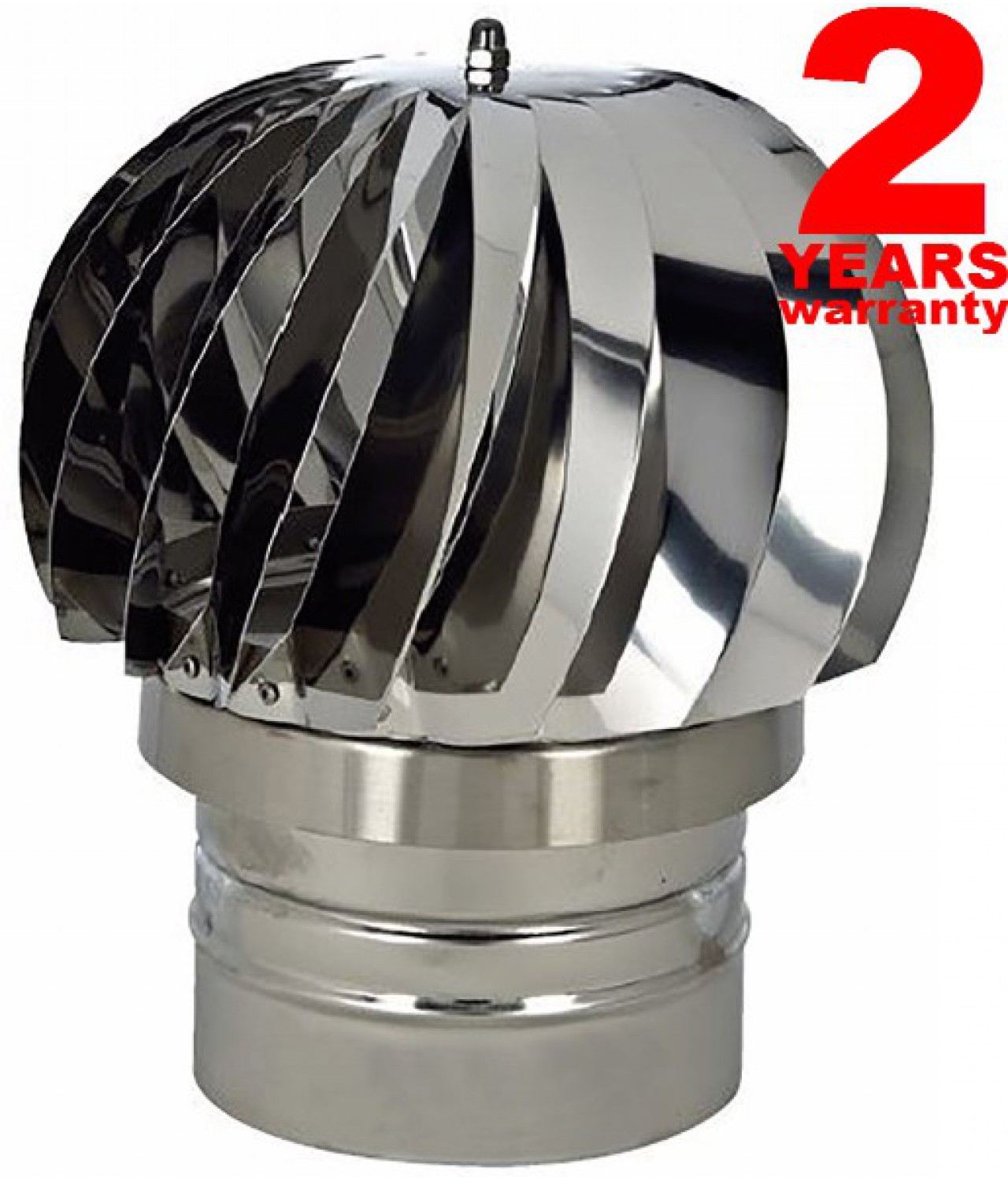

ELIAIR - rotating chimney cowl from stainless steel


  1. Ventilation systems ›
  2. Rotating chimney cowls
  3. › ELIAIR - rotating chimney cowl from stainless steel

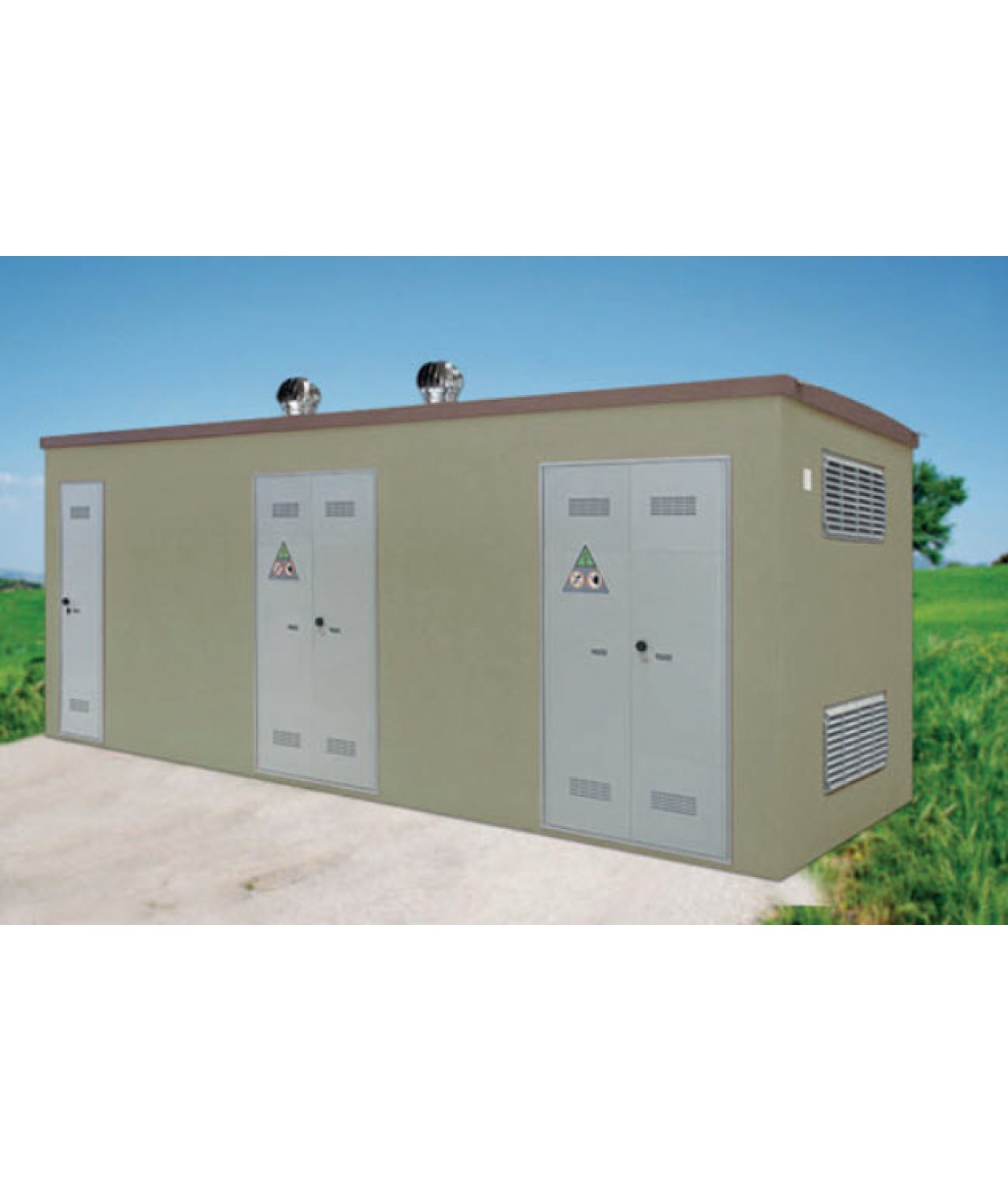

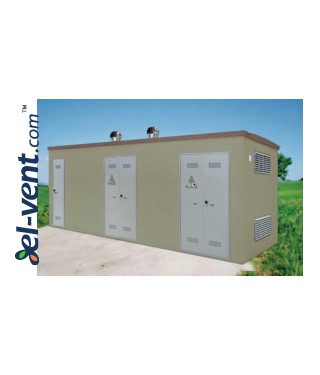

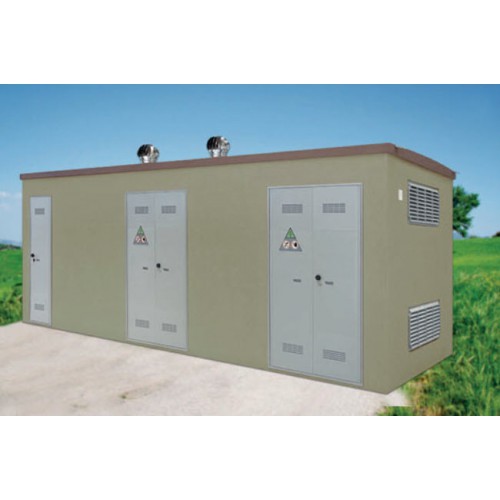

ELIAIR - rotating chimney cowl from stainless steel ELIAIR mounted on an electricity substation ELIAIR design with additional accessories ELIAIR extender, to be ordered separately ELIAIR fixing bracket, ordered separately ELIAIR protective cover, ordered separately ELIAIR - made in Italy
Цена / ELIAIR chimney cowl:
Select
  • ∅80 chimney cowl 203.28 € 142.30 € (-30%)
  • ∅100 chimney cowl 206.10 € 144.27 € (-30%)
  • ∅120 chimney cowl 211.74 € 148.21 € (-30%)
  • ∅130 chimney cowl 214.76 € 150.33 € (-30%)
  • ∅140 chimney cowl 217.58 € 152.30 € (-30%)
  • ∅150 chimney cowl 223.43 € 156.39 € (-30%)
  • ∅160 chimney cowl 232.09 € 162.47 € (-29%)
  • ∅180 chimney cowl 249.61 € 174.74 € (-29%)
  • ∅200 chimney cowl 299.17 € 209.43 € (-29%)
  • ∅230 chimney cowl 313.68 € 219.58 € (-29%)
  • ∅250 chimney cowl 322.34 € 225.64 € (-29%)
  • ∅300 chimney cowl 380.36 € 266.26 € (-29%)
  • ∅350 chimney cowl 496.41 € 347.49 € (-30%)
  • ∅400 chimney cowl 992.42 € 694.70 € (-29%)
  • ∅450 chimney cowl 1,058.90 € 741.23 € (-29%)
  • ∅500 chimney cowl 1,117.33 € 782.13 € (-29%)
  • ∅550 chimney cowl 1,262.18 € 883.53 € (-29%)
  • ∅600 chimney cowl 1,407.23 € 985.06 € (-29%)
Price / ELIAIR extension element:
Select
  • ∅80 extension element 29.02 € 20.30 € (-30%)
  • ∅100 extension element 32.03 € 22.42 € (-29%)
  • ∅120 extension element 32.03 € 22.42 € (-29%)
  • ∅130 extension element 34.85 € 24.39 € (-30%)
  • ∅140 extension element 34.85 € 24.39 € (-30%)
  • ∅150 extension element 37.87 € 26.51 € (-30%)
  • ∅160 extension element 37.87 € 26.51 € (-30%)
  • ∅180 extension element 40.69 € 28.48 € (-30%)
  • ∅200 extension element 43.51 € 30.46 € (-30%)
  • ∅230 extension element 46.34 € 32.44 € (-29%)
  • ∅250 extension element 49.56 € 34.69 € (-30%)
  • ∅300 extension element 54.99 € 38.50 € (-29%)
  • ∅350 extension element 122.29 € 85.61 € (-29%)
  • ∅400 extension element 174.26 € 121.99 € (-29%)
  • ∅450 extension element 188.98 € 132.28 € (-30%)
  • ∅500 extension element 203.28 € 142.30 € (-30%)
  • ∅550 extension element 232.09 € 162.47 € (-29%)
  • ∅600 extension element 261.30 € 182.92 € (-29%)
Price / ELIAIR fixing bracket:
Select
  • ∅80 fixing bracket 11.69 € 8.18 € (-30%)
  • ∅100 fixing bracket 11.69 € 8.18 € (-30%)
  • ∅120 fixing bracket 23.57 € 16.50 € (-29%)
  • ∅130 fixing bracket 23.57 € 16.50 € (-29%)
  • ∅140 fixing bracket 25.99 € 18.19 € (-30%)
  • ∅150 fixing bracket 25.99 € 18.19 € (-30%)
  • ∅160 fixing bracket 25.99 € 18.19 € (-30%)
  • ∅180 fixing bracket 25.99 € 18.19 € (-30%)
  • ∅200 fixing bracket 29.02 € 20.30 € (-30%)
  • ∅230 fixing bracket 29.02 € 20.30 € (-30%)
  • ∅250 fixing bracket 29.02 € 20.30 € (-30%)
  • ∅300 fixing bracket 34.85 € 24.39 € (-30%)
  • ∅350 fixing bracket 40.69 € 28.48 € (-30%)
  • ∅400 fixing bracket 40.69 € 28.48 € (-30%)
  • ∅450 fixing bracket 54.99 € 38.50 € (-29%)
  • ∅500 fixing bracket 66.89 € 46.81 € (-30%)
  • ∅550 fixing bracket 75.95 € 53.17 € (-29%)
  • ∅600 fixing bracket 81.19 € 56.83 € (-29%)
Price / ELIAIR protective cover:
Select
  • ∅80 protective cover 81.19 € 56.83 € (-29%)
  • ∅100 protective cover 84.01 € 58.81 € (-30%)
  • ∅120 protective cover 96.10 € 67.26 € (-30%)
  • ∅130 protective cover 96.10 € 67.26 € (-30%)
  • ∅140 protective cover 98.52 € 68.96 € (-30%)
  • ∅150 protective cover 101.54 € 71.08 € (-30%)
  • ∅160 protective cover 104.76 € 73.34 € (-29%)
  • ∅180 protective cover 107.38 € 75.17 € (-29%)
  • ∅200 protective cover 110.21 € 77.14 € (-30%)
  • ∅230 protective cover 115.85 € 81.09 € (-29%)
  • ∅250 protective cover 115.85 € 81.09 € (-29%)
  • ∅300 protective cover 124.51 € 87.16 € (-30%)
  • ∅350 protective cover 145.05 € 101.54 € (-29%)
  • ∅400 protective cover 159.56 € 111.70 € (-29%)
  • ∅450 protective cover 174.26 € 121.99 € (-29%)
  • ∅500 protective cover 232.09 € 162.47 € (-29%)
  • ∅550 protective cover 275.41 € 192.78 € (-30%)
  • ∅600 protective cover 304.81 € 213.37 € (-29%)
Qty.:

European delivery - 30 working days, other countries +7 working days.

Ask a question about this item

Ask a question about this item

ELIAIR - rotating chimney cowl from stainless steel

Send
  • Attention! We keep ELIAIR 100-130-160-200-250-300 mm models in stock - we deliver them within 1-7 days
  • ELIAIR - rotating chimney cowls for ventilation, with two ball bearings
  • huge choice of 18 models: ∅80-100-120-130-140-150-160-180-200-230-250-300-350-400-450-500-550-600 mm
  • designed to ensure that the impeller rotating downwind creates a negative pressure in the ventilation stack or flue and prevents the backflow of air
  • made of anti-magnetic stainless steel AISI 304 (Din 1.4301) with an external glossy finish (BA), the thickness of the stainless steel sheet, depending on the diameter of the cowl, is 4/10 mm (80-250 mm), 5/10 mm (300-500 mm), 6/10 mm (400-600 mm)
  • does not use electricity, but takes advantage of the wind to provide ventilation and air circulation in areas such as electrical cabins, gas cabins, septic tanks, hangars, warehouses, etc.
  • ELIAIR improves draught in chimneys - suitable for removing smoke or steam
  • the connection is of the male/female type, and the strength of the connection of the additional elements is ensured by the use of fixing brackets
  • CE-marked in accordance with EN 1856-1
  • the product is suitable for wet air, vapour, fumes with a maximum temperature up to 600 °C (T600), pressure service (N1)
  • longitudinal welding of the structure is carried out in an environment protected by laser and Tigrand processes

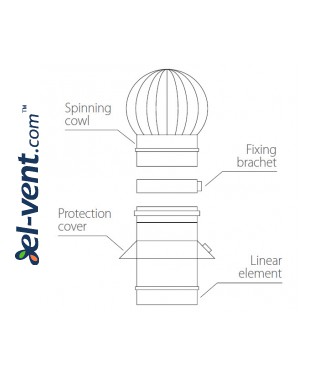

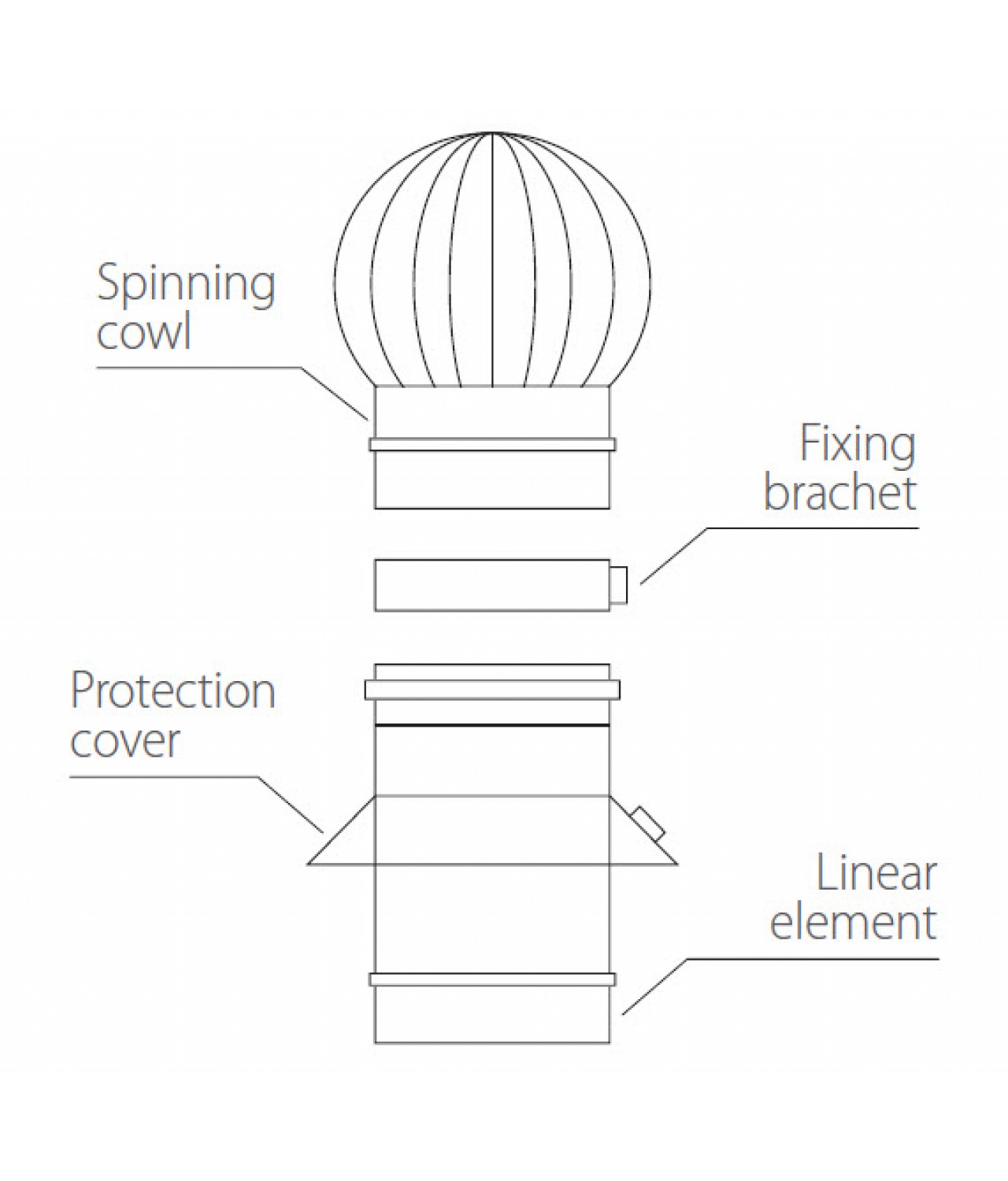

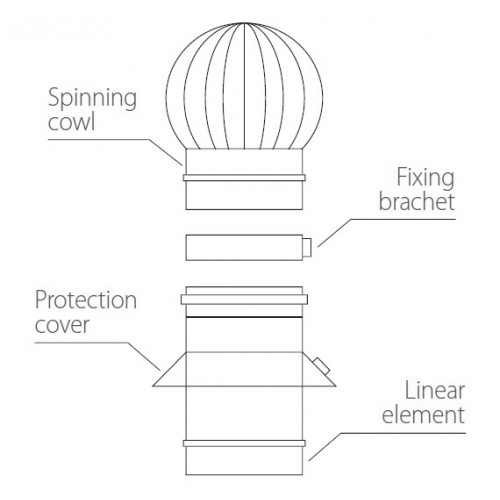

  • if you want to install rotating chimney cowl higher the unit can be combined with a mounting kit consisting of the following elements:

- 190 mm high extension element made of 316 stainless steel, to be fixed to the building structure


- fixing bracket made of stainless steel 304

- 304 stainless steel protective cover

  • 24 months warranty
  • made in Italy

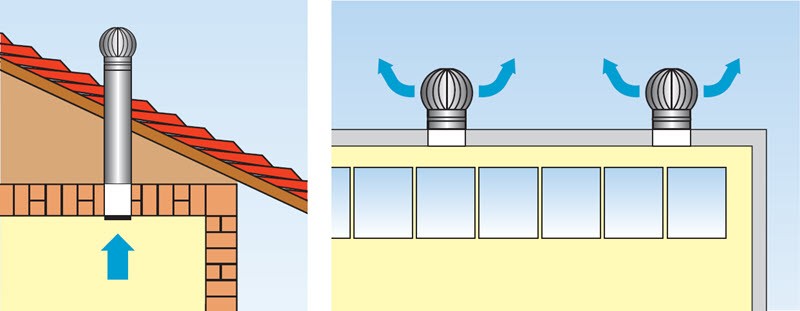

  • installation examples:


Brand: ELICENT

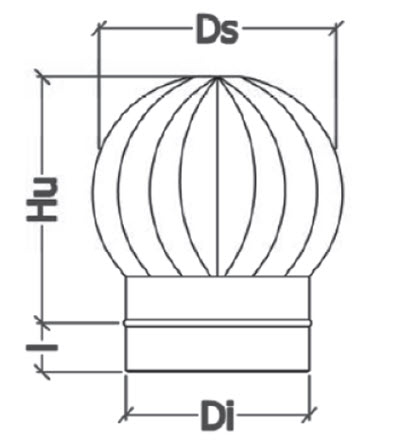

Code - Rotating chimney cowl Di Ds Hu I kg
ELIAIR80 80 200 220 55 1.1
ELIAIR100 100 200 220 55 1.15
ELIAIR120 120 200 220 55 1.2
ELIAIR130 130 200 220 55 1.25
ELIAIR140 140 220 220 55 1.3
ELIAIR150 150 220 220 55 1.4
ELIAIR160 160 220 220 55 1.45
ELIAIR180 180 300 290 55 1.7
ELIAIR200 200 300 290 55 2.1
ELIAIR230 230 360 340 55 2.8
ELIAIR250 250 360 340 55 3.1
ELIAIR300 300 390 320 55 3.3
ELIAIR350 350 440 320 55 3.8
ELIAIR400 400 500 530 55 7
ELIAIR450 450 550 510 55 7.25
ELIAIR500 500 600 500 55 7.5
ELIAIR550 550 650 480 55 7.75
ELIAIR600 600 700 450 55 8

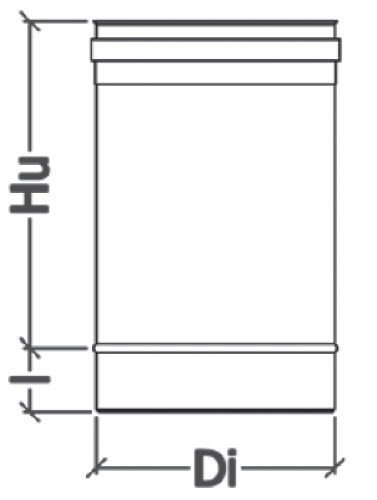

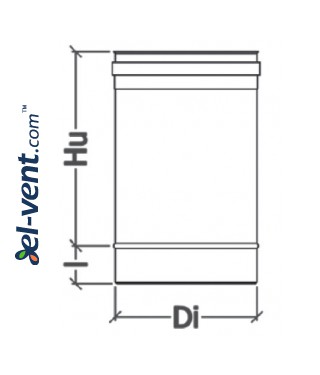

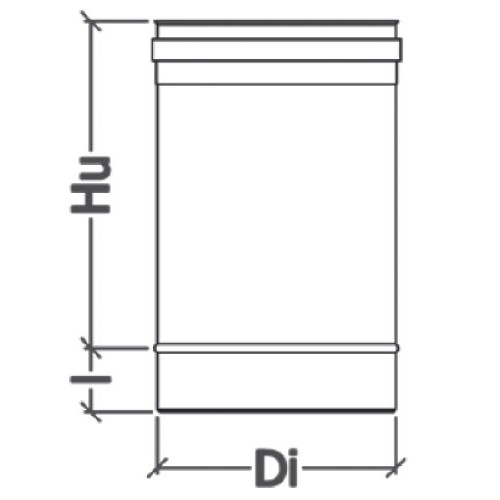

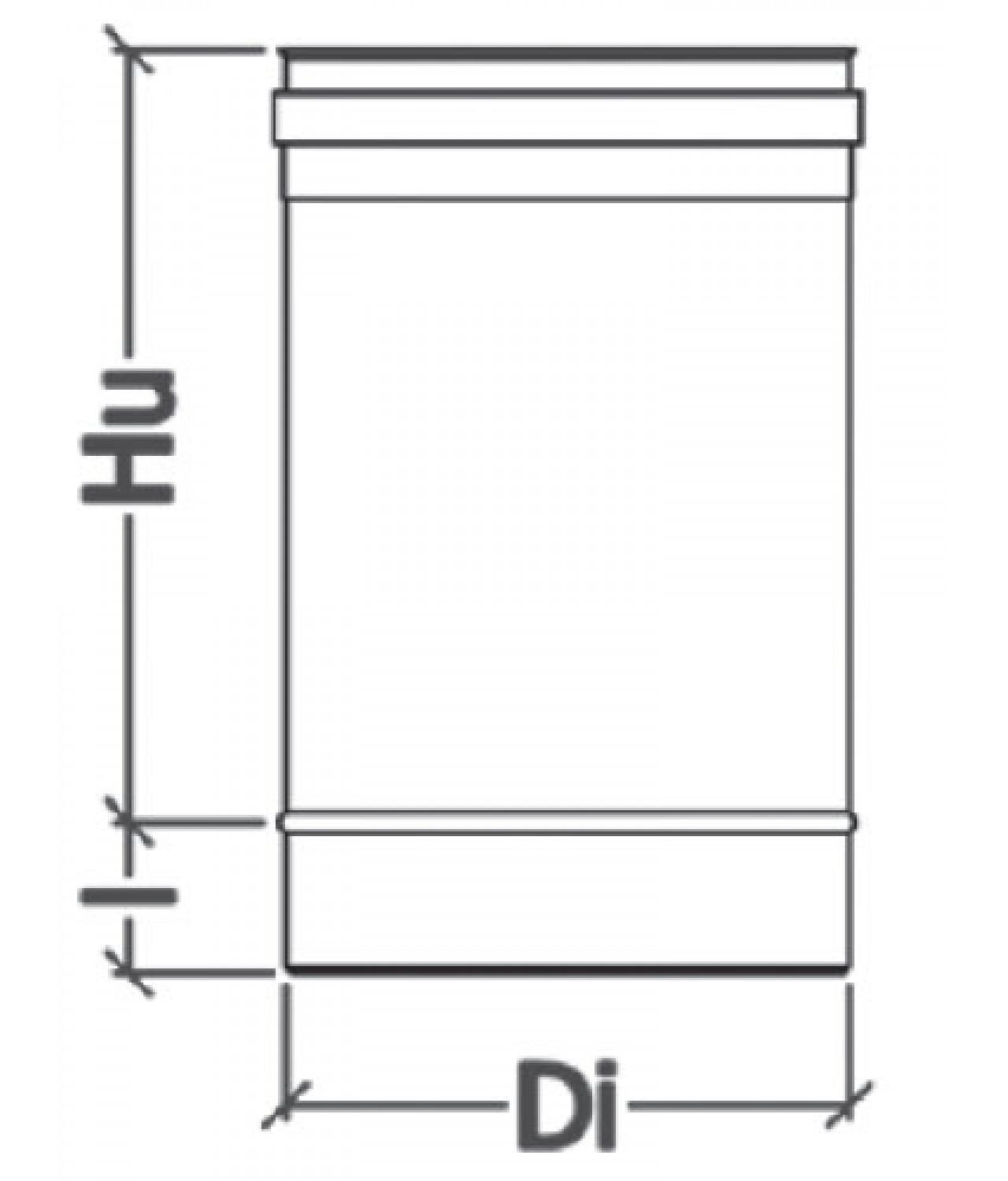

Code - Extension element Di Ds I kg
ELIAIR80 80 190 55 0.2
ELIAIR100 100 190 55 0.25
ELIAIR120 120 190 55 0.3
ELIAIR130 130 190 55 0.31
ELIAIR140 140 190 55 0.35
ELIAIR150 150 190 55 0.37
ELIAIR160 160 190 55 0.4
ELIAIR180 180 190 55 0.45
ELIAIR200 200 190 55 0.5
ELIAIR230 230 190 55 0.58
ELIAIR250 250 190 55 0.63
ELIAIR300 300 190 55 0.94
ELIAIR350 350 190 55 1.1
ELIAIR400 400 190 55 1.51
ELIAIR450 450 190 55 1.69
ELIAIR500 500 190 55 1.88
ELIAIR550 550 190 55 2.07
ELIAIR600 600 190 55 2.26

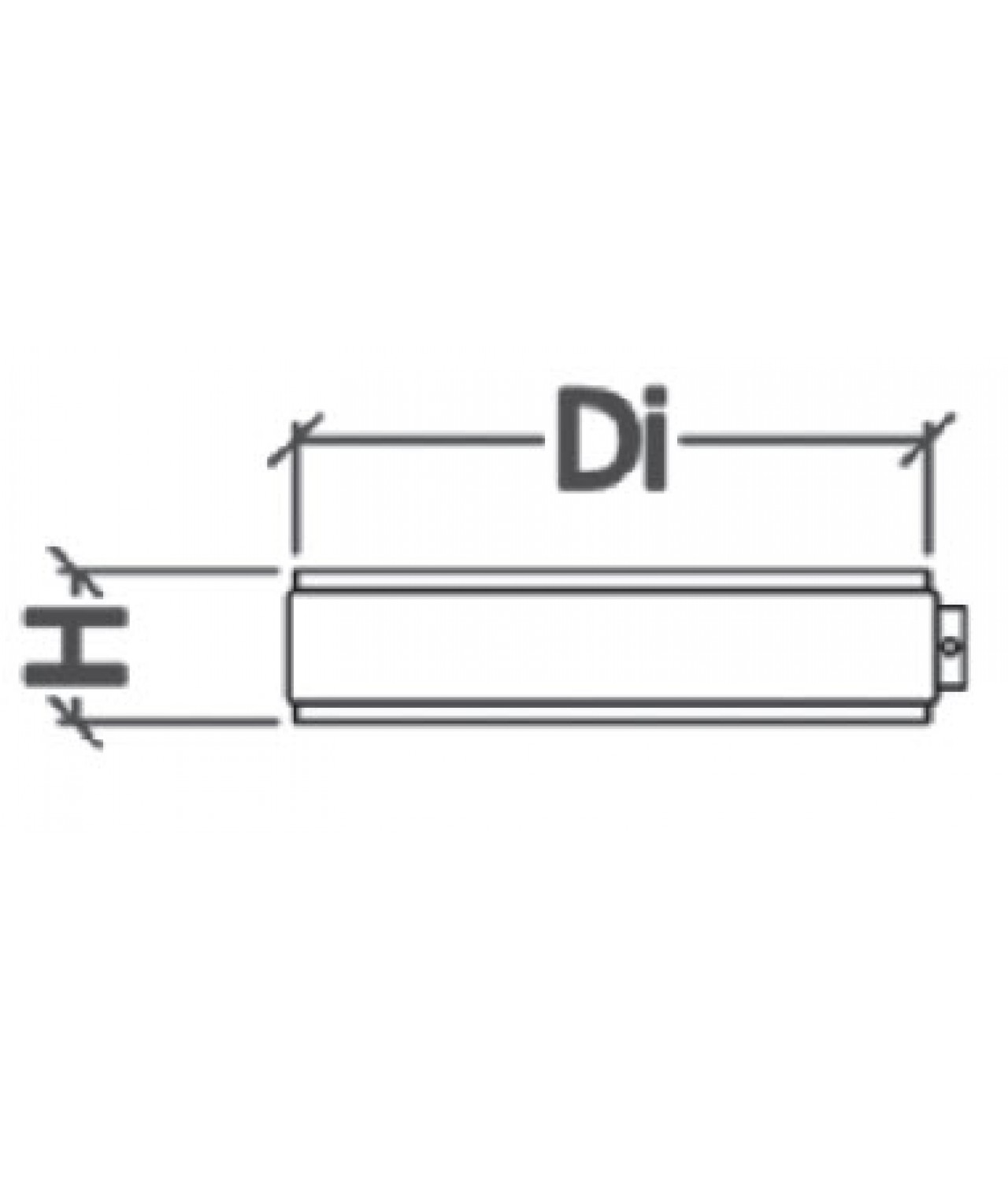

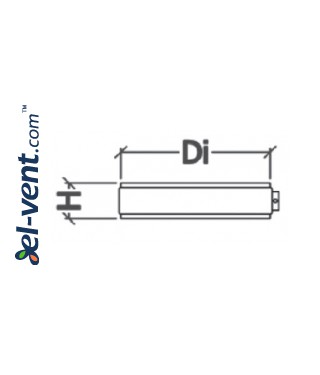

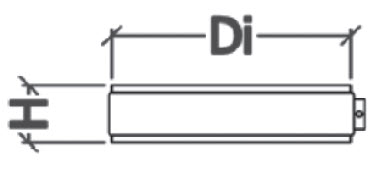

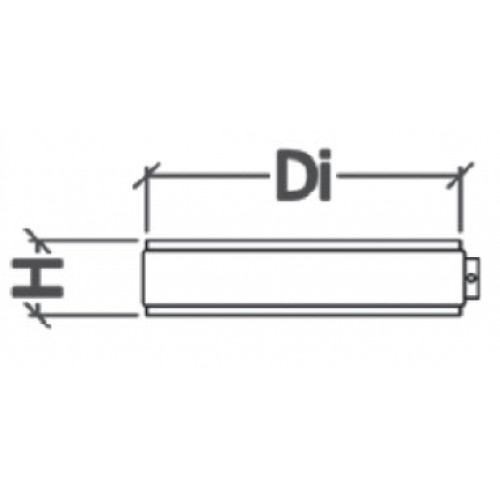

Code - Fixing bracket Di Hu kg
ELIAIR80 80 18 0.04
ELIAIR100 100 18 0.05
ELIAIR120 120 50 0.06
ELIAIR130 130 50 0.07
ELIAIR140 140 50 0.08
ELIAIR150 150 50 0.09
ELIAIR160 160 50 0.1
ELIAIR180 180 50 0.12
ELIAIR200 200 50 0.14
ELIAIR230 230 50 0.17
ELIAIR250 250 50 0.19
ELIAIR300 300 50 0.23
ELIAIR350 350 50 0.25
ELIAIR400 400 50 0.28
ELIAIR450 450 50 0.31
ELIAIR500 500 50 0.33
ELIAIR550 550 50 0.36
ELIAIR600 600 50 0.39

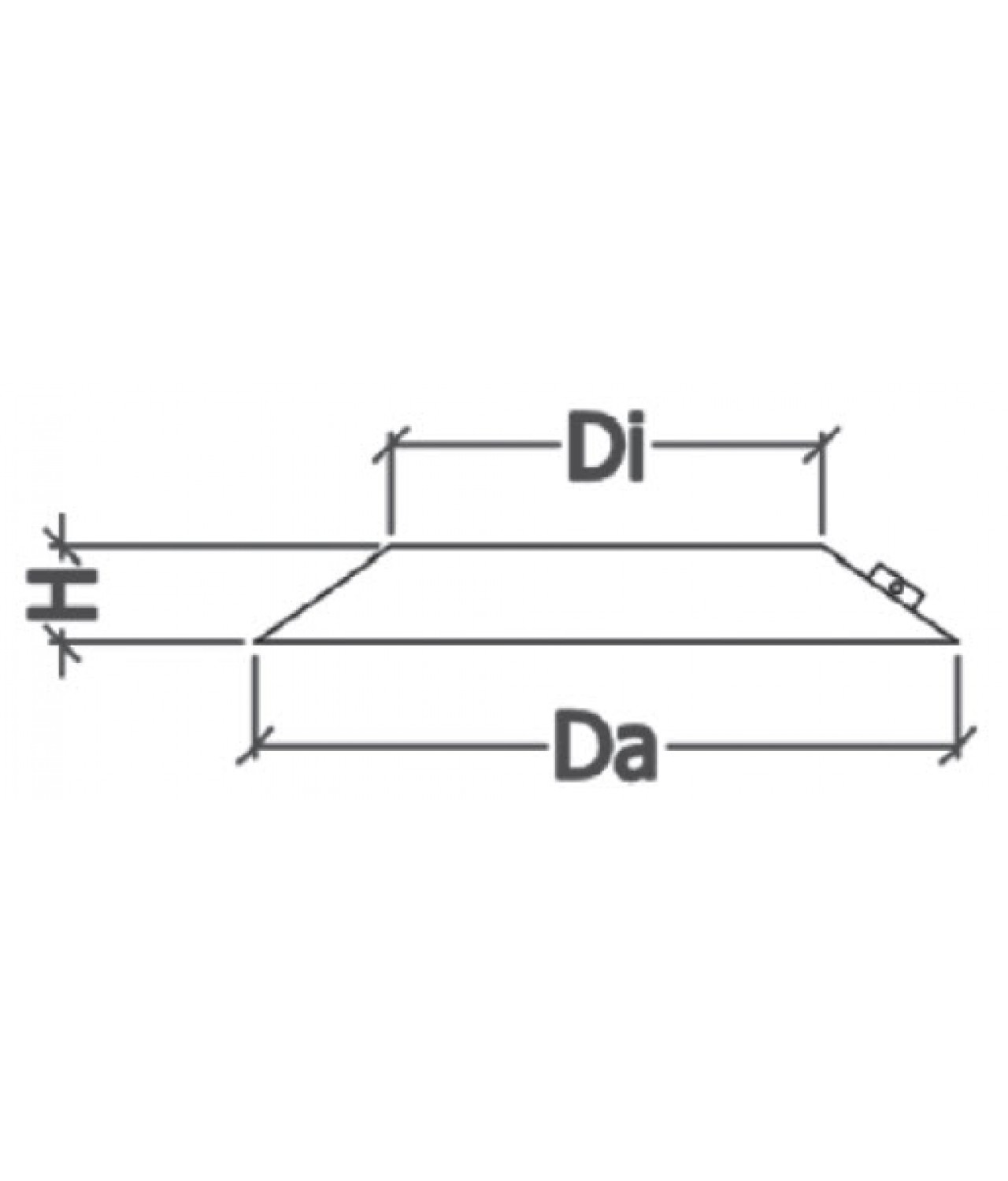

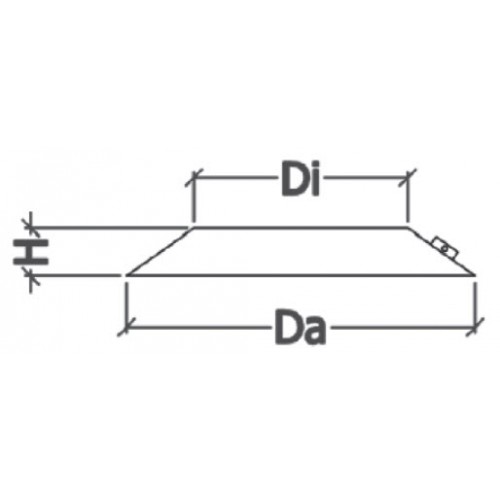

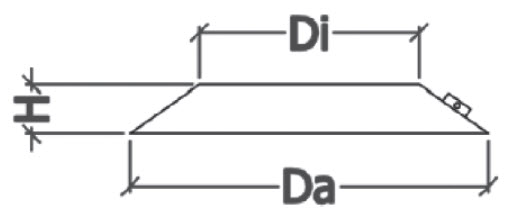

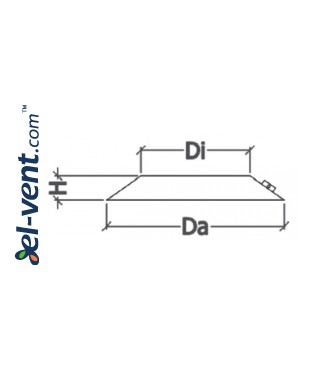

Code - Protective cover Di Da H kg
ELIAIR80 80 206 45 0.17
ELIAIR100 100 226 45 0.18
ELIAIR120 120 246 45 0.21
ELIAIR130 130 256 45 0.22
ELIAIR140 140 266 45 0.23
ELIAIR150 150 276 45 0.24
ELIAIR160 160 286 45 0.25
ELIAIR180 180 306 45 0.28
ELIAIR200 200 326 45 0.3
ELIAIR230 230 356 45 0.32
ELIAIR250 250 376 45 0.35
ELIAIR300 300 426 45 0.38
ELIAIR350 350 476 45 0.4
ELIAIR400 400 526 45 0.43
ELIAIR450 450 576 45 0.5
ELIAIR500 500 626 45 0.55
ELIAIR550 550 676 45 0.6
ELIAIR600 600 726 45 0.68

Code Wind speed m/s, direction 0° to the horizon Capacity m³/h at 15 °C and 1.013 mbar
ELIAIR80/100/120/130 2.5 51.7
5 127
10 290
15 448.4
ELIAIR140/150/160 2.5 51.9
5 127.1
10 290.1
15 448.6
ELIAIR180/200 2.5 96.5
5 223.4
10 449
15 684.7
ELIAIR230 2.5 133.4
5 311.3
10 670.2
15 1028
ELIAIR250 2.5 175.9
5 399.2
10 1143.2
15 1781
ELIAIR300/350 2.5 218.4
5 485.2
10 1745.2
15 2534
ELIAIR400 2.5 452
5 1021
10 2215
15 3391
ELIAIR450 2.5 572
5 1292
10 2804
15 4291
ELIAIR500 2.5 706
5 1596
10 3461
15 5298
ELIAIR550 2.5 854
5 1931
10 4188
15 6411
ELIAIR600 2.5 1017
5 2298
10 4985
15 7630

Catalogue page

ELIAIR user manual IT EN LT FI ET LV
