Cross connections for ventilation KST
| Price / KST: |
Select
|
Qty.:
European delivery - 21 working days, other countries +7 working days.
Ask a question about this item
Ask a question about this item

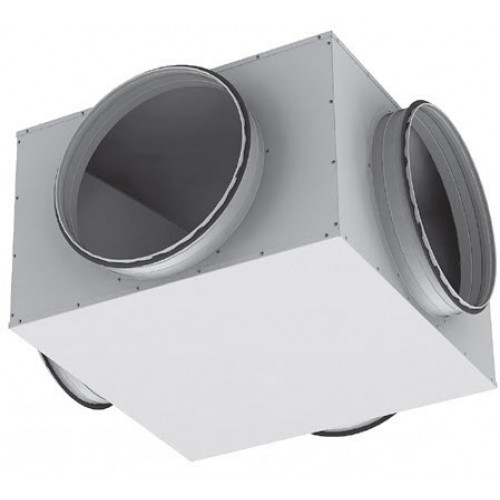

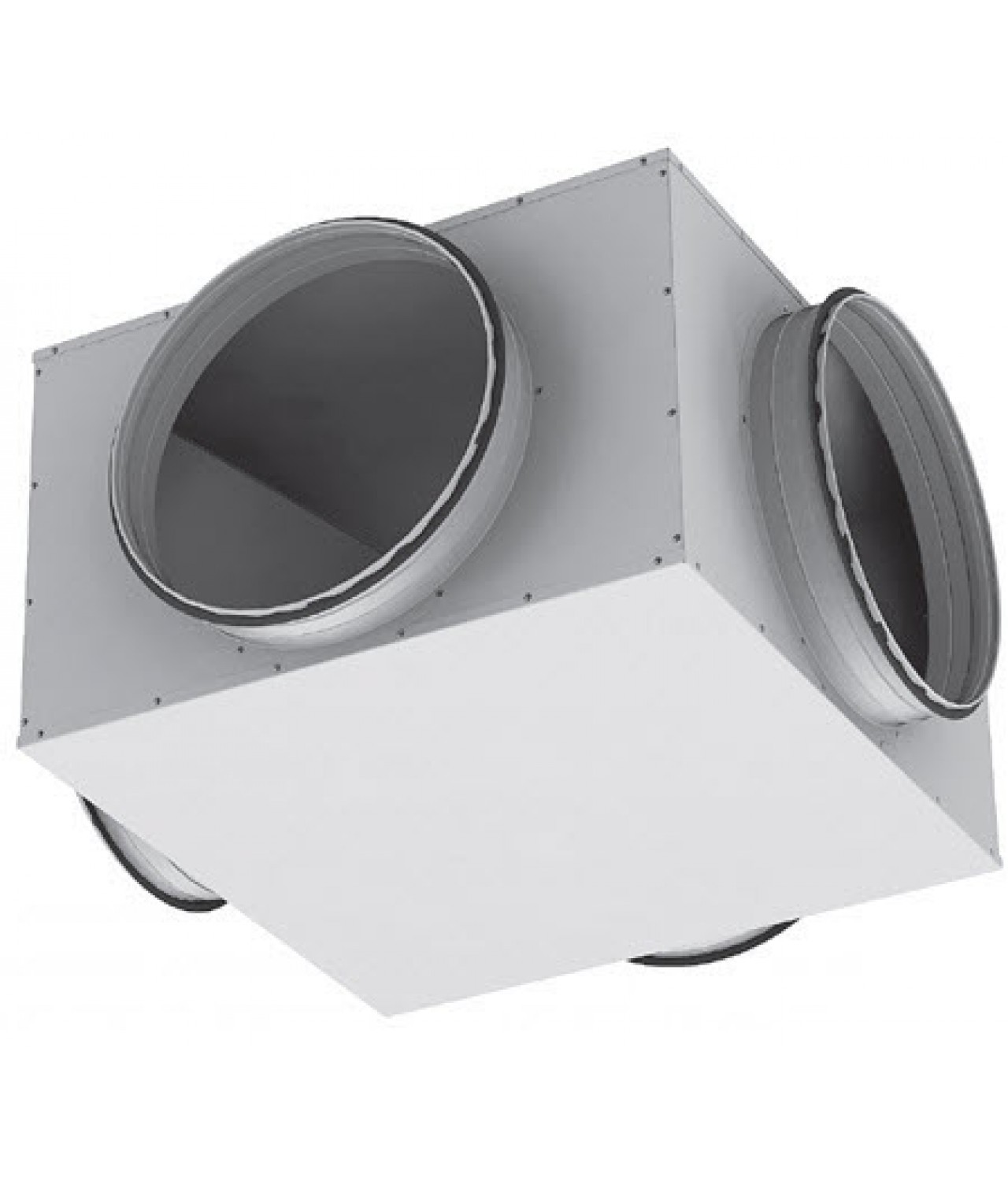

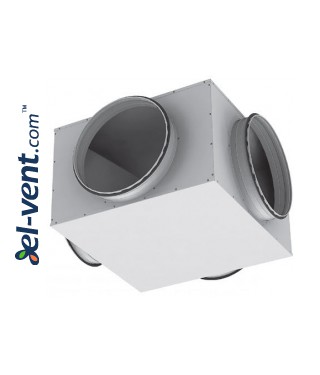

Cross connections for ventilation KST
- KST - 90° cross connections for intersecting two airflows in a limited height space, without air mixing
- the inside surfaces are in contact with both air streams one of which is usually warm and the other cold
- internal surfaces are insulated to prevent condensation
- made from galvanized steel
- with a rubber seal
Brand: ESEM
|
Code KST
|

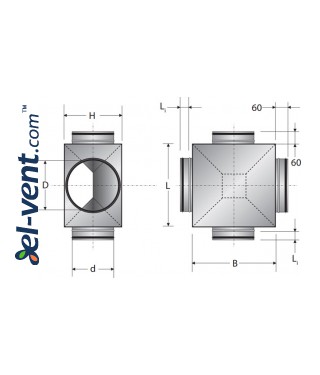

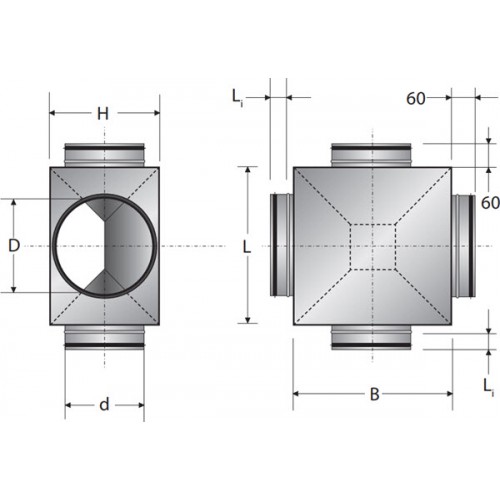

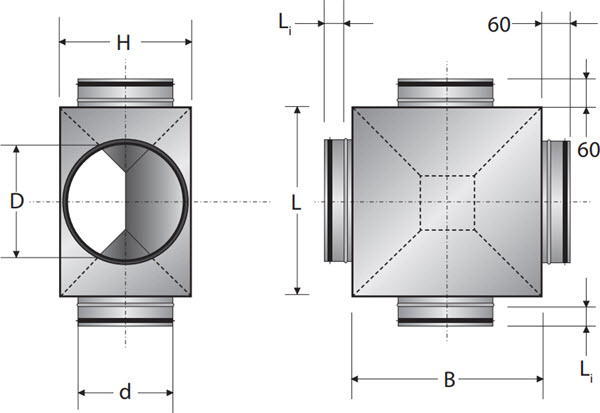

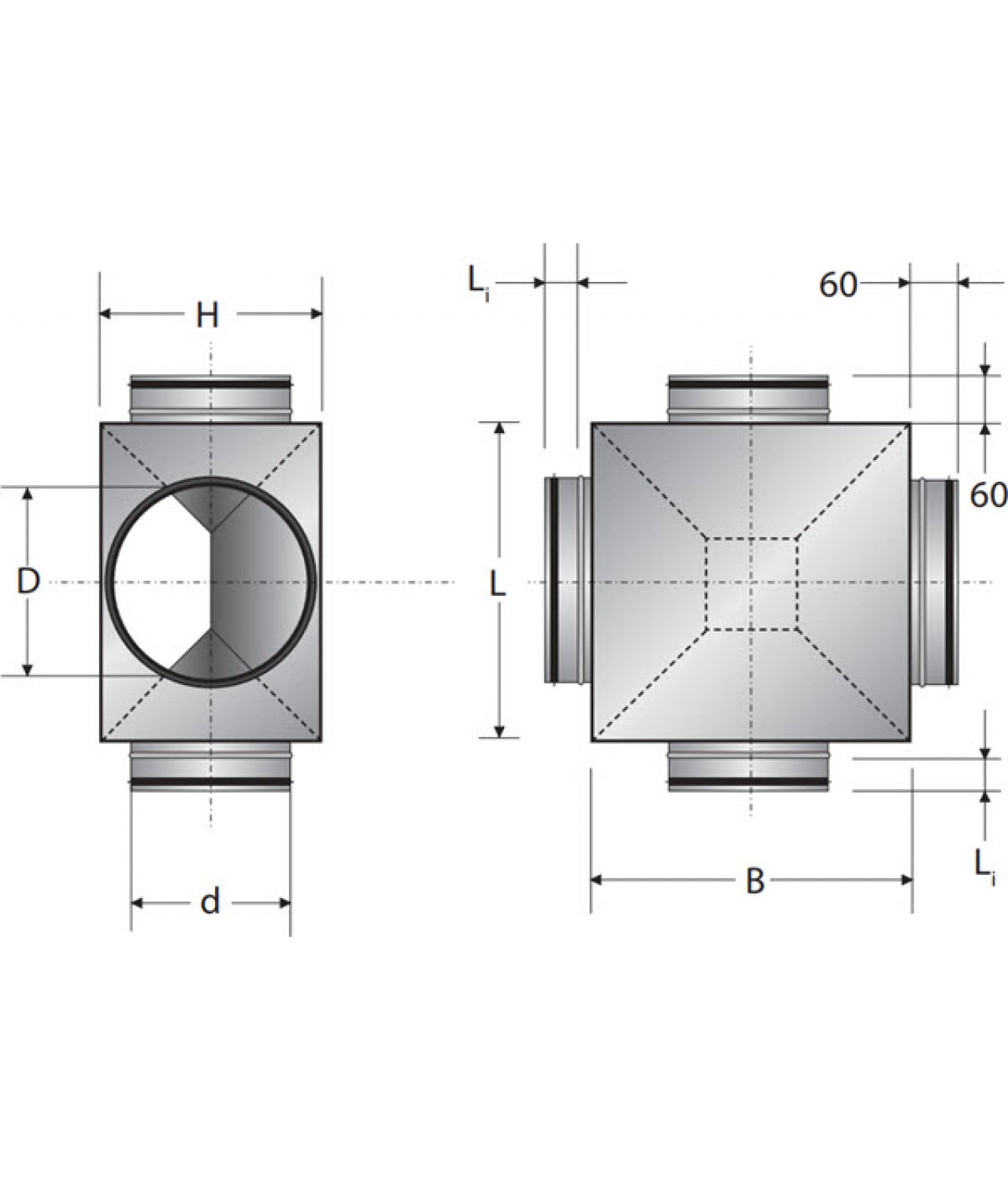

ØD
|
Ød | Li | L | B | H | Weight, kg |
| 100/100 | 100 | 100 | 40 | 210 | 210 | 110 | 1.4 |
| 125/100 | 125 | 100 | 40 | 250 | 250 | 140 | 1.8 |
| 125/125 | 125 | 125 | 40 | 250 | 250 | 140 | 1.8 |
| 160/100 | 160 | 100 | 40 | 300 | 300 | 180 | 2.5 |
| 160/125 | 160 | 125 | 40 | 300 | 300 | 180 | 2.5 |
| 160/160 | 160 | 160 | 40 | 300 | 350 | 180 | 2.6 |
| 200/100 | 200 | 100 | 40 | 350 | 350 | 220 | 3.3 |
| 200/125 | 200 | 125 | 40 | 350 | 350 | 220 | 3.3 |
| 200/160 | 200 | 160 | 40 | 350 | 350 | 220 | 3.4 |
| 200/200 | 200 | 200 | 40 | 350 | 350 | 220 | 3.5 |
| 250/100 | 250 | 100 | 40 | 400 | 400 | 280 | 4.3 |
| 250/125 | 250 | 125 | 40 | 400 | 400 | 280 | 4.3 |
| 250/160 | 250 | 160 | 40 | 400 | 400 | 280 | 4.4 |
| 250/200 | 250 | 200 | 40 | 400 | 400 | 280 | 4.5 |
| 250/250 | 250 | 250 | 40 | 400 | 400 | 280 | 4.5 |
| 315/160 | 315 | 160 | 40 | 540 | 540 | 342 | 5.4 |
| 315/200 | 315 | 200 | 40 | 540 | 540 | 342 | 5.4 |
| 315/250 | 315 | 250 | 40 | 540 | 540 | 342 | 5.5 |
| 315/315 | 315 | 315 | 40 | 540 | 540 | 342 | 5.6 |

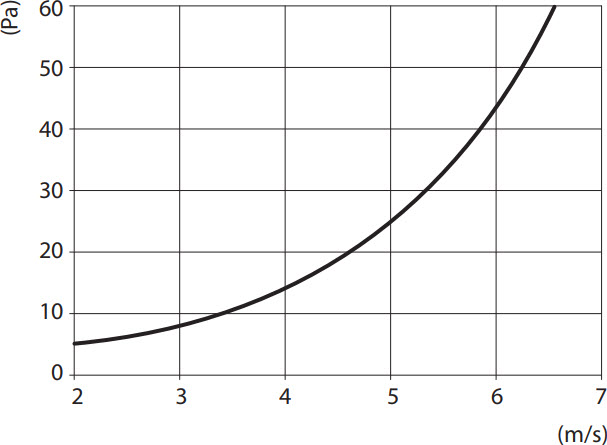

Pressure loss diagram
