Price / Fan:
Select
  • Ø100 - standard model 27.82 € 20.86 € (-25%)
  • Ø100T - with timer 45.94 € 34.46 € (-24%)
  • Ø100W - with pull cord 35.60 € 26.70 € (-24%)
Price / Обратный клапан:
Select
  • Ø100 mm - ZZ100 7.24 € 5.43 € (-24%)
Qty.:

EU shipping 14 days, non EU 21 days

Ask a question about this item

Ask a question about this item

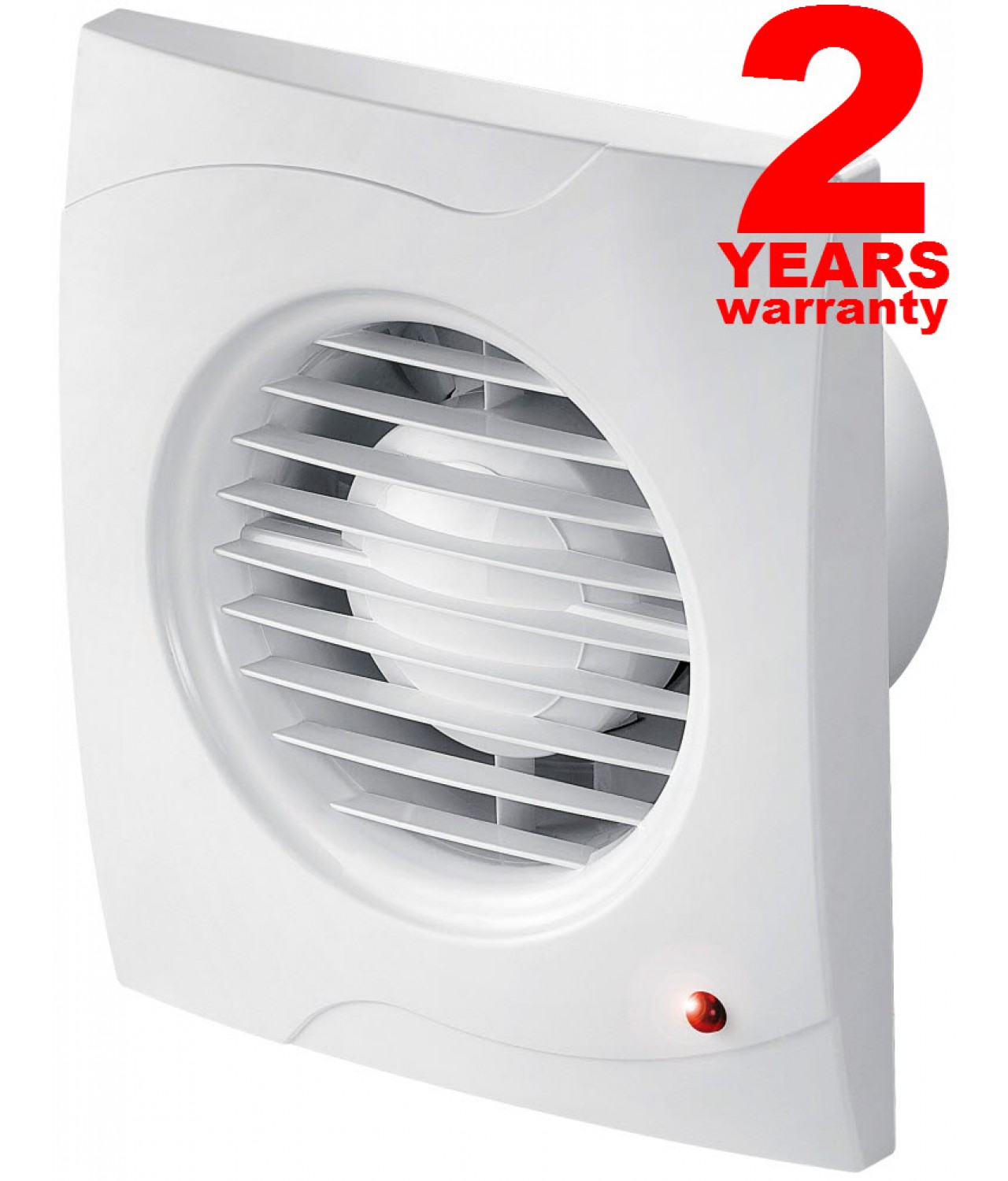

Bathroom fan VECCO

  • VECCO - bathroom fans with 62 mm short connection, the fan can be selected from the following modifications:
  1. standard
  2. T - with timer
  3. W - with pull cord switch
  • can be mounted in any position, in the wall or ceiling
  • standard and W models - to connect use two-core cable
  • H, T models - to connect use tree-core cable
  • ABS plastic housing
  • mount with screws (supplied)
  • made in Poland
  • 2 years warranty

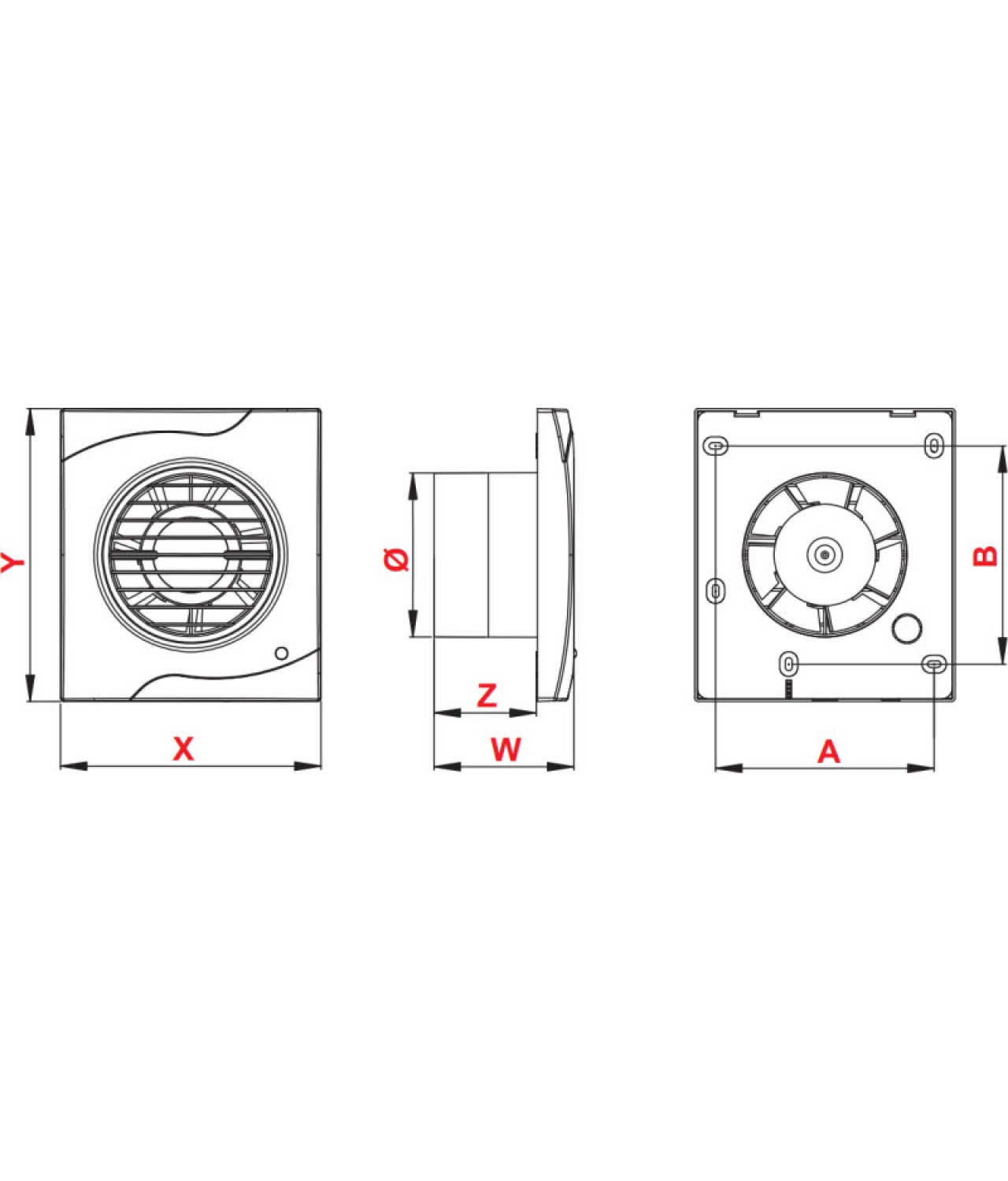

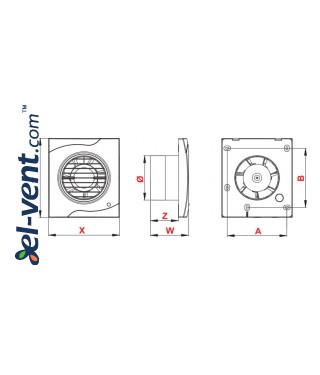

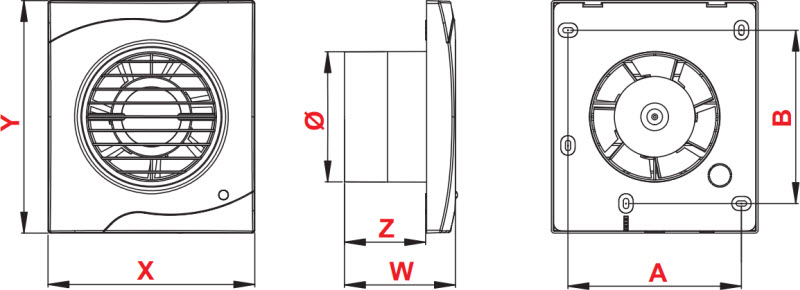

Kodas
Ø
A
B
X
Y
W
Z
VECCO100
100
133
133
159
179
85
62



Code
Voltage, V
Frequency, Hz
Power, W
Capacity, m³/h
Noise level, dB
Protection class IP
Pressure,
Pa
VECCO100
230
50
10
98
35
X4
33



Connection to the power supply:

Standard and W models
N - null
L - phase





H, T and CTR models
T - phase through switch
N - null
L - phase
